QoS and security using traditional services for new ends

1

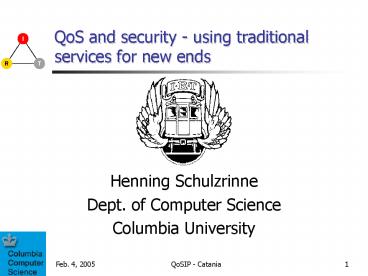

QoS and security - using traditional services for
new ends

• Henning Schulzrinne
• Dept. of Computer Science
• Columbia University

2
Overview

• Some impolite remarks about network research and
  QoS
• QoS challenges in real networks
• NATs and firewalls
• DOS
• reliability
• Permission-based networking
• GIMPS next steps in signaling

3
Impolite remarks on QoS and network research
4
Lifecycle of technologies
traditional technology propagation
military
corporate
consumer
opex/capex doesnt matter expert support
capex/opex sensitive, but amortized expert
support
capex sensitive amateur
Can it be done?
Can I afford it?
Can my mother use it?
5
Networking research is fashion-driven
workshop white paper
DARPA, NSF ?
EU Nth framework
trailing-edge research
Sigcomm Infocom Mobicom ICNP
networking courses First (European) workshop on X
-- YAP on X
secondary conferences
ATM DQDB QoS
mobile networks wireless ad-hoc, sensor
active networks
6
Impact of network research

• Whats promising/interesting two different
  axes
• Intellectual merit ? interesting analysis,
  broadly applicable,
• Satisfies practical needs ? may not be a
  scientific breakthrough
• Field has few grand challenges and metrics
• cf., speech understanding or face recognition
• Depends largely on external technology inputs
• faster CPUs, better optical gear, compression
• typical performance improvements in queueing
  20-50

• Networking research impact
• on deployed systems and protocols?
• on understanding network behavior?
• on other papers?
• Which of the 10,000 QoS papers had real impact?
• What papers were responsible for most important
  networking advances?
• TCP ?, web?, email?

7
Maturing network research

• Old questions
• Can we make X work over packet networks?
• All major dedicated network applications (flight
  reservations, embedded systems, radio, TV,
  telephone, fax, messaging, ) are now available
  on IP
• Can we get M/G/T bits to the end user?
• Raw bits everywhere any media, anytime,
  anywhere
• New questions
• Dependency on communications ? Can we make the
  network reliable?
• Can non-technical users use networks without
  becoming amateur sys-admins? ? auto/zeroconfigurat
  ion, autonomous computing, self-healing networks,

• Can we prevent social and financial damage
  inflicted through networks (viruses, spam, DOS,
  identity theft, privacy violations, )?

8
Observations on network research

• Frustration with inability to change network
  infrastructure in less than 10 -- 20 year
  horizons
• IPv6
• Layer-3 multicast
• QoS
• Security
• Network research community has dismal track
  record for new applications
• web, IM, P2P (Gnutella, BitTorrent), vs.
  video-on-demand
• Niche applications get disproportionate attention
• active networks, ad-hoc networks, (structured)
  P2P
• successful applications dont care if they dont
  scale
• centralized IM search, unstructured P2P,
• Disconnect from standardization
• Few attempts to bring research work into
  standards bodies
• Standards bodies slow to catch up (e.g., P2P)

9
Why do good ideas fail?

• Research O(.), CPU overhead
• per-flow reservation (RSVP) doesnt scale ? not
  the problem
• at least now -- routinely handle O(50,000)
  routing states
• Reality
• deployment costs of any new L3 technology is
  probably billions of
• Cost of failure
• conservative estimate (1 grad student year 2
  papers)
• 10,000 QoS papers _at_ 20,000/paper ? 200 million

10
Cause of death for the next big thing
11
QoS

• QoS is meaningless to users
• difficult to engineer service that is
  consistently poor, but usable
• common QoS models now
• scavenger service (worse-than-best-effort) ?
  self-protection
• DiffServ on access routers and NAT boxes
• care about service availability ? reliability
• but most commercial service is good enough for
  VoIP/video/ most of the time
• charging model problem ? users will arbitrage and
  buy basic quality except during congestion
  periods
• see multi-homing vs. high-end providers
• as more and more value depends on network
  services, can't afford random downtimes

12
Why did QoS (mostly) fail?

• hypothesis The success of a technology is
  inversely proportional to the number of papers
  published before its popularity.
• ACM 10,158 papers with QoS or quality of
  service in abstract
• IEEE 7,297 papers
• real-time streaming video-on-demand ? DVD via
  Netflix or TCP onto 200 GB hard disk

• bandwidth too cheap to meter
• undemocratic some traffic is more equal than
  others
• reminds you of your mom no, you cant have that
  10 Mb/s now
• socialist administer scarcity - we like SUVs (or
  to drive 100 mph)!
• risky scheme security
• only displacement applications (such as
  telephony) need QoS
• requires cooperation edge-ISP, transit ISPs, end
  systems
• snake oil add QoS, lose half your bandwidth

13
Why did QoS fail? (contd)

• dishonesty we only talk about the beneficiaries
• network has become harder to evolve
• network address translation
• firewalls
• high packetization overhead (VPNs, IPv6)
• to be useful, has to be nearly universally
  supported (no, you cant make calls to AS 123)
• network QoS vs. business class model coach is
  empty, please refund fare

• currently, the ISP interface is IP and BGP
  adding a third one is a big deal
• new Internet service model TCP client (inside)
  server (outside)
• exception peer-to-peer on college campuses
• network to host you first, no, you first
• failure of IP QoS ? success of MPLS
• more TE than QoS

14
Where did QoS technology succeed?

• Edge network
• VLAN prioritization
• 802.11e MAC layer priority
• IP TOS byte (not quite DiffServ) known since
  1980s
• Docsis/PacketCable ? application-initiated
• Mostly deals with self-interference
• No admission control
• No authorization (except Docsis)

15
Network reliability

• we dont know precisely why network applications
  fails
• components and backbones appear to pretty
  reliable
• but we measured at 99.5 of usable time ? far
  below 99.999 in telecom networks
• lots of possible culprits, including DNS and
  carrier interconnects
• temporary overloads
• reduce operator errors
• e.g., XCONF effort in IETF
• inherently safe or fail-safe protocols?
• faster convergence in routing protocols
• BGP ? up to 20-30 minutes!

16
New applications need for QoS?

• New bandwidth-intensive applications
• Reality-based networking
• (security) cameras
• Distributed games often require only
  low-bandwidth control information
• current game traffic VoIP
• Computation vs. storage vs. communications
• communications cost has decreased less rapidly
  than storage costs
• Emphasis on user control of communications
• from anywhere, anytime, any media to where
  appropriate, my time, my media
• Guess 1 user-selected research problem fix
  spam
• 2 keep cell phone from ringing in the movie
  theater

17
New network architectures for security
18
Security challenges

• DOS, security attacks ? permissions-based
  communications
• only allow modest rates without asking
• effectively, back to circuit-switched
• Higher-level security services ? more
  application-layer access via gateways, proxies,
• User identity
• problem is not availability, but rather
  over-abundance

19
Trustability Internet decay

• Decay of inner cities small number of bad
  elements lack of social controls and law
  enforcement
• Small number of miscreants
• The bulk of U.S. spam is coming from a very
  limited set of IPs with high-bandwidth
  connections," said Alperovitch, who estimated
  that the high-volume spamming addresses number
  fewer than 10,000 and the number of spammers at
  less than 200. (Informationweek, Aug. 2004)
• Naïve users
• with increasing firepower

20
Trustability problems

• Traditional security didnt solve user interface
  problem
• is citi-bank.com my bank or phishing?
• traditional firewall (crunchy outside, squishy
  inside)
• fails with any content even JPEGs arent safe
• email usability rapidly decreasing
• most spam proposals unlikely to work
• notion of global village is an oxymoron
• in a village, you know your neighbors
• on-going approaches useful, but limited
• conversion of protocols to secured versions
  (e.g., via TLS)
• prevent source address spoofing
• OS and application robustness against buffer
  overflow attacks
• IETF MARID (SenderID, SPF, ) for email sender
  identification
• DOS traceback
• thus, may need to rethink network architecture

21
Trustability A more polite Internet

• introduce yourself first
• shoot first, ask later (Bush)
• ask first, shoot later (Kerry)

yes, up to 10 kb/s
may I send?

• limits large-scale DDOS
• more circuit-oriented
• may get permission slip for future use

22
Restoring the village part of the global village

• Its not what you know, its who you know
• Authentication works only if addresses can be
  recognized by policy or human
• Doesnt work well for first-time contacts ? much
  of communications
• wont be fixed by SPF and SenderID
• Need to leverage indirect knowledge
• our approach social networks for recognizing
  users in SIP systems
• leverage knowledge across media visiting web
  page enables receipt of email from related
  address ? make phishing more difficult

23
GIMPS a modular data plane signaling protocol
(with Robert Hancock, Hannes Tschofenig, S. van
den Bosch, G. Karagiannis, A. McDonald, X. Fu and
others)
24
Overview

• Signaling application vs. data plane
• Resource control
• DiffServ vs. IntServ
• Whats wrong with RSVP?
• Components of a general solution
• NSIS NTLP (GIMPS) NSLP
• Route change detection

25
Signaling the big picture
SIP proxy server
session signaling
off-path NE
off-path signaling
data
AS2
AS1
on-path signaling
datapath signaling
26
Need for data plane state establishment

• Differentiated treatment of packets
• QoS
• firewall (loss 100 vs. loss 0)
• Mapping state
• network address translation (NAT)
• Counting packets
• accounting
• Other state establishment
• setting up active network capsules
• MPLS paths
• pseudo-wire emulation (PWE) T1 over IP
• Related visit subset of data path nodes, but
  dont leave state behind
• diagnostics ? better traceroute
• link speeds, load, loss, packet treatment,

27
On-path vs. off-path signaling

• On-path (path-coupled) visit subset of routers
  on data path
• Off-path (path-decoupled) anything else, but
  presumably roughly along data path
• one proposal one touch point for each AS
• bandwidth broker
• difficult part is resource tracking, not
  signaling
• No fundamental differences in protocol ? separate
  out next-hop discovery to allow re-use

28
Differentiated packet handling

• Not just QOS, but also
• firewall
• network address translation
• accounting and measurement

filter management
IntServ
DiffServ
traffic shaping, handling measurement
traffic filtering
29
DiffServ ? IntServ

• Filter always uses packet characteristic
• 5-tuple (protocol, source/destination address
  port) global label (TOS)
• multiple flows can be mapped to one treatment
  mechanism

30
The scaling bogeyman
It doesnt scale!

• Networks routinely handle large-scale per-flow
  state
• firewalls
• NATs
• scaling cost per flow is constant (or
  decreasing)
• flow numbers are modest
• OC-48 can handle 31,875 DS-0 voice calls
• Mean call duration 9 min ? 60 requests/second
• probably about 3 MB of data
• partially explained by poor initial RSVP
  explanations
• where flow search time O(N) rather than O(1)
• likely limitations are in AAA, not router
  signaling

31
RSVP characteristics

• soft-state state vanishes if not refreshed
• two-pass signaling path discovery reservation
• receiver-based resource reservation
• separation of QoS signaling from routing
• with some router feedback

32
The problem with RSVP

• Designed for QoS establishment, used mostly for
  other things (RSVP-TE)
• Designed for large-scale IP multicast ? customer
  never materialized
• adds significant complexity
• receiver-based ? PATH RESV
• designed for ASM (any-source) rather than SSM
  (source-specific)
• receiver-based motivated by receiver diversity
  not very useful in practice
• Designed in simpler days (1997)
• does not work well with mobile nodes (IP mobility
  or changing IP addresses)
• no support for NATs
• security mostly bolted on non-standard
  mechanisms
• single-purpose, with no clear extensibility model
• very primitive transport mechanism
• either refresh or exponential decay (refresh
  reduction, RFC 2961)

33
The cost of multicast for RSVP

• reservation styles
• multiple senders in same group shared vs.
  distinct
• sender selection explicit vs. wildcard
• receiver-oriented
• motivated by heterogeneous
• can do leaf-initiated join rather than
  root-initiated
• but still need periodic PATH to visit new
  sub-tree
• three different flow specs
• Sender_TSpec, ADSpec, (TSpec, RSpec)
• fairly tightly woven into core protocol
• state merging and management
• killer reservation (KR-II)
• generally, error handling problematic

60
20
60
30
10
20
20
40
60
20
60
ResvErr!
10
20
40
60
draft-fu-rsvp-multicast-analysis
34
IETF NSIS working group

• chartered in Dec. 2001, after BOF in March 2001
• Motivated by Bradens two-layer model
  (draft-lindell-waypoint, draft-braden-2level-signa
  l-arch)
• Active participation from Roke Manor, Siemens,
  NEC Europe, Nokia, Samsung, Columbia
• Based partially on CASP protocol designed by
  Columbia/Siemens group and prototyped at UKy

35
NSIS protocol structure
NSLP (C)
QoS, NAT/FW,
NTLP (GIMPS)
GIMPS
transport layer
UDP, TCP, SCTP IP router alert

• client layer does the real work
• reserve resources
• open firewall ports
• messaging layer
• establishes and tears down state
• negotiates features and capabilities

• transport layer
• reliable transport

36
NSIS properties

• Network friendly
• congestion-controlled
• re-use of state across applications
• application-neutral
• add more applications later
• transport neutral
• any reliable protocol
• initially, TCP and SCTP
• also, UDP for initial probing
• policy neutral
• no particular AAA policy or protocol
• interaction with COPS, DIAMETER needs work

• soft state
• per-node time-out
• explicit removal of state
• extensible
• data format
• negotiation

37
NSIS properties, cont'd.

• Topology hiding
• not recommended, but possible
• Light weight
• implementation complexity
• security associations (re-use)
• may not need kernel implementation

38
What is GIMPS?

• Generic signaling transport service
• establishes state along path of data
• one sender, typically one receiver
• can be multiple receivers ? multicast (not in
  initial version)
• can be used for QoS per-flow or per-class
  reservation
• but not restricted to that
• avoid restricting users of protocol (and
  religious arguments)
• sender vs. receiver orientation
• more or less closely tied to data path
• initially, router-by-router (path-coupled)
• later, network (AS) path (path-decoupled)

39
NSIS network model path-coupled
selective
NTLP chain
QoS
QoS
QoS midcom
omnivorous

• NTLP nodes form NTLP chain
• not every node processes all client protocols
• non-NTLP node regular router
• omnivorous processes all NTLP messages
• selective bypassed by NTLP messages with unknown
  client protocols

40
Network model path-decoupled
Bandwidth broker NAC
NTLP
AS15465
AS17
AS 1249
data

• Also route network-by-network
• can combine router-by-router with out-of-path
  messaging

41
GIMPS messages

• Regular NTLP messages
• establish or tear down state
• carry client protocol
• datagram (D) or connection (C) mode
• Hop-by-hop reliability
• Generated by any node along the chain

42
NSIS transport protocol usage

• Most signaling messages are small and infrequent
• but
• not all applications ? e.g., mobile code for
  active networks
• digital signatures
• re-"dialing" when resources are busy
• Need
• reliability ? to avoid long setup delays
• flow control ? avoid overloading signaling server
• congestion control ? avoid overloading network
• fragmentation of long signaling messages
• in-sequence delivery ? avoid race conditions
• transport-layer security ? integrity, privacy

• This defines standard reliable transport
  protocols
• TCP
• SCTP
• Avoid re-inventing wheel ? see SIP experience

43
GIMPS transport protocol usage

• One transport connection ? many NSLP sessions
• may use multiple TCP/SCTP ports
• can use TLS for transport-layer security
• compared to IPsec, well-exercised key
  establishment
• not quite clear what the principal is
• re-use of transport ?
• no overhead of TCP and SCTP session establishment
• avoid TLS session setup
• better timer estimates
• SCTP avoids HOL blocking

44
Message forwarding

• Route stateless or state-full
• stateless record route and retrace
• state-full based on next-hop information in C
  node
• Destination
• address ? look at destination address
• address record ? record route
• route ? based on recorded route
• state forward ? based on next-hop state
• state backward ? based on previous-hop state
• State
• no-op ? leave state as is
• ADD ? add message (and maybe client) state
• DEL ? delete message state

45
Message format
common header
extensions
client protocol data

• No GIMPS distinction between requests and
  responses
• just routed in different directions
• client protocol may define requests and responses
• Common header defines
• destination flag
• state flag
• session identifier
• traffic selector identify traffic "covered" by
  this session
• message sequence number
• response sequence number
• message cookie ? avoid IP address impersonation
• origin address ? may not be data source or sink
• destination address or scope

46
Message format, cont'd

• Limit session lifetime
• Avoid loops ? hop counter
• Mobility
• dead branch removal flag
• branch identifier
• Record route gathers up addresses of NSIS nodes
  visited
• Route addresses that NSIS message should visit

47
Capability negotiation

• NSIS has named capabilities
• including client protocols
• Three mechanisms
• discovery count capabilities along a path
• "10 out of 15 can do QoS"
• record record capabilities for each node
• require for scout message, only stop once node
  supports all capabilities (or-of-and)
• avoid protocol versioning

48
Next-hop discovery

• scout messages are special NSIS messages
• limited lt MTU size
• addressed to session destination
• UDP with router alert option ? get looked at by
  each router
• reflected when matching NSIS node found

next IP hop NSIS-aware?
existing transport connection?
Y
Y
done
N
N
use D mode to find next NSIS hop
establish transport connection
49
Mobility and route changes

• avoids session identification by end point
  addresses
• avoid use of traffic selector as session
  identifier
• remove dead branch

DEL (B2)
discovers new route on refresh
B1
ADD B2
50
QoS-NSLP resource reservation

• NSLP for signaling QoS reservations in the
  Internet
• both sender- and receiver-initiated reservations
• soft-state
• peer-to-peer signaling and refresh (rather than
  end-to-end)
• bundled sessions (e.g., video audio)
• agnostic about QoS models (IntServ, DiffServ,
  RMD, )

51
QoS-NSLP sender-initiated reservation
QNI
QNE
QNE
QNR
RESERVE
(RSN 4)
RESERVE
(RSN 17)
RESERVE
(RSN 3)
RESPONSE
RESPONSE
RESPONSE
52
QoS-NSLP receiver-initiated reservation
QNI
QNE
QNE
QNR
QUERY
QUERY
QUERY
RESERVE
RESERVE
RESERVE
RESPONSE
RESPONSE
RESPONSE
53
QoS flow aggregation
aggregate
QoS-NSLP style (RFC 3175)
traffic sink (LAN)
sinktree style (BGRP)
54
Route change detection

• Dont want to wait for periodic rediscovery
  delay of 30s
• Not all route changes matter
• e.g., only changes between NSIS routers
• Data plane detection
• TTL change of arriving data packets
• propagation delay change for data packets
• monitoring propagation delay ( min(e2e delay))
• increases in packet loss or jitter

55
Route change measurements

• 12 measurement sites (looking glass)
• one traceroute every 15 ? 2.75 hours per pair
• availability 99.8
• 0.1 repeated IP addresses
• 4.4 single hop with multiple IP addresses
• 422 route changes observed after data cleanup
  (13,074 records)
• 67 out of 422 also showed AS changes
• often, indicates multi-homing

56
Route changes
57
On-going and planned work

• Finish NTLP (GIMPS) and NSIS clients (NAT-FW and
  QoS)
• Longer term off-path signaling (new WG?)
• New applications diagnostics
• Mobility support

58
Conclusion

• QoS deployment 25 year old technology at edge
  only
• can do 95 with 5 complexity
• Security concerns trump utilization optimization
• prioritize user traffic ? deny resources to
  attacker
• GIMPS a re-engineered generic signaling mechanism
