A longitudinal study of brain development

1

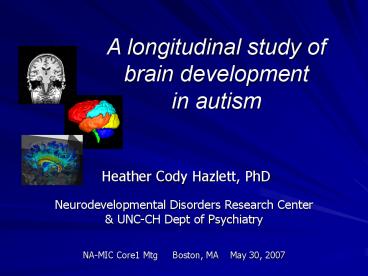

A longitudinal study of brain development in
autism
Heather Cody Hazlett, PhD Neurodevelopmental
Disorders Research Center UNC-CH Dept of
Psychiatry NA-MIC Core1 Mtg Boston, MA May
30, 2007
2
Overview

• Summary of hypotheses
• Data available to NA-MIC
• Specific requirements/constraints of project
• Existing image processing of data
• Resources

3
Longitudinal MRI study of brain development in
autism
4
Features of Autism
5
Longitudinal MRI study of brain development in
autism

• AIMS
• To characterize patterns of brain development
  longitudinally in autism cases versus controls
  (TYP, DD)
• To examine cross-sectional longitudinal
  relationships between selected brain regions and
  behavioral characteristics associated with autism

6
Longitudinal MRI study of brain development in
autism

• Hypotheses
• Brain enlargement will be present in autism
  cases compared to controls (TYP, DD)
• Brain differences in specific substructures of
  interest will be seen in autism cases compared to
  controls, and these differences will correlate
  with symptoms of autism and/or severity of
  features

7
Developmental Studies

• Difficult for very young children and/or lower
  functioning children to remain still
• May need to remain motionless for long periods of
  time
• Sleep studies vary in success rates
• Subjects may require training and practice this
  adds to expense of project

8
Data Available
9
Data Available

• Structural MRI
• Diffusion Tensor
• Behavioral, cognitive, developmental
• Processed pediatric longitudinal data

10
Data

• Structural MRI
• TI coronal 3D SPGR IRprep, 0.78 x 0.78 x 1.5
  mm, 124 slices, 5 TE/12 TR, 20 FOV, 1 NEX,
  256x192
• PD/T2 coronal FSE, 0.78 x 0.78 x 3.0 mm, 128
  slices, 20 FOV, 17 TE/7200 TR, 1 NEX, 256x160
• DTI
• axial oblique 2D spin echo EPI, 0.93 x 0.97 x
  3.8 mm, 30 slices, 24 FOV, 12 dir

All scans collected on 1.5T GE scanner
11
Data

• Processed datasets

Time1 (2 yr old) Time2 (4 yr
old) EMS/lobes CN AMYG EMS/lobes CN
AMYG Autism 49 51 47
29 31 31 (2 CS) DD 12
9 10 6 5
6 Typical 25 22 21
11 12 10 FX 45
47 47 11 11 10
Also have segmented data for Put/GP, Hipp, CC
area, Ventricles, Ant Cing, Cerebellar vermis
12
Requirements/Contraints
13
Requirements/Constraints

• Registration of images to a common atlas
• Inhomogeneities bias correction
• Tissue contrast myelination
• Brain shape changes across development

14
Existing Image Processing
15
Tissue segmentation
EMS hard segmentations
EMS segmentations overlaid on MRI
Shown here 2 year old
16
Lobe parcellation by template warping
Manually-derived parcellation warped to new
subjects
17
UNC Longitudinal MRI Study of Autism

• N male years (SD) IQ-SS (SD)
• Autism 51 88 2.7 (0.3) 54.2
  (9.4)
• Controls 25
• DD 11 55 2.7 (0.4) 59.7
  (9.4)
• TYP 14 64 2.4 (0.4) 107.5
  (18.7)
• IQ-SS Mullen composite Standard Score

Hazlett et al Arch Gen Psych 2005
18
UNC Longitudinal MRI Study of Autism

• autism controls
• mean (SE) mean (SE) diff p
• TBV 1264.6 (13.4) 1208.1 (16.2)
  4.7 0.008
• cerebrum 941.5 (10.5) 890.5 (12.3)
  5.7 0.002
• cerebellum 114.1 (1.5) 114.4 (2.2)
  0.3 0.9

Adjusted for Gender and Age
19
UNC Longitudinal MRI Study of Autism

• autism controls
• mean (SE) mean (SE) diff p
• TBV 1264.6 (13.4) 1208.1 (16.2)
  4.7 0.008
• cerebrum 941.5 (10.5) 890.5 (12.3)
  5.7 0.002
• gray 676.7 (7.7) 644.2 (8.8) 5.0
  0.005
• white 264.7 (3.1) 246.2 (3.7) 7.5
  0.0001
• cerebellum 114.1 (1.5) 114.4 (2.2)
  0.3 0.9

20
Segmented Substructures (ROIs)

• Basal ganglia
• Caudate
• Putamen
• Globus pallidus
• Amygdala
• Hippocampus

21
Descriptives

• Years Cognitive Adaptive
• Group N Male M (SD) M (SD) M (SD)
• autism 52 87 2.7 (0.3) 54.1 (9.3) 60.8
  (5.9)
• controls 33 70 2.6 (0.5) 87.4
  (28.6) 850.4 (21.1)
• developmental delay 12 67 2.8 (0.4)
  55.5 (6.7) 65.8 (14.0)
• typically developing 21 71 2.4 (0.5)
  106.6 (16.8) 98.3 (13.4)

Cognitive estimate from Mullen Composite
Standard Score Adaptive behavior estimate
from Vineland Adaptive Behavior Composite
22
Basal Ganglia Volumes in 2 Year Olds with
Autism(adjusted for TBV)
Aut v Total Controls Aut v TYP
Aut v DD diff (SE) p
diff (SE) p diff
(SE) p Caudate .50 (.29) .094
7 0.8 (.31) .013 12 .20
(.43) .65 3 Globus Pallidus
.16 (.29) .09 6 .17 (.10)
.094 6 .16 (.12) .20 6
Putamen -.16 (.20) .410 -
2 -.19 (.22) .380 -2 -.14 (.25)
.594 -2 Note - all comparisons
also adjusted for age and gender
23
Amygdala/Hippocampus Volume in 2 Year Olds with
Autism
(adjusted for TBV)
Aut v Total Controls Aut v TYP
Aut v DD diff (SE) p
diff (SE) p diff
(SE) p amygdala .35
(.12) .004 10 .55 (.11) lt.001
16 .16 (.17) .336
3 hippocampus .03 (.11)
.78 1 -.03 (.14) .841 0
.09 (.15) .55 2 Note all
comparisons also adjusted for age and gender
24
Other ROIs

• Corpus callosum (midsaggital)
• Ventricles
• Anterior Cingulate
• Cerebellar vermis

25
Surface growth maps cortical thickness by lobe
age 2 4
26
Resources

• CS programmer Clement Vachet
• Image processing RA support (unfunded)
• Image processing lab at UNC and existing NA-MIC
  Cores

27
NA-MIC Collaboration

• Possible Goals/Projects
• Pipelines for growth-rate analysis
• Longitudinal analysis of cortical thickness,
  cortical folding patterns, etc.
• Quantify shape changes over time to allow for
  analysis with behavioral data
• Development of new segmentation protocols
  (e.g., dorsolateral prefrontal cortex)

28
NA-MIC Collaboration

• Our site can offer NAMIC collaborators
• Existing pediatric dataset of sMRI DTI
• Longitudinal data (imaging behavioral)
• Segmented datasets to be used as validation
  tools (e.g., comparison to FreeSurfer)
• Already collaborating with NA-MIC (e.g.,
  multiple shape analysis papers at MICCAI, shape
  analysis component already in Slicer)

29
Contributors
Martin Styner, PhD Allison Ross, MD James
MacFall, PhD Alan Song, PhD Valerie Jewells, MD
James Provenzale, MD Greg McCarthy, Ph.D. John
Gilmore, MD Allen Reiss, MD UNC Fragile X
Center NDRC Research Registry Funded by the
National Institutes of Health

• Joe Piven, MD
• Guido Gerig, PhD
• Sarang Joshi, PhD
• Michele Poe, PhD
• Chad Chappell, MA
• Judy Morrow, PhD
• Nancy Garrett, BS, OTA
• Robin Morris, BA
• Rachel Smith, BA
• Mike Graves, MChE
• Sarah Peterson, BA
• Matthieu Jomier, MS
• Carissa Cascio, PhD
• Matt Mosconi, PhD
