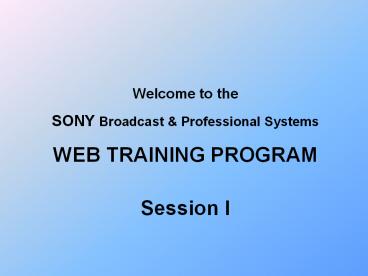

Welcome to the

1

• Welcome to the
• SONY Broadcast Professional Systems
• WEB TRAINING PROGRAM

Session I
2

• Introductory Comments

Andy Munitz National Training Manager
3
Sony Distributor Training

• Christopher J. Soltesz
• Pro AV/Display SSE
• 9/9/04

4
DVCAM Camcorders
5
Acquisition Systems

16K 10K 7K 5K 3K 1K
DSR-570WSL
DSR-390L
DSR-250
DSR-PD170
DSR-PDX10
6
DSR-PDX10 Camcorder

• DVCAMs Swiss Army Knife
• News Stringer, Independent Film, Event
  Videography, Govt/Education
• i.LINK and USB-2 Capable
• 1/4.7 CCD
• One Million Pixels
• Super Steady Shot
• True 169 Image Capture
• List Price 2,395.00

7
DSR-PD170 Camcorder

• The Industry Standard Camcorder for Virtually All
  Video Applications Has Been Improved!!
• 169 Capable
• NTSC/PAL Available
• List Price 3,940.00

8
DSR-PD170 New Features

• New Advanced HAD CCDs
• Minimum illumination 1 lux (PD150 rated 2 lux)
• Audio S/N Ratio improved by 6dB (in manual mode)
• Wide Conversion Lens (VCL-HG0758 0.7X) included
• New Lens Hood

9
DSR-PD170 New Features

• On handle zoom lever and Record start/stop button
• Larger Handle and Viewfinder
• Increased adjustment steps in Iris control (12 to
  24)
• Simultaneous operation of both LCD and Viewfinder
• Same Price!!

10
DSR-250 Camcorder

• ENG/Event Videography
• Super SteadyShot/Optical Stabilzation System
• 12 x Lens with 48 x Digital Zoom
• Three 1/3 380K Pixel CCD
• 169 Capable
• Standard and MiniDV Cassettes
• DVCAM and DV Format
• Built-In LCD Screen
• List Price 5,530.70
• Order the DSR250PAC (includes VCT-U14 Tripod
  Mounting Plate

11
DSR-390 Camcorder

• ENG, EFP or Studio Configuration
• DSP Digital Signal Processing
• Three 1/2 Type Power HAD EX CCDs
• 65dB S/N, -115dB Smear
• F13 _at_ 2000 lux Sensitivity
• 0.4 lux Min Illumination
• True Eye Color Process
• DynaLatitude
• List Price 9,870.00

12
DSR-570 Camcorder

• ENG, EFP, or Studio Configuration
• 2/3 169 Native Power HAD CCDs
• All Digital Camcorder
• 43/169 Switchable
• Advanced Digital Signal Processing
• ENG, Independent, Feature Movie Production,
  Government/Education
• List Price 18,000.00

13
Camera Lenses 101

• All Sony ½ and 2/3 cameras have removable
  lenses
• Sony uses standard Bayonet Mount
• Specific Lenses for Imager sizes
• Lens Models are named by size
• ½ Canon YH, Fujinon S
• 2/3 Canon YJ, Fujinon A
• Rear Lens controls are not interchangeable
  between manufacturers

14
DVCAM VTRs
15
VTR Line-up

20K 15K 9K 7K 5K 3K 2K
DSR-85
DSR-1500A
DSR-45
DSR-25
16
DVCAM VTR Capabilities

• Master Series (BP)
• Studio Deck
• RS-422 Editing Control
• Full Complement of Digital/Analog I/Os (Some may
  be Opt.)
• Jog/Shuttle Control
• DVCPRO Playback
• Frame Accurate Edit Capability
• Not so Inexpensive

• PV Series
• Simple Servo System
• i.LINK ONLY Digital I/O
• Perfect for DV NLEs
• Not a lot of Bs Ws
• Not Editing decks
• Inexpensive

17
DSR-11 VTR

• Basic DVCAM Deck Great for NLEs
• DV-SP Record and Playback
• Standard and Mini Cassette Size
• PAL/NTSC Switchable
• Timecode Recording via DV IN
• Composite, Y/C I/O
• i.LINK
• List Price 2,052.00

18
DSR-25 VTR

• Built in LCD Monitor and Front Panel Display
• DVCAM DV-SP Record and Playback
• Standard and Mini Size Cassette
• PAL/NTSC Switchable
• Compact Size (half-rack size width, 2U height)
• Duplication (Including Cassette Memory)
• Timecode Recording via DV IN
• Timecode/User Bit Preset
• i.LINK, Composite, Y/C I/O
• List Price 3,300.00

19
DSR-30 VTR

• DVCAM Player/Recorder
• Built in Control Tray with jog/shuttle dial
• Standard and Mini size Cassette
• Only DVCAM Deck that provides Letterbox
  capability
• Time Code Reader/Generator
• LANC Control
• i.LINK
• List Price 4,717.14

20
DSR-45 VTR

• Built in LCD Monitor and Front Panel Display
• DVCAM DV-SP Record and Playback
• Standard and Mini Size Cassette
• Compact Size (half-rack size width, 2U height)
• Duplication (Including Cassette Memory)
• Timecode Recording via DV IN
• Timecode/User Bit Preset
• Component I/O and 4Ch. XLR Outputs
• i.LINK, Composite, Y/C I/O
• RS232C and RS422A Control
• List Price 4,606.66

21
DSR-50 Portable VTR

• Portable Field Recorder
• Built in LCD Monitor and Front Panel Display
• DVCAM DV-SP Record and Playback
• Standard and Mini Size Cassette
• Battery Powered (BP style)
• Component I/O and 4Ch. XLR Inputs (Mic or Line)
• i.LINK, Composite, Y/C I/O
• LP 6,050.00

22
DSR-1500A VTR

• DVCAM, DV DVCPRO Playout Without Adaptor or
  Menu Changes
• i.LINK output from DVCAM, DV DVCPRO tapes
• Frame Accurate Insert Edit Capability
• Full Digital and Analog Interface Options
• Half Rack, 3RU High
• List Price 6,245.00

23
DSR-1600 VTR

• Studio DVCAM Editing Player
• DVCAM, DV DVCPRO Playout Without Adaptor or
  Menu Changes
• Frame Accurate Edit Capability
• Component, Composite and Y/C outputs
• Full Digital Interface Options
• 3RU High
• List Price 6,510.00

24
DSR-1800 VTR

• Studio DVCAM Editing Recorder
• DVCAM, DV DVCPRO Playout Without Adaptor or
  Menu Changes
• Frame Accurate Insert Edit Capability
• Component, Composite and Y/C I/O
• Full Digital Interface Options
• 3RU High
• List Price 9,300.00

25
DSR-2000 VTR

• Ultimate in 25 Mbps Recording
• Ideal for All 1/4 Digital Video Production
• Playback of All DV (25 Mbps) Family Formats
• Studio Editing Recorder
• Front Panel Editing Control
• Standard Analog and Digital I/Os
• Pre-read Function
• Double Scan Playback
• Optional i.LINK
• List Price 14,750.00

No DVCPRO Output from DV I/O
26
DSR-2000 Playback Compatibility

• Playback capability of DV(SP), DV(LP), DVCAM and
  DVCPRO.
• DVCPRO Video output via all analog interfaces
  SDI.
• No DVCPRO recorded tape output via i.LINK or
  SDTI(QSDI) - Data structure of DVCPRO is
  proprietary.
• Recording format is DVCAM only.

27
DSR-2000 Exclusive Double-Scan Playback
28
DSR-2000 Exclusive Double-Scan Playback
29
DSR-70A VTR

• DVCAM Field Editor
• Digital slow motion (x50)
• DMC and Jog Audio
• DV / DVCAM / DVCPRO playback
• Dual video input capability
• Optional digital interfaces
• (SDI/SDTI(QSDI)/i.Link)
• DSBK-160A w/ SDI i.Link
• List Price 13,100.00

30
DSR-1/1 Dockable VTR

• Dockable DVCAM Recorder
• Docks to DXC cameras (DXC-D50, D35, D30, etc.)
• Mini and Standard Cassettes
• Dual Pro 50 and Pro 76-pin interfaces
• Time Code Generator Reader
• List Price 8,475.00

31
DVCAM HDDs
32
DSR-DU1 Digital HDD Unit

• DSR-DU1 Features a Compact Size, Weighing 1 Lb. 1
  Oz.
• Sony's Latest Work Flow Innovation Tool in
  Editing and Post-production Technology
• Employs a 2.5" 40GB Hard Disk Drive Storing 3
  Hours of DVCAM Video
• 2x File Transfer Capability via SBP2
• File Transfer via SBP2 enables NLE Drag Drop
  Capability
• 8 sec. Cache Memory
• VTR-Like Operation
• 2,250.00 LP

33
DSR-DR1000 HDD Recorder

• Stores up to Six Hours of DVCAM/DV Video and
  Audio
• Offers Simultaneous Playback and Recording
• Straight Recording and Edit-Feeding Application
• VTR-like Control Panel with Jog/shuttle Dial
• Ethernet interface for file transfer of DV video
  and audio
• i.LINK interface with AV/C and SBP2 protocols
• Variable speed playback within -2 to 2X
• Clip Segment Playback

34
DSR-DR1000 HDD Recorder

• High Quality Affordability
• Performance equivalent to DVCAM Master Series
• Full complement of analog and digital interfaces
• Compact, lightweight design
• Low cost 6,040.00 LP

35
J JH Series Multi- Format Players
36
Line-up of ½ SD Compact Players

• All include i.LINK interface as standard
• J-10 Compact Player with i.LINK and analog
  component video output Betacam, Betacam SP,
  Betacam SX playback compatibility.
• J-10SDI Compact Player with i.LINK and SDI output
  Betacam, Betacam SP, Betacam SX playback
  compatibility.
• J-30 Compact Player with i.LINK and analog
  component video output Betacam, Betacam SP,
  Betacam SX, MPEG IMX, and Digital Betacam
  playback compatibility.
• J-30SDI Compact Player with i.LINK and analog
  component video output Betacam, Betacam SP,
  Betacam SX, MPEG IMX, and Digital Betacam
  playback compatibility.

37
Features and Benefits

• i.LINK interface The new J series Compact
  Players come equipped with an i.LINK interface
  (6-pin) as standard.
• Choice of analog component and SDI output
  J-10SDI and J-30SDI offer two SDI outputs (BNC x
  2) including one with superimposition
  capability.
• TC output One time code output is provided on
  the J-10SDI and J-30SDI models.

38
Additional Features

• 2 Channel audio monitor output Two channels of
  analog audio output are available either through
  the XLR connectors or RCA pin jacks located on
  the rear panel of the J Series compact players.
  The audio channels to be output to the analog
  outputs and headphone jack can be selected from
  Ch 1/2, Ch 3/4, and Cue track.
• UMID and Essence Mark readable The J-30 SDI can
  read UMID and Essence Marks.

39
J-10SDI J-30SDI Rear Panel
40
J-10 J-30 Rear Panel
41
Pricing Availability
New Model Old Model List Price
J-10 J-1/901 7,809.00
J-10SDI J-1/902 9,137.00
J-30 J-3/901 14,760.00
J-30SDI J-3/902 16,068.00
42
JH Series HD ½ VTRs

• JH-1 (for HDCAM 1080 only)
• Playback Rates 1080/25P, 29.97 P, 1080/50i,
  59.94i
• Video Outputs HD Analog (Y, Pr, Pb),
  Composite Analog, Computer Display (D-Sub 15),
  i.LINK (Option)
• Audio Outputs Analog Monitor (XLR x2 RCA x2)
• Interfaces RS-232C , RS422A Infrared
  Remote Control (SIRCS)
• LP 15,038.00

43
JH Series HD ½ VTRs

• JH-3 (includes HDCAM 24Psf)
• Playback Rates Same as J-H1 PLUS 1080/23.98P,
  and 24P
• 32 Pulldown Capability Built-In
• Video Outputs HD SDI, HD Analog (Y, Pr, Pb),
  Computer (D-Sub15), SDI (Standard Def), Composite
  Analog (BNC RCA),iLink (Option)
• External Reference (HD or SD)
• Audio Outputs Analog Monitor (XLR x2 RCA x2)
• Interfaces RS-232C, RS422A, SIRCS (Infrared Rem
  Ctl)
• Time Code Output
• LP 26,312.00

44
Some Helpful Hints
45
Some Helpful Hints

• The DSR-390 and DSR-570WS are available in Studio
  Configuration. To mount the Studio viewfinder on
  the camera, you will need to order a part. The
  Accessory Shoe Kit part number is A-8274-968-A.
  This part number comes with the CA-370 intercom
  adaptor.

46
Helpful Hints (cont.)

• All of the PV camcorders (DSR-PDX10, DSR-PD170,
  and DSR-250) can record directly from i.LINK.
  This means that the customer can use their
  camcorder as a recorder from their NLE. The
  DSR-390 and DSR-570WS will not accept i.LINK
  input. Both camcorders can use the optional
  DSBK-501 Pool Feed Board (composite input board).

47
Helpful Hints (cont.)

• The DSR-2000 is the only DVCAM deck that can
  playback (and edit from) DV-LP tapes.
• The DSR-2000 is the only DVCAM deck with Pre-Read
  (read before write) capability.
• The DSR-2000 is also the only DVCAM deck with
  Dual-Scan Playback. This can provide the
  capability to repair off-track recordings.

48
Helpful Hints (cont.)

• The DSR-1500A is the only DVCAM deck with DVCPRO
  playback over i.LINK.

49
Helpful Hints (cont.)

• The DSR-DR1000 offers the best range of off-speed
  PB of all the DVCAM products (from -2X to 2X).
• The DSR-DR1000 can record and PB at the same time
  (great for time shifting satellite feeds at a TV
  station, or for sports Slow-mo).

50
What is aspect ratio?
B
A
Aspect Ratio of this image is B divided by A (
BA). In the video industry we normally use 43
or 169 as standard
51
DXC-D50
52
New DXC-D50 Series Product Outline

• Introduce the ultimate version of DXC cameras.
• As the successor of DXC-D35series, by utilizing
  same technology of BVP camera, it creates the
  highest performance in this camera range.
• Targeted for business and professional use and
  for small TV stations.
• Highest specification among competitors
• Introducing a New RCP with joystick type

53
DXC-D50Product Overview
12bit A/D
CCU-D50
New Megapixel Power HAD EX CCDs
CAD50
VF
DSR-1 PVV-3
2/3 Lens
CA-TX7
CCU-TX7
Memory Stick
CCU-M5A CCU-D50
CA-537 CA-D50
New side panel
RCP-D50 RCP-D51
new 30 bit LSI
54
(No Transcript)
55
(No Transcript)
56
Main Specifications

• New Power HAD EX CCDs
• Sensitivity
• Vertical Smear FIT like
• -140dB of rejection
• Signal to Noise ratio
• 65dB
• New LSI 12 bit A/D and over 30 bit processing
• Camera comes either 43 or 169 (switchable to
  43). Customer has to choose!

57
Comparison Chart
Model DXC-D50 DXC-D35 HL-45A(HC-D47) TTV-1707 Z3000 KY-D29
Manufacturere SONY SONY Ikegami Thomson Hitachi JVC
CCD SIZE 2/3 2/3 2/3 2/3 2/3 2/3
CCD (NTSC/PAL) (43) (169) 1Mil/1.2MilIT1Mil/1.2MilIT(double density) 400K/470K IT520K/620K IT 520K/620K IT520K/620KIT 400K/470KIT520K/620K IT520K/620K FIT640K/740K FIT 520K/620K IT640K/740K IT 400K/470K IT520K/620K IT
Smear (IT) -140dB - 120dB -120dB -120dB(?) -120dB(?) -120dB(?)
S/N (NTSC/PAL) 65/63 dB 63/61dB 63/61dB 63/61dB 63/61dB65/63dB(DNR ON) 63/61dB65/63dB(DNR ON)
ADC BIT 12 10 12 12 10 10
Memory Card Memory Stick - Smart Madia Card - Compact Flash Card -
CCU Triax (w/SDI) Triax (w/SDI) Triax (w/SDI) Digital Triax (SDI) Triax (w/SDI) Triax (Comp?Y/C)
CCU Multicore (w/SDI) Multicore(w/SDI) Multicore - Multicore Multicore
RCP (Dial type) RCP-D51 RM-M7G RCP-TX7 RM-M7G RCP-50,RM-45 - RC-Z2A RM-MP80U
RCP (Joystick type) RCP-D50 - OCP-45 OCP-42 RC-Z21A RM-LP35U


58
Remote Control Panels for DXC/DSR

• RCP-D51 RCP-D50

59
RCP Concept

• Enhancing system versatility of DXC system to fit
  to professional users
• To fulfill the demand for Joystick operation for
  DXC user
• To support full functional camera control by new
  software oriented controller

60
New RCP-D50/D51Outline

• Features
• Fully controllable remote control panel
• JOYSTICK control (D50 only)
• Large LCD screen with touch panel
• Picture monitoring on LCD panel
• Memory stick for scene file store/recall
• Scene Files can be stored on PC and e-mailed

61
RCP-D50/D51System Configuration
DXC-D30/D35/DSR

CCU
RCP-D50/D51
62
(No Transcript)
63
(No Transcript)
64
(No Transcript)
65
RCP Features

• New features
• Joystick type
• New for DXC series
• Memory Stick
• Scene file store/recall
• Firmware update
• LCD panel
• Menu operation for full functionality

66
RCP Pricing

• RCP-D50 and RCP-D51
• Target List Price
• US 3.8K RCP-D50 Joystick Type
• US 3.4K RCP-D51 Dial Type

67
DXC-D50 Configurations

• Camcorders
• Multicore
• Triax

68
DXC-D50 DVCAM Camcorders

• DSR-1/1 mounts directly to camera head via 76pin
  digital connection.
• DSRD50LPAC This package includes the DXC-D50L and
  DSR1/1.
• DSRD50WSLPAC This package includes the DXC-D50WSL
  and DSR1/1.

69
DXC-D50 Beta-SP Camcorders

• PVWL50PAC2
• Package Includes DXC-D50L and PVV-3.
• PVWD50WSLPAC2
• Package Includes DXC-D50WSL and PVV-3.

70
DXC-D50 Studio Configurations

• Camera Head (43 or 169/43 switchable)
• Camera Adaptor
• Camera Control Unit
• Studio or ENG Viewfinder (or both)
• Remote Control Panel (RCP with 5m cable)
• No Transmission Cables!!
• No Rack Mounts!!

71
DXC-D50 Multicore Studio

• Six 43 and Three 169 (Widescreen) Packages
• Differences are
• DXC-D50H (Camera Head Only)
• DXC-D50L (Incl. Eng.VF and VCT)
• DXC-D50WSL (Widescreen L package)
• With or without RCP-D50 (joystick) or RCP-D51
• All packages include DXF-51 5Studio Viewfinder
• Packages do not include CCZ-AD Multicore cable

72
DXC-D50 Triax Studio

• Two 43 and two 169 Triax Packages
• All include CA-TX7, CCU-TX7/1, DXBK-701 and
  DXF-51.
• Differences are
• 43 packages include DXC-D50H, RCP-D50 or
  RCP-D51, VCT-U14.
• 169 packages include DXC-D50WSL, RCP-D50 or
  RCP-D51.
• Packages do not include CCT Triax Cable

73
HDC-X300
74
HDC-X300 HD Camera

• New 3 CCD HD multi-purpose camera
• Utilizes 3 Power HAD 1080x1440 imagers
• With HDSDI and analog component output capability
• Can utilize standard existing ½ inch double hot
  shoe lenses
• Compatible with HDC-700 protocol RS-232 stream

75
HDC-X300 Features

• Low Power Consumption
• Less than 20W
• Small Light weight
• Slow shutter mode
• Target Minimum Illumination 0.003 lx
• Remote Controller
• RM-B150, RM-B750

76
HDC-X300 Pricing and Availability

• HDC-X300 15,000.00 List Price
• HDC-X300K 22,000.00 List Price
• HDC-X300 Camera and Canon Auto Focus Lens Package
• Now Shipping!!

77
Questions AnswersPlease enter your questions
using text messaging feature now . . .
78
Thanks!
