EG 125

1
EG 125

• Molded Case Circuit Breakers for the OEM Market

2
EG 125

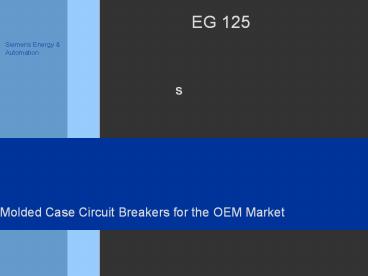

Molded Case Circuit Breakers for the OEM Market

• Circuit Protection
• Bolt-on Version
• Motor Protection
• Switch Version
• Marine SA, Naval SB, 50C

• 1/2/3/4 pole
• 35/65 kAIC _at_ 480 Vac
• 600Y/347 Vac Max

3
EG 125

• Full Line of Accessories
• Internally mounted signaling and tripping
  accessories
• Easy-to-install external operators
• High Performance, Current Limiting Design
• Two AIC levels
• 35kA _at_ 480Vac
• 65kA _at_ 480Vac
• Global ratings
• UL489
• CSA 22.2 No. 5-02
• NOM NMX-J-266-ANCE 2002 (date TBD)
• IEC 60947-2
• Added customer benefits
• Reverse feeding
• Compact size

Molded Case Circuit Breakers for the OEM Market
4
Interrupting Capacity Ratings
Interrupting Capacity Ratings

• UL 489 / IEC 60947-2 Interrupting Capacity
  Ratings

5
Where does the EG 125 fit in the Siemens product
range?
6
Accessories
EG 125
7
Common Internal Accessories NEG/HEG
Internally Mounted Accessories
36 wire leads standard
Shunt Trip
UVR
Bell Alarm
Aux. Switch
Combo Bell/Aux.
8
Common Internal Accessories NEG/HEG

• Left Pole - Tripping
• Shunt Trip
• UVR

• Right Pole - Breaker Status
• Auxiliary Switch
• 1A-1B
• 2A-2B
• Bell Alarm
• 1M-1B
• 2M-2B
• Combo Aux Sw./Bell Alarm

EG125 Breaker
EG125 Breaker
9
Handle MechanismsCurrent Product Offering
Direct Mount
Flange Mount
Rotary Style
Flexible Operator
Variable Depth

• New EG Version
• No Need to Remove Secondary Cover
• Less Mounting Time
• 4X Solution

10
Other Accessories NEG/HEG

• CONNECTIONS MOUNTING OPTIONS
• Steel wrap-around terminals
• Aluminum body terminals
• Plug-in mounting base
• Rear mounting studs
• DIN Rail adapter
• Power distribution (multi-wire) connectors
• Control wire taps

• LOCKS INTERLOCKS
• Handle padlock (OFF or ON)
• Handle block
• Sliding bar interlock
• Walking beam interlock

11
Motor Circuit Protectors

• 3-100A Continuous Duty, 3-Pole
• Component Recognized per UL/CSA/IEC
• Full line of accessories
• High Performance
• Combination I.C. ratings possible up to 100kA _at_
  480V
• 3-11 x In Magnetic Pick-up Range
• Smaller Footprint
• 13 less panel space than Sentron ED motor
  circuit protector
• 40 less volume than Sentron ED motor circuit
  protector

12
Collateral

• Cut Sheet Product Guide
• Both can be found on the Siemens website
  www.sea.siemens.com
• Speedfax
