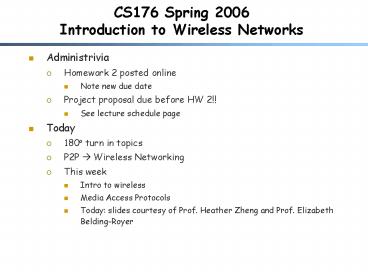

CS176 Spring 2006 Introduction to Wireless Networks

1
CS176 Spring 2006Introduction to Wireless
Networks

• Administrivia
• Homework 2 posted online
• Note new due date
• Project proposal due before HW 2!!
• See lecture schedule page
• Today
• 180o turn in topics
• P2P ? Wireless Networking
• This week
• Intro to wireless
• Media Access Protocols
• Today slides courtesy of Prof. Heather Zheng and
  Prof. Elizabeth Belding-Royer

2
Wireless is VERY Important!
3
History of Wireless
Italian inventor Guglielmo Marconi's 1901
transmission of a wireless signal from Ireland to
Canada.
4
From Wired to Wireless
5
Wired vs. Wireless

• Wired Networks
• high bandwidth
• low bandwidth variability
• low error rates (10-6)
• symmetric connectivity
• can listen on wire
• high power machines
• high resource machines
• need physical access (security)
• low delay
• connected operation

• Wireless Networks
• low bandwidth
• high bandwidth variability
• high error rates (10-3)
• possible asymmetric connectivity
• hidden terminal problem
• low power machines
• low resource machines
• need proximity
• higher delay
• disconnected operation

6
Why Go Wireless

• Mobile wireless networks
• Enable anywhere/anytime connectivity
• Bring computer communications to areas without
  pre-existing infrastructure
• Faster network setup (ad hoc -gt instant!)
• Enable mobility
• Enable new applications

7
Types of Wireless Devices

• Laptops
• Palmtops
• PDAs
• Cellphones
• Pagers
• Sensors

resources
Portability
8
Wireless Communication

• Infrared (IR)
• cable replacement technology, point to point
• advantages
• simple and very cheap
• no interference from electrical devices
• no licenses needed
• disadvantages
• low bandwidth (about 115 kbps)
• quite easily shielded
• line of sight needed

• Radio (RF)
• used by most wireless systems
• advantages
• covers larger areas
• better penetration
• higher data rates
• (11Mbps 802.11b, 54Mbps 802.11a and g)
• disadvantages
• higher interference among signals
• only permitted at certain frequency bands

9
What is different
10
Why?

• Radio wave propagation (sort of like your voice)
• Decreasing signal strength
• Radio waves lose energy due to absorption or
  scattering
• Multi-path fading reflections from multiple
  objects time varying due to mobility
• Interference
• Your signal is noise to others in the same
  frequency band
• Broadcast nature
• Network dynamics
• Moving objects, weather
• Node mobility

11
Challenges

• Wireless channels are a difficult and
  capacity-limited broadcast communications medium
• Traffic patterns, user locations, and network
  conditions are constantly changing
• Energy and delay constraints change design
  principles across all layers of the protocol
  stack
• Fundamental problems well look at
• Media Access Control (MAC) protocolsWho gets to
  talk and when?
• Routing protocolshow do you deliver your message
  to destination X?

12
Existing Wireless Networks

• Wireless Metropolitan Area Network (WMAN)
• Cellular/Wireless Wide Area Network (WWAN)
• Local Area Network (WLAN)
• Personal Area Network (WPAN)
• Ad hoc networks
• Sensor networks
• Emerging networks (variations of ad hoc
  networks)
• Info-stations
• Vehicular networks

13
Network Architectures
Cellular Networks (hierarchical systems) ? QoS
mobility ? , lack of innovations

• WLAN / Mesh networks
• Simple, cheap ? Poor management

Ad hoc networks ? no infrastructure cost ? no
guarantee

• Sensor networks
• ? Energy limited, low processing power

14
Wireless Info-station

• General Idea
• Local wireless coverage (radius 50
  meters)Automatic exchange of information with
  wireless gadgets in range
• Applications
• Location-dependent information
• non-urgent information
• Distribute course material to students
• Info-stations for retail environments
• Design issues
• Scheduling and allocation
• Prolong battery life
• Reliable data transfer

15
Inter-Vehicular Communication

• Providing information to drivers

16
Cellular Phone Networks
Bob _at_ Santa Barbara
Internet
David _at_ New York City
PSTN
17
Cellular Systems

• Geographic region divided into cells
• Frequencies/timeslots/codes reused at
  spatially-separated locations (shown as different
  colors)
• Base stations/radio network controllers
  coordinate handoff and control
• Base stations assign transmission schedule to
  users
• Radio network controllers coordinate among base
  station

18
Wireless Local Area Networks (WLANs)

• WLANs connect local computers (100m range)
• Infrastructure mode everyone connected to the AP
• Ad hoc mode peer-to-peer
• Breaks data into packets
• Channel access is shared (random access)
• Backbone Internet provides best-effort service
• Poor performance in some apps (e.g. video)

19
Wireless LAN Standards

• 802.11b (Current Generation)
• Standard for 2.4GHz band (80 MHz)
• Frequency hopped spread spectrum
• 1.6-10 Mbps, 500 ft range
• 802.11g (New Standard)
• Standard in 2.4 GHz and 5 GHz bands
• OFDM
• Speeds up to 54 Mbps
• 802.11a (Emerging Generation)
• Standard for 5GHz band (300 MHz)
• OFDM with time division
• 20-70 Mbps, variable range
• Similar to HiperLAN in Europe

20
WiMAX - Wireless Metropolitan Area Networks
(802.16)

• WiMax (Worldwide Interoperability for Microwave
  Access)
• Mainly for broadband last mile in unwired
  areas, and on back-haul for WiFi hotspots
• Inexpensive alternative to cable, DSL
• Also expected to support mobile wireless
• Compete with cellular networks (OFDM vs. CDMA)
• Range (31miles, 45km), Data rate 75Mbps,
  Frequency (2-11GHz)
• Lack of spectrum to deploy WiMAX ?
• Bill Gates and other leaders from Intel, Dell,
  Cisco Systems urged lawmakers to speed the
  transition to digital television in order to free
  up radio spectrum for wireless broadband services

21
Personal Area Networks (PAN) - Bluetooth

• Cable replacement RF technology (low cost)
• Short range (10m, extendable to 100m)
• 2.4 GHz band (crowded)
• 1 Data (700 Kbps) and 3 voice channels
• Widely supported by telecommunications, PC, and
  consumer electronics companies

22
Ultra-Wide-Band (UWB)

• UWB is an impulse radio sends pulses of tens of
  picoseconds to nanoseconds
• Uses a lot of bandwidth (GHz)
• Spectrum allocation overlays existing users, but
  its allowed power level is very low to minimize
  interference
• 7.5 GHz of free spectrum in the U.S.
• Good things about UWB
• Low Power CMOS transmitters
• 100 times lower power than Bluetooth for same
  range / data rate
• Very high data rates possible
• 500 Mbps at 10 feet under current regulations

23
IEEE 802.15.4 / ZigBee Radios

• Low power, low rate WPAN
• Supports data transmission rates of up to 250
  Kbps at a range of up to 30 meters.
• Data rates of 250 kbps (_at_2.4 GHz), 40 kbps (_at_ 915
  MHz), and 20 kbps (_at_868 MHz)
• slower than 802.11b (11 Mbps) and Bluetooth (1
  Mbps)
• CSMA-CA channel access
• Low power (battery life multi-month to years)
• Low-range, low data-rate, low cost ? ideal for
  RFID tags

24
Thats It for Today

• On Thursday
• Media Access Control
