Wind Energy Science and Engineering

1

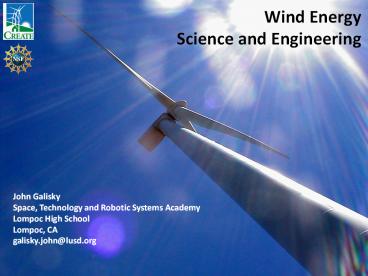

Wind EnergyScience and Engineering
John Galisky Space, Technology and Robotic
Systems Academy Lompoc High School Lompoc,
CA galisky.john_at_lusd.org
2
Introductions

• What is your name?
• Where do you work?
• Why are you here?
• or
• What are your expectations?

3
Useful websites

• KidWind (curriculum materials)
• www.kidwind.org
• American Wind Energy Association
• www.awea.org
• U.S. Department of Energy
• www.energy.gov
• National Renewable Energy Laboratory
• www.nrel.org

4
Agenda

• Why Teach Wind?
• History of Wind Power
• Wind Turbine Technology
• Wind Resources
• Some Issues
• Wind Energy in the Classroom

5
What is KidWind?
The KidWind Project is a team of teachers,
students, engineers and practitioners exploring
the science behind wind energy in classrooms
around the US. Our goal is to introduce as many
people as possible to the elegance of wind power
through hands-on science activities which are
challenging, engaging and teach basic science
principles.
KidWind Project www.kidwind.org
6
Why Wind Education in K-12 ?

• Students learn science/math standards
• Lessons are completely scalable from elementary
  through college level
• Addresses myths regarding wind energy
• Improves the local understanding of wind energy
• Provides a bulwark against misunderstandings and
  fictional problems with wind energy
• Encourages higher interest in Science and Math
• Science/Math activities with larger social
  purpose
• Students learn about jobs/careers in wind
  industry, as well as opportunities for further
  training

7
Typical Wind Lessons - Not Technical

• Beaufort Scale
• Pinwheels
• Student Reports
• Demonstrations
• Discussion Activity
• All very interesting but very little of the
  science and technology related to the current
  wind industry is presented.
• In fact, most textbooks are pretty negative about
  the future of wind and misrepresent the
  technology miserably.

8
This is strange becauseWind Energy is the
Fastest Growing Energy Source in the World!!
US installed capacity grew 45 in 2007 and 50 in
2008!!!
9
(No Transcript)
10
National Renewable Energy Laboratory
11
2008 8,358 megawatts (MW) of new wind energy
capacity installed

• 50 growth rate!
• Brings US total installed wind energy capacity to
  25,170 MW
• At 3.5 kW per house this is enough electricity
  to power close to 7 million homes!
• 2009 was a slower year due to the economy

12
(No Transcript)
13
(No Transcript)
14
Why such growth?costs!
1979 40 cents/kWh
2000 4 - 6 cents/kWh
NSP 107 MW Lake Benton wind farm 4 cents/kWh
(unsubsidized)

• Increased Turbine Size
• RD Advances
• Manufacturing Improvements

2004 3 4.5 cents/kWh
15
U.S. Department of Energy
16
Other Reason to teach
Elegant Power Source
17
Need to Change Perceptions
18
Wind Power

• History
• Technology
• The Wind Resource
• Wind in the Classroom

19
Early Windmill in Afghanistan (900AD)
20
(No Transcript)
21
(No Transcript)
22
Jacobs Turbine 1920 - 1960
WinCharger 1930s 40s
23
Smith-Putnam Turbine Vermont, 1940's
24
Modern Windmills
25
Orientation

• Turbines can be categorized into two overarching
  classes based on the orientation of the
  rotor Vertical Axis Horizontal Axis

26
Vertical Axis Turbines

• Advantages
• Omnidirectional
• Accepts wind from any angle
• Components can be mounted at ground level
• Ease of service
• Lighter weight towers
• Can theoretically use less materials to capture
  the same amount of wind

• Disadvantages
• Rotors generally near ground where wind poorer
• Centrifugal force stresses blades
• Poor self-starting capabilities
• Requires support at top of turbine rotor
• Requires entire rotor to be removed to replace
  bearings
• Overall poor performance and reliability
• Have never been commercially successful (large
  scale)

27
Horizontal Axis Wind Turbines

• Rotors are usually Up-wind of tower
• Some machines have down-wind rotors, but only
  commercially available ones are small turbines
• Proven, viable technology

28
Modern Small Wind TurbinesHigh Tech, High
Reliability, Low Maintenance

• Technically Advanced
• Only 2-3 Moving Parts
• Very Low Maintenance Requirements
• Proven 5,000 On-Grid
• American Companies are the Market and Technology
  Leaders

(Not to scale)
29
(No Transcript)
30
Yawing Facing the Wind

• Active Yaw (all medium large turbines produced
  today some small turbines from Europe)
• Anemometer on nacelle tells controller which way
  to point rotor into the wind
• Yaw drive turns gears to point rotor into wind
• Passive Yaw (Most small turbines)
• Wind forces alone direct rotor
• Tail vanes
• Downwind turbines

31
Wacky Designs out there
32
Large Wind Turbines

• 450 base to blade
• Each blade 112
• Span greater than 747
• 163 tons total
• Foundation 20 feet deep
• Rated at 1.5 5 megawatt
• Supply at least 350 homes

33
Wind Turbine Perspective
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
Maintenance
38
Wind Farms
39
(No Transcript)
40
Off-Shore Wind Farms
41
Middelgrunden
42
(No Transcript)
43
THE WIND RESOURCE
44
Why do windmills need to be high in the sky??
45
Turbulent wind is bad wind
46
Calculation of Wind Power

• Power in the wind
• Effect of swept area, A
• Effect of wind speed, v
• Effect of air density, ?

Power in the Wind ½?Av3
r
Swept Area A pr2 Area of the circle swept by
the rotor (m2).
47
Importance of Wind Speed

• No other factor is more important to the amount
  of power available in the wind than the speed of
  the wind
• Power is a cubic function of wind speed
• V X V X V
• 20 increase in wind speed means 73 more power
• Doubling wind speed means 8 times more power

48
(No Transcript)
49
(No Transcript)
50
Key Issues facing Wind Power
51
Wildlife Impacts
52
(No Transcript)
53
1980s California Wind Farm Older Technology
Higher RPMs Lower Towers Lattice Towers
Poorly Sited Bad News!
54

• In the November-December Audubon Magazine, John
  Flicker, President of National Audubon Society,
  wrote a column stating that Audubon "strongly
  supports wind power as a clean alternative energy
  source," pointing to the link between global
  warming and the birds and other wildlife that
  scientist say it will kill.

55
Impacts of Wind PowerNoise

• Modern turbines are relatively quiet
• Rule of thumb stay about 3x hub-height away
  from houses

56
Transmission Problems

• Where is the wind?
• Where are the population centers?
• Where are the wind farms?
• How do we get wind energy from the wind farms to
  the population centers?

57
Siting and NIMBY
58
(No Transcript)
59
Wind Energy in the Classroom
60
Standards/Skills

• Scientific Processes (Collecting Presenting
  Data, Performing Experiments, Repeating Trials,
  Using Models)
• Use of Simple Tools Equipment
• Forces Cause Change
• Energy Transformations (Forms of Energy)
• Circuits/Electricity/Magnetism
• Weather Patterns
• Renewable Non Renewable Energy

61
Elementary

• Engineering is Elementary
• Wind Chimes
• Wind Art
• Building simple blades

62
Middle

• Building Wind Turbines
• Assessing Wind Resource
• Mathematics

balloon
3m
streamers
Kite or balloon string
63
(No Transcript)
64
Secondary

• Advanced Blade Design
• School Siting Projects
• Data Analysis
• Advanced Math

65
(No Transcript)
66
WindWise

• How is Energy Converted to Electricity?
• What is the Cost of Inefficiency?
• What Causes Wind?
• Where Is It Windy?
• Can Wind Power Your Classroom?
• How Does a Windmill Work?
• How Does a Generator Work?
• Which Blades are Best?
• How Can I Design A Better Blade?
• How Does Energy Affect Wildlife?
• Wind's Risk To Birds
• Can We Reduce Risk To Bats?
• How Do People Feel About Wind?
• Siting A Wind Farm
• Is Wind A Good Investment?

Energy
Wind
Turbines
Wind Wildlife
Siting Wind Turbines
67
Circuits, Wind Farms, Battery Charging, and
Hybrid Systems
68
Useful websites

• KidWind (curriculum materials)
• www.kidwind.org
• American Wind Energy Association
• www.awea.org
• U.S. Department of Energy
• www.energy.gov
• National Renewable Energy Laboratory
• www.nrel.org

69
The KidWind Project www.kidwind.org
Questions???
