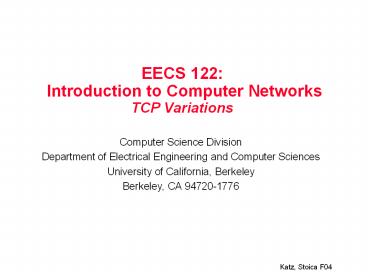

EECS 122: Introduction to Computer Networks TCP Variations

1
EECS 122 Introduction to Computer Networks TCP
Variations

• Computer Science Division
• Department of Electrical Engineering and Computer
  Sciences
• University of California, Berkeley
• Berkeley, CA 94720-1776

2
Todays Lecture 11
2
17, 18, 19
Application
10,11
6
Transport
14, 15, 16
Network (IP)
7, 8, 9
Link
21, 22, 23
Physical
25
3
Outline

• TCP congestion control
• Quick Review
• TCP flavors
• Equation-based congestion control
• Impact of losses
• Cheating
• Router-based support
• RED
• ECN
• Fair Queueing
• XCP

4
Quick Review

• Slow-Start cwnd upon every new ACK
• Congestion avoidance AIMD if cwnd gt ssthresh
• ACK cwnd cwnd 1/cwnd
• Drop ssthresh cwnd/2 and cwnd1
• Fast Recovery
• duplicate ACKS cwndcwnd/2
• Timeout cwnd1

5
TCP Flavors

• TCP-Tahoe
• cwnd 1 whenever drop is detected
• TCP-Reno
• cwnd 1 on timeout
• cwnd cwnd/2 on dupack
• TCP-newReno
• TCP-Reno improved fast recovery
• TCP-Vegas, TCP-SACK

6
TCP Vegas

• Improved timeout mechanism
• Decrease cwnd only for losses sent at current
  rate
• avoids reducing rate twice
• Congestion avoidance phase
• compare Actual rate (A) to Expected rate (E)
• if E-A gt ?, decrease cwnd linearly
• if E-A lt ?, increase cwnd linearly
• rate measurements delay measurements
• see textbook for details!

7
TCP-SACK

• SACK Selective Acknowledgements
• ACK packets identify exactly which packets have
  arrived
• Makes recovery from multiple losses much easier

8
Standards?

• How can all these algorithms coexist?
• Dont we need a single, uniform standard?
• What happens if Im using Reno and you are using
  Tahoe, and we try to communicate?

9
Equation-Based CC

• Simple scenario
• assume a drop every kth RTT (for some large k)
• w, w1, w2, ...wk-1 DROP (wk-1)/2,
  (wk-1)/21,...
• Observations
• In steady state w (wk-1)/2 so wk-1
• Average window 1.5(k-1)
• Total packets between drops 1.5k(k-1)
• Drop probability p 1/1.5k(k-1)
• Throughput T (1/RTT)sqrt(3/2p)

10
Equation-Based CC

• Idea
• Forget complicated increase/decrease algorithms
• Use this equation T(p) directly!
• Approach
• measure drop rate (dont need ACKs for this)
• send drop rate p to source
• source sends at rate T(p)
• Good for streaming audio/video that cant
  tolerate the high variability of TCPs sending
  rate

11
Question!

• Why use the TCP equation?
• Why not use any equation for T(p)?

12
Cheating

• Three main ways to cheat
• increasing cwnd faster than 1 per RTT
• using large initial cwnd
• Opening many connections

13
Increasing cwnd Faster
y
C
x increases by 2 per RTT y increases by 1 per RTT
Limit rates x 2y
x
14
Increasing cwnd Faster
15
Larger Initial cwnd
x starts SS with cwnd 4 y starts SS with cwnd
1
16
Open Many Connections

• Assume
• A starts 10 connections to B
• D starts 1 connection to E
• Each connection gets about the same throughput
• Then A gets 10 times more throughput than D

17
Cheating and Game Theory
D ? Increases by 1 Increases by 5
A Increases by 1 Increases by 5
(x, y)
22, 22 10, 35
35, 10 15, 15

• Too aggressive
• Losses
• Throughput falls

Individual incentives cheating pays Social
incentives better off without cheating Classic
PD resolution depends on accountability
18
Lossy Links

• TCP assumes that all losses are due to congestion
• What happens when the link is lossy?
• Recall that Tput 1/sqrt(p) where p is loss
  prob.
• This applies even for non-congestion losses

19
Example
p 0
p 1
p 10
20
What can routers do to help?
21
Paradox

• Routers are in middle of action
• But traditional routers are verypassive in terms
  of congestioncontrol
• FIFO
• Drop-tail

22
FIFO First-In First-Out

• Maintain a queue to store all packets
• Send packet at the head of the queue

Next to transmit
Arriving packet
Queued packets
23
Tail-drop Buffer Management

• Drop packets only when buffer is full
• Drop arriving packet

Next to transmit
Arriving packet
Drop
24
Ways Routers Can Help

• Packet scheduling non-FIFO scheduling
• Packet dropping
• not drop-tail
• not only when buffer is full
• Congestion signaling

25
Question!

• Why not use infinite buffers?
• no packet drops!

26
The Buffer Size Quandary

• Small buffers
• often drop packets due to bursts
• but have small delays
• Large buffers
• reduce number of packet drops (due to bursts)
• but increase delays
• Can we have the best of both worlds?

27
Random Early Detection (RED)

• Basic premise
• router should signal congestion when the queue
  first starts building up (by dropping a packet)
• but router should give flows time to reduce their
  sending rates before dropping more packets
• Therefore, packet drops should be
• early dont wait for queue to overflow
• random dont drop all packets in burst, but
  space drops out

28
RED

• FIFO scheduling
• Buffer management
• Probabilistically discard packets
• Probability is computed as a function of average
  queue length (why average?)

Discard Probability
1
0
Average Queue Length
queue_len
min_th
max_th
29
RED (contd)

• min_th minimum threshold
• max_th maximum threshold
• avg_len average queue length
• avg_len (1-w)avg_len wsample_len

Discard Probability
1
0
min_th
max_th
Average Queue Length
queue_len
30
RED (contd)

• If (avg_len lt min_th) ? enqueue packet
• If (avg_len gt max_th) ? drop packet
• If (avg_len gt min_th and avg_len lt max_th) ?
  enqueue packet with probability P

Discard Probability (P)
1
0
queue_len
Average Queue Length
min_th
max_th
31
RED (contd)

• P max_P(avg_len min_th)/(max_th min_th)
• Improvements to spread the drops (see textbook)

Discard Probability
max_P
1
P
0
Average Queue Length
queue_len
min_th
max_th
avg_len
32
Average vs Instantaneous Queue
33
RED Advantages

• High network utilization with low delays
• Average queue length small, but capable of
  absorbing large bursts
• Many refinements to basic algorithm make it more
  adaptive (requires less tuning)

34
Explicit Congestion Notification

• Rather than drop packets to signal congestion,
  router can send an explicit signal
• Explicit congestion notification (ECN)
• instead of optionally dropping packet, router
  sets a bit in the packet header
• If data packet has bit set, then ACK has ECN bit
  set
• Backward compatibility
• bit in header indicates if host implements ECN
• note that not all routers need to implement ECN

35
36
ECN Advantages

• No need for retransmitting optionally dropped
  packets
• No confusion between congestion losses and
  corruption losses

37
Remaining Problem

• Internet vulnerable to CC cheaters!
• Single CC standard cant satisfy all applications
• EBCC might answer this point
• Goal
• make Internet invulnerable to cheaters
• allow end users to use whatever congestion
  control they want
• How?

38
One Approach Nagle (1987)

• Round-robin among different flows
• one queue per flow

39
Round-Robin Discussion

• Advantages protection among flows
• Misbehaving flows will not affect the performance
  of well-behaving flows
• Misbehaving flow a flow that does not implement
  any congestion control
• FIFO does not have such a property
• Disadvantages
• More complex than FIFO per flow queue/state
• Biased toward large packets a flow receives
  service proportional to the number of packets

40
Solution?

• Bit-by-bit round robin
• Can you do this in practice?
• No, packets cannot be preempted (why?)
• we can only approximate it

41
Fair Queueing (FQ)

• Define a fluid flow system a system in which
  flows are served bit-by-bit
• Then serve packets in the increasing order of
  their deadlines
• Advantages
• Each flow will receive exactly its fair rate
• Note
• FQ achieves max-min fairness

42
Max-Min Fairness

• Denote
• C link capacity
• N number of flows
• ri arrival rate
• Max-min fair rate computation
• compute C/N
• if there are flows i such that ri lt C/N, update
  C and N
• if no, f C/N terminate
• go to 1
• A flow can receive at most the fair rate, i.e.,
  min(f, ri)

43
Example

• C 10 r1 8, r2 6, r3 2 N 3
• C/3 3.33 ? C C r3 8 N 2
• C/2 4 f 4

44
Implementing Fair Queueing

• Idea serve packets in the order in which they
  would have finished transmission in the fluid
  flow system

45
Example
Flow 1 (arrival traffic)
1
2
3
4
5
6
time
Flow 2 (arrival traffic)
1
2
3
4
5
time
Service in fluid flow system
1
2
3
4
5
6
1
2
3
4
5
time
Packet system
1
2
1
3
2
3
4
4
5
5
6
time
46
System Virtual Time V(t)

• Measure service, instead of time
• V(t) slope rate at which every active flow
  receives service
• C link capacity
• N(t) number of active flows in fluid flow
  system at time t

V(t)
time
Service in fluid flow system
1
2
3
4
5
6
1
2
3
4
5
time
47
Fair Queueing Implementation

• Define
• - finishing time of packet k of flow i (in
  system virtual time reference system)
• - arrival time of packet k of flow i
• - length of packet k of flow i
• The finishing time of packet k1 of flow i is

48
FQ Advantages

• FQ protect well-behaved flows from ill-behaved
  flows
• Example 1 UDP (10 Mbps) and 31 TCPs sharing a
  10 Mbps link

49
Alternative Implementations of Max-Min

• Deficit round-robin
• Core-stateless fair queueing
• label packets with rate
• drop according to rates
• check at ingress to make sure rates are truthful
• Approximate fair dropping
• keep small sample of previous packets
• estimate rates based on these
• apply dropping as above
• wins because few large flows
• per-elephant state, not per-mouse state
• RED-PD not max-min, but punishes big cheaters

50
Big Picture

• FQ does not eliminate congestion ? it just
  manages the congestion
• You need both end-host congestion control and
  router support for congestion control
• end-host congestion control to adapt
• router congestion control to protect/isolate

51
Explicit Rate Signaling (XCP)

• Each packet contains cwnd, RTT, feedback field
• Routers indicate to flows whether to increase or
  decrease
• give explicit rates for increase/decrease amounts
• feedback is carried back to source in ACK
• Separation of concerns
• aggregate load
• allocation among flows

52
XCP (continued)

• Aggregate
• measures spare capacity and avg queue size
• computes desired aggregate change DaRS-bQ
• Allocation
• uses AIMD
• positive feedback is same for all flows
• negative feedback is proportional to current rate
• when D0, reshuffle bandwidth
• all changes normalized by RTT
• want equal rates, not equal windows

53
XCP (continued)

• Challenge
• how to give per-flow feedback without per-flow
  state?
• do you keep track of which flows youve signaled
  and which you havent?
• Solution
• figure out desired change
• divide from expected number of packets from flow
  in time interval
• give each packet share of rate adjustment
• flow totals up all rate adjustment
