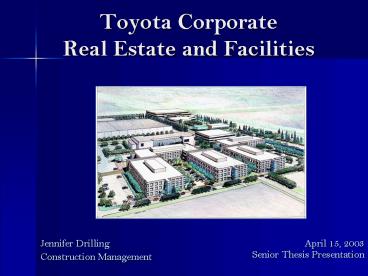

Toyota Corporate Real Estate and Facilities

1
Toyota Corporate Real Estate and Facilities

• Jennifer Drilling
• Construction Management

April 15, 2003 Senior Thesis Presentation
2
Presentation Agenda

• Project Background
• Critical Path Investigation
• Interior Partitions
• Energy Optimization
• Mechanical Analysis
• Lighting
• Research
• Contractors Role on a Green Building
• Final Recommendations

3
Project Background

• Toyota Project culminates the leasing of 10 other
  facilities
• Predominantly Open Office Space - 565,000 SF
• Food Court 35,000SF
• Grand Lobby Entrance
• 3 Story Cast-In Place Concrete Tilt-Up Panels
  braced by steel

4
Site Layout

• Location
• Torrance, Southern California

• 5 Buildings
• 50 Acres
• Lobbies
• 2 Central Plants
• Existing Toyota Facilities
• Construction Fence
• Future Toyota Lot

• Los Angeles

5
Project Delivery
CM AGENT
OWNER
LEED CONSULTANT / COMMISIONNING AGENT
ARCHITECT/ ENGINEERS
CM AT RISK (Cost Plus Fee)
SUBCONTRACTORS (Design-Build)
SUBCONTRACTORS (Lump Sum)
6
Client Goals

• Goals
• Quality
• LEED Certification - GOLD
• Addressed by energy optimization tools where
  the contractor can play a significant role
• Schedule
• Critical move-in date
• Current Construction Sept. 1, 2001 April 17,
  2003
• Desires to move in sooner if possible
• Addressed by evaluating critical path for Tenant
  Fit-Out
• Budget
• Annual loan payment must meet current lease
  payments
• Addressed by life cycle and annual costs

7
Presentation Agenda

• Project Background
• Critical Path Investigation
• Interior Partitions
• Energy Optimization
• Mechanical Analysis
• Lighting
• Research
• Contractors Role on a Green Building
• Final Recommendations

8
Interior Partition Investigation

• Typical Floor Plan
• Owner Assumption
• Under Ceiling Walls are more Sustainable and less
  costly to remove - INVESTIGATE

9
Existing Conditions Interior Partition

• Type A Exterior Part of Building
• Type N Interior
• Type B Interior Exterior

10
Interior Partition Investigation

• Assessment of Schedule
• Risky Short interval critical path activities
  gives rise to delays
• Flow of work is stopped
• Coordination- greater efforts needed
• Loss production time mobilize and tear-down
  twice
• Solution
• Use over ceiling walls to accelerate schedule

11
Interior Partition Investigation

• Every wall has comparative advantage and
  disadvantages
• All should be considered

• Full Height
• Reduced Schedule- 2 weeks per floor

12
Interior Partition Investigation

• New Schedule
• Flow of work is enhanced
• Saves time money on general conditions

• Investigation is not complete until walls are
  demolished.

13
Demolition

• Under Ceiling wall
• 4 feet replacement on each side of wall
• Grid bends

14
Presentation Agenda

• Project Background
• Critical Path Investigation
• Interior Partitions
• Energy Optimization
• Mechanical Analysis
• Lighting
• Research
• Contractors Role on a Green Building
• Final Recommendations

15
Mechanical Analysis

• Goal
• To assess the best energy efficient mechanical
  system for the Toyota Project
• To gain maximum LEED Points 10
• Basis for Investigation
• Research showed successful geothermal systems in
  California

16
Mechanical Analysis

• Advantages Geo-thermal Systems Bring
• Mechanical equipment and space reduced
• Maintenance costs halved
• Piping would be reduced due to localized zoning
  systems
• Extremely quiet system
• Can be put virtually anywhere

17
Mechanical Investigation

• Investigation of both systems on the Energy
  Modeling Tool for California Buildings
• EQuest
• Set up Zoning
• 3D Model
• System Flow
• Diagram
• Detailed System

18
Geothermal System

• Based on
• 25 systems each
• 10 x 2 well configurations
• Vertical Wells
• 15 foot spacing
• Internal Zoning

19
Geothermal System

• Reasons for why geothermal was not ideal
• Ground temperatures much warmer in So. CA 55
• Need 1/3 longer vertical loops than a
  northeastern system
• Runs solely on electrical energy, 18.7 ratio of
  gas to electrical cost in CA
• Reasons why absorption chiller favors
• Unusually high COP (.9 compared to .6)
• Very low wet bulb So. CA
• Only need direct (gas-fired) evaporation,
  adiabatic low energy use

20
Presentation Agenda

• Project Background
• Critical Path Investigation
• Interior Partitions
• Energy Optimization
• Mechanical Analysis
• Lighting
• Research
• Contractors Role on a Green Building
• Final Recommendations

21
Lighting Analysis

• Goal
• To investigate the existing lighting system for
• Energy Efficiency
• Cost
• To incorporate more daylight into the space

22
Lighting Analysis

• Existing System
• Linear Lighting
• A-B Switching
• 2 lamp T5 Standard
• 2900 Lumens/lamp
• LLF .75
• 66 Watts/fixture

23
Existing Lighting

• One Lamp On

• Two Lamps On

• 1.4 W/SF
• Not including task lighting (allow .3 W/SF)
• Ideal is 1.2W/SFfor office

• .7 W/SF
• Can use with day light only
• Less optical control

• 60 x 42 typical floor space

• 40fc 35fc 30fc 25fc 20fc

24
Lighting Analysis

• Proposed Energy Efficient Design
• One T5HO lamp w/Advance Stepped Ballast in same
  Linear Light Fixture
• Orientate Lights horizontally to window
• 1.15 Watts/SF
• Plus task lighting

• 40fc 35fc 30fc 25fc 20fc

25
Day Lighting Investigation

• Proposal
• Use of Light Shelf
• Better Distribution of light
• Diagram
• Height Illuminance
• Distance is from window

• DIST. FROM WINDOW

• WINDOWS ONLY

• LIGHT SHELF ILLUMIN.

26
Day Lighting Investigation

• Existing Day lighting- south (w/out fluorescent
  lights)
• Harsh glare
• No workable area until 30 back in space

• 400 200 100 75fc 60fc 40fc 35fc 30fc 25fc
  20fc

27
Day Lighting Investigation

• 3D AutoCAD Model to AGI 32 Day lighting

• Usable occupancy space changes
• More comfort near windows

25
13
400 200 100 75fc 60fc 40fc 35fc 30fc 25fc
20fc
28
Cost Savings/Energy Analysis

• New T5HO Design reduces material cost by
  299,000
• Annual utility costs by 40,000

29
Presentation Agenda

• Project Background
• Critical Path Investigation
• Interior Partitions
• Energy Optimization
• Mechanical Analysis
• Lighting
• Research
• Contractors Role on a Green Building
• Final Recommendations

30
Contractors Role on a Green Building

• Literature Review
• Very little information gear towards the
  contractors role
• Goal
• To develop guidelines of valued added activities
  a contractor may perform during a green project
• Pre-Construction
• Construction
• Where is their role most significant?
• Establish industry comments, concerns, and
  knowledge of issue

31
Contractors Role on a Green Building

• Established network of green professionals
  around country
• 32/60 surveys
• 5 page questionnaire
• Ranking of 94 potential possibilities
• Many comments provided

• 16 Contractors
• 3 Design-Builders
• 5 Architects
• 3 Consultants
• 4 A/E Managers
• 1 Owner

32
Contractors Role on a Green Project
ALL PARTICIPANTS
EXPERIENCED PARTICIPANTS

• Design-Build high, more aware of potential of
  early involvement
• Architects Consultants rate low, feel pre-con
  and finishing design is not where the contractor
  should have a big impact

• Less experienced people scored high. More
  experienced people knew more of what a contractor
  could actually accomplish

• Questionnaire Ranking 1 Contractors have
  little significance in this role
• 4 Contractor has significant impact to this
  role

33
Contractors Role on a Green Project
Highest Ranked Areas

• HIGH
• Help owner and engineer to produce estimates of
  possible LEED points
• Locate a recycle facility that can provide the
  resources to recycle all types of materials

Lowest Ranked Areas for Pre-Construction
Lowest Ranked Areas for Construction

• LOW
• Encourage conservation of existing natural
  features within a site plan
• Suggest coogeneration

34
Contractors Role on a Green Project

• Common Interesting Comments
• A Design/Build Project delivery system would
  enhance the impact of the Construction
  Professional in Material/Equipment selection
  process Art Hunkele
• This industry really wont change until the
  design and construction process begin to function
  as a seamless whole. - Bill Reed

• Suggested Future Research
• Produce with the LEED guidelines a list of CM
  services
• Developed a sustainable CII Process
• This Research will be used towards articles for
• Smart and Sustainable Built Environment-
  (International Conference Australia)
• United Nations Environmental Programme

35
Presentation Agenda

• Project Background
• Critical Path Investigation
• Interior Partitions
• Energy Optimization
• Mechanical Analysis
• Lighting
• Research
• Contractors Role on a Green Building
• Final Recommendations

36
Final Recommendations

• Change Under Ceiling Walls to Full Height Walls
  to accelerate schedule by 2 weeks per floor
• Saves money of life cycle by reduced installation
  and general conditions (Not offset by demolition
  costs)
• Keep existing Absorption Chiller System
• Implement T5HO Light Design
• Reduced lighting fixture package amount by
  300,000
• Reduced annual utility costs by 40,000
• Addition of light shelves would increase interior
  day light and is worth considering
• Emphasize contractors significant role on
• Waste Management
• Indoor Air Quality
• Education

37
Final Recommendations

• Challenges
• Interior Walls might not meet sustainable
  environmental needs to reduce waste during the
  demolition phase
• Geothermal Heat Pump will not be beneficial in
  high electrical priced environment
• Hard to investigate energy analysis with light
  shelf due to limited energy modeling systems
• A contractors role on a green project is
  challenging to define, varying with the opinion
  of different project team members

38
Special Thanks
Toyota Facilities Director Sandy Smith AND ALL
OF THE TOYOTA PROJECT STAFF (MANY FROM TURNER
CONSTRUCTION)

• Faculty
• David Riley
• Dan Mattern
• Andy Lau
• Richard Mistrick
• Kenneth Davidson
• Moses Ling
• John Messner

• Industry Consultants
• Kim Pexton
• Chris Leyenberger
• Andy Pkacik
• Jim Blint
• Research Participants
• Family Friends

39
Questions?
40
Schedule
41
Example of Interior Wall Calculations
42
Mechanical Chiller System
43
Mechanical Design Parameters

• ASHRAE Commercial Ground-Source Heat Pump
  Engineering Manual 1995
• ASHRAE 62-2001, Ventilation for Acceptable Indoor
  Air Quality
• ASHRAE 90.1-1999, Energy Standard for Buildings

44
Mechanical Design Criteria
45
Mechanical Design Criteria

• Example ASHRAE 62 Table 2- Occupancy for
  Office 7 ppl /1000SF 142.9 Outdoor Air
  Requirement 20 CFM/person

46
Mechanical Design Criteria
47
Geothermal Cost

• Factors affecting cost if you were to use a
  geothermal
• Higher installation price
• Possible structural enhancement if equipment were
  placed at the core of each floor
• The reduction of Central Plant space (possible
  elimination)
• Must increase area slightly for main buildings

48
Energy Costs

• Electrical
• Summer
• Peak .202
• Mid-Peak.111
• Off-Peak .0886
• Winter
• Mid-Peak.123
• Off-Peak .08975
• Demand 6.60 KW
• Demand 50 of top
• Peak17.95
• Off-Peak 2.70

• Gas
• .255/therm .88/kwh

49
Energy Utility Costs for March 2003

• .1552/kwh46.38/mcf 5.57/mcf gas 18.7
• Source Energy User News

50
LEED Energy Optimization

• Current LEED Energy Status as of March, 2003

51
Lighting Info

• For T5HO
• LLF .752
• LLD .9 , LDD .87, BF .96
