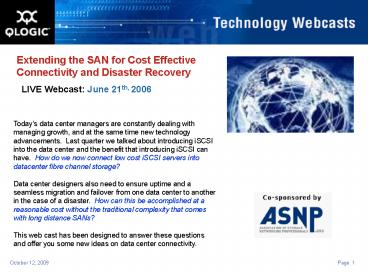

Extending the SAN for Cost Effective Connectivity
and Disaster Recovery
LIVE Webcast June 21th, 2006
Todays data center managers are constantly
dealing with managing growth, and at the same
time new technology advancements. Last quarter
we talked about introducing iSCSI into the data
center and the benefit that introducing iSCSI can
have. How do we now connect low cost iSCSI
servers into datacenter fibre channel storage?
Data center designers also need to ensure
uptime and a seamless migration and failover from
one data center to another in the case of a
disaster. How can this be accomplished at a
reasonable cost without the traditional
complexity that comes with long distance
SANs? This web cast has been designed to answer
these questions and offer you some new ideas on
data center connectivity.
2
Phone Access
International - Conference number See
Below Participant Passcode number 519651
USA - Conference number 1-888-213-0850 Participan
t Passcode number 907455

• Netherlands 0 800 022 2813
• New Zealand 0 800 444 491
• Norway 800 160 00
• Poland 00 800 111 48 07
• Portugal 800 819 146
• Russia 810 800 2486 1012
• Singapore 800 101 1734
• South Africa 0 800 999 556
• South Korea 003 0813 1572
• Spain 900 957 058
• Sweden 0200 28 5909
• Switzerland 0 800 563 435
• Taiwan 00 801 126 794
• Thailand 001 800 156 205 1006
• Trinidad-Tobago 1 800 205 1006
• UK 0 800 404 6386

• Australia 1 800 452 578
• Austria 0800 293 158
• Belgium 0 800 72 680
• Brazil 0800 891 9638
• Chile 123 0020 6918
• China, Northern Region 10 800 714 0938
• China, Southern Region 10 800 140 0913
• Colombia 01 800 518 0408
• Czech Republic 800 142 079
• Denmark 80 886 950
• France 0 800 912 592
• Germany 0 800 183 3780
• Hong Kong 800 967 728
• India 000 800 100 6267
• Japan 00531 16 0569
• Mexico 001 800 514 1006

3
About the ASNP

• The Association of Storage Networking
  Professionals (ASNP) is the first worldwide
  organization dedicated to the needs of storage
  networking users.
• The ASNPs mission is to educate and empower
  members by providing them with educational
  resources, member meetings, and other
  professional development opportunities.
• Our vision is to build a worldwide community of
  storage networking users and to act as the
  leading advocate for their needs.
• Website visit www.asnp.org
• Contact Info Daniel Delshad, Chairman, ASNP
• Email Danield_at_asnp.org Phone [phone]

4
Membership Growth

• Launched Sept 30, 2003
• October 2003 600 Members
• January 2004 1190 Members
• March 2004 1370 Members
• June 2004 1620 Members
• August 2004 1710 Members
• February 2005 2000 Members
• June 2005 2143 Members
• November 2005 2300 Members
• February 2006 2400 Members
• ASNP is currently offering Free 1 year membership

5
ASNP Worldwide Chapters
International Chapters AustraliaBrazilColumbiaF
ranceGermanyKoreaNigeriaSingaporeSwitzerland
TokyoTorontoUnited KingdomVancouver
Contact Info Daniel Delshad, Chairman, ASNP
Email Danield_at_asnp.org Phone [phone]
6
Agenda

• What is iSCSI
• DR Market Dynamics
• Solutions for iSCSI the Enterprise
• SANbox 6000 series Intelligent Storage Routers
• SAN Routing Configurations
• Customer Examples Summary
• QA / Architect Roundtable

7
FC HBAs
Storage Services Platforms
FC Switches
Intelligent Storage Routers
InfiniBand HCAs
iSCSI HBAs
QLogic Portfolio
8
iSCSI Defined

• Internet Small Computer Systems Interface
• Provides access to storage over standard TCP/IP
  networks
• Maps SCSI to TCP/IP Protocol
• Similar to mapping SCSI over Fibre Channel
  Protocol
• Is a networking application like NFS, FTP,
  Telnet, etc

Ethernet Header
IP
TCP
SCSI
iSCSI
DATA
CRC
9
iSCSI Dynamics

• iSCSI is NOT FREE
• Requires dedicated network for deployment
• iSCSI HBA or additional CPU processing required
  for acceptable storage performance
• Can use existing Ethernet infrastructure
• Switches, Routers, VPN
• iSCSI is secure
• CHAP, VLANs, VPN, isolated network
• Interoperability NOT Guaranteed
• SCSI Initiator/Target qualification testing
  required
• SAN application and management software still
  required
• Similar to FC, SCSI over a network

10
SW Performance

• Cost effective
• TCP/IP Processing is CPU Resource Intensive
• 1Hz CPU per 1bps
• 1GHz CPU for a 1Gb Ethernet link

Motherboard
CPU
Memory
PCI Bus
MAC
Interrupts Memory Accesses Instruction Execution
Adapter
11
iSCSI Offload

• Offload compute intensive functionality to the
  adapter
• iSCSI, TCP, IP
• Free host computing power
• Storage interface
• Boot from SAN

Motherboard
12
iSCSI Functionality
13
Fibre Channel and iSCSI Will Coexist

• Fibre Channel will . . .
• Maintain large enterprise dominance
• Currently working toward medium sizes business
• Declining prices
• Interoperability
• Easy to use mgmt tools

• iSCSI will . . .
• Expand SAN Connectivity
• Connect remote SANs
• Deliver SAN to enterprises with DAS today that do
  not want to invest into a new networking
  technology

IDC, 2004, Ex-large companies 10K employees
14
Extending the SAN for Cost EffectiveConnectivity
and Disaster Recovery
15
Investment in SAN in a Data Center

• Hardware
• FC Storage
• FC Infrastructure FC Switches, HBA
• Storage Services Software
• Replication Synchronous / Asynchronous
• SNAP Shots
• Migration
• Provisioning
• Server less backups
• SAN Management Software
• Hardened HBA Drivers and Switch Software for
  Large Enterprise

FC SAN substantially improved TCO of Storage
16
Missing Benefits of FC SAN
Campus Storage Consolidation Connect servers to
FC Storage
Remote Site DR Replication to Hot Site
Branch Office Centralized Management Connect
servers to FC Storage
Datacenter Stranded Servers Low Cost Web
Servers Utility Compute Clusters
17
Comparison of FC iSCSI Technology
Ethernet (iSCSI)
FC
Designed For
LAN / WAN
SAN


Deployed in data Centers

Storage Network Scalability

Distance Connectivity

SAN Software Investment


LAN / WAN Software
1Gb
4 Gb
Technology
Moderate
Low
Network Latencies
Low
Moderate
Cost of connectivity to SAN
18
SANbox ISR 6000 Series
19
SANbox 6000 Series Intelligent Storage Routers
Compact 1u high x 8-1/2 inch half-rack package
Initiators 512 Power 48 Watts I/Os per second
35,000
SANsurfer Pro software for SAN Router
(2) management ports Ethernet RS-232
(2) 2Gb FC ports for high performance
connectivity to FC switches and storage
(2) 1GbE ports for connectivity to servers and
Ethernet networks
20
QLogic Advantage HA Scalability
Single half-rack package for lowest cost of
entry
Fully Compatible with Multi-pathing Software
.Software Investment Protection
21
SANbox 6000 Management Compatibility

• Management
• Remote Management of Family of Routers from a
  single console
• Ease of Use wizards
• Extensive Diagnostics
• CLI
• SNMP, SMI-S
• Networking features
• VLAN Tag
• Jumbo Frame On / Off

• Support Matrix
• Windows 2003 (IA-32, IA-64, EM64T)
• Linux (IA-32, IA-64) RedHat, SuSE
• Solaris Version 9, 10 for SPARC, Version 10 for
  x86
• MAC OS X
• Software Initiators
• Microsoft, Source Forge, Solaris 10
• Hardware Initiators
• QLA4010, QLA4050, IBM Blade Center iSCSI
  Initiators

22
QLogic Advantage Ease of Use

• Time to configure in minutes vs. Hours
• Wizard Based Management
• Unique Features designed to improve management of
  storage associated with low cost 1U-2U Rack mount
  servers

23
Difference Between 6140 6142

• 6140
• Design for iSCSI Server Connectivity
• Should be deployed in Data Center for Low Cost
  Connectivity to FC SAN
• Low Cost Server
• Stranded Sever
• Campus Wide Servers
• Offers Unique Configuration options for
• Server Asset Re-allocation
• Rapid Deployment of server
• Diskless Servers
• HPC Clusters
• Utility Computing
• Web Servers

• 6142
• Designed for Long Distance Connectivity SAN
  Island connectivity
• Remote replication using third party SW
• Back Up Data from Branch offices to Main data
  Center
• Can be used for iSCSI Server Connectivity
• Offers Smartwrite technology to improve
  performance better data protection
• Reduces round trip delays
• Uses Hardware Header data Digest Better than
  TCP Checksum
• Uses Compression

24
Harnessing Benefits of FC SAN in a Data Center
25
Rescuing Stranded Servers
Customer Problem Stranded workstations with no
PCI slots have no Block level connectivity to
storage
Solution Provide access to RAID by deploying
iSCSI drivers and a FC-iSCSI router
FC Storage
Stranded Servers
Servers with FC HBAs
with iSCSI software or H/W Initiators
26
Compute Farms iSR-6140
Compute Farm
SAN Based Storage
1Gbs Ethernet
Ethernet switches
FC Switches
Data Access through NFS Uses many Core Ports
Bandwidth
Client Apps
ENet Switch
NAS Filers
Block Data File Data
Data Access directly as Block Data
Ethernet
27
EVA mpx-100 (iSR-6140)
Low Cost Servers
iSCSI software drivers
Multi-Protocol EVA
FC SAN
EVA FC Array
28
Replication for DR
Customer Problem To ensure business continuity,
need quick recoveryfrom disaster that effects
servers and storage.
Solution Replicate data across WAN from FC SAN
to remote FC SAN using iSCSI or FCIP.
WAN
Remote Site
Main Site
29
FCIP Mode Layer II
LAN/ WAN
Minimum Two Round Trip Delays
30
FCP-SCSI - iSCSI Mode Layer III
LAN/ WAN
ISR 6142
Minimum Two Round Trip Delays
FC Storage
31
Connecting FC SAN Islands
Customer Problem An existing SAN customer
deploys an new SAN, but wants to continue to make
use of legacy SAN Infrastructure in conjunction
with their new gear.
Solution Eliminate E_port issues with FC-FC
Routing. RouterNL_ports appear to servers like
generic target LUNs. Manage the entire SAN
infrastructure
Provision Storage across multi-vendor SANs
NL_port
NL_port
32
Key Points

• Storage Consolidation continues on FC Storage

iSCSI promise of low cost of Connectivity to SAN
is now Achieved
iSCSI replaces DAS - Compliments FC
Storage consolidation for servers campus wide
Build Diskless Server for Utility Computing
Bring DR applications to small medium
Enterprise
Provision Storage Across multi-vendor SAN Cost
Effectively
Protect Investment made in FC SAN SAN Software
33
FC HBAs
Storage Services Platforms
FC Switches
Intelligent Storage Routers
InfiniBand HCAs
iSCSI HBAs
QLogic Portfolio
34
SANbox 6000 Product Evaluations

• Availability NOW
• 90 day evaluation period

Ryan J. Klein SAN Architect, Strategic Business
Development Aliso Viejo, CA 949-389-6156
ryan.klein_at_qlogic.com
35
Contact Information

• Ryan J. Klein
• SAN Architect,
• Strategic Business Development
• Aliso Viejo, CA
• 949-389-6156
• ryan.klein_at_qlogic.com
• Adrian M. Wojnowski
• SAN Architect,
• Strategic Business Development
• Aliso Viejo, CA
• 949-309-8022
• adrian.wojnowski_at_qlogic.com

• Nick DeMaria
• SAN Architect,
• Strategic Business Development
• Shrewsbury, NJ
• 732-224-8553
• nick.demaria_at_qlogic.com
• Brian Grant
• SAN Architect,
• Strategic Business Development
• Chicago, IL
• 630-258-7694
• brian.grant_at_qlogic.co

36
Emergence of Intelligent Fabrics Traditionally,
storage related solutions have been restricted to
two architectural layers within your datacenters
host based and/or array based. Deployments
within those areas can provide advantages and
introduce challenges to IT organizations. There
is an appreciable movement within the storage
industry to start delivering solutions from
next generation SANs called intelligent
fabrics. Are you wondering how your IT
organization can take full advantage of these
emerging solutions?
37
Vision
QLogic. Enabling the Grid Generation.
