Learning Plate Tectonic Geography

1

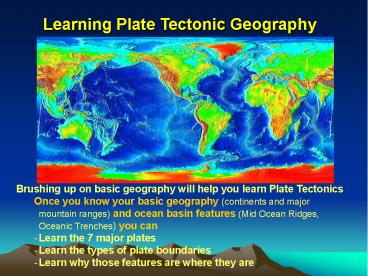

Learning Plate Tectonic Geography

• Brushing up on basic geography will help you
  learn Plate Tectonics
• Once you know your basic geography (continents
  and major mountain ranges) and ocean basin
  features (Mid Ocean Ridges, Oceanic Trenches) you
  can
• Learn the 7 major plates
• Learn the types of plate boundaries
• Learn why those features are where they are

2
I. Introduction (cont.)

• E. Forces shaping the Earth at the surface and
  from within
• 1. Surficial Processes Solar energy and gravity
  shaping the landscape
• 2. Internal Processes Internal energy and forces
  that buckle and break Earths crust

3
If External Processes Only?
Mississippi River Delta

• Question
• If 550 million tons of rock are broken down and
  transported to the sea from the United States
  each year,
• Why has our continent not been worn flat after
  the billions of years of its existence and
• Why havent the oceans been filled in?

4
Mississippi River Drainage Basin Erosion,
transport, deposition
Mississippi River Delta
5
1. Surficial ProcessesResults of the External
Heat Engine

• Weathering
• Chemical and Mechanical Breakdown of ?solid rock
  into ?sediments
• Erosion
• Removal of rock and sediment from source by
  Gravity, wind, water, ice

6
Surficial Processes (cont.)Results of the
External Heat Engine

• Transport over large distances by water, wind and
  ice.

7
Surficial Processes (cont.)Results of the
External Heat Engine

• Deposition of large amounts of sediment in seas
  and oceans

8
2. Internal Earth Processes Results of the
Internal Heat Engine

• Evidence of internal energy and forces working on
  our earth.
• Intricate landscapes
• Volcanoes
• Earthquakes
• Geothermal Gradients (deeper is hotter)

Another Question What is the source of all this
energy?
9
3. Formation of Earth

• Birth of the Solar System
• Nebular Theory
• nebula compresses
• Flattening of spinning nebula and collapse into
  center to form sun
• Condensation to form planets, planetesimal, moons
  and asteroids during planetary accretion around
  4½ billion years ago
• (Meteorites are iron-rich and rocky fragments
  left over from planetary accretion)

http//www.psi.edu/projects/planets/planets.html
10
Orion Nebula www.hubblesite.org
www.geol.umd.edu/kaufman/ ppt/chapter4/sld002.htm
www.psi.edu/projects/ planets/planets.html
11
Formation of the Planets

• The mass of the center of the solar system began
  nuclear fusion to ignite the sun
• The inner planets were hotter and gas was driven
  away leaving the terrestrial planets
• The outer planets were cooler and more massive so
  they collected and retained the gasses hence the
  Gas Giants

Terrestrial Planets
Gas Giants
www.amnh.org/rose/backgrounds.html
12
Differentiation of the Planets

• The relatively uniform iron-rich proto planets
  began to separate into zones of different
  composition 4.6mya
• Heat from impacts, pressure and radioactive
  elements cause iron (and other heavier elements)
  to melt and sink to the center of the terrestrial
  planets

The zones of the earths interior
13
Further Differentiation of Earth

• Lighter elements such as Oxygen, Silicon, and
  Aluminum rose to form a crust
• The crust, which was originally thin and heavy
  (iron rich silicate) Like todays Oceanic crust,
• Further differentiated to form continental crust
  which was thicker, iron poor and lighter

Figure 1.7, the zones of the earths interior
14
Composition of Earth and Crust



15
Crust and MantleLithosphere and Asthenosphere

• The uppermost mantle and crust are rigid solid
  rock (Lithosphere)
• The rest of the mantle is soft but solid
  (Asthenosphere)
• The Continental Crust floats on the uppermost
  mantle
• The denser, thinner Oceanic Crust comprises the
  ocean basins

Figure 1.7, Detail of crust and Mantle
16
Litho-spheric Plates

• The Lithosphere is broken into plates (7
  major, 6 or 7 minor, many tiny)
• Plates that ride around on the flowing
  Asthenosphere
• Carrying the continents and causing continental
  drift

17
Plates Shown by Physiography
18
Types of Plate Boundaries

• -Convergent -Divergent -Transform

19
Lithospheric Plates and Boundary types
20
Three Types of Plate Boundaries

• Divergent
• ??
• Convergent
• ??
• Transform
• e.g., Pacific NW

21
Divergent Plate Boundaries

• Where plates move away from each other the
  iron-rich, silica-poor mantle partially melts and

• Extrudes on to the ocean floor or continental
  crust
• Cool and solidify to form Basalt

Lithosphere
Lithosphere
Simplified Block Diagram
Asthenosphere
Iron-Rich, Silica-Poor, Dense Dark,
Fine-grained, Igneous Rock
22
Characteristics of Divergent Plate Boundaries

• Divergent Plate Boundary
• Stress Tensional ? extensional strain
• Volcanism non-explosive, fissure eruptions,
  basalt floods
• Earthquakes Shallow, weak
• Rocks Basalt
• Features Ridge, rift, fissures

Oceanic
Crust
Magma Generation
23
Locations of Divergent Plate BoundariesMid-Ocean
Ridges
(Mid-Arctic Ridge)

• East Pacific Rise
• Mid Atlantic Ridge
• Mid Indian Ridge
• Mid Arctic Ridge
• Fig. 1.10

Mid-
Mid-Atlantic Ridge
East Pacific Rise
Indian
Ridge
24
Divergent Plate Boundaries

• Rifting and generation of shallow earthquakes
  (lt33km)

0 33 70
0
30
150
70
150
300
300
500
500
800
Depth (km)
25
E.g., Red Sea and East African Rift
Valleys
Fig. 2-16 Pg. 41
Fig. 2-15 Pg. 40

• Fig. 19.21
• Fig. 19.22

Thinning crust, basalt floods, long
lakes Shallow Earthquakes Linear sea, uplifted
and faulted margins
Rift Valley
Rift Valley
Oceanic Crust
Passive continental shelf and rise
26
Convergent Plate Boundaries

• Where plates move toward each other, oceanic
  crust and the underlying lithosphere is subducted
  beneath the other plate (with either oceanic
  crust or continental crust)
• Wet crust is partially melted to form silicic
  (Silica-rich, iron-poor, i.e., granitic) magma
• Stress Compression
• Earthquakes
• Volcanism
• Rocks
• Features

Fig. 2-17 Pg. 42
Oceanic Trench
Volcanic Arc
Plate Movement
Lithosphere
Lithosphere
Subducted Plate
Magma Generation
Simplified Block Diagram
Shallow and Deep Earthquakes
Asthenosphere
27
Convergent Plate Boundary e.g., Pacific Northwest

• Volcanic Activity
• Explosive, Composite Volcanoes (e.g., Mt. St.
  Helens)
• Arc-shaped mountain ranges
• Strong Earthquakes
• Shallow near trench
• Shallow and Deep over subduction zone

• Rocks Formed
• Granite (or Silicic)
• Iron-poor, Silica-rich
• Less dense, light colored
• Usually intrusive Cooled slowly, deep down, to
  form large crystals and course grained rock

Fig. 2-18 Pg. 42
28
The Ring of Fire (e.g., current volcanic
activity)A ring of convergent plate boundaries
on the Pacific Rim

• New Zealand
• Tonga/Samoa
• Philippines
• Japanese Isls.
• Aleutian Island arc and Trench
• Cascade Range
• Sierra Madre
• Andes Mtns.
• Also Himalayans to the Alps

Composite Volcanic Arcs (Granitic,
Explosive) Basaltic Volcanism (Non-Explosive)
29
Depth of Earthquakes at convergent plate
boundaries
Seismicity of the Pacific Rim 1975-1995
0 33 70

• Shallow quakes at the oceanic trench (lt33km)
• Deep quakes over the subduction zone (gt70 km)

150
300
500
800
Depth (km)
30
Major Plates and Boundaries

• Each major plate caries a continent except the
  Pacific Plate.
• Each ocean has a mid-ocean ridge including the
  Arctic Ocean.
• Divergent bounds beneath E. Africa, gulf of
  California
• The Pacific Ocean is surrounded by convergent
  boundaries.
• Also Himalayans to the Apls

31
Divergent Plate BoundariesRifting and Formation
of new Basiltic Oceanic Crust

• Oceanic Crust
• Thin (lt10 km)
• Young (lt200my)
• Iron Rich (gt5) /
• Silica Poor (50)
• Dense ( 3 g/cm3)
• Low lying (5-11 km deep)
• Formed at Divergent Plate Boundaries

Make a Comparison Table on a separate page

• Composite Volcanic Arcs (explosive)
• Basaltic Volcanism (non-explosive)

32
Convergent Plate BoundariesFormation of Granitic
Continental Crust

• Oceanic Crust
• Thin (lt10 km)
• Young (lt200 my)
• Iron Rich (5) /
• Silica Poor (50)
• Dense (s.g. 3 x H2O)
• Low lying (5-11 km deep)
• Formed at Divergent Plate Boundaries

• Continental Crust
• Thick (10-50 km)
• Old (gt200 m.y. and up to 3.5 b.y.)
• Iron Poor (lt1) /
• Silica Rich (gt70)
• Less Dense ( 2.5 g/cm3)
• High Rising
• (mostly above see level)
• Formed at Convergent Plate Boundaries

33
Isostatic Adjustment

• Why do we see,
• at the earths surface,
• Intrusive igneous rocks and
• Metamorphic rocks
• Formed many km deep?
• Thick, light continental crust buoys up even
  while it erodes
• Eventually, deep rocks are exposed at the
  earths surface
• Minerals not in equilibrium weathered
  (transformed) to clay
• Sediments are formed

34
Transform Plate Boundaries

• Offset Mid- ocean ridges
• May cut continents
• e.g. San Andreas Fault

Fig. 2-21 Pg. 44
35
The Hydrologic Cycle

• Works with Plate-Tectonics to
• Shape the land
• Weathering
• clay, silt, sand
• Erosion
• Transport
• Sedimentation
• Geologic Materials
• Sediments
• Sedimentary Rocks

36
The 3 rock types form at convergent plate
boundaries

• Igneous Rocks When rocks melt, Magma is formed,
  rises, cools and crystallizes.
• Sedimentary Rocks All rocks weather and erode to
  form sediments (e.g., gravel, sand, silt, and
  clay). When these sediments accumulate they are
  compressed and cemented (lithified)
• Metamorphic Rocks When rocks are compressed and
  heated but not melted their minerals
  re-equilibrate (metamorphose) to minerals stable
  at higher temperatures and pressures

Sedimentary Rocks
Metamorphic Rocks
Igneous Rocks
Magma
37
The RockCycle
38
Igneous and Sedimentary Rocks at Divergent
Boundaries and Passive Margins

• Igneous Rocks (basalt) are formed at divergent
  plate boundaries and Mantle Hot Spots. New
  basaltic, oceanic crust is generated at divergent
  plate boundaries.
• Sedimentary Rocks are formed along active and
  passive continental margins from sediments shed
  from continents

• Sedimentary Rocks are formed on continents where
  a basin forms and sediments accumulate to great
  thicknesses. E.g., adjacent to mountain ranges
  and within rift valleys.

See Kehew, Figure 2.30
