SAE

1

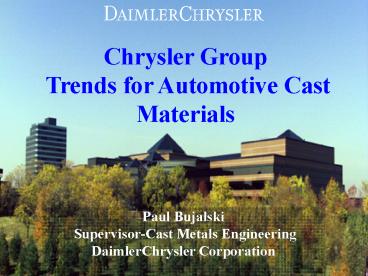

Chrysler Group Trends for Automotive Cast
Materials
Paul Bujalski Supervisor-Cast Metals
EngineeringDaimlerChrysler Corporation
2
Drivers
Materials Selection Trends for Automotive Cast
Materials

• Lower total vehicle cost
• Manpower
• Investment
• Materials
• Meet new performance requirements
• Customer driven
• Government driven

3
Density (g/cm3)
Materials Data Trends for Automotive Cast
Materials
4
Cost
Materials Data Trends for Automotive Cast
Materials
5
Material Properties
Materials Data Trends for Automotive Cast
Materials
6
Ranking for Structural Applications

Materials Data Trends for Automotive Cast
Materials
FRF (Tensile x Modulus) (Cost x Density)
7
Ferrous Applications
Current
Front Knuckle Control Arms Crankshafts Camshafts
Engine Block Con Rods
Future ?

• Thin-Wall Steel
• BIW Structures (B- Pillar, etc.)
• Chassis Assemblies
• Austempered Ductile Iron
• Crankshafts
• Suspension Components

Typical Ferrous Suspension Castings
8
Ferrous Applications
Current
Front Knuckle Control Arms Crankshafts Camshafts
Engine Block Con Rods
Future ?

• Thin-Wall Steel
• BIW Structures (B- Pillar, etc.)
• Chassis Assemblies
• Austempered Ductile Iron
• Crankshafts
• Suspension Components

Thin-Wall Cast Steel Crossmember
9
Aluminum Applications
Current
Front Knuckle Rear Knuckle Engine Cradle Road
Wheel Engine Block Cylinder Head Transmission Case

• Space Frames
• (Cast Node/Extrusion Combination)
• BIW Closure Panels
• BIW Structures (B- Pillar, etc.)

Future ?
Pacifica / 300C / Magnum Rear Suspension Links
Squeeze Casting Process Saves Cost over Forging
10
Magnesium Applications
Current
Steering Wheel Instrument Panel Steering Column
Brkt. Upper Mt. Brkt. Pedal Sup. Brkt.
Future ?
Viper Front of Dash Support
Transfer Case Transmission Case Liftgate,
Cradles Rear Seat Frame Front Radiator
Support Oil Pan / Front Cover
Super Integrated Design Saves Weight and Cost
11
For the Future
Summary Trends for Automotive Cast Materials

• Steel will remain the dominant material.
• Iron will decrease but remain important.
• Composites will increase for low volume
  applications.
• Aluminum will grow and should become the number 2
  material.
• Magnesium will have high growth rate, but remain
  below 1-3 of the vehicle.

12
Exterior Composites on the 2003 Dodge Viper
SMC RRIM
13
Structural Composites on the 2003 Dodge Viper
Glass Fiber SMC, LMC, GMT Carbon
Fiber SMC
14
Specific Target Areas

• Thin-Wall Steel Castings-Integrating Weldments or
  Fabricated Assemblies into Single Component, BIW
  Structures.
• Austempered Ductile Iron, More Machinable ADI
  Grades Targeting Chassis Applications.
• Higher Strength Aluminum Alloys, 2xx/7xx Series.
  Wrought/Forging-Casting Process Combinations.
• Magnesium Castings in Powertrain and Chassis
  Applications.

Summary Trends for Automotive Cast Materials
15
Trends for Automotive Cast Materials
Thank You For Your Attention. Any
Questions?
