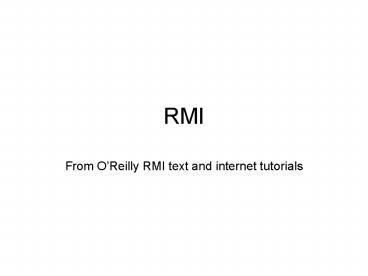

RMI

1
RMI

• From OReilly RMI text and internet tutorials

2
Other rmi tutorials

• http//java.sun.com/developer/onlineTraining/rmi/R
  MI.html
• And
• http//java.sun.com/docs/books/tutorial/rmi/

3
RMI

• The Java Remote Method Invocation (RMI) system
  allows an object running in one Java Virtual
  Machine (VM) to invoke methods on an object
  running in another Java VM. RMI provides for
  remote communication between programs written in
  the Java programming language.

4
Java Remote Object Invocation (RMI)

• Overview of RMI
• Java RMI allows programmer to execute remote
  function class using the same semantics as local
  functions calls.

5
The General RMI Architecture

• The server must first bind its name to the
  registry
• The client looks up the server name in the
  registry to establish remote references.
• The Stub serializes the parameters to the
  skeleton, the skeleton invokes the remote method
  and seriales the result back to the stub.

6
The Stub and Skeleton

• A client invokes a remote method, the call is
  first forwarded to stub.
• The stub is responsible for sending the remote
  call over to the server-side skeleton
• The stub opening a socket to the remote server,
  marshaling the object parameters and forwarding
  the data stream to the skeleton.
• A skeleton contains a method that receives the
  remote calls, unmarshals the parameters, and
  invokes the actual remote object implementation.

7
Steps for Developing an RMI System

• 1. Define the remote interface
• 2. Develop the remote object by implementing the
  remote interface.
• 3. Develop the client program.
• 4. Compile the Java source files.
• 5. Generate the client stubs and server
  skeletons.
• 6. Start the RMI registry.
• 7. Start the remote server objects.
• 8. Run the client

8
Step 1 Defining the Remote Interface

• To create an RMI application, the first step is
  the defining of a remote interface between the
  client and server objects.
• / SampleServer.java /
• import java.rmi.
• public interface SampleServer extends Remote
• public int sum(int a,int b) throws
  RemoteException

9
Step 2 Develop the remote object and its
interface

• The server is a simple unicast remote server.
• Create server by extending java.rmi.server.Unicast
  RemoteObject.
• The server uses the RMISecurityManager to protect
  its resources while engaging in remote
  communication.
• / SampleServerImpl.java /
• import java.rmi.
• import java.rmi.server.
• import java.rmi.registry.
• public class SampleServerImpl extends
  UnicastRemoteObject
• implements
  SampleServer
• SampleServerImpl() throws RemoteException
• super()

10
Step 2 Develop the remote object and its
interface

• Implement the remote methods
• / SampleServerImpl.java /
• public int sum(int a,int b) throws
  RemoteException
• return a b
• The server must bind its name to the registry,
  the client will look up the server name.
• Use java.rmi.Naming class to bind the server name
  to registry. In this example the name call
  SAMPLE-SERVER.
• In the main method of your server object, the RMI
  security manager is created and installed.

11
Step 2 Develop the remote object and its
interface

• / SampleServerImpl.java /
• public static void main(String args)
• try
• System.setSecurityManager(new
  RMISecurityManager())
• //set the security manager
• //create a local instance of the object
• SampleServerImpl Server new
  SampleServerImpl()
• //put the local instance in the registry
• Naming.rebind("SAMPLE-SERVER" , Server)
• System.out.println("Server
  waiting.....")
• catch (java.net.MalformedURLException me)

• System.out.println("Malformed URL "
  me.toString())
• catch (RemoteException re)

12
Step 3 Develop the client program

• In order for the client object to invoke methods
  on the server, it must first look up the name of
  server in the registry. You use the
  java.rmi.Naming class to lookup the server name.
• The server name is specified as URL in the from
  ( rmi//hostport/name )
• Default RMI port is 1099.
• The name specified in the URL must exactly match
  the name that the server has bound to the
  registry. In this example, the name is
  SAMPLE-SERVER
• The remote method invocation is programmed using
  the remote interface name (remoteObject) as
  prefix and the remote method name (sum) as suffix.

13
Step 3 Develop the client program

• import java.rmi.
• import java.rmi.server.
• public class SampleClient
• public static void main(String args)
• // set the security manager for the client
• System.setSecurityManager(new
  RMISecurityManager())
• //get the remote object from the registry
• try
• System.out.println("Security Manager
  loaded")
• String url "//localhost/SAMPLE-SERVER"

• SampleServer remoteObject
  (SampleServer)Naming.lookup(url)
• System.out.println("Got remote
  object")
• System.out.println(" 1 2 "
  remoteObject.sum(1,2) )
• catch (RemoteException exc)
• System.out.println("Error in lookup "
  exc.toString())

14
Step 4 5 Compile the Java source files
Generate the client stubs and server skeletons

• Assume the program needs to compile and execute
  at home
• Once the interface is completed, you need to
  generate stubs and skeleton code. The RMI system
  provides an RMI compiler (rmic) that takes your
  generated interface class and procedures stub
  code on its self.
• promptgt set CLASSPATHhome
• promptgt javac SampleServer.java
• promptgt javac SampleServerImpl.java
• promptgt rmic SampleServerImpl
• promptgt javac SampleClient.java

15
A little background

• Since the client needs to know the name of, and
  signature of, the method she invokes, a method
  stub file needs to be available to the client
  (in the class path for client) showing how to
  marshal and unmarshal parameters and return
  types.
• The rmi compiler (rmic in your java directory)
  creates someclass_stub.class files which are
  provided to your client.

16
Windows rmi info

• A remote object registry is a bootstrap naming
  service that is used by RMI servers on the same
  host to bind remote objects to names. Clients on
  local and remote hosts can then look up remote
  objects and make remote method invocations.
• The registry is typically used to locate the
  first remote object on which an application needs
  to invoke methods. That object in turn will
  provide application-specific support for finding
  other objects.

17
Windows rmi info

• The methods of the java.rmi.registry.LocateRegistr
  y class are used to get a registry operating on
  the local host or local host and port.
• The URL-based methods of the java.rmi.Naming
  class operate on a registry and can be used to
  look up a remote object on any host, and on the
  local host bind a simple (string) name to a
  remote object, rebind a new name to a remote
  object (overriding the old binding), unbind a
  remote object, and list the URLs bound in the
  registry.
• OPTIONS
• -J
• Used in conjunction with any java option, it
  passes the option following the -J (no spaces
  between the -J and the option) on to the java
  interpreter.
• SEE ALSO
• java, java.rmi.registry.LocateRegistry and
  java.rmi.Naming

18
Step 6 Start the RMI registry in its own command
window

• Open an extra command window
• The RMI applications need install in the
  Registry. And the Registry must be started
  manually by calling rmiregisty.
• The rmiregistry uses port 1099 by default. You
  can also bind rmiregistry to a different port by
  indicating the new port number as rmiregistry
  ltnew portgt
• On Windows, you have to type on the command line
• gt start rmiregistry

19
Port for rmi

• To run registry on Windows platforms
• Promptgtstart rmiregistry
• By default, the registry runs on TCP port 1099.
  To start a registry on a different port, specify
  the port number from the command line. For
  example, to start the registry on port 2001 on a
  Windows platform
• Promptgtstart rmiregistry 2001

20
Steps 7 8 Start the remote server objects
Run the client

• Once the Registry is started, the server can be
  started and will be able to store itself in the
  Registry.
• Because of the grained security model in Java
  2.0, you must set up a security policy for RMI by
  set java.security.policy to a file, for example,
  policy.all
• promptgt java Djava.security.policypolicy.all
  SampleServerImpl
• promptgt java Djava.security.policypolicy.all
  SampleClient

21
Java Policy File

• In Java 2, the java application must first obtain
  information regarding its privileges. It can
  obtain the security policy through a policy file.
  If, in above example, we allow the Java code to
  have all permissions, the contents of the policy
  file policy.all would be
• grant
• permission java.security.AllPermission
• Now, we given an example for assigning resource
  permissions
• grant
• permission java.io.filePermission /tmp/,
  read, write
• permission java.net.SocketPermission
  somehost.somedomain.com999,connect
• permission java.net.SocketPermission
  1024-65535,connect,request
• permission java.net.SocketPermission
  80,connect

22
Comment for the Java Policy File

• 1. allow the Java code to read/write any files
  only under the /tmp directory, includes any
  subdirectories
• 2. allow all java classes to establish a network
  connection with the host somehost.somedomain.com
  on port 999
• 3. allows classes to connection to or accept
  connections on unprivileged ports greater than
  1024 , on any host
• 4. allows all classes to connect to the HTTP
  port 80 on any host.
• You can obtain complete details by following
  links
• http//java.sun.com/products//jdk/1.2/docs/guide/s
  ecurity/spec/security-spec.doc3.html

23
First a tutorial example

• http//java.sun.com/j2se/1.5.0/docs/guide/rmi/hell
  o/hello-world.html51
• A VERY simple working rmi example

24
Hello interface(extends remote)

• package example.hello
• import java.rmi.Remote
• import java.rmi.RemoteException
• public interface Hello extends Remote
• String sayHello() throws RemoteException

25
Client

• package example.hello
• import java.rmi.registry.LocateRegistry//usual
  RMI imports
• import java.rmi.registry.Registry
• public class Client
• private Client()
• public static void main(String args)
• String host (args.length lt 1) ? null
  args0
• try
• Registry registry LocateRegistry.getRegistr
  y(host)
• Hello stub (Hello) registry.lookup("Hello")

• String response stub.sayHello()
• System.out.println("response " response)
• catch (Exception e)
• System.err.println("Client exception "
  e.toString())
• e.printStackTrace()

26
The RMI Server (sometimes called
ServiceImpllike HelloImpl in this case)

• package example.hello
• import java.rmi.registry.Registry
• import java.rmi.registry.LocateRegistry
• import java.rmi.RemoteException
• import java.rmi.server.UnicastRemoteObject
• public class Server implements Hello
• public Server()
• public String sayHello()
• return "Hello, world!"
• public static void main(String args)
• try
• Server obj new Server()
• Hello stub (Hello) UnicastRemoteObject.expo
  rtObject(obj, 0)
• // Bind the remote object's stub in the
  registry
• Registry registry LocateRegistry.getRegistr
  y()
• registry.bind("Hello", stub)
• System.err.println("Server ready")
• catch (Exception e)
• System.err.println("Server exception "
  e.toString())

27
Compile then run

• First compile Hello.java, then the other two
  files.
• Start rmiregistry
• Run server
• C\PROGRA1\JAVA\JDK151.0_0\BINgtjava
  example/hello/Server
• Response is Server ready
• Run client
• C\PROGRA1\JAVA\JDK151.0_0\BINgtjava
  example/hello/Client
• response Hello, world!

28
Dont forget to run rmic on the interface

• C\rmi_hello_worldgtrmic Hello
• C\rmi_hello_worldgtjava HelloServer
• Hello Server is ready.
• C\rmi_hello_worldgtjava HelloClient
• Hello, world!

29
Same interfacebut using an applet

• The impl file
• import java.rmi.Naming
• import java.rmi.RemoteException
• import java.rmi.RMISecurityManager
• import java.rmi.server.UnicastRemoteObject
• public class HelloImpl extends
  UnicastRemoteObject implements Hello
• public HelloImpl() throws RemoteException
• super()
• public String sayHello()
• return "Hello World!"
• public static void main(String args)
• // Create and install a security manager
• if (System.getSecurityManager() null)
• System.setSecurityManager(new
  RMISecurityManager())
• try
• HelloImpl obj new HelloImpl()

30
The policy file

• JRE did not seem to look at the
  jre/lib/security/java.policy file in the JRE
  directory so I used my own policy file
• grant
• //to handle rmi connection issues
• permission java.net.SocketPermission
  "localhost1024-", "listen,connect,resolve"

31
Run the impl file specifying policy at runtime

• c\PROGRA1\Java\JDK151.0_0\bingtjava
  -Djava.security.manager -Djava.security.policypol
  icy.all HelloImpl
• HelloServer bound in registry
• (you get this message when it is bound)

32
Hello applet rmi example files

• Hello.htmlusual file points to applet.class, I
  put it in webapps/ROOT
• HelloApplet a jdk1.1 applet that gets a HelloInt
  object bound in the registry
• HelloImpl remote thingy implementing the hello
  interface.
• Remember to javac and rmic the HelloImpl file and
  put both the class and the stub class files in
  the directory with your applet code
• I did not use packages from the example and had
  to modify a few other minor items.

33
RMI

• I started RMI registry from my java directory,
  not from tomcat.
• I did not use a policy file for the application
  program.
• I ran the example in Firefox not IE
• A batchfile to set classpath to some webapp and
  then start rmi
• Set classpathC\PROGRA1\TOMCAT1.5\WEBAPPS\ROOT

• C\PROGRA1\TOMCAT1.5\WEBAPPS\ROOT\WEB-INF\classe
  s
• rmiregistry

34
The tutorial url for this example

• http//java.sun.com/j2se/1.3/docs/guide/rmi/getsta
  rt.doc.html5238

35
Run the applet (the little hello world is the
message)
36
The calculator project interface file

• public interface Calculator
• extends java.rmi.Remote
• public long add(long a, long b)
• throws java.rmi.RemoteException
• public long sub(long a, long b)
• throws java.rmi.RemoteException
• public long mul(long a, long b)
• throws java.rmi.RemoteException
• public long div(long a, long b)
• throws java.rmi.RemoteException

37
The calculator project implementation class
CalculatorImpl

• public class CalculatorImpl extends
  java.rmi.server.UnicastRemoteObject
• implements Calculator
• // Implementations must have an
• //explicit constructor
• // in order to declare the
• //RemoteException exception
• public CalculatorImpl()
• throws java.rmi.RemoteException
• super()
• public long add(long a, long b)
• throws java.rmi.RemoteException
• return a b
• public long sub(long a, long b)
• throws java.rmi.RemoteException
• return a - b
• public long mul(long a, long b)
• throws java.rmi.RemoteException
• return a b

38
The calculator project run rmic on
CalculatorImpl to generate stub file

• C\PROGRA1\JAVA\JDK151.0_0\BINgtdir
  Calculator.
• Volume in drive C has no label.
• Volume Serial Number is 84F7-99D3
• Directory of c\PROGRA1\Java\JDK151.0_0\bin
• 10/24/2006 0133 PM 271
  Calculator.class
• 10/24/2006 0133 PM 405
  Calculator.java
• 10/24/2006 0135 PM 536
  CalculatorImpl.class
• 10/24/2006 0135 PM 815
  CalculatorImpl.java
• 10/24/2006 0137 PM 2,476
  CalculatorImpl_Stub.class
• 5 File(s) 4,503 bytes
• 0 Dir(s) 142,396,870,656 bytes
  free
• C\PROGRA1\JAVA\JDK151.0_0\BINgt

39
The calculator project the server for the rmi

• import java.rmi.Naming
• public class CalculatorServer
• public CalculatorServer()
• try
• Calculator c new CalculatorImpl()
• Naming.rebind("rmi//localhost1099/Calcula
  torService", c)
• catch (Exception e)
• System.out.println("Trouble " e)
• public static void main(String args)
• new CalculatorServer()

40
Calculator client class.

• import java.rmi.NotBoundException
• public class CalculatorClient
• public static void main(String args)
• try
• Calculator c (Calculator)
• Naming.lookup("rmi//lo
  calhost/CalculatorService")
• System.out.println( c.sub(4, 3) )
• System.out.println( c.add(4, 5) )
• System.out.println( c.mul(3, 6) )
• System.out.println( c.div(9, 3) )

• catch (MalformedURLException murle)
• System.out.println()
• System.out.println(
• "MalformedURLException")
• System.out.println(murle)
• catch (RemoteException re)
• System.out.println()
• System.out.println("RemoteException")

• System.out.println(re)

41
Running the calculator project

• You are now ready to run the system! You need to
  start three consoles, one for the server, one for
  the client, and one for the RMIRegistry.
• Start with the Registry. You must be in the
  directory that contains the classes you have
  written. From there, enter the following
• gtrmiregistry
• If all goes well, the registry will start running
  and you can switch to the next console.
• In the second console. To start the server
  hosting the CalculatorService enter the
  following
• gtjava CalculatorServer
• It will start, load the implementation into
  memory and wait for a client connection.
• In the last console, start the client program.
• gtjava CalculatorClient
• If all goes well you will see the following
  output
• 1 9 18 3
• That's it you have created a working RMI system.
  Even though you ran the three consoles on the
  same computer, RMI uses your network stack and
  TCP/IP to communicate between the three separate
  JVMs. This is a full-fledged RMI system.

42
Screenshot of calculator

• C\PROGRA1\JAVA\JDK151.0_0\BINgtjava
  CalculatorClient
• 1
• 9
• 18
• 3
• C\PROGRA1\JAVA\JDK151.0_0\BINgt

43
A note

• This simple example is redone at the end using
  the simplifiedservlethandler and
  loggingservletforwarder implementing rmi through
  http tunneling

44
Computing somethinglike pi

• http//java.sun.com/docs/books/tutorial/rmi/overvi
  ew.html

45
Compiling compute.java and task.java and creating
a jar file in compute directory

• C\PROGRA1\JAVA\JDK151.0_0\BINgtjavac
  compute\compute.java
• C\PROGRA1\JAVA\JDK151.0_0\BINgtjavac
  compute\task.java
• C\PROGRA1\JAVA\JDK151.0_0\BINgtjar cvf
  compute.jar compute\.class
• added manifest
• adding compute/Compute.class(in 238) (out
  169)(deflated 28)
• adding compute/Task.class(in 166) (out
  139)(deflated 16)

46
Jar files

• C\PROGRA1\JAVA\JDK151.0_0\BIN\PUBLIC1\CLASSESgt
  jar xvf compute.jar
• created META-INF/
• inflated META-INF/MANIFEST.MF
• inflated compute/Compute.class
• inflated compute/Task.class
• C\PROGRA1\JAVA\JDK151.0_0\BIN\PUBLIC1\CLASSESgt

47
Compile client files

• C\PROGRA1\JAVA\JDK151.0_0\BIN\PUBLIC1\CLASSESgt
  javac c\progra1\java\jdk151
• .0_0\bin\client\ComputePi.java
• C\PROGRA1\JAVA\JDK151.0_0\BIN\PUBLIC1\CLASSESgt
  javac c\progra1\java\jdk151.0_0\bin\client\Comp
  utePi.java
• C\PROGRA1\JAVA\JDK151.0_0\BIN\PUBLIC1\CLASSESgt
  javac c\progra1\java\jdk151.0_0\bin\client\Pi.j
  ava

48
The Compute example

• At the heart of the compute engine is a protocol
  that allows jobs to be submitted to the compute
  engine, the compute engine to run those jobs, and
  the results of the job to be returned to the
  client. This protocol is expressed in interfaces
  supported by the compute engine and by the
  objects that are submitted to the compute engine,
  as shown in the following figure.
• Each of the interfaces contains a single method.

49
About the example

• The return value for the Compute's executeTask
  and Task's execute methods is declared to be of
  type Object. This means that any task that wants
  to return a value of one of the primitive types,
  such as an int or a float, needs to create an
  instance of the equivalent wrapper class for that
  type, such as an Integer or a Float, and return
  that object instead.

50
About the example

• Note that the Task interface extends the
  java.io.Serializable interface. RMI uses the
  object serialization mechanism to transport
  objects by value between Java virtual machines.
  Implementing Serializable marks the class as
  being capable of conversion into a
  self-describing byte stream that can be used to
  reconstruct an exact copy of the serialized
  object when the object is read back from the
  stream.

51
About the example

• Different kinds of tasks can be run by a Compute
  object as long as they are implementations of the
  Task type. The classes that implement this
  interface can contain any data needed for the
  computation of the task and any other methods
  needed for the computation.

52
About the example

• Here is how RMI makes this simple compute engine
  possible.
• Since RMI can assume that the Task objects are
  written in the Java programming language,
  implementations of the Task object that were
  previously unknown to the compute engine are
  downloaded by RMI into the compute engine's
  virtual machine as needed.
• This allows clients of the compute engine to
  define new kinds of tasks to be run on the server
  machine without needing the code to be explicitly
  installed on that machine. In addition, because
  the executeTask method returns a
  java.lang.Object, any type of object can be
  passed as a return value in the remote call.

53
About the example

• The compute engine, implemented by the
  ComputeEngine class, implements the Compute
  interface, allowing different tasks to be
  submitted to it by calls to its executeTask
  method. These tasks are run using the task's
  implementation of the execute method. The compute
  engine reports results to the caller through its
  return value an Object.

54
compute.Compute

• The compute.Compute interface defines the
  remotely accessible part--the compute engine
  itself. Here is the remote interface with its
  single method
• package compute
• import java.rmi.Remote
• import java.rmi.RemoteException
• public interface Compute extends Remote
• Object executeTask(Task t) throws
  RemoteException
• By extending the interface java.rmi.Remote, this
  interface marks itself as one whose methods can
  be called from any virtual machine. Any object
  that implements this interface becomes a remote
  object.

55
compute.Task

• The compute.Task interface defines the interface
  between the compute engine and the work that it
  needs to do, providing the way to start the work.

• package compute
• import java.io.Serializable
• public interface Task extends Serializable
• Object execute()
• The Task interface defines a single method,
  execute, which returns an Object, has no
  parameters, and throws no exceptions. Since the
  interface does not extend Remote, the method in
  this interface doesn't need to list

56
the implementation class of a remote interface

• general the implementation class of a remote
  interface should at least
• Declare the remote interfaces being implemented
• Define the constructor for the remote object
• Provide an implementation for each remote method
  in the remote interfaces
• The server needs to create and to install the
  remote objects. This setup procedure can be
  encapsulated in a main method in the remote
  object implementation class itself, or it can be
  included in another class entirely. The setup
  procedure should
• Create and install a security manager
• Create one or more instances of a remote object
• Register at least one of the remote objects with
  the RMI remote object registry (or another naming
  service such as one that uses JNDI), for
  bootstrapping purposes

57
The complete implementation of the compute engine

• The complete implementation of the compute engine
  follows. The engine.ComputeEngine class
  implements the remote interface Compute and also
  includes the main method for setting up the
  compute engine.

58
ComputeEngine

• package engine
• import java.rmi.
• import java.rmi.server.
• import compute.
• public class ComputeEngine extends
  UnicastRemoteObject implements Compute
• public ComputeEngine() throws RemoteException
  super() public Object executeTask(Task t)
  return t.execute()
• public static void main(String args)
• if (System.getSecurityManager() null)
  System.setSecurityManager(new RMISecurityManager()
  )
• String name "//host/Compute"//change to
  localhost
• try Compute engine new ComputeEngine()
  Naming.rebind(name, engine) System.out.println("C
  omputeEngine bound")
• catch (Exception e) System.err.println("ComputeE
  ngine exception " e.getMessage())
  e.printStackTrace()

59
Client files class Pi implements Task, slide1

• package client
• import compute.
• import java.math.
• public class Pi implements Task
• / constants used in pi computation /
• private static final BigDecimal ZERO
• BigDecimal.valueOf(0)
• private static final BigDecimal ONE
• BigDecimal.valueOf(1)
• private static final BigDecimal FOUR
• BigDecimal.valueOf(4)
• / rounding mode to use during pi
  computation /
• private static final int roundingMode
• BigDecimal.ROUND_HALF_EVEN
• / digits of precision after the decimal
  point /
• private int digits
• /Construct a task to calculate pi to the
  specified precision. /
• public Pi(int digits)
• this.digits digits

60
Client files class Pi implements Task, slide2

• / Calculate pi. /
• public Object execute()
• return computePi(digits)
• /
• Compute the value of pi to the specified
  number of
• digits after the decimal point. The value
  is
• computed using Machin's formula
• pi/4 4arctan(1/5) -
  arctan(1/239)
• and a power series expansion of arctan(x)
  to
• sufficient precision.
• /
• public static BigDecimal computePi(int
  digits)
• int scale digits 5
• BigDecimal arctan1_5 arctan(5, scale)
• BigDecimal arctan1_239 arctan(239,
  scale)
• BigDecimal pi arctan1_5.multiply(FOUR).s
  ubtract(
•
  arctan1_239).multiply(FOUR)

61
Client files class Pi implements Task, slide3

• public static BigDecimal arctan(int inverseX,
• int scale)
• BigDecimal result, numer, term
• BigDecimal invX BigDecimal.valueOf(inver
  seX)
• BigDecimal invX2
• BigDecimal.valueOf(inverseX
  inverseX)
• numer ONE.divide(invX, scale,
  roundingMode)
• result numer
• int i 1
• do
• numer
• numer.divide(invX2, scale,
  roundingMode)
• int denom 2 i 1
• term numer.divide(BigDecimal.valueO
  f(denom), scale, roundingMode)
• if ((i 2) ! 0) result
  result.subtract(term)
• else result result.add(term)

• i
• while (term.compareTo(ZERO) ! 0)
• return result

62
Compute client files in client directory
ComputePi

• package client
• import java.rmi.
• import java.math.
• import compute.
• public class ComputePi
• public static void main(String args)
• if (System.getSecurityManager() null)

• System.setSecurityManager(new
  RMISecurityManager())
• try
• String name "//" args0
  "/Compute"
• Compute comp (Compute)
  Naming.lookup(name)
• Pi task new Pi(Integer.parseInt(args
  1))
• BigDecimal pi (BigDecimal)
  (comp.executeTask(task))
• System.out.println(pi)
• catch (Exception e)
• System.err.println("ComputePi
  exception " e.getMessage())
• e.printStackTrace()

63
Rmiregistry (run) and run engine (server) I
used a batch file

• gtrmiregistry
• gtjava -Djava.security.policyjava.policy
  engine.ComputeEngine
• ComputeEngine bound

64
Run client- you may want a batch file

• Client expects server name to be passed as well
  as how many digits of pi are required. Output
• C\PROGRA1\JAVA\JDK151.0_0\BINgtrunclient
• c\PROGRA1\Java\JDK151.0_0\bingtjava
  -Djava.security.policyjava.policy
• client.ComputePi localhost 20
• 3.14159265358979323846

65
More remarks

• Youll need to change minor code in the engine
  and client where it specifies the host url. I
  used localhost.

66
UnicastRemoteObject

• A remote object implementation does not have to
  extend UnicastRemoteObject, but any
  implementation that does not must supply
  appropriate implementations of the
  java.lang.Object methods. Furthermore, a remote
  object implementation must make an explicit call
  to one of UnicastRemoteObject's exportObject
  methods to make the RMI runtime aware of the
  remote object so that the object can accept
  incoming calls. By extending UnicastRemoteObject,
  the ComputeEngine class can be used to create a
  simple remote object that supports unicast
  (point-to-point) remote communication and that
  uses RMI's default sockets-based transport for
  communication.

67

• If you choose to extend a remote object from any
  class other than Unicast-RemoteObject or,
  alternatively, extend from the new JDK 1.2 class
  java.rmi.activation.Activatable (used to
  construct remote objects that can execute on
  demand), you need to export the remote object by
  calling either the UnicastRemoteObject.exportObjec
  t or Activatable.exportObject method explicitly
  from your class's constructor (or another
  initialization method, as appropriate).

68
Define the Constructor

• The ComputeEngine class has a single constructor
  that takes no arguments.
• The code for the constructor is
• public ComputeEngine() throws RemoteException
  super()
• This constructor simply calls the superclass
  constructor, which is the no-argument constructor
  of the UnicastRemoteObject class. Although the
  superclass constructor gets called even if
  omitted from the ComputeEngine constructor, we
  include it for clarity. During construction, a
  UnicastRemoteObject is exported, meaning that it
  is available to accept incoming requests by
  listening for incoming calls from clients on an
  anonymous port.

69
Passing Objects in RMI

• Arguments to or return values from remote methods
  can be of almost any type, including local
  objects, remote objects, and primitive types.
  More precisely, any entity of any type can be
  passed to or from a remote method as long as the
  entity is an instance of a type that is a
  primitive data type, a remote object, or a
  serializable object, which means that it
  implements the interface java.io.Serializable.
• A few object types do not meet any of these
  criteria and thus cannot be passed to or returned
  from a remote method. Most of these objects, such
  as a file descriptor, encapsulate information
  that makes sense only within a single address
  space. Many of the core classes, including those
  in the packages java.lang and java.util,
  implement the Serializable interface.

70
The rules governing how arguments and return
values are passed

• Remote objects are essentially passed by
  reference. A remote object reference is a stub,
  which is a client-side proxy that implements the
  complete set of remote interfaces that the remote
  object implements.
• Local objects are passed by copy, using object
  serialization. By default all fields are copied,
  except those that are marked static or transient.
  Default serialization behavior can be overridden
  on a class-by-class basis.
• Passing an object by reference (as is done with
  remote objects) means that any changes made to
  the state of the object by remote method calls
  are reflected in the original remote object. When
  passing a remote object, only those interfaces
  that are remote interfaces are available to the
  receiver any methods defined in the
  implementation class or defined in nonremote
  interfaces implemented by the class are not
  available to that receiver.

71
Implement the Server's main Method

• The most involved method of the ComputeEngine
  implementation is the main method. The main
  method is used to start the ComputeEngine and
  therefore needs to do the necessary
  initialization and housekeeping to prepare the
  server for accepting calls from clients. This
  method is not a remote method, which means that
  it cannot be called from a different virtual
  machine. Since the main method is declared
  static, the method is not associated with an
  object at all but rather with the class
  ComputeEngine.

72
Create and Install a Security Manager

• The first thing that the main method does is to
  create and to install a security manager, which
  protects access to system resources from
  untrusted downloaded code running within the
  virtual machine. The security manager determines
  whether downloaded code has access to the local
  file system or can perform any other privileged
  operations. All programs using RMI must install a
  security manager, or RMI will not download
  classes (other than from the local class path)
  for objects received as parameters, return
  values, or exceptions in remote method calls.
  This restriction ensures that the operations
  performed by downloaded code go through a set of
  security checks.
• The ComputeEngine uses a security manager
  supplied as part of the RMI system, the
  RMISecurityManager. This security manager
  enforces a similar security policy as the typical
  security manager for applets that is to say, it
  is very conservative as to what access it allows.
  An RMI application could define and use another
  SecurityManager class that gave more liberal
  access to system resources or, in JDK 1.2, use a
  policy file that grants more permissions.

73
SecurityManager

• Here's the code that creates and installs the
  security manager
• if (System.getSecurityManager() null)
  System.setSecurityManager(new RMISecurityManager()
  )

74
Build a JAR File of Interface Classes

• C\PROGRA1\JAVA\JDK151.0_0\BINgtCompute
• c\PROGRA1\Java\JDK151.0_0\bingtjavac
  compute\Compute.java
• c\PROGRA1\Java\JDK151.0_0\bingtjavac
  compute\Task.java
• c\PROGRA1\Java\JDK151.0_0\bingtjar cvf
  compute.jar compute\.class
• added manifest
• adding compute/Compute.class(in 238) (out
  169)(deflated 28)
• adding compute/Task.class(in 166) (out
  138)(deflated 16)

75
Server batch file

• C\PROGRA1\JAVA\JDK151.0_0\BINgtserver
• c\PROGRA1\Java\JDK151.0_0\bingtjavac
  engine\ComputeEngine.java
• c\PROGRA1\Java\JDK151.0_0\bingtrmic -d .
  engine.ComputeEngine

76
About the batch file

• The -d option tells the rmic compiler to place
  the generated class files, ComputeEngine_Stub.clas
  s and ComputeEngine_Skel.class, in the directory
  c\home\ann\src\engine. You also need to make the
  stubs and the skeletons network accessible, so
  you must copy the stub and the skeleton class to
  the area public_html\classes.
• Since the ComputeEngine's stub implements the
  Compute interface, which refers to the Task
  interface, you need to make these two interface
  class files network accessible along with the
  stub. So the final step is to unpack the
  compute.jar file in the directory
  c\home\ann\public_html\classes to make the
  Compute and the Task interfaces available for
  downloading.

77
unpack the compute.jar file in the directory

• C\PROGRA1\JAVA\JDK151.0_0\BINgtjar xvf
  compute.jar
• created META-INF/
• inflated META-INF/MANIFEST.MF
• inflated compute/Compute.class
• inflated compute/Task.class

78
Create client classes

• C\PROGRA1\JAVA\JDK151.0_0\BINgtclient.bat
• c\PROGRA1\Java\JDK151.0_0\bingtjavac
  client\ComputePi.java
• c\PROGRA1\Java\JDK151.0_0\bingtjavac
  client\Pi.java

79
distribute the compute.jar file to developers of
server and client applications so that they can
make use of the interfaces.

• When you build either server- or client-side
  classes with the javac and rmic compilers, you
  generally need to specify where the resulting
  class files should reside so that they are
  network accessible. In this example this location
  is, for UNIX, /home/user/public_html/classes,
  because some web servers allow accessing a user's
  public_html directory via an HTTP URL constructed
  as http//host/user/. If your web server does
  not support this convention, you could use a file
  URL instead. The file URLs take the form
  file/home/user/public_html/classes/ on UNIX or,
  on the Microsoft Windows platform,
  file/c/home/user/public_html/classes/. You may
  also select another type of URL, as appropriate.
• The network accessibility of the class files
  allows the RMI runtime to download code when
  needed. Rather than defining its own protocol for
  code downloading, RMI uses URL protocols
  supported by the Java platform (for example,
  HTTP) to download code. Note that a full,
  heavyweight web server is not needed to
  accomplish this downloading of class files. In
  fact, a simple HTTP server that provides all of
  the functionality needed to make classes
  available for downloading in RMI via HTTP can be
  found at ftp//ftp.javasoft.com/pub/jdk1.1/rmi/cla
  ss-server.zip.

80
Build the Server Classes

• The engine package contains only one server-side
  implementation class, ComputeEngine, the remote
  object implementation of the Compute interface.
  Since ComputeEngine is an implementation of a
  remote interface, you need to generate a stub for
  the remote object so that clients can contact the
  remote object. Let's say that ann, the developer
  of the ComputeEngine class, has placed
  ComputeEngine.java in the c\home\ann\src\engine
  directory and is deploying the class files for
  clients to use in a subdirectory of her
  public_html directory, c\home\ann\public_html\cla
  sses (on UNIX that would be /home/ann/public_html/
  classes, accessible via some web servers as
  http//host/ann/classes/).
• Now let's assume that the compute.jar file is
  located in the directory c\home\ann\public_html\c
  lasses. To compile the ComputeEngine class, your
  class path must include the compute.jar file and
  the source directory itself.

81
RMI with a form for client which calls a client
servlet to access a remote method
82
Html to access servlet

• ltHTMLgt
• ltBODYgt
• ltH1gtRMI AND SERVLETSlt/H1gt
• ltFORM METHOD"get"
• action "http//localhost8080/rmi/ClientServlet"gt

• ltINPUT TYPE"Text" name"username"gt
• ltINPUT TYPE"submit" value"Click me"gt
• lt/FORMgt
• lt/BODYgt lt/HTMLgt

83
Client servlet accesses remote method
84
The files ClientServlet

• import javax.servlet.
• import javax.servlet.http.
• import java.io. import java.rmi.
• //client implementation
• public class ClientServlet extends HttpServlet
• //reference to the remote server
• private ServerHandlerInterface obj
• //Initialize the servlet and log the
  initialization.
• public void init(ServletConfig c) throws
  ServletException super.init(c)
• try
• //get a remote reference
• obj (ServerHandlerInterface)Naming.lookup("Serve
  r")
• catch(Exception ex)
• System.out.println("Error "
  ex.getMessage())
• //Perform the HTTP GET operation
• public void doGet(HttpServletRequest
  req,HttpServletResponse res) throws
  ServletException,IOException
• //get the name of the user
• String name req.getParameter("username")
• String result null

85
ServerHandlerImpl (need to do both javac and rmic)

• import java.rmi.
• import java.rmi.server.
• import java.rmi.registry.
• // server class
• public class ServerHandlerImpl extends
  UnicastRemoteObject implements
  ServerHandlerInterface
• //constructor
• public ServerHandlerImpl() throws
  RemoteException System.out.println("Creating
  server object")
• //remote method called by the servlet
• public String servletTest(String name) throws
  RemoteException
• String res "Your name is "name"\n" "\n\n
  Returned by RMI Server" return res
• //main method creates an instance of the remote
  object
• //and binds it with the registry service
• public static void main(String args)
• try
• ServerHandlerImpl obj new ServerHandlerImpl()
• Registry reg LocateRegistry.createRegistry(1099)

• reg.rebind("Server",obj) catch(Exception ex)
• System.out.println(ex.getMessage()) //catch

86
Remote method interface file

• import java.rmi.
• public interface ServerHandlerInterface extends
  Remote
• public String servletTest(String name) throws
  RemoteException

87
You need to run this application note path

• C\PROGRA1\TOMCAT1.5\WEBAPPS\RMI\WEB-INF\CLASSES
  gtjava ServerHandlerImpl
• Creating server object

88
remarks

• Need to add the servlet and mapping to web.xml
• Need to put stub and class files for the three
  java classes into your web app.
• Need to run the application over in the webapp
  directory--- seems like a tedious superfluity so
  wed like an example without this.

89
Generalizing the example to route requests
choose one method
90
Or another
91
The classes Router servlet

• import javax.servlet.
• import javax.servlet.http.
• import java.io. import java.rmi.
• //client implementation
• public class RouterServlet extends HttpServlet
• //reference to the remote server
• private GeneralizedServerInterface obj1,obj2
• //Initialize the servlet and log the
  initialization.
• public void init(ServletConfig c) throws
  ServletException super.init(c)
• try
• //get a remote reference
• obj1 (GeneralizedServerInterface)Naming.lookup("
  Name")
• obj2 (GeneralizedServerInterface)Naming.lookup("
  Number")
• catch(Exception ex)
• System.out.println("Error "
  ex.getMessage())
• //Perform the HTTP GET operation
• public void doGet(HttpServletRequest
  req,HttpServletResponse res) throws
  ServletException,IOException
• //get the name of the user
• String name req.getParameter("methodname")

92
Implementation (needs class file but also stub
file from rmic in classes directory)

• import java.rmi.
• import java.rmi.server.
• import java.rmi.registry.
• // a server class...provides various methods
• public class GeneralizedServerImpl extends
  UnicastRemoteObject implements
  GeneralizedServerInterface
• //constructor
• public GeneralizedServerImpl() throws
  RemoteException System.out.println("Creating
  server object")
• //remote method called by the servlet
• public String servletTest(String name) throws
  RemoteException
• String res "Your name is "name"\n" "\n\n
  Returned by RMI Server" return res
• //main method creates an instance of the remote
  object
• //and binds it with the registry service
• public int valueTest(int num) throws
  RemoteException
• int resnum10return res
• public static void main(String args)
• try
• GeneralizedServerImpl obj1 new
  GeneralizedServerImpl()
• GeneralizedServerImpl obj2 new
  GeneralizedServerImpl()
• Registry reg LocateRegistry.createRegistry(1099)


93
A list of services might appear in the remote
interface file

• import java.rmi.
• //maybe a whole list of services?
• public interface GeneralizedServerInterface
  extends Remote
• public String servletTest(String name) throws
  RemoteException
• public int valueTest(int num) throws
  RemoteException

94
remarks

• The GeneralizedServerImpl file is compiled using
  javac, then the class file is compiled using
  rmic. Both output files (class and stub.class) go
  in classes directory of webapps
• Using this rmi model we need to run the
  application impl which logs the methods into a
  registry
• C\PROGRA1\TOMCAT1.5\WEBAPPS\RMI\WEB-INF\CLASSES
  gtjava GeneralizedServerImpl
• Creating server object
• Creating server object

95
A process can use registry.list() to see bound
remote interfaces
96
RemoteHttpServlet binds servlet to registry

• try
• registry.rebind(getRegistryName(),this)
• catch()

97
Some links for tutorials and examples

• http//java.sun.com/developer/JDCTechTips/2001/tt0
  227.html
• http//java.sun.com/developer/onlineTraining/rmi/R
  MI.html
• http//www.javacommerce.com/displaypage.jsp?names
  ecurity.sqlid18224

98
Tunneling

• Tunneling can be used to access RMI through a
  firewall. The client connects (requests a
  service) via http to a remote server and a
  servlet routes the client to the running rmi
  server.
• The servlet must have mapping to
• /cgi-bin/java-rmi.cgi

99
SUN java web server
100
Requires creating war file

• http//www.hccfl.edu/pollock/AJava/WAR/myServletWA
  R.htm
• C\PROGRA1\JAVA\JDK151.0_0\BIN\TMP\SESSIONgtC\PR
  OGRA1\JAVA\JDK151.0_0\BIN\jar -cvf session.war
  .
• added manifest
• adding WEB_INF/(in 0) (out 0)(stored 0)
• adding WEB_INF/classes/(in 0) (out 0)(stored
  0)
• adding WEB_INF/classes/SessionInfo.class(in
  1926) (out 1051)(deflated 45)
• adding WEB_INF/classes/SessionSnoop.class(in
  3446) (out 1755)(deflated 49)
• adding WEB_INF/web.xml(in 1002) (out
  332)(deflated 66)

101
Deploy a webapp (war)
102
Editing webapps in sun web server
103
Configuring tomcat to listen at port 80

• You can configure tomcat to listen at port 80
  instead of port 8080
• The file tomcat\conf\server.xml controls the port
  where tomcat listensline 77 in my tomcat 5.5
  container
• lt!-- Define a non-SSL HTTP/1.1 Connector on port
  8080 modified to read port 80 11/28/06--gt
• ltConnector port"80" maxHttpHeaderSize"8192"

104
Tunneling

• Tunneling is not a trick but is specifically
  provided for by RMI which automatically tries
  this avenue if other efforts to locate the method
  fail.
• To force tunneling for development purposes
  when there is no firewall you add a couple of
  lines to your client
• try
• RMISocketFactory.setSocketFactory(new
  sun.rmi.transport.proxy.RMIHttpToCGISocketFactory(
  ))
• Catch(IOException x)

105
Converting ANY rmi client/server into a tunneler

• No change needed to the server.
• Youll need to put the Impl and Impl_Stub class
  files in the classes directory of ROOT/WEB-INF
• Remember, the stub file is created by using the
  rmi compiler on the impl class file.
• Youll need to get the tunneler servlet files off
  the network, or from me, and deploy into
  Tomcat/webapps/Root with mapping as above
  (/cgi-bin/) I think its at http//java.sun.com/
  j2se/1.3/docs/guide/rmi/archives/rmiservlethandler
  .zip
• The unzipped contents also has a readme with some
  explanation.

106
Example Hello client and servermodified client

• import java.rmi.
• import java.rmi.server.//////note additional
  imports
• import java.io.
• import java.rmi.registry.LocateRegistry
• import java.rmi.registry.Registry
• public class HelloClient2
• private HelloClient2()
• public static void main(String args)
• String host (args.length lt 1) ? null
  args0
• try /////note this addition
• RMISocketFactory.setSocketFactory(new
  sun.rmi.transport.proxy.RMIHttpToCGISocketFactory(
  ))
• Registry registry LocateRegistry.getRegistr
  y(host)
• Hello stub (Hello) registry.lookup("HelloSe
  rver")
• String response stub.sayHello()
• System.out.println("response " response)
• catch (Exception e)
• System.err.println("Client exception "
  e.toString())
• e.printStackTrace()

107
Get the server running

• You might want to use a policy file and a batch
  file
• Heres a java.policy file
• grant
• permission java.security.AllPermission
• permission java.net.SocketPermission
  "localhost1024-", "connect,listen,accept,resolve"


108
Get the server running

• Put the impl and impl stub files in
  ROOT/WEB-INF/classes
• Make sure youve got that tunneler servlet
  working
• Startup tomcat
• Startup rmi registry
• Run the server

109
Batch file for server run client

• java -Djava.security.manager -Djava.security.polic
  y"java.policy" HelloImpl
• Note--- in my version I bind HelloServer to the
  registry, not Hello so I modified the client to
  look for this
• Output
• C\PROGRA1\JAVA\JDK151.0_0\BINgtjava
  HelloClient2
• response Hello World!

110
A second tunneling example

• The calculator example from above can be easily
  modified to go through http

111
Calculator modified to go through rmi tunneling
output

• C\PROGRA1\JAVA\JDK151.0_0\BINgtjava
  CalculatorClient2
• 1
• 9
• 18
• 3

112
CalcClient2 forced to go through http tunnel

• import java.net.MalformedURLException
• import java.rmi.
• import java.rmi.server.
• import java.io.
• public class CalculatorClient2
• public static void main(String args)
• try RMISocketFactory.setSocketFactory(ne
  w sun.rmi.transport.proxy.RMIHttpToCGISocketFactor
  y())
• Calculator c (Calculator)
  Naming.lookup("CalculatorService")
• System.out.println( c.sub(4, 3) )
• System.out.println( c.add(4, 5) )
• System.out.println( c.mul(3, 6) )
• System.out.println( c.div(9, 3) )

• catch (MalformedURLException murle)
• System.out.println()
• System.out.println(
• "MalformedURLException")
• System.out.println(murle)

113
And more catches

• catch (RemoteException re)
• System.out.println()
• System.out.println("RemoteException")

• System.out.println(re)
• catch (IOException io)
• System.out.println()
• System.out.println(
  "IOException")
• System.out.println(io.toString())

• catch (NotBoundException nbe)
• System.out.println()
• System.out.println("NotBoundException"
  )
• System.out.println(nbe)
• catch (
• java.lang.ArithmeticException ae)

• System.out.println()
• System.out.println("java.lang.Arithmet
  icException")
• System.out.println(ae)


114
No changes to calculator server

• Need to move copy of impl and stub files to your
  server classes directory.

115
I added print statements to my cgi servlet
forwarder
116
Related (RMI) project

• Maybe not too hard after all.
• Make changes to the task/compute (PI) RMI example
  to effect RMI tunneling.

117
Third example from Grossos RMI text, chapter
22.It is much more involved than the previous two

• You can get the code off the internet look for
  Grosso RMI text

118
rmic_bankserver.bat and bankserver.bat

• May need to edit the batch files to get rmic and
  start registry to work.
• I removed these lines from the batch files and
  performed them in a different directory.

119
Starting registry and creating stub files via rmic

• c\PROGRA1\Java\JDK151.0_0\bingtrmic
  com.ora.rmibook.chapter22.Account_Impl
• C\PROGRA1\JAVA\JDK151.0_0\BINgtstart
  rmiregistry
• C\PROGRA1\JAVA\JDK151.0_0\BINgt

120
Running the bankserver

• c\PROGRA1\java\JDK151.0_0\bin\com\ora\rmibook\C
  HAPTE1gtjava -Djava.security.m
• anager -Djava.security.policy"java.policy"
  com.ora.rmibook.chapter22.applicatio
• ns.ImplLauncher Bob 10000 Alex 1223
• Account Bob successfully launched.
• Account Alex successfully launched.

121
java.policy file

• grant
• permission java.security.AllPermission
• permission java.net.SocketPermission
  "localhost1024-", "connect,listen,accept,resolve"


122
Tunneling problems

• The rmi client goes makes a request for a servlet
  on port 80 (not port 8080)
• Youll need to modify the server.xml in conf
  directory of tomcat, or use another container.
• I installed the sun webserver on my machine. It
  listens on port 80 and servlet deployment is
  fairly simple. (Though I never got it working)

123
Tunneler Running
124
I had to make some changes

• It doesnt completely work
• There is some error - possibly in the text code
  (to write objects)

125
The servlet and exception and other java files
are in higgindm/internet programming/java/tunneler
/.java
126
modifications

• I removed the package code though it probably
  wasnt necessary

127
Tunneling with tomcat

• Background Tunneling
• Remote Method Invocation (RMI) in Java gives a
  clean way to build distributed applications in
  java. If you are on an Intranet with no
  firewalls, RMI just works. But on the Internet,
  where firewalls abound, RMI can be blocked
  because it tries to connect to server hosts using
  arbitrary port numbers. Typical firewalls on the
  server side don't allow this. To alleviate this
  problem, Sun built in to the RMI implementation a
