An example Hadoop Install

1

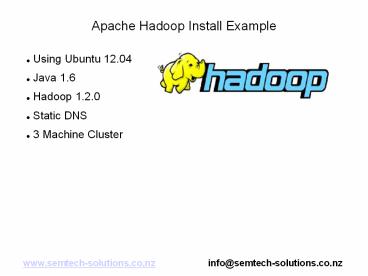

Apache Hadoop Install Example

• Using Ubuntu 12.04
• Java 1.6
• Hadoop 1.2.0
• Static DNS
• 3 Machine Cluster

www.semtech-solutions.co.nz info_at_semtech-solutio
ns.co.nz
2
Install Step 1

• Install Ubuntu Linux 12.04 on each machine
• Assign a host name and static IP address to each
  machine
• Names used here
• hc1nn ( hadoop cluster 1 name node )?
• hc1r1m1 ( hadoop cluster 1 rack 1 machine 1 )
• hc1r1m2 ( hadoop cluster 1 rack 1 machine 2 )
• Install ssh daemon on each server
• Install vsftpd ( ftp ) deamon on each server
• Update /etc/host with all hostnames on each
  server

www.semtech-solutions.co.nz info_at_semtech-solutio
ns.co.nz
3
Install Step 2

• Generate ssh keys for each server under hadoop
  user
• Copy keys to all server's hadoop account
• Install java 1.6 ( we used openjdk )?
• Obtain the Hadoop software from
• hadoop.apache.org
• Unpack Hadoop software to /usr/local
• Now consider cluster architecture

www.semtech-solutions.co.nz info_at_semtech-solutio
ns.co.nz
4
Install Step 3

• Start will three single installs
• For Hadoop
• Then cluster the
• Hadoop machines

www.semtech-solutions.co.nz info_at_semtech-solutio
ns.co.nz
5
Install Step 4

• Ensure auto shh
• From name node (hc1nn) to both data nodes
• From each machine to itself
• Create symbolic link
• Named hadoop
• Pointing to /usr/local/hadoop-1.2.0
• Set up Bash .bashrc on each machine hadoop user
  set
• HADOOP_HOME
• JAVA_HOME

www.semtech-solutions.co.nz info_at_semtech-solutio
ns.co.nz
6
Install Step 5

• Create Hadoop tmp dir on all servers
• sudo mkdir -p /app/hadoop/tmp
• sudo chown hadoophadoop /app/hadoop/tmp
• sudo chmod 750 /app/hadoop/tmp
• Set Up conf/core-site.xml
• ( on all servers )

www.semtech-solutions.co.nz info_at_semtech-solutio
ns.co.nz
7
Install Step 5

• ltpropertygt
• ltnamegthadoop.tmp.dirlt/namegt
• ltvaluegt/app/hadoop/tmplt/valuegt
• ltdescriptiongtA base for other temporary
  directories.lt/descriptiongt
• lt/propertygt
• ltpropertygt
• ltnamegtfs.default.namelt/namegt
• ltvaluegthdfs//localhost54310lt/valuegt
• ltdescriptiongtThe name of the default file
  system. A URI whose
• scheme and authority determine the FileSystem
  implementation. The
• uri's scheme determines the config property
  (fs.SCHEME.impl) naming
• the FileSystem implementation class. The uri's
  authority is used to
• determine the host, port, etc. for a
  filesystem.lt/descriptiongt
• lt/propertygt

www.semtech-solutions.co.nz info_at_semtech-solutio
ns.co.nz
8
Install Step 6

• Set Up conf/mapred-site.xml
• ( on all servers )?
• ltpropertygt
• ltnamegtmapred.job.trackerlt/namegt
• ltvaluegtlocalhost54311lt/valuegt
• ltdescriptiongtThe host and port that the
  MapReduce job tracker runs
• at. If "local", then jobs are run in-process
  as a single map
• and reduce task.
• lt/descriptiongt
• lt/propertygt

www.semtech-solutions.co.nz info_at_semtech-solutio
ns.co.nz
9
Install Step 7

• Set Up conf/hdfs-site.xml
• ( on all servers )?
• ltpropertygt
• ltnamegtdfs.replicationlt/namegt
• ltvaluegt1lt/valuegt
• ltdescriptiongtDefault block replication.
• The actual number of replications can be
  specified when the file is created.
• The default is used if replication is not
  specified in create time.
• lt/descriptiongt
• lt/propertygt

www.semtech-solutions.co.nz info_at_semtech-solutio
ns.co.nz
10
Install Step 8

• Format the Hadoop file system ( on all servers
  )?
• hadoop namenode -format
• Dont do this on a running HDFS you will lose all
  data !!
• Now start Hadoop ( on all servers )?
• HADOOP_HOME/bin/start-all.sh
• Check Hadoop is running with
• sudo netstat -plten grep java
• you should see ports like 54310 and 54311 being
  used.
• All Good ? Stop Hadoop on all servers
• HADOOP_HOME/bin/stop-all.sh

www.semtech-solutions.co.nz info_at_semtech-solutio
ns.co.nz
11
Install Step 9

• Now set up the cluster do on all servers
• Set HADOOP_HOME/conf/masters file to contain
• hc1nn
• Set HADOOP_HOME/conf/slaves file to contain
• hc1r1m1
• hc1r1m2
• hc1nn
• We will be using the name node as a data node as
  well

www.semtech-solutions.co.nz info_at_semtech-solutio
ns.co.nz
12
Install Step 10

• on all machines
• Change conf/core-site.xml on all machines
• fs.default.name hdfs//hc1nn54310
• Change conf/mapred-site.xml
• mapred.job.tracker hc1nn54311
• Change conf/hdfs-site.xml
• dfs.replication 3

www.semtech-solutions.co.nz info_at_semtech-solutio
ns.co.nz
13
Install Step 11

• Now reformat the HDFS on hc1nn
• hadoop namenode -format
• On name node start HDFS
• HADOOP_HOME/bin/start-dfs.sh
• On name node start Map Reduce
• HADOOP_HOME/bin/start-mapred.sh

www.semtech-solutions.co.nz info_at_semtech-solutio
ns.co.nz
14
Install Step 12

• Run a test Map Reduce job
• I have data in /tmp/gutenberg
• Load Data into HDFS
• hadoop dfs -copyFromLocal /tmp/gutenberg
  /usr/hadoop/gutenberg
• List Data in HDFS
• hadoop dfs -ls /usr/hadoop/gutenberg
• Found 18 items
• -rw-r--r-- 3 hadoop supergroup 674389
  2013-07-30 1931 /usr/hadoop/gutenberg/pg20417.txt

• -rw-r--r-- 3 hadoop supergroup 674389
  2013-07-30 1931 /usr/hadoop/gutenberg/pg20417.txt
  1
• ...............
• -rw-r--r-- 3 hadoop supergroup 834980
  2013-07-30 1931 /usr/hadoop/gutenberg/pg5000.txt4

• -rw-r--r-- 3 hadoop supergroup 834980
  2013-07-30 1931 /usr/hadoop/gutenberg/pg5000.txt5


www.semtech-solutions.co.nz info_at_semtech-solutio
ns.co.nz
15
Install Step 13

• Run the Map Reduce job
• cd HADOOP_HOME
• hadoop jar hadoopexamples.jar wordcount
  /usr/hduser/gutenberg /usr/hduser/gutenberg-output

• Check the output
• 13/07/30 193413 INFO input.FileInputFormat
  Total input paths to process 18
• 13/07/30 193413 INFO util.NativeCodeLoader
  Loaded the native-hadoop library
• 13/07/30 193414 INFO mapred.JobClient Running
  job job_201307301931_0001
• 13/07/30 193415 INFO mapred.JobClient map 0
  reduce 0
• 13/07/30 193426 INFO mapred.JobClient map 11
  reduce 0
• 13/07/30 193434 INFO mapred.JobClient map 16
  reduce 0
• 13/07/30 193435 INFO mapred.JobClient map 22
  reduce 0
• 13/07/30 193442 INFO mapred.JobClient map 33
  reduce 0
• 13/07/30 193443 INFO mapred.JobClient map 33
  reduce 7
• 13/07/30 193448 INFO mapred.JobClient map 44
  reduce 7
• 13/07/30 193452 INFO mapred.JobClient map 44
  reduce 14
• 13/07/30 193454 INFO mapred.JobClient map 55
  reduce 14
• 13/07/30 193501 INFO mapred.JobClient map 66
  reduce 14
• 13/07/30 193502 INFO mapred.JobClient map 66
  reduce 18

www.semtech-solutions.co.nz info_at_semtech-solutio
ns.co.nz
16
Install Step 13

• 13/07/30 193517 INFO mapred.JobClient map 88
  reduce 29
• 13/07/30 193518 INFO mapred.JobClient map
  100 reduce 29
• 13/07/30 193523 INFO mapred.JobClient map
  100 reduce 33
• 13/07/30 193527 INFO mapred.JobClient map
  100 reduce 100
• 13/07/30 193528 INFO mapred.JobClient Job
  complete job_201307301931_0001
• 13/07/30 193528 INFO mapred.JobClient
  Counters 29
• 13/07/30 193528 INFO mapred.JobClient Job
  Counters
• 13/07/30 193528 INFO mapred.JobClient
  Launched reduce tasks1
• 13/07/30 193528 INFO mapred.JobClient
  SLOTS_MILLIS_MAPS119572
• 13/07/30 193528 INFO mapred.JobClient
  Total time spent by all reduces waiting after
  reserving slots (ms)0
• 13/07/30 193528 INFO mapred.JobClient
  Total time spent by all maps waiting after
  reserving slots (ms)0
• 13/07/30 193528 INFO mapred.JobClient
  Launched map tasks18
• 13/07/30 193528 INFO mapred.JobClient
  Data-local map tasks18
• 13/07/30 193528 INFO mapred.JobClient
  SLOTS_MILLIS_REDUCES61226
• 13/07/30 193528 INFO mapred.JobClient File
  Output Format Counters
• 13/07/30 193528 INFO mapred.JobClient
  Bytes Written725257
• 13/07/30 193528 INFO mapred.JobClient
  FileSystemCounters
• 13/07/30 193528 INFO mapred.JobClient
  FILE_BYTES_READ6977160
• 13/07/30 193528 INFO mapred.JobClient
  HDFS_BYTES_READ17600721

www.semtech-solutions.co.nz info_at_semtech-solutio
ns.co.nz
17
Install Step 14

• Check the job output
• hadoop dfs -ls /usr/hadoop/gutenberg-output
• Found 3 items
• -rw-r--r-- 3 hadoop supergroup 0
  2013-07-30 1935 /usr/hadoop/gutenberg-output/_SUC
  CESS
• drwxr-xr-x - hadoop supergroup 0
  2013-07-30 1934 /usr/hadoop/gutenberg-output/_log
  s
• -rw-r--r-- 3 hadoop supergroup 725257
  2013-07-30 1935 /usr/hadoop/gutenberg-output/part
  -r-00000
• Now get results out of HDFS
• hadoop dfs -cat /usr/hadoop/gutenberg-output/part-
  r-00000 gt /tmp/hrun/cluster_run.txt
• head -10 /tmp/hrun/cluster_run.txt
• "(Lo)cra" 6
• "1490 6
• "1498," 6
• "35" 6
• "40," 6
• "A 12
• "AS-IS". 6

www.semtech-solutions.co.nz info_at_semtech-solutio
ns.co.nz
18
Install Step 15

• Congratulations you now have
• A working HDFS cluster
• With three data nodes
• One name node
• Tested via a Map Reduce job
• Detailed install instructions available from our
  site shop
