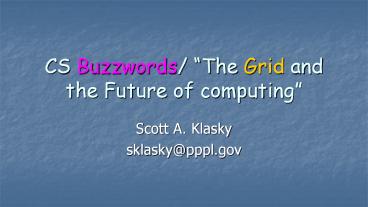

CS Buzzwords/ The Grid and the Future of
computing

• Scott A. Klasky
• sklasky_at_pppl.gov

2
Why?

• Why do you have to program in a language which
  doesnt let you program in equations?
• Why do you have to care about the machine you are
  programming on?
• Why do you care which machine the computer runs
  on?
• Why cant you visualize/analyze your data as soon
  as the data is produced?
• Why do you run your codes at NERSC?
• Silly question for those who use 100s/1000s of
  processors.
• Why do your results from your analysis dont
  always get stored in a database?
• Why cant the computer do the data analysis for
  you, and have it ask you questions?
• Why are people still talking about vector
  computers?

• I just dont have TIME!!!
• COLLABORATION IS THE KEY!

3
Scotts view of computing (HYPE)

• Why cant we program in high level languages?
• RNPL (Rapid Numerical Programming Language)
  http//godel.ph.utexas.edu/Members/marsa/rnpl/user
  s_guide/node4.html
• Mathmatica/Maple
• Use object oriented programming to manage memory,
  state, etc.
• This is the framework for your code.
• You write modules in this framework.
• Use F90/F77/C, as modules for the code.
• These modules can be reused for multiple codes,
  multiple authors.
• Compute Fundamental Variables on main computers,
  other variables on secondary computers.
• Cactus code is a good example (2001 Gordon Bell
  Prize Winner)
• What are the benefits?
• Let the CS people worry about memory management,
  data I/O, visualization, security, machine
  locations
• Why should you care about the machine you are
  running on?
• All you should care about is running you code,
  and getting your accurate results as fast as
  possible.

4
Buzzwords

• Fortran, HPF, C, C, Java
• MPI, MPI-G2, OpenMP
• Python, PERL, TCL/TK
• HTML, SGML, XML
• JavaScript, DHTML
• FLTK (Fast Light Toolkit)
• The Grid
• Globus
• Web Services
• DataMining
• WireGL, Chromium
• AccessGrid
• Portals (Discover Portal)
• CCA

• SOAP (Simple Object Access Protocol)
• A way to create widely distributed, complex
  computing environments that run over the Internet
  using existing infrastructure.
• It is about applications cumminicating directly
  with each other over the Internet in a very rich
  way).
• HTC (High Throughput Computing)
• Deliver large amounts of processing capacity over
  long periods of time
• CONDOR (http//www.cs.wisc.edu/condor/)
• Goal
• develop, implement, deploy, and evaluate
  mechanisms and policies that support High
  Throughput Computing (HTC) on large collections
  of distributively owned computing resources.

5
Cactus (http//www.cactuscode.org) (Allen,
Dramlitsch, Seidel, Shalf, Radke)

• Modular, portable framework for parallel,
  multidimensional simulations
• Construct codes by linking
• Small core (flesh) mgmt services
• Selected modules (thorns) Numerical methods,
  grids domain decomps, visualization and
  steering, etc.
• Custom linking/configuration tools
• Developed for astrophysics, but not
  astrophysics-specific
• They have
• Cactus Worms
• Remote monitoring and steering of an application
  from any web browser
• Streaming of isosurfaces from a simulation, which
  can then be viewed on a local machine
• Remote visualization of 2D slices from any grid
  function in a simulation as jpegs in a web
  browser
• Accessible MPI-based parallelism for finite
  difference grids
• Access to a variety of supercomputing
  architectures and clusters
• Several parallel I/O layers
• Fixed and Adaptive mesh refinement under
  development
• Elliptic solvers
• Parallel interpolators and reductions
• Metacomputing and distributed computing

Thorns
6
Discover Portal

• http//tassl-pc-5.rutgers.edu/discover/main.php
• Discover is a virtual, interactive and
  collaborative PSE
• Enables geographically distributed scientists and
  engineers to collaboratively monitor, and control
  high performance parallel/distributed
  applications using web-based portals.
• Its primary objective is to transform
  high-performance simulation into true research
  and instructional modalities
• Bring large distributed simulations to the
  scientists/engineers desktop by providing
  collaborative web-based portals for interaction
  and control.
• Provides a 3-tier architecture composed of
  detachable thin-clients at the front-end, a
  network of web servers in the middle, and a
  control network of sensors, actuators,
  interaction agents superimposed on the
  application at the back-end.

7
MPICH-G2 (http//www.hpclab.niu.edu/mpi/)

• What is MPICH-G2?
• It is a grid-enabled implementation of MPI v1.1
  standard.
• Using Globus services (job startup, security),
  MPICH-G2 allows you to couple multiple machines,
• MPICH-G2 automatically converts data in messages
  sent between machines of different architectures
  and supports multiprotocol communication by
  automatically selecting TCP for intermachine
  messaging and vendor-supplied MPI for
  intramachine messaging

8
Accessgrid
Supporting group-to-group interaction across the
Grid http//www.accessgrid.org Over 70 AG sites
(PPPL will be next!)

• Extending the Computational Grid
• Group-to-group interactions are different from
  and more complex than individual-to-individual
  interactions.
• Large-scale scientific and technical
  collaborations often involve multiple teams
  working together.
• The Access Grid concept complements and extends
  the concept of the Computational Grid.
• The Access Grid project aims at exploring and
  supporting this more complex set of requirements
  and functions.
• An Access Grid node involves 3-20 people per
  site.
• Access Grid nodes are designed spaces that
  support the high-end audio/video technology
  needed to provide a compelling and productive
  user experience.
• The Access Grid consists of large-format
  multimedia display, presentation, and interaction
  software environments interfaces to grid
  middleware and interfaces to remote
  visualization environments.
• With these resources, the Access Grid supports
  large-scale distributed meetings, collaborative
  teamwork sessions, seminars, lectures, tutorials,
  and training.

• Providing New Capabilities
• The Alliance Access Grid project has prototyped a
  number of Access Grid Nodes and uses these nodes
  to conduct remote meetings, site visits, training
  sessions and educational events.
• Capabilities will include
• high-quality multichannel digital video and
  audio,
• prototypic large-format display
• integrated presentation technologies (PowerPoint
  slides, mpeg movies, shared OpenGL windows),
• prototypic recording capabilities
• integration with Globus for basic services
  (directories, security, network resource
  management),
• macroscreen management
• integration of local desktops into the Grid
• multiple session capability

9
Access Grid
10
Chromium

• http//graphics.stanford.edu/humper/chromium_docu
  mentation/
• Chromium is a new system for interactive
  rendering on clusters of workstations.
• It is a completely extensible architecture, so
  that parallel rendering algorithms can be
  implemented on clusters with ease.
• We are still using WireGL, but will be switching
  to Chromium.
• Basically, it will allow us to run a program
  which uses OpenGL, and have it display on a
  cluster tiled display wall.
• There are parallel APIs!

11
Common Component Architecture (http//www.acl.lanl
.gov/cca/)

• Goal provide interoperable components and
  frameworks for rapid construction of complex,
  high-performance applications.
• CCA is needed because existing component
  standards (EJB, CORBA, COM) are not designed for
  large-scale, high-performance computing or
  parallel components.
• The CCA will leverage existing standards'
  infrastructure such as name service, event
  models, builders, security, and tools.

12
Requirements of Component Architectures for
High-Performance Computing

• Component characteristics. The CCA will be used
  primarily for high-performance components of both
  coarse and fine grain, implemented according to
  different paradigms such as SPMD-style as well as
  shared memory multi-threaded models.
• Heterogeneity. Whenever technically possible, the
  CCA should be able to combine within one
  multi-component application components executing
  on multiple architectures, implemented in
  different languages, and using different run-time
  systems. Furthermore, design priorities should be
  geared towards addressing software needs most
  common in HPC environment for example
  interoperability with languages popular in
  scientific programming such as Fortran, C and C
  should be given priority.
• Local and remote components. Whenever possible we
  would like to stage interoperability of both
  local and remote components and be able to
  seamlessly change interactions from local to
  remote. We will address the needs both of remote
  components running over a local area network and
  wide area network component applications running
  over the HPC grid should be able to satisfy
  real-time constraints and interact with diverse
  supercomputing schedulers.
• Integration. We will try to make the integration
  of components as smooth as possible. In general
  it should not be necessary to develop a component
  specially to integrate with the framework, or to
  rewrite an existing component substantially.
• High-Performance. It is essential that the set of
  standard features agreed on contain mechanisms
  for supporting high-performance interactions
  whenever possible we should be able to avoid
  extra copies, extra communication or
  synchronization and encourage efficient
  implementation such as parallel data transfers.
• Openess. The CCA specification should be open,
  and used with open software. In HPC this
  flexibility is needed to keep pace with the
  ever-changing demands of the scientific
  programming world.

13
The Grid (http//www.globus.org)

• The Grid Problem
• Flexible, secure, coordinated resource sharing
  among dynamic collections of individuals,
  institutions, and resource
• From The Anatomy of the Grid Enabling Scalable
  Virtual Organizations
• Enable communities (virtual organizations) to
  share geographically distributed resources as
  they pursue common goals -- assuming the absence
  of
• central location,
• central control,
• omniscience,
• existing trust relationships.

14
Elements of the Problem

• Resource sharing
• Computers, storage, sensors, networks,
• Sharing always conditional issues of trust,
  policy, negotiation, payment,
• Coordinated problem solving
• Beyond client-server distributed data analysis,
  computation, collaboration,
• Dynamic, multi-institutional virtual orgs
• Community overlays on classic org structures
• Large or small, static or dynamic

15
Why Grids?

• A biochemist exploits 10,000 computers to screen
  100,000 compounds in an hour
• 1,000 physicists worldwide pool resources for
  petaop analyses of petabytes of data
• Civil engineers collaborate to design, execute,
  analyze shake table experiments
• Climate scientists visualize, annotate, analyze
  terabyte simulation datasets
• An emergency response team couples real time
  data, weather model, population data
• A multidisciplinary analysis in aerospace couples
  code and data in four companies
• A home user invokes architectural design
  functions at an application service provider
• An application service provider purchases cycles
  from compute cycle providers
• Scientists working for a multinational soap
  company design a new product
• A community group pools members PCs to analyze
  alternative designs for a local road

16
Online Access to Scientific Instruments
Advanced Photon Source
wide-area dissemination
desktop VR clients with shared controls
real-time collection
archival storage
tomographic reconstruction
DOE X-ray grand challenge ANL, USC/ISI, NIST,
U.Chicago
17
Data Grids for High Energy Physics
Image courtesy Harvey Newman, Caltech
18
Broader Context

• Grid Computing has much in common with major
  industrial thrusts
• Business-to-business, Peer-to-peer, Application
  Service Providers, Storage Service Providers,
  Distributed Computing, Internet Computing
• Sharing issues not adequately addressed by
  existing technologies
• Complicated requirements run program X at site
  Y subject to community policy P, providing access
  to data at Z according to policy Q
• High performance unique demands of advanced
  high-performance systems

19
Why Now?

• Moores law improvements in computing produce
  highly functional end-systems
• The Internet and burgeoning wired and wireless
  provide universal connectivity
• Changing modes of working and problem solving
  emphasize teamwork, computation
• Network exponentials produce dramatic changes in
  geometry and geography

20
Network Exponentials

• Network vs. computer performance
• Computer speed doubles every 18 months
• Network speed doubles every 9 months
• Difference order of magnitude per 5 years
• 1986 to 2000
• Computers x 500
• Networks x 340,000
• 2001 to 2010
• Computers x 60
• Networks x 4000

Moores Law vs. storage improvements vs. optical
improvements. Graph from Scientific American
(Jan-2001) by Cleo Vilett, source Vined Khoslan,
Kleiner, Caufield and Perkins.
21
The Globus ProjectMaking Grid computing a
reality

• Close collaboration with real Grid projects in
  science and industry
• Development and promotion of standard Grid
  protocols to enable interoperability and shared
  infrastructure
• Development and promotion of standard Grid
  software APIs and SDKs to enable portability and
  code sharing
• The Globus Toolkit Open source, reference
  software base for building grid infrastructure
  and applications
• Global Grid Forum Development of standard
  protocols and APIs for Grid computing

22
One View of Requirements

• Identity authentication
• Authorization policy
• Resource discovery
• Resource characterization
• Resource allocation
• (Co-)reservation, workflow
• Distributed algorithms
• Remote data access
• High-speed data transfer
• Performance guarantees
• Monitoring

• Adaptation
• Intrusion detection
• Resource management
• Accounting payment
• Fault management
• System evolution
• Etc.
• Etc.

23
Three Obstacles to Making Grid Computing Routine

• New approaches to problem solving
• Data Grids, distributed computing, peer-to-peer,
  collaboration grids,
• Structuring and writing programs
• Abstractions, tools
• Enabling resource sharing across distinct
  institutions
• Resource discovery, access, reservation,
  allocation authentication, authorization,
  policy communication fault detection and
  notification

Programming Problem
Systems Problem
24
Programming Systems Problems

• The programming problem
• Facilitate development of sophisticated apps
• Facilitate code sharing
• Requires prog. envs APIs, SDKs, tools
• The systems problem
• Facilitate coordinated use of diverse resources
• Facilitate infrastructure sharing e.g.,
  certificate authorities, info services
• Requires systems protocols, services
• E.g., port/service/protocol for accessing
  information, allocating resources

25
The Systems ProblemResource Sharing Mechanisms
That

• Address security and policy concerns of resource
  owners and users
• Are flexible enough to deal with many resource
  types and sharing modalities
• Scale to large number of resources, many
  participants, many program components
• Operate efficiently when dealing with large
  amounts of data computation

26
Aspects of the Systems Problem

• Need for interoperability when different groups
  want to share resources
• Diverse components, policies, mechanisms
• E.g., standard notions of identity, means of
  communication, resource descriptions
• Need for shared infrastructure services to avoid
  repeated development, installation
• E.g., one port/service/protocol for remote access
  to computing, not one per tool/appln
• E.g., Certificate Authorities expensive to run
• A common need for protocols services

27
Hence, a Protocol-Oriented View of Grid
Architecture, that Emphasizes

• Development of Grid protocols services
• Protocol-mediated access to remote resources
• New services e.g., resource brokering
• On the Grid speak Intergrid protocols
• Mostly (extensions to) existing protocols
• Development of Grid APIs SDKs
• Interfaces to Grid protocols services
• Facilitate application development by supplying
  higher-level abstractions
• The (hugely successful) model is the Internet

28
The Data Grid Problem

• Enable a geographically distributed community
  of thousands to perform sophisticated,
  computationally intensive analyses on Petabytes
  of data

29
Major Data Grid Projects
Name URL/Sponsor Focus
Grid Application Dev. Software hipersoft.rice.edu/grads NSF Research into program development technologies for Grid applications
Grid Physics Network griphyn.org NSF Technology RD for data analysis in physics expts ATLAS, CMS, LIGO, SDSS
Information Power Grid ipg.nasa.gov NASA Create and apply a production Grid for aerosciences and other NASA missions
International Virtual Data Grid Laboratory ivdgl.org NSF Create international Data Grid to enable large-scale experimentation on Grid technologies applications
Network for Earthquake Eng. Simulation Grid neesgrid.org NSF Create and apply a production Grid for earthquake engineering
Particle Physics Data Grid ppdg.net DOE Science Create and apply production Grids for data analysis in high energy and nuclear physics experiments
TeraGrid teragrid.org NSF U.S. science infrastructure linking four major resource sites at 40 Gb/s
UK Grid Support Center grid-support.ac.uk U.K. eScience Support center for Grid projects within the U.K.
Unicore BMBFT Technologies for remote access to supercomputers
FusionGrid? ??? Link TBs of data from NERSC, generated by fusion codes, to clusters at PPPL
30
Data Intensive Issues Include

• Harness potentially large numbers of data,
  storage, network resources located in distinct
  administrative domains
• Respect local and global policies governing what
  can be used for what
• Schedule resources efficiently, again subject to
  local and global constraints
• Achieve high performance, with respect to both
  speed and reliability
• Catalog software and virtual data

31
Data IntensiveComputing and Grids

• The term Data Grid is often used
• Unfortunate as it implies a distinct
  infrastructure, which it isnt but easy to say
• Data-intensive computing shares numerous
  requirements with collaboration, instrumentation,
  computation,
• Security, resource mgt, info services, etc.
• Important to exploit commonalities as very
  unlikely that multiple infrastructures can be
  maintained
• Fortunately this seems easy to do!

32
Examples ofDesired Data Grid Functionality

• High-speed, reliable access to remote data
• Automated discovery of best copy of data
• Manage replication to improve performance
• Co-schedule compute, storage, network
• Transparency wrt delivered performance
• Enforce access control on data
• Allow representation of global resource
  allocation policies
• Central Q How must Grid architecture be extended
  to support these functions?

33
Grid Protocols, Services, ToolsEnabling Sharing
in Virtual Organizations

• Protocol-mediated access to resources
• Mask local heterogeneities
• Extensible to allow for advanced features
• Negotiate multi-domain security, policy
• Grid-enabled resources speak protocols
• Multiple implementations are possible
• Broad deployment of protocols facilitates
  creation of Services that provide integrated view
  of distributed resources
• Tools use protocols and services to enable
  specific classes of applications

34
A Model Architecture for Data Grids
Attribute Specification
Replica Catalog
Metadata Catalog
Application
Multiple Locations
Logical Collection and Logical File Name
MetacomputingDirectoryService
Selected Replica
Replica Selection
Performance Information Predictions
NetworkWeatherService
GridFTP Control Channel
Disk Cache
GridFTPDataChannel
Tape Library
Disk Array
Disk Cache
Replica Location 1
Replica Location 2
Replica Location 3
35
Globus Toolkit Components

• Two major Data Grid components
• 1. Data Transport and Access
• Common protocol
• Secure, efficient, flexible, extensible data
  movement
• Family of tools supporting this protocol
• 2. Replica Management Architecture
• Simple scheme for managing
• multiple copies of files
• collections of files
• APIs, white papers http//www.globus.org

36
Motivation for a Common Data Access Protocol

• Existing distributed data storage systems
• DPSS, HPSS focus on high-performance access,
  utilize parallel data transfer, striping
• DFS focus on high-volume usage, dataset
  replication, local caching
• SRB connects heterogeneous data collections,
  uniform client interface, metadata queries
• Problems
• Incompatible (and proprietary) protocols
• Each require custom client
• Partitions available data sets and storage
  devices
• Each protocol has subset of desired functionality

37
A Common, Secure, EfficientData Access Protocol

• Common, extensible transfer protocol
• Common protocol means all can interoperate
• Decouple low-level data transfer mechanisms from
  the storage service
• Advantages
• New, specialized storage systems are
  automatically compatible with existing systems
• Existing systems have richer data transfer
  functionality
• Interface to many storage systems
• HPSS, DPSS, file systems
• Plan for SRB integration

38
A UniversalAccess/Transport Protocol

• Suite of communication libraries and related
  tools that support
• GSI, Kerberos security
• Third-party transfers
• Parameter set/negotiate
• Partial file access
• Reliability/restart
• Large file support
• Data channel reuse
• All based on a standard, widely deployed protocol

39
And the Universal Protocol is GridFTP

• Why FTP?
• Ubiquity enables interoperation with many
  commodity tools
• Already supports many desired features, easily
  extended to support others
• Well understood and supported
• We use the term GridFTP to refer to
• Transfer protocol which meets requirements
• Family of tools which implement the protocol
• Note GridFTP gt FTP
• Note that despite name, GridFTP is not restricted
  to file transfer!

40
Summary
Supercomputer
PPPL petrel
PPPL Pared Display Wall
Webservices are run (Data Analysis, Data mining)
Accessgrid is run here Chromium XPLIT Scirun or
VTK
CPU
AVS/Express IDL HTTPAccessgrid docking
