System Software for Embedded Systems

1

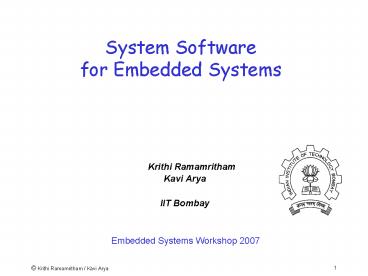

System Software for Embedded Systems

• Krithi Ramamritham
• Kavi Arya
• IIT Bombay

Embedded Systems Workshop 2007
2
Embedded Systems?
3
Embedded Systems

• Single functional e.g. pager, mobile phone
• Tightly constrained
• cost, size, performance, power, etc.
• Reactive real-time
• e.g. cars cruise controller
• delay in computation gt failure of system

4
Hardware is not the whole System !!!

• A Micro-Electronic System is the result of a
  projection of
• Architecture
• Hardware
• Software
• distinguished by its gross Functional
  Behaviour !
• Software is an important part of the Product and
  must be part of the Design Process or we are
  only designing a Component of the system.

5
Why Is Embedded Software Not JustSoftware On
Small Computers?

• Embedded Dedicated
• Interaction with physical processes
• sensors, actuators, processes
• Critical properties are not all functional
• real-time, fault recovery, power, security,
  robustness
• Heterogeneity
• hardware/software tradeoffs, mixed architectures
• Concurrency
• interaction with multiple processes
• Reactivity
• operating at the speed of the environment
• These features look more like hardware!

SourceEdward A. Lee, UC Berkeley SRC/ETAB
Summer Study 2001
6
What is Embedded SW?

• One definition
• Software that is directly in contact with, or
  significantly affected by, the hardware that it
  executes on, or can directly influence the
  behavior of that hardware.

7
What is Embedded SW?

• What is it not?
• Application software can be recompiled and
  executed on any number of hardware platforms so
  long as the basic services/libraries are
  provided.
• It is divided by vertical market segments
  (application domains)
• Well-established methodologies, architectures,
• HW platform independent, highly portable
• Any SW that has no direct relationship with HW.

8
Embedded System Challenges for HW Folks

• PARADIGM CHANGE!
• Designers main tasks convert from processor
  integration to performance analysis.
  Concentration on functional requirements instead
  of integration work
• Concentration on architectural exploration
  (including performance analysis
• ? Re-use and Platform-based design become key!
• ? Early validation of system/solution correctness
• ? Parallel hardware and software development
• ? More effective use of previous work
• ? Faster ways to build new elements of a solution
• ? Ways to test more effectively, efficiently, and
  quickly

9
Software Guys can Learnfrom Hardware Experts!

• Concurrency
• the synchrony abstraction
• event-driven modeling
• Reusability
• cell libraries
• interface definition
• Reliability
• leveraging limited abstractions
• leveraging verification
• Heterogeneity
• mixing synchronous and asynchronous designs
• resource management

SourceEdward A. Lee, UC Berkeley SRC/ETAB
Summer Study 2001
10
Trade-offs. Methodology ESW Architectural
specifics

• Portability
• ESW itself is intended to provide portability for
  higher SW layers
• (At least parts of) ESW is per definition not
  portable
• Real-time
• Restricted use of standardized Inter-process
  communication (IPC) mechanisms (CORBA,) for
  performance reasons
• Typically hard real-time requirements
• RTOS dependency
• Implementation of OS like services
• Sometimes shielding of the RTOS to higher level
  SW layers
• Direct dependency on RTOS implementation

11
Functional Design Mapping
SourceIan Phillips, ARM VSIA 2001
12
The Embedded Market Disruptive Change
Source Jim Ready President / CEO MontaVista
Software
Traditional Embedded World Never small
enough Never fast enough Headless/Character-based
Standalone Boot Run from ROM More Hardware than
Software Low-Level Programming Model Application
tied to hardware

• Time to Market Pressures
• Shortage of Embed. SW Engineers

13
Plan

• Embedded Systems
• New Approaches to building ESW
• New paradigms Lava, Handel-C
• Examples Engineering Returns to Software
• Build a RISC processor in 48hrs
• Advantages of reconfigurable hardware.
• Real-time support for ESW

14
Motorola Software Survey Findings

• Hardware design is a software task IC designers
  write code (VHDL, Verilog, Scripting)!
• We must become a software-intensive embedded
  system solutions company, focused on integrating
  our platforms into users products -in the
  future well be neither a hardware nor a software
  company
• Focus on developing systems capability, not just
  a software counterpart to our current hardware
  capability (though thats needed too)
• We should have software content from drivers to
  applications
• The fundamental goal isnt 70 margin on software
  products, its helping someone choose your total
  solution
• Embedded systems platforms and solutions will be
  the key to market differentiation and profitable
  growth

SourceBob Altizer, BASYS VSIA 2001
15
Common Design Metrics

• NRE (Non-recurring engineering) cost
• Unit cost
• Size (bytes, gates)
• Performance (execution time)
• Power (more powergt more heat less battery
  time)
• Flexibility (ability to change functionality)
• Time to prototype
• Time to market
• Maintainability
• Correctness
• Safety (probability that system wont cause harm)

16
Time to Market Design Metric

• Simplified revenue model
• Product life 2W, peak at W
• Time of market entry defines a triangle,
  representing market penetration
• Triangle area equals revenue
• Loss
• The difference between the on-time and delayed
  triangle areas
• Avg. time to market today 8 mth
• 1 day delay may amount to Ms
• see Sony Playstation vs XBox

Source Embedded System Design Frank Vahid/ Tony
Vargis (John Wiley Sons, Inc.2002)
17
NRE and unit cost metrics

• Compare technologies by costs -- best depends on
  quantity
• Technology A NRE2,000, unit100
• Technology B NRE30,000, unit30
• Technology C NRE100,000, unit2

• But, must also consider time-to-market

Source Embedded System Design Frank Vahid/ Tony
Vargis (John Wiley Sons, Inc.2002)
18
Losses due to delayed market entry

• Area 1/2 base height
• On-time 1/2 2W W
• Delayed 1/2 (W-DW)(W-D)
• Percentage revenue loss (D(3W-D)/2W2)100
• Try some examples

• Lifetime 2W52 wks, delay D4 wks
• (4(326 4)/2262) 22
• Lifetime 2W52 wks, delay D10 wks
• (10(326 10)/2262) 50
• Delays are costly!

Source Embedded System Design Frank Vahid/ Tony
Vargis (John Wiley Sons, Inc.2002)
19
Trends

• Moores Law
• IC transistor capacity doubles every 18 mths
• 1981 leading edge chip had 10k transistors
• 2002 leading edge chip had 150M transistors
• 2007 leading edge chip has 1000M transistors
  (90nm)
• Designer productivity has improved due to better
  tools
• Compilation/Synthesis tools
• Libraries/IP
• Test/verification tools
• Standards
• Languages and frameworks (Handel-C, Lava,
  Esterel, )
• 1981 designer produced 100 transistors per month
• 2002 designer produces 5000 transistors per month
• 2007 ???

20
Our New Understanding

• We have simultaneous optimisations of competing
  design metrics speed, size, power, complexity,
  etc.
• We need a Renaissance Engineer
• with holistic view of design process and
  comfortable with technologies ranging from
  hardware, software to formal methods
• Maturation of behavioral synthesis tools and
  other tools has enabled this kind of unified view
  of hardware/ software co-design.
• Design efforts now focus at higher levels of
  abstraction gt abstract specifications now
  refined into programs and then into gates and
  logic.
• There is no fundamental difference of between
  what hardware and software can implement.

21
Designer Productivity

• The Mythical Man Month by Frederick Brooks 75
• More designers on team gt lower productivity
  because of increasing communication costs between
  groups
• Consider 1M transistor project- Say, a designer
  has productivity of 5000 transistor/mth- Each
  extra designer gt decrease of 100 transistor/mth
  productivity in group due to comm. costs
• 1 designer 1M/5000 200mth
• 10 designer 1M/(104100) 24.3mth
• 25 designer 1M/(252600) 15.3mth
• 27 designer 1M/(272400) 15.4mth
• Need new design technology to shrink the design
  gap

Source Embedded System Design Frank Vahid/ Tony
Vargis (John Wiley Sons, Inc.2002)
22
Plan

• Embedded Systems
• New Approaches to building ESW
• New paradigms Lava, Handel-C
• Examples Engineering Returns to Software
• Build a RISC processor in 48hrs
• Advantages of reconfigurable hardware.
• Real-time support for ESW

23
Design Productivity Gap

• Designer productivity has grown over the last
  decade
• Rate of improvement has not kept pace with the
  chip-capacity growth
• 1981 leading edge chip
• 100 designers 100 trans/mth gt 10k trans
  complexity
• 2002 leading edge chip
• 30k designer mth 5k trans/mth gt 150M trans
  complexity
• Designers at avg. of 10k pmgt cost of building
  leading edge chips has gone from 1M in 1981 to
  300M in 2002
• Need paradigm shift to cope with the complexities
  of system design

24
Lava

• Not so much a hardware description language
• More a style of circuit description
• Emphasises connection patterns
• Think of Lego

25
Lava

• Mary Sheeran, Koen Classen, Satnam
  SinghChalmers University (Sweden)
• Based on earlier work on MuFP to describe circuit
  functionality and layout in single language
• Built using functional programming paradigm

26
Behaviour and Structure
g
f
f -gt- g
27
Lava Properties

• Higher-order functions
• Circuits are functions
• May be passed as arguments to other functions.
• gt Easier to produce parameterized circuits than
  with VHDL.
• Functions can return circuits as results
• Circuit combinators take circuits as arguments,
  return circuits as results.
• gt Powerful glue for composing circuits to form
  larger systems.
• Circuit combinators combine behavior layout
• Combinators lay out circuits in rows, columns,
  triangles, trees etc.
• Performance of circuit
• Improved by exploring the layout design space by
  experimenting with alternative layout
  combinators.
• Examples of circuits produced
• High speed constant coefficient multipliers,
  finite impulse response filters (1D and 2D),
  adder tree networks and sorting butterfly
  networks.

28
Parallel Connection Patterns
f -- g
29
map f
30
Four Sided Tiles
31
Column
32
Full Adder
cout
b
sum
a
cin
fa (cin, (a,b)) (sum, cout)
where part_sum
xor (a, b) sum xorcy
(part_sum, cin) cout
muxcy (part_sum, (a, cin))
33
Generic Adder
adder col fa
34
Top Level
adder16Circuit do a lt- inputVec a
(bit_vector 15 downto 0) b lt- inputVec
b (bit_vector 15 downto 0) (s, carry)
lt- adder4 (a, b) sum lt- outputVec sum
s (bit_vector 16 downto 0) ? circuit2VHDL
add16 adder16Circuit ? circuit2EDIF add16
adder16Circuit ? circuit2Verilog add16
adder16Circuit
35
Xilinx FPGA Implementation

• 16-bit implementation on a XCV300 FPGA
• Vertical layout required to exploit fast carry
  chain
• No need to specify coordinates in HDL code

36
16-bit Adder Layout
Source Mary Sheeran Nov.2002
37
Four adder trees
Source Mary Sheeran Nov.2002
38
No Layout Information
Source Mary Sheeran Nov.2002
39
Plan

• Embedded Systems
• New Approaches to building ESW
• New paradigms Lava, Handel-C
• Examples Engineering Returns to Software
• Build a RISC processor in 48hrs
• Advantages of reconfigurable hardware.
• Real-time support for ESW

40
Handel-C

• Programming language- enables compilation of
  programs into synchronous hardware
• NOT Hardware Description Language- its a prog.
  language aimed at compiling high-level algorithms
  into gate-level hardware
• Syntax (loosely) based on C
• Handel-C is to hardware (gates) what C is to
  micro-assembly code

41
Handel-C (cont.)

• Inventor - Ian Page, Programming Research Group
  (Oxford University/UK)
• Semantics based on Hoares Communication Seq.
  Processes (CSP) model
• Occam transputer prog. language
• Industry heavyweights using tools Marconi,
  Ericcson, BAe, Creative Labs, etc.

42
What this means

• Hardware design produced is exactly the hardware
  specified in source program
• No intermediate interpreting layer as in
  assembly language targeting general purpose
  microprocessor
• Logic gates are assembly instructions of Handel-C
  system
• Design/re-design/optimise at software level!!!

43
What This Means

• True parallelism
• not time-shared (interpreted) parallelism of
  gen.purpose computers
• PAR ab
• instructions executed in // at same instant of
  time by 2 sep. pcs of hw
• Timing
• branches that complete early forced to wait for
  slowest branch before continuing

44
Comparison with C

• Similar- Programs inherently sequential-
  Similar control-flow constructs if-then-else,
  switch, while, for, etc.
• Dissimilar - No malloc/ dynamic store
  allocation- No recursion (limited rec. in
  macros)- No nested procedures- No stdin/stdout
  - Void main()- variable width words- PAR, etc.

45
Handel-C is based on

• ANSI-standard C without external
  library-functions
• I/O functions printf(), putc(), scanf(),...
• File functions fopen(), fclose(), fprintf(), ...
• String-functions length(), strcpy(), strcmp(),
• Math-functions sin(), cos(), sqrt(),
• ...

46
Supported declarationsstatements instructions

• Main program structure
• Variables
• Arrays
• Switch statement
• FOR Loop
• Comments
• Constants
• Scope Variable sharing
• Arithmetic, Relational, Relational Logic ops
• Conditional Execution
• While loop
• Do While Loop

47
Channel Communication

• link!v link?v
• channel input is form of assignment
• Provides link between parallel (//) branches
• One // branch outputs data onto channel
• Other // branch reads data from channel
• gt Synchronisation
• data transfers only when both processes are ready

48
Additional Features Statements

• Channel
• unsigned int 8 a
• chan unsigned int 8 c
• c ! 5
• c ? A

49
Additional Features Statements

• Prialt
• prialt
• case CommsStatement
• Statement
• break
• ...
• default
• Statement
• break

50
Example 1 (sum)
IMPORTANT width!!

• Void main()
• unsigned int 16 sum // variable width word
• unsigned int 8 data
• chanin input // input/output
• chanout output
• sum0
• do
• input?data
• sum sum (0_at_data)
• while (data!0)
• output!sum

51
Example 2 (divider)

• define DATA_WIDTH 16
• Void main(void)
• unsigned int DATA_WIDTH a, mult, result
• unsigned int (DATA_WIDTH2 -1) b
• chanin input
• chanout output
• while (1)
• input?a
• input?result b result _at_ 0
• mult 1ltlt (DATA_WIDTH-1)
• result 0
• ltltltltlt MAIN LOOP gtgtgtgtgt
• output ! Result

result integer(a / b)
52
Example 2 (cont.)

• while (mult ! 0)
• if (0 _at_ a) gt b)
• par
• a - b lt- width(a)
• result ! mult
• par
• b b gtgt 1
• mult mult gtgt 1

53
Example 3
Link0
Link1
input
output
State0
State1
State2
Parallel tasks Comm between tasks Array of
variables Array of channels Parameterised on width

• Void main(void)
• chan unsigned int undefined link2
• chanin unsigned int 8 input
• chanout unsigned int 8 output
• unsigned int undefined state3
• par
• while (1) // first queue location
• input ? State0
• link0 ! State0
• while (1) // second queue location
• link0 ? State1
• link1 ! State1
• while (1) // third queue location
• link1 ? State2
• output ! State2

54
Additional Features Statements

• Timing
• An assignment statement takes exactly one clock
  cycle to execute. Everything else is free
• void main(void)
• unsigned 8 x, y
• x x y

55
Timing/efficiency issues

• One clock source for entire program- Assignment
  delay take one clock cycle- Expressions are
  for free
• Handel-C designed such that experienced
  programmer can immediately tell which
  instructions execute on which clock cycles
• Example x y x (((yz) (wv)
  )ltlt2)lt-7both statements take one clock cycle

• Clock at longest logic depthgt reduce the depth
  of logic to speed up programgt pipelining

56
Porting C to Handel-C

• Decide how software maps to hardware platform
• Partition algorithm between multiple FPGAs
• Port C to Handel-C use simulator to check
  correctness
• Modify code to take advantage of extra operators
  in Handel-C - simulate to ensure correctness
• Add fine-grain parallelism through PAR parallel
  assignments or parallellise algorithm - simulate
• Add hardware interfaces for target architecture
  map simulator channels communications onto these
  interfaces - simulate
• Use FPGA place route tools to generate FPGA
  images

57
Design Flow Overview
Port algorithm to Handel-C
Compile program to .net file for simulator
Modify/ debug program
Use simulator to evaluate and debug design
Add interfaces to external hardware
Use Handel-C compiler to target h/w netlist
Use FPGA tools to place route netlist
Program FPGA with result of place route
58
Essence

• Software approach allows us to rapidly prototype
  applications for a given domain
• Handel-C provides a seamless approach toderive
  expressive and fast implementations from the
  software level
• Cost of silicon is falling shortage of trained
  engineers high cost of programmer time gt
  Software based, high-level approaches to solving
  problems become increasingly attractive.

59
Handel-C Concepts (Recap)

• Describes hardware - h/w design produced h/w
  in source program
• Logic gates are assembly instructions of Handel-C
  system
• Real parallelism not interpreted
• Assignment, delay take 1 clock cycleExpression
  evaluation is free
• No side-effectsI.e. a is statement (not
  expression as in C)
• Variable width words gt great performance
  improvement over softwareMin. datapath widths gt
  minimal h/w usage

60
Additional Features Statements

• Concurrency
• ...
• par

61
Concurrency (example)

• void main(void)
• unsigned 8 x, y
• unsigned 5 temp1
• unsigned 4 temp2
• ...
• temp1 (0_at_(x lt- 4)) (0_at_(y lt- 4))
• temp2 (x \\ 4) (y \\ 4)
• x (temp2 (0_at_temp14)) _at_ temp130

62
Additional Features Statements

• Concurrency
• ...
• par
• temp1(0_at_(xlt-4))(0_at_(ylt-4))
• temp2(x\\4)(y\\4)
• x(temp2(0_at_temp14))_at_temp130
• ...

63
Features Statements (contd.)

• Delay
• ...
• par
• x 1
• delay
• x2
• while (x 0) delay

64
Additional Features Statements

• Channel
• unsigned int 8 a
• chan unsigned int 8 c
• c ! 5
• c ? A
• Single variable must not be accessed by gt1 //
  branchgt
• par
• out!3
• out!4
• // illegal

65
Features Statements(contd.)

• Macros(Examples - contd)
• Combinatorial
• macro expr abs(a) ((a) width(a)-1 0 ? (a)
  (-a))
• shared expr incwrap(e, m) (((em) ? 0
  (e)1)
• Recursive
• macro expr copy (e, n)
• select(n1, (e), copy(e, n/2) _at_ copy(e,
  n-(n/2)))

66
Features Statements(contd)

• Operators for Bit Manipulation
• z x lt- 2 // Take least significant bits
• z y \\ 2 // Drop least significant bits
• z x _at_ y // Concatenation
• z x3 // Bit selection
• z y23 // Bus selection
• z width(x) // Width of expression
• Note in the form ymn the order is MSBLSB
• Unsigned int 3 y 4
• y0 is 0
• y2 is 1

67
Additional Features Statements

• External RAM / ROM
• ram unsigned int 4 ExtRAM8 with offchip 1,
• data "P01", "P02", "P03", "P04",
• addr "P05", "P06", "P07",
• we "P08", oe "P09", cs "P10"
• rom unsigned int 4 ExtROM8 with offchip 1,
• data "P01", "P02", "P03", "P04",
• addr "P05", "P06", "P07",
• we , oe "P09", cs "P10"

68
Additional Features Statements

• Internal RAM / ROM
• ram unsigned int 8 speicher256
• rom unsigned int 8 program 1,2,3,4
• unsigned char i
• i 3
• speicheri 25
• for (i 0 i lt 4 i) stdout ! programi

69
Recursive Macro Expressions Example

• Illustrates the generation of large quantities of
  hardware from simple macros.
• Multiplier whose width depends on the parameters
  of the macro.
• Starting point for generating large regular
  hardware structures using macros.
• Single-cycle long multiplication from single
  macro
• macro expr multiply(x, y) select(width(x)
  0,
• 0, multiply(x \\ 1, y ltlt 1) (x0
  1 ? y 0))
• a multiply (b , c)

70
Timing
71
Additional Features Statements

• Off-Chip Interface
• Input, registered Input, latched Input
• Output
• Tristate Bus
• Off-Chip Interface (examples)
• interface bus_in (int 4) InBus() with
• data "P1", "P2", "P3", "P4"
• int 4 x
• x InBus.in
• interface bus_out () OutBus (xy) with
• data "P11", "P12", "P13", "P14"

72
Parallel Access to Variables

• Rules of parallelism same variable must not be
  accessed from two separate parallel branches.
  (to avoid resource conflicts on the variables)
• Actually, the same variable must not be assigned
  to more than once on the same clock cycle but may
  be read as often as required (see wires!)
• Allows some useful and powerful programming
  techniques. eg
• par
• a b
• b a
• // swaps values of a and b in single
  clock cycle.

73
Parallel Access to Variables

• Four place queue
• while(1)
• par
• int x3
• x0 in
• x1 x0
• x2 x1 // values at out delayed
• out x2 // by 4 clock cycles

74
Time Efficiency of Handel-C Hardware

• RequirementClock period for program to be
  longer than longest path thru combinatorial logic
  in whole program.
• gt once FPGA place and route is done, max.
  clock-rate 1/longest-path-delay
• ExampleFPGA place and route tools calculate
  longest path delay between flip-flops in a design
  is 70nS.
• The max. clock rate is 1/70nS 14.3MHz.Speed
  allowed by system 400kHz - 100MHz
• BUT WHAT IF THIS IS NOT FAST ENOUGH

75
Improving Time Efficiency

• Reducing Logic DepthAvoid multiplication, avoid
  wide-adders, reduce complex expressions into
  stages, etc.
• unsigned 8 x
• unsigned 8 y
• unsigned 5 temp1
• unsigned 4 temp2
• par
• temp1 (0_at_(xlt-4)) (0_at_(ylt-4))
• temp2 (x \\ 4) (y \\ 4)
• x (temp2(0_at_temp14)) _at_ temp130
• Pipelining gt increased latency for higher
  throughput

76
Serialisation

• Multiplication in more than one clockcycle in
  order to save hardware
• Algorithm is parametrizable by a compile-time
  constant
• macro proc mult_serial(x, y, xy)
• macro expr count_width 5
• macro expr steps 1 ltlt count_width
• macro expr bits width(xy) / steps
• unsigned count_width count
• par xy 0 count 0
• do par
• xy (0 _at_ (x lt- bits)) y
• x gtgt bits
• y ltlt bits
• count
• while (count ! 0)

77
Serialisation

• Gatecount for a 32-bit multiplication

78
Plan

• Embedded Systems
• New Approaches to building ESW
• New paradigms Lava, Handel-C
• Examples (Engineering Returns to Software
• Build a RISC processor in 48hrs
• Advantages of reconfigurable hardware.
• Real-time support for ESW

79
RISC-Processor

• Features
• 16 instructions
• 4 bit I/O Ports
• one accumulator
• Program memory (16x8 ROM)
• Data memory (16x4 RAM)
• ProblemExecute a program stored in ROM to
  calculate the first few members of the Fibonacci
  number sequence.1, 2, 3, 5, 8, 13, 21, 34,
  fib(n) 1 if n0 V n1fib(n) fib(n-1)
  fib(n-2) if ngt2

80
RISC-Processor

• Instruction Set

81
RISC-Processor (cont.)

• Program
• chanin input
• chanout output
• // Parameterisation
• define dw 32 / Data width /
• define opcw 4 / Op-code width /
• define oprw 4 / Operand width /
• define rom_aw 4 / Width of ROM address bus /
• define ram_aw 4 / Width of RAM address bus /
• // The opcodes
• define HALT 0
• define LOAD 1
• define LOADI 2
• define STORE 3
• define ADD 4
• define SUB 5
• define JUMP 6

82
RISC-Processor(cont.)

• I/O Interface
• unsigned int dw output
• interface bus_clock_in (unsigned int 1) reset()
  with data reset_pin
• interface bus_in (unsigned int dw) input() with
  data in_pins
• interface bus_out () out(output) with data
  out_pins
• Definition of available opcode
• define HLD 0
• define NOP 1
• define OUT 2
• define IN 3
• ...
• define SRA 15

83
RISC-Processor

• Declaration of FPGA and Pinning
• set family Altera10K
• set part "EPF10K70RC240-3"
• set clock external "91"
• macro expr in_pins "38", "83", "101", "148"
• macro expr out_pins "153", "202", "218",
  "19"
• macro expr reset_pin "45"
• Defining Parameters
• define dw 4 / Data width /
• define opcw 4 / Op-code width /
• define oprw 4 / Operand width /
• define rom_aw 4 / Width of ROM addr bus /
• define ram_aw 4 / Width of RAM addr bus /

84
RISC-Processor (cont.)

• Program (cont)
• // Rom program data
• rom unsigned int undefined program
• _asm_(LOADI, 1), / 0 / / Get a one /
• _asm_(STORE, 3), / 1 / / Store this /
• _asm_(STORE, 1), / 2 /
• _asm_(INPUT, 0), / 3 / / Read value from user
  /
• _asm_(STORE, 2), / 4 / / Store this /
• _asm_(LOAD, 1), / 5 / / Loop entry point /
• _asm_(ADD, 0), / 6 / / Make a fib number /
• _asm_(STORE, 0), / 7 / / Store it /
• _asm_(OUTPUT, 0), / 8 / / Output it /
• _asm_(ADD, 1), / 9 / / Make a fib number /
• _asm_(STORE, 1), / a / / Store it /
• _asm_(OUTPUT, 0), / b / / Output it /
• _asm_(LOAD, 2), / c / / Decrement counter /
• _asm_(SUB, 3), / d /
• _asm_(JUMPNZ, 4), / e / / Repeat if not zero
  /

85
RISC-Processor (cont.)

• Program (cont)
• / RAM for processor /
• ram unsigned int dw data1 ltlt ram_aw
• / Processor registers /
• unsigned int rom_aw pc / Program counter /
• unsigned int (opcwoprw) ir / Instruction
  register /
• unsigned int dw x / Accumulator /
• / Macros to extract opcode and operand fields /
• define opcode (ir lt- opcw)
• define operand (ir \\ opcw)

86
RISC-Processor (cont.)

• Program (cont)/ Main program /
• void main(void)
• pc 0
• // Processor loop
• do
• // fetch
• par
• ir programpc
• pc pc 1
• / MAIN DECODE/EXECUTE /
• while (opcode ! HALT)
• / main program /

87
RISC-Processor (cont.)

• Program (cont)
• // decode and execute
• switch (opcode)
• case LOAD x dataoperandlt-ram_aw break
• case LOADI x 0 _at_ operand break
• case STORE dataoperandlt-ram_aw x break
• case ADD x xdataoperandlt-ram_aw break
• case SUB x x-dataoperandlt-ram_aw break
• case JUMP pc operandlt-rom_aw break
• case JUMPNZ if (x!0) pcoperandlt-rom_aw
  break
• case INPUT input ? x break
• case OUTPUT output ! x break
• default while(1) delay // unknown opcode

88
RISC-Processor (cont.)

• The Final Program!

89
Simulation debugging

• The simulator is integrated into the compiler.
• Executing a cycle-based simulation.
• Variables are traceable at any clock cycle.
• Port interface will be replaced by standard I/O.
• Handel-C simulator supports debugging at any
  clock-cycle.
• Highlighting of characteristic Values e.g. Area
  of any program line.

90
Some Recent Work

• Customising Graphics ApplicationsTechniques
  Programming InterfaceHenry Styles Wayne Luk,
  Proceedings of IEEE Symposium on Field
  Programmable Custom Computing Machines, IEEE
  Computer Society Press, 2000.
• Exploit custom data-formats and datapath
  widthsto optimise graphics operations such as
  texture mapping hidden-surface removal.
• Discusses techniques for balancing graphics
  pipeline
• Customised architectures captured in
  Handel-Ccompiled for Xilinx Virtex FPGAs
• Handel-C API based on OpenGL standardfor
  automatic speedup of graphics applications,
  include Quake-2 action game.

91
The Graphics Pipeline
92
Performance Case Studies

• Geometric Visualisation

Nvidia is a 3-D graphics chipset I.e.
specialised graphics ASIC Chart gt FPGA platform
fast approaching performance of dedicated
graphics ASICfor gen. Purpose graphics
applications
93
Performance Case Studies

• Infrared Simulation requires custom pixel format
  not supported by graphics ASICs

Onyx contains two 180 MHz MIPs processors, two
Geometry Engine processors and two rasteriser
ASICs, with a memory Bandwidth of 6.4 GB/sec
(I.e. 10X cost mem.b/w of FPGA
94
Performance Case Studies

• Quake-2 benchmark requires custom pixel format
  not supported by graphics ASICs

Bottleneck is PCI-bus speed limitation. Improve
performance by moving FPGA to AGP slot allowing
1GB/sec transfers between graphics h/w and memory
95
Some Observations

• FPGA renderer is a low-cost platform for custom
  graphics applications
• Development time of a customised FPGA renderer
  comparable to optimised softwaregt effective to
  use a reconfigurable platform
• Good for reconfigurable designs where ASIC is not
  available or too expensive
• Useful in exploring desirable algorithms and
  architectures for ASICs
• Hardware renderer may be customised to maximixe
  performance for each application

96
Some Features of the Rapid Prototyping Board

• Full length 32 bit PCI card
• Virtex XCV1000 1.000.000 system gates,
• 131 kBit Block RAM, 393 kBit SelectRAM
• Programmable clock 400 kHz to 100 MHz
• 4 banks of fast asynchronous 32 bit wide SRAM,
  each 2 Mbytes
• PCI interface 32 bit, 33 MHz, 132 Mbytes/sec
  burst
• 2 x PMC sites for VME grade I/O processing
  modules
• 50 pin Aux I/O, 8 LEDs

97
Summary

• Cost of silicon is falling Products are getting
  more complex Time-to-market shrinking rapidly
  shortage of trained engineers cost of
  programmer time is major constraint gtSoftware
  based, high-level approaches to solving problems
  become increasingly attractive.
• New generation of languages let us build systems
  at high level of abstraction.
• High-density FPGAs and SoCs allow complex
  designs to be rapidly prototyped gt reduce the
  development cycle of new technology perhaps
  even to deploy final product as soft cores.
• Broader understanding demanded from system
  designer need Renaissance Engineer with
  equal understanding of hardware and software.

98
Plan

• Embedded Systems
• New Approaches to building ESW
• Real-Time Support
• Special Characteristics of Real-Time Systems
• Real-Time Constraints
• Canonical Real-Time Applications
• Scheduling in Real-time systems
• Operating System Approaches

99
What is real about real-time?

• computer world real world
• e.g., PC industrial system, airplane
• average response for user,
  events occur in environment at own speed
• interactive
• occasionally longer reaction too slow
  deadline miss
• reaction user annoyed reaction
  damage, pot. loss of human life
• computer controls speed of user computer
  must follow speed
•
  of environment

computer time real-time
100
They Why real-time, why not simply fast?

• Fast enough dependent on system and its
  environment and
• turtle fast enough to eat salad

• mouse fast to enough steal cheese

• fly fast enough to escape

101

• what if environment changes?systems not fast
  enough
• mouse trap

• fly-swatter

time scale depends on - or dictated by -
environment cannot slow down environment is the
real world
102
Real-Time Systems

• A real-time system is a system that reacts to
  events in the environment by performing
  predefined actions

within specified time intervals.
103
Flight Avionics

• CLIENT SERVER

Constraints on responses to pilot inputs,
aircraft state updates
104

• Constraints
• Keep plastic at proper temperature (liquid, but
  not boiling)
• Control injector solenoid (make sure that the
  motion of the piston reaches the end of its
  travel)

105
Real-Time Systems Properties of Interest

• Safety Nothing bad will happen.
• Liveness Something good will happen.
• Timeliness Things will happen on time -- by
  their deadlines, periodically, ....

106
In a Real-Time System.
Correctness of results depends on valueand its
time of delivery

• correct value delivered too late is incorrect
• e.g., traffic light light must be green when
  crossing, not enough before
• Real-time
• (Timely) reactions to events as they occur, at
  their pace(real-time) system (internal) time
  same time scale as environment (external) time

107
Performance Metrics in Real-Time Systems

• Beyond minimizing response times and increasing
  the throughput
• achieve timeliness.
• More precisely, how well can we predict that
  deadlines will be met?

108
Types of RT Systems

• Dimensions along which real-time activities can
  be categorized
• how tight are the deadlines? --deadlines are
  tight when the laxity (deadline -- computation
  time) is small.
• how strict are the deadlines? what is the value
  of executing an activity after its deadline?
• what are the characteristics of the environment?
  how static or dynamic must the system be?
• Designers want their real-time system to be fast,
  predictable, reliable, flexible.

109
Hard, soft, firm

• Hardresult useless or dangerousif deadline
  exceeded

• Softresult of some - lower -value if deadline
  exceeded

• Firm
• If value drops to zero at deadline

-
Deadline intervalsresult required not
laterand not before
110
Examples

• Hard real time systems
• Aircraft
• Airport landing services
• Nuclear Power Stations
• Chemical Plants
• Life support systems

• Soft real time systems
• Mutlimedia
• Interactive video games

111
Real-Time Items and Terms

• Task
• program, perform service, functionality
• requires resources, e.g., execution time
• Deadline
• specified time for completion of, e.g., task
• time interval or absolute point in time
• value of result may depend on completion time

112
Plan

• Special Characteristics of Real-Time Systems
• Real-Time Constraints
• Canonical Real-Time Applications
• Scheduling in Real-time systems
• Operating System Approaches

113
Timing Constraints

• Real-time means to be in time --- how do we know
  something is in time?how do we express that?
• Timing constraints are used to specify temporal
  correctnesse.g., finish assignment by 2pm, be
  at station before train departs.
• A system is said to be (temporally) feasible, if
  it meets all specified timing constraints.
• Timing constraints do not come out of thin
  airdesign process identifies events, derives,
  models, and finally specifies timing constraints

114

• Periodic
• activity occurs repeatedly
• e.g., to monitor environment values, temperature,
  etc.

period
115

• Aperiodic
• can occur any time
• no arrival pattern given

aperiodic
aperiodic
116

• Sporadic
• can occur any time, but
• minimum time between arrivals

mint
sporadic
117
Who initiates (triggers) actions?

• Example Chemical process
• controlled so that temperature stays below danger
  level
• warning is triggered before danger point
• so that cooling can still
  occur
• Two possibilities
• action whenever temp raises above warn event
  triggered
• look every int time intervals action when temp
  if measures above warn time triggered

118
t
time
TT
ET
119
t
time
TT
ET
120
ET vs TT

• Time triggered
• Stable number of invocations
• Event triggered
• Only invoked when needed
• High number of invocation and computation demands
  if value changes frequently

121
Slow down the environment?

• Importance
• which parts of the system are important?
• importance can change over timee.g., fuel
  efficiency during emergency landing
• Flow controlwho has control over speed of
  processing, who can slow partner down?
• environment
• computer system
• RT environment cannot be slowed down

122
Other Issues to worry about

• Meet requirements -- some activities may run
  only
• after others have completed - precedence
  constraints
• while others are not running - mutual exclusion
• within certain times - temporal constraints
• Scheduling
• planning of activities, such that required timing
  is kept
• Allocation
• where should a task execute?

123
Plan

• Special Characteristics of Real-Time Systems
• Real-Time Constraints
• Canonical Real-Time Applications
• Scheduling in Real-time systems
• Operating System Approaches

124
A Typical Real time system
Temperature sensor
Input port
CPU
Memory
Output port
Heater
125
Code for example
While true do read temperature sensor if
temperature too high then turn off heater
else if temperature too low
then turn on heater
else nothing
126
Comment on code

• Code is by Polling device (temperature sensor)
• Code is in form of infinite loop
• No other tasks can be executed
• Suitable for dedicated system or sub-system only

127
Extended polling example
Conceptual link
Temperature Sensor 1
Task 1
Heater 1
Temperature Sensor 2
Heater 2
Task 2
Computer
Temperature Sensor 3
Heater 3
Task 3
Temperature Sensor 4
Heater 4
Task 4
128
Polling

• Problems
• Arranging task priorities
• Round robin is usual within a priority level
• Urgent tasks are delayed

129
Interrupt driven systems

• Advantages
• Fast
• Little delay for high priority tasks
• Disadvantages
• Programming
• Code difficult to debug
• Code difficult to maintain

130
How can we monitor a sensor every 100 ms
Initiate a task T1 to handle the
sensor T1 Loop Do sensor task T2 Schedule
T2 for 100 ms Note that the time could be
relative (as here) or could be an actual time -
there would be slight differences between the
methods, due to the additional time to execute
the code.
131
An alternative
Initiate a task to handle the sensor T1 T1 Do
sensor task T2 Repeat Schedule T2 for n 100
ms nn1 There are some subtleties here...
132
Clock, interrupts, tasks
Interrupts
Clock
Processor
Examines
Job/Task queue
Task 1
Task 2
Task 3
Task 4
Tasks schedule events using the clock...
133
Flight Simulator

• CLIENT SERVER

134
Time Periods to meet Timing Requirements

• CLIENT SERVER

Requirement
Choice Made
Rationale
135
Time Periods to meet Timing Requirements

• CLIENT SERVER

Requirement
Choice Made
Rationale
136
Time Periods to meet Timing Requirements

137
Controlling a reaction

• we know
• if temperature too high, it explodes
• maximum rate of temperature increase
• rate of cooling
• events
• temperature change
• temperature gt safe threshold
• we can derive
• how often we have to check temperature
• when we have to finish cooling

138
(No Transcript)
139
Example Injection Molding (cont.)

• Timing constraints

140
Example Injection Molding (cont.)

• Concurrent control tasks

141
Plan

• Special Characteristics of Real-Time Systems
• Real-Time Constraints
• Canonical Real-Time Applications
• Scheduling in Real-time systems
• Operating System Approaches

142
Why is scheduling important?

• Definition
• A real-time system is a system that reacts to
  events in the environment by performing
  predefined actions within specified time
  intervals.

143
Schedulability analysis

• a.k.a. feasibility checking
• check whether tasks will meet their
• timing constraints.

144
Scheduling Paradigms

• Four scheduling paradigms emerge, depending on
• whether a system performs schedulability
  analysis
• if it does,
• whether it is done statically or dynamically
• whether the result of the analysis itself
  produces
• a schedule or plan according to which
• tasks are dispatched at run-time.

145
1. Static Table-Driven Approaches

• Perform static schedulability analysis by
  checking if a schedule is derivable.
• The resulting schedule (table) identifies the
  start times of each task.
• Applicable to tasks that are periodic (or have
  been transformed into periodic tasks by well
  known techniques).
• This is highly predictable but, highly
  inflexible.
• Any change to the tasks and their characteristics
  may require a complete overhaul of the table.

146
2. Static Priority Driven Preemptive
Approaches

• Tasks have -- systematically assigned -- static
  priorities.
• Priorities take timing constraints into
  account
• e.g. rate-monotonic
• the lower the period, the higher the priority.
• Perform static schedulability analysis but no
  explicit schedule is constructed
• RMA - Sum of task Utilizations lt ln 2.
• Task utilization computation-time / Period
• At run-time, tasks are executed
  highest-priority-first, with preemptive-resume
  policy.
• When resources are used, need to compute
  worst-case blocking times.

147
Static PrioritiesRate Monotonic Analysis

• presented by Liu and Layland in 1973
• Assumptions
• Tasks are periodic with deadline equal to
  period.Release time of tasks is the period start
  time.
• Tasks do not suspend themselves
• Tasks have bounded execution time
• Tasks are independent
• Scheduling overhead negligible

148
RMA Design Time vs. Run Time

• At Design Time
• Tasks priorities are assigned according to their
  periods shorter period means higher priority
• Schedulability test
• Taskset is schedulable if
• Very simple test, easy to implement.
• Run-time
• The ready task with the highest priority is
  executed.

149

• RMA Example
• taskset t1, t2, t3, t4
• t1 (3, 1)
• t2 (6, 1)
• t3 (5, 1)
• t4 (10, 2)
• The schedulability test
• 1/3 1/6 1/5 2/10 4 (2(1/4) - 1) ?
• 0.9 lt 0.75 ?
• . not schedulable

150

• RMA
• A schedulability test is
• Sufficient
• there may exist tasksets that fail the test,
  but are schedulable
• Necessary
• tasksets that fail are (definitely) not
  schedulable
• The RMA schedulability test is sufficient, but
  not necessary.
• e.g., when periods are harmonic,
• i.e., multiples of each other,
  utilization can be 1.

151
Exact RMA

• by Joseph and Pandya, based on critical instance
  analysis
• (longest response time of task, when it is
  released at same time as all higher priority
  tasks)
• What is happening at the critical instance?
• Let T1 be the highest priority task. Its response
  time
• R1 C1 since it cannot be preempted
• What about T2 ?R2 C2 delays due to
  interruptions by T1.
• Since T1 has higher priority, it has
  shorter period. That means it will interrupt T2
  at least once, probably more often. Assume T1 has
  half the period of T2, R2 C2 2 x C1

152
Exact RMA.

• In general
• Rni denotes the nth iteration of the response
  time of task i
• hp(i) is the set of tasks with higher priority as
  task i

153
Example - Exact Analysis

• Let us look at our example, that failed the pure
  rate monotonic test, although we can schedule it
• Exact analysis says so.
• R1 1 easy
• R3, second highest priority taskhp(t3) T1
  R3 2

154

• R2, third highest priority taskhp(t2) T1 ,T3
  R2 3

155

• R4, third lowest priority taskhp(t4) T1 ,T3
  ,T2
• R4 9
• Response times of first instances of all tasks
  lt their periods
• gt taskset feasible under RM scheduling

156
3. Dynamic Planning based Approaches

• Feasibility is checked at run-time -- a
  dynamically arriving task is accepted only if it
  is feasible to meet its deadline.
• Such a task is said to be guaranteed to meet its
  time constraints
• One of the results of the feasibility analysis
  can be a schedule or plan that determines start
  times
• Has the flexibility of dynamic approaches with
  some of the predictability of static approaches

• If feasibility check is done sufficiently ahead
  of the deadline, time is available to take
  alternative actions.

157
4. Dynamic Best-effort Approaches

• The system tries to do its best to meet
  deadlines.
• But since no guarantees are provided, a task may
  be aborted during its execution.
• Until the deadline arrives, or until the task
  finishes, whichever comes first, one does not
  know whether a timing constraint will be met.
• Permits any reasonable scheduling approach, EDF,
  Highest-priority,

158
Cyclic scheduling

• Ubiquitous in large-scale dynamic real-time
  systems
• Combination of both table-driven scheduling and
  priority scheduling.
• Tasks are assigned one of a set of harmonic
  periods.
• Within each period, tasks are dispatched
  according to a table that just lists the order in
  which the tasks execute.
• Slightly more flexible than the table-driven
  approach
• no start times are specified
• In many actual applications, rather than making
  worse-case assumptions, confidence in a cyclic
  schedule is obtained by very elaborate and
  extensive simulations of typical scenarios.

159
Plan

• Special Characteristics of Real-Time Systems
• Real-Time Constraints
• Canonical Real-Time Applications
• Scheduling in Real-time systems
• Operating System Approaches

160
Real-Time Operating Systems

• Support process management and synchronization,
  memory management, interprocess communication,
  and I/O.
• Three categories of real-time operating systems
• small, proprietary kernels.
• e.g. VRTX32, pSOS, VxWorks
• real-time extensions to commercial timesharing
  operatin systems.
• e.g. RT-Linux, RT-NT
• research kernels
• e.g. MARS, ARTS, Spring, Polis

161
Real-Time Applications Spectrum
Hard
Real-Time Operating System
VxWorks, Lynx, QNX, ...
Intime, HyperKernel, RTX
Windows CE
General-Purpose Operating System
Windows NT
Soft
162
Real-Time Applications Spectrum
Hard
Real-Time Operating System
VxWorks, Lynx, QNX, ... Intime, HyperKernel, RTX
Windows CE
Windows NT
General-Purpose Operating System
Soft
163
Embedded (Commercial) Kernels

• Stripped down and optimized versions of
  timesharing operating systems.
• Intended to be fast
• a fast context switch,
• external interrupts recognized quickly
• the ability to lock code and data in memory
• special sequential files that can accumulate
  data at a fast rate
• To deal with timing requirements
• a real-time clock with special alarms and
  timeouts
• bounded execution time for most primitives
• real-time queuing disciplines such as earliest
  deadline first,
• primitives to delay/suspend/resume execution
• priority-driven best-effort scheduling mechanism
  or a table-driven mechanism.
• Communication and synchronization via mailboxes,
  events, signals, and semaphores.

164
Real-Time Extensions to General Purpose
Operating Systems

• E.g., extending LINUX to RT-LINUX, NT to RT-NT
• Advantage
• based on a set of familiar interfaces
  (standards) that speed development and facilitate
  portability.
• Disadvantages
• Too many basic and inappropriate underlying
  assumptions still exist.

165
Using General Purpose Operating Systems

• GPOS offer some capabilities useful for real-time
  system builders
• RT applications can obtain leverage from existing
  development tools and applications
• Some GPOSs accepted as de-facto standards for
  industrial applications

166
Real Time Linux approaches

• Modify the current Linux kernel to handle RT
  constraints
• Used by KURT
• Make the standard Linux kernel run as a task of
  the real-time kernel
• Used by RT-Linux, RTAI

167
Modifying Linux kernel

• Advantages
• Most problems, such as interrupt handling,
  already solved
• Less initial labor
• Disadvantages
• No guaranteed performance
• RT tasks dont always have precedence over non-RT
  ta
