Class 1 August 2908

1

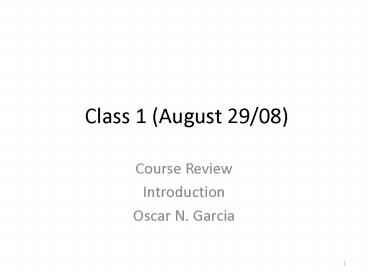

Class 1 (August 29/08)

• Course Review
• Introduction
• Oscar N. Garcia

2
Principles of Speech Production, Analysis and
Recognition

• Instructor Oscar N. Garcia, PhD
• Office 249 NH, Suite 249A Phone [phone]
  UTA email ogarcia_at_uta.edu or ogarcia_at_unt.edu
• Office hours Fridays, 1230-100 PM, 430-530
  PM
• Course Number and Section EE 5359 - Topics in
  Signal Processing, Section 002 Principles of
  Speech Production, Analysis and Recognition,
  short title - Pr Spch Prod Anal Recog

• Day and time Fridays, 100 PM to 350 PM,
  Classroom Neederman Hall NH106

3
Brief Description, Learning Outcomes and
Pre-requisites

• Brief Description Introduction to the production
  of human speech, vocal tract, the hearing system,
  the units of speech, methods of analysis of
  speech signals, speech recognition technology,
  computerized speech synthesis.
• Learning Outcomes The student will understand
  how speech is produced and how it is perceived by
  humans, how it can be decomposed and analyzed as
  a signal and the basis of the methods of speech
  recognition and speech synthesis.
• Pre-requisites Undergraduate courses in integral
  and differential calculus, differential
  equations, matrix algebra. A very introductory
  knowledge of signals, systems, frequency analysis
  and filters is expected (See Chapter 2 of text.)

4
Grading

• The grade for the course is determined by
• Two exams, a mid-term exam (for 30 of the grade)
  and a comprehensive final examination (for 40 of
  the grade).
• Homework will be assigned with a value of 10 of
  the grade.
• A class project will be undertaken with a written
  report and a presentation for 20 of the course
  grade.
• No curving of the grade is anticipated.
• Students are expected to attend all classes with
  a maximum of two unexcused absences and the
  responsibility is on their shoulders to cover the
  material on their own if a class is missed.
• University drop policy applies.
• No make-up tests for unexcused absences.

5
Text and references

• Main Textbook D. OShaughnessy, Speech
  Communications Human and Machine, Second
  Edition, IEEE Press, 2000. There are substantial
  WWW references in p. 469 and following.
• Other reference texts
• Digital Speech Processing, Synthesis and
  Recognition, Sadaoki Furui, Marcel Dekker Inc.,
  2001,
• Automatic Speech Recognition The Development of
  the SPHINX , Kai-Fu Lee, 1989 Kluwer,
• Voice Communication between Humans and
  Machines, National Academy of Sciences, D. B.
  Roe and J. G. Wilpon, Eds., 1994.

6
Objectives of the Course

• An introductory overview of speech production
  and perception and acoustic phonetics, with
  coverage of models of the vocal tract sound
  production and the mechanisms of sound
  perception. The central topic will be automatic
  speech recognition (ASR) and the models used for
  it. Some aspects of speech coding, speech
  synthesis and speaker identification topics.

7
This class overviews the course

• Speech communication
• physics (acoustics, speech analysis),
• physiology (speech production and perception)
• and psycho sociological (semantics,
  psychoacoustics, prosody and suprasegmental)
  aspects.
• Communication with machines an introduction to
  speech recognition and to speech synthesis.
• Features of speech synthesis and speaker
  recognition (speaker characterization).

8
Signals Speech is a signal

• Speech is manifested as air pressured waves that
  are perceived by the human hearing system. The
  pressure waves may be transformed to electrical
  signals by microphone(s). The pressure waves
  follow the physical laws of acoustics.
• A (time varying) signal is represented by a
  (discrete or analog) function of time. Examples
  of signals that we will use are
• a) An impulse
• b) A step function
• c) A (displaced or shifted) exponential
• d) Sine function
• e) Cosine function
• Notice continuous vs. discrete (sampled) signals
  in the next picture

9
IMPULSE
STEP
a-n
EXPONENTIAL (PLUS A CONSTANT)
10
(No Transcript)
11
Digitizing the speech signal

• There are a number of advantages in going through
  an A/D conversion
• It is easier to combat noise up to a point
• The digital signal may be handled by DSP methods
  in hardware or by programs (filtering, etc.)
• It is easier to analyze, compress, code, etc.
• It unfortunately suffers from quantization noise
  of a magnitude that depends on the number of
  quantization levels (some 28 or 256 levels for
  example)

12
The physiology of speech
The relation between signs and their users
Perception
Production
13
Speech recognition by machine can be aided by
understanding certain aspects of the language
spoken

• Compare machine recognition with the previous
  figure (Physiology of Speech)
• Semiotics (the study or science of signs and
  symbols), for example, covers
• Pragmatics
• Semantics
• Syntactics
• We will only briefly cover some aspects of some
  of these issues as needed in the course

14
Psycho sociological (psychoacoustics, semantics,
prosody and suprasegmental) aspects

• When we model natural language for recognition it
  is advantageous to consider not only the physical
  aspects but other broad aspects like
• Psychoacoustics (Chapter 5 of text) relates the
  acoustic signal to what the human perceives (for
  example, speech synthesis by rules is
  intelligible but not natural)
• Semantics meanings and the development of word
  meanings (helpful in disambiguation)
• Prosody speech emphasis for meaning, style
  (read speech vs. conversational), stress, pauses,
  duration, place and manner of articulation,
  rhythm.
• Suprasegmentals Prosody is not localized to
  specific sound segment and its characteristics
  extend often beyond a word to a whole portion of
  a sentence. The stress is related to semantics,
  type of discourse and pragmatics. Suprasegmental
  effects go beyond the segments that are
  considered in common recognizers segment
  individual features.

15
Communication with machines an introduction to
speech recognition (STT) and to speech synthesis
(TTS)

• Some salient issues of speech recognition
• Do we want to recognize sentences or isolated
  words?
• Is it speaker dependent or speaker independent?
• Speech varies not only with the speaker but even
  with the same speaker and other (noise?) factors
• Do we use dynamic time warping or Hidden Markov
  Models? HMM is the predominant approach today
• Do we limit the vocabulary?
• We need a balanced database to train the HMM
  (like TIMIT? Other?)
• Do we take advantage of a language model?
• MATLAB has HMM software

16
DTW and HMM

• DTW uses Bellmans dynamic programming
  optimization to nonlinearly change the time axis
  to match reference patterns of parameters. Very
  popular in the 80s it has only limited
  applications today.
• A (plain) Markov Model considers the
  probabilities of a state transition given the
  present state. In a Hidden Markov Model we
  consider the same probabilities without knowing
  what is the current state based only on the
  output of the state machine (following all
  feasible paths and self loops). The terms output,
  observation and emission all refer to the same
  result of the HMM.

17
An HMM is defined by

• A set of states with distinguished initial and
  final state(s)
• A set of state transition probabilities
• A matrix of probabilities (one matrix per
  transition or more frequently one per state) of
  emitting the possible outputs when moving along
  that transition
• The following is assumed a) the next state is
  conditionally dependent on the previous state
  (Markov assumption) and b) the probability that a
  particular symbol is emitted at a given time
  depends only on the transition taken at that time
  and is independent of the past.

18
Problems that may be tackled with HMMs

• Given an HMM model and a set of outputs, estimate
  the probability that the model generated the
  observations (evaluation)
• Given an HMM model and a set of outputs, what is
  the most likely path followed (decoding)
• Given a set of outputs and a model, what are the
  transition probabilities and output symbol
  probability distribution matrix that make it
  highly probable the model generated the outputs
  (learning)

19
MATLAB has some HMM software
20
The training set and the test set should be
dichotomous
Never use examples from the training set to test
the trained machine
21
A few issues of speech synthesis

• Why not use recorded speech segments?
• It is possible to use recorded speech for QA
  systems. Particularly good to limit possible
  answers.
• Issue of co-articulation
• Issue of prosody
• Issue of naturalness
• It takes some 50 parameters to synthesize natural
  sounding speech. Features are needed to identify
  a speaker, given a population of speakers
• Synthesis is not difficult at the expense of
  naturalness (the toothpaste in the tube)

22
Speaker recognition (speaker characterization).

• In contrast with speech recognition we want to
  emphasize the differences between speakers
• Three main sources of speaker variability
• Vocal tract and vocal folds shape
• Speech style (dynamics of phones, co-articulation
  and speech rate) possible to mimic
• Choice of words or phrases (hard to verify)

23
Summary of Class 1 In this presentation we have

• Presented the plan for the course, including the
  expected outcomes, the requirements, the intended
  grading procedures, the text recommended and
  references, the course objectives, and
• Given a brief overview of the course with
  emphasis on the three main topics
• Speech production and perception (background)
• Coding and automatic speech recognition (central
  topic)
• Aspects of speech synthesis and speaker
  recognition

24
Epilogue to the first class
The subject matter of this course is very
extensive and the course may be given a variety
of emphases while preserving the basic
principles. Now that you have seen the outline of
the course please write on a piece of paper with
your name (undergrad/ grad?) and preferred email
address how do you think this course would
benefit you and why. It would help me emphasize
a little more the areas of interest to the group.
Thank you!
