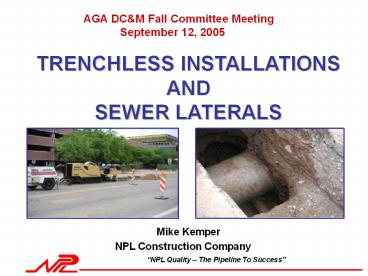

TRENCHLESS INSTALLATIONS AND SEWER LATERALS

1
TRENCHLESS INSTALLATIONSAND SEWER LATERALS
AGA DCM Fall Committee Meeting September 12,
2005

• Mike Kemper
• NPL Construction Company

2
Who is NPL?

• Core Business
• The safe installation maintenance of reliable
  energy distribution systems
• Over 500 crews
• Over 2400 employees
• Operate in 20 states
• One of the largest users of One Call Centers in
  U.S

3
THE OFTEN FORGOTTEN UNDERGROUND WORLD
4

Buried Infrastructure Problems A World-Wide
Concern

• Existing infrastructure has become very congested
• We continue to add and change utilities because
  of expansion, modernization, and changing
  missions
• Overall, we do not always have adequate records
  to tell us where all of our utilities are located

5
More more utilities are installed using
underground technology
6
Smaller utilities

• telephone
• fiber optics
• cable TV
• electrical
• gas

Larger utilities

• sewer
• water

7
(No Transcript)
8
(No Transcript)
9
Possible Scenario?
What could happen?
10
Typical crossing
11
GAS LINE IN A 6 SEWER
12
(No Transcript)
13
What happens when laterals are hit during
trenchless operations?
What happens when a plumber is called?
14
Gas line Sewer line Rotary-rooter Disaster
15
Headline February 15, 2002 Officials seek
answers in gas explosion
16
HeadlineFebruary 16, 2002Shocked Gas Company
Pleads Ignorance

• The natural gas explosion that rocked a mobile
  home park on Wednesday shocked officials who say
  they never knew their gas line bisected the clay
  sewer pipe.
• A plumbing contractor was removing tree roots
  from a sanitary sewer line in the 127 unit mobile
  home park when the gas line was struck.
• About the only time we know about sewer lines is
  when people call because they get backed up and
  have to call someone in to clean them, said the
  Operations Manager with the local gas company.

17
Indiana Explosion
18
Kansas School Explosion
19
Minnesota Explosion
20
Ohio Gas Fire
21
Rhode Island Explosion
22
Virginia Explosion
23
Your state? Your territory?
24
Even in nice, quiet neighborhoods?
25
Commercial Building
School
Residential Home
Mobile Home Park
Apartment Complex
26
How often does this happen?
27
What are the odds?One Case Study
11,000 laterals were inspected.
250 hits identified and repaired.
2 of sewer laterals were hit.

• How many might have led to a major incident?

28
Another Case Study

• 4 blocks were inspected
• 24 hits were discovered

29
LOW FREQUENCYHIGH SEVERITY
The Exposure
30
The Big Concerns

1. Catastrophic human tragedy
2. Huge costs

31
THE GREATEST CONCERN

• CATASTROPHIC PERSONAL LOSSES
• because some
• utility lines
• are
• EXEMPT
• FROM
• LOCATING LAWS

32
THE COST CONCERN

• Contractors and Utilities are often held
  responsible for hitting these unmarked, unknown
• Insurance rates are on the rise
• As the insurance industry is becoming rapidly
  aware of this exposure, the ability to secure
  insurance for trenchless technology is in jeopardy

33
THE ROOT CAUSE A CATCH 22

• Crews have no practical way of finding them are
  often even prohibited from checking for them due
  to governmental no-cut policies.
• The laws in some States do not require all
  privately-owned some publicly-owned facilities
  in the historic corridor to be marked.
• The laws in some States are not well enforced.

34
State Regulations 40 States

• Owner or operator of an underground facility is
  responsible to locate the approximate horizontal
  location of that facility
• Is that the home/building owner or municipality?
• Courts have ruled that home/building owner does
  not have expertise to be responsible for location
  of sewer laterals.
• Does the State require them to join the One-Call
  system?
• Who is responsible for enforcement?

35
State Regulations 10 States

• New Jersey
• New Mexico
• Oklahoma
• Rhode Island
• Texas
• Virginia
• Missouri
• California
• Kansas
• Vermont

36
Interesting Interpretations?

• In Kansas and Vermont
• Sewer is not designated as a facility
• In California
• exempts non-pressurized lines
• In Missouri
• exempts privately owned sewer and water lines

37
THE CHALLENGE

• There is little awareness of this issue outside
  the contracting and insurance industries
• This exposure is escalating as more trenchless
  installations are done each year
• Action can be taken immediately

38
THE SOLUTIONS

1. Installed Solutions
2. Installation Solutions

39
INSTALLED SOLUTIONS

• Educate local plumbers, rental stores, mobile
  home park owners to look before they root
• Find installed problems before they find us

40
What about the costs?
75 - 175 per lateral locate depending on
variables.

• Diameter of sewer main

• How much cleaning required

• How many locates per set-up

41
INSTALLATION SOLUTIONS

• All new sewer laterals should be installed with a
  location device (i.e. tracer wire, marker balls,
  etc)
• All underground facilities, including sewer
  lines, should be marked by the entity that
  receives revenue from the facility

42
Goal Protecting all Parties

• Public

• Gas Company

• Contractor

43
CALL TO ACTION

• Initiate legislation/enforcement
• Support legislation/enforcement

44
THIS IS A VERY IMPORTANT ISSUE!
45
We Will Win!
46
QUESTIONS?
