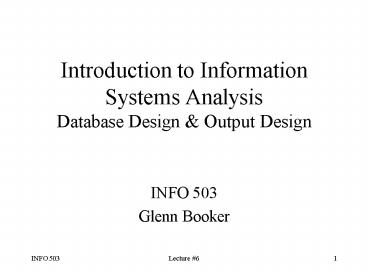

Introduction to Information Systems Analysis Database Design

1
Introduction to InformationSystems
AnalysisDatabase Design Output Design

• INFO 503
• Glenn Booker

2
Database Design

• Information systems Create, Read, Update, and
  Delete data (CRUD)
• Data is stored in records which describe one
  instance of an entity (person, order, etc.)
• Each file contains many similar records
• A database contains collections of interrelated
  files

3
Conventional Files Pros Cons

• Conventional (non-relational or flat) files are
  used in many legacy systems e.g. Cobol and
  FileMaker Pro use them
• Fast and easy to develop
• Generally used for one specific application
• Results in duplication of data across files,
  causing maintenance and integrity risks

4
Relational Database Pros Cons

• Provides more flexible format for storage
• Allows multiple applications to access data
• Slightly slower than conventional files, but
  improving
• Higher learning curve to overcome
• Manage using a database management system (DBMS)

5
Field Types

• A field is the smallest useful piece of data
• Four types
• Primary key - unique identifier
• Alternate key - alternative to the primary key
• Foreign key - links to a primary key elsewhere
• Descriptive field every attribute not a key!
• Every field should be used at least once

6
Records

• A record is round piece of bumpy vinyl which
  rotates on a turntable oh, wait a minute
  blush
• A record is a collection of fields in a specific
  order or format
• Each record is generally fixed in length
• Some systems can compress unused fields
• COBOL can use variable length records

7
Records

• Records are read in units called blocks or pages
• A block is sometimes called a physical page
• The blocking factor describes how many logical
  records are in each block
• The blocking factor may be set manually for
  performance reasons

8
Files and Tables

• A file contains all records of a particular
  structure
• A table is a relational databases file
• There are many many kinds of files (see next
  slide)
• File organization and access may be tuned for
  performance enhancement

9
Types of Files

• Master files contain permanent information
• Transaction files describe business events
• Document files contain copies of historic data
• Archival files contain master and transaction
  file records offline which are no longer needed
• Table look-up files contain static data for
  reference calculations (tax tables, Zip codes)
• Audit files record changes to other files

10
Data Architecture

• An organizations data architecture includes
• The files, databases, and database technology
  used to store their data, and
• The administrative structure used to manage the
  data resources
• The architecture may include legacy information
  systems, local department databases, and shared
  data warehouses

11
Database Management

• Database administrators (DBAs) try to plan,
  define, and structure this mess, so people can
  use it
• Database management systems (DBMS) are the tools
  used to create and manage a database
• The heart of the DBMS is called the database
  engine, which controls access to the data

12
SQL

• Structured Query Language (SQL) is used for both
  data definition (DDL) and manipulation (DML)
• DDL creates and allows views of the data
  structures
• DML is used to access and use data from those
  structures (CRUD)
• SQL is used by nearly all relational databases
• Oracle, DB2, SQL Server, Sybase, Informix,
  Access, FoxPro, Paradox, dBase, etc.

13
Relational Database Tools

• A relational database models the data in a
  schema
• Tables can embed programs
• Triggers are used to run programs based on some
  event - e.g. updating records in another table
• Stored procedures are called by an application -
  e.g. validate new records before theyre stored

14
Data Modeling

• A good data model should be
• Simple, describing only one entity
• Non-redundant, except for foreign keys
• Flexible, for future improvement
• Normalization helps achieve all of these

15
Flat File Design

• Design of conventional flat files is dictated
  primarily by the output and input needs of a
  particular application
• We wont say any more, in order to discourage
  such barbaric practices )

16
Database Design

• Detailed design of databases is heavily dependent
  on the DBMS used to implement them
• CASE tools can often generate SQL, based on the
  database model, which will even generate the
  tables and relationships needed
• Otherwise you have to do it manually

17
Database Design

• Each entity is implemented as a table
• Primary and alternate (secondary) keys are
  generally indexed, to make searches faster
• Foreign keys are marked as such
• Attributes become fields
• Supertypes and subtypes may not be implemented as
  such by CASE tools may make them one table w/
  stored procedures

18
Database Design

• Keys and other fields need to be defined in
  detail
• Data type (from list of allowable types in this
  particular DBMS)
• Field size (length or number of characters)
• NULL allowable (no entry)
• Cant allow NULL for a primary key
• Domain and default values

19
Integrity

• Integrity refers to knowing that the data is
  trustworthy, correct and can be predictably
  found
• Three kinds of integrity
• Key integrity
• Domain integrity
• Referential integrity

20
Key Integrity

• Key integrity can be achieved when every table
  has a unique, non-NULL primary key
• Primary key must be non-NULL because there must
  be an entry for every record
• If the DBMS does not directly support these
  features, then other controls must be taken to
  enforce them

21
Domain Integrity

• Domain integrity is achieved by ensuring every
  field is within its allowable domain (legal
  values)
• e.g. dont allow a 7-digit credit card number
• Note that this does not preclude incorrect
  values, only those values which are impossible

22
Referential Integrity

• Referential integrity is violated when a foreign
  keys value does not match up to a primary key
  record
• To prevent this, must consider side effects of
  deleting any record which contains a foreign key
• Might have to wait for all of a customers
  invoices are deleted before deleting customer

23
Referential Integrity

• Rules for deletion should exist for every table
  to help maintain referential integrity
• No restriction delete freely
• DeleteCascade when you need to delete all
  associated records from the foreign keys
• DeleteRestrict when you hold off deleting
  records until foreign key records are deleted
• DeleteSet null when foreign keys are set null

24
Role Names

• Some organizations prefer to have all unique
  field names, to prevent confusion
• When naming foreign keys, each one can get a role
  name to distinguish its role differently from the
  primary keys name
• Primary key product_number in the Products table
  may become foreign key ordered_product_number in
  the Orders table

25
Database Distribution

• Four options for database distribution
• Centralization there is only one data server
• Horiz. Distrib. tables or records (rows) are
  assigned different locations, but hard to analyze
• Vert. Distrib. attributes (columns) are assigned
  different locations, also hard to analyze
• Replication duplicate entire tables at different
  locations, but more complex and expensive

26
Database Capacity Planning

• The size of a database can be estimated by
• Record size In a table, add the field sizes to
  get the size of one record (one character1 byte)
• Table size Multiple the record size by the
  number of records expected in 3 yrs
• Database size Repeat first two steps for all
  tables and add them up
• Add a big factor for unexpected growth

27
The Database Future

• Object-oriented databases have become more common
  in the last few years
• Some purely object-oriented databases are
  available, but rarely used
• Since many organizations are heavily invested in
  relational databases (20 years),
  object-relational databases are a popular hybrid
  transition technology (e.g. Oracle 9)

28
Output Design

• An information system generally has both internal
  and external outputs
• Internal outputs are used for management of the
  system and for reference by the users they
  rarely leave the organization
• External outputs include any printed or displayed
  information which is used outside of the system
  and its organization

29
Internal Outputs

• Detailed reports are those which use little
  filtering to produce a comprehensive statement,
  such as all inventory on hand, or every
  transaction during some time period
• Some detailed reports are historical or
  regulatory in nature

30
Internal Outputs

• Summary reports provide a synopsis (maybe
  graphic) of the information, often for managers
  to look for trends or problems
• Exception reports describe when something is
  wrong outside of predefined limits (low stock)

31
External Outputs

• External outputs leave the system and its
  immediate users, generally to go to a vendor,
  customer, or external system
• Might include invoices, paychecks, tickets,
  passes, bills, purchase orders, etc.
• Turnaround outputs are external outputs which
  later become inputs for the same system (invoices
  returned by customer)

32
Output Media for Implementation

• Media used for outputs may include
• Paper (preprinted or not)
• Microfilm (?)
• Magnetic media (e.g. CD-ROM, DVD, video)
• Text files (e.g. append log entries)
• Posted online (Internet or intranet)
• Displayed on screen
• Client screen, projector, or POS terminal

33
Output Media for Implementation

• Consider different options not just how you
  first think of the output being presented
• Automated phone call to a pager or cell phone
• E-mail messages
• Multimedia (sound, pictures, video, etc.)
• Flash or Shockwave presentations
• Hyperlinks, or even entire web pages

34
Output Media

• Printed output is often tabular and/or zoned
• Tabular format looks like a table (rows and
  columns of text data)
• Zoned output is closer to a GUI input, or the
  information at the top of a spreadsheet
  collections of related data are grouped together
• Tabular and zoned output formats are often used
  together
• On-screen output may be graphic (charts)

35
Graphic Output

• Graphic output uses pictures to express
  information and help look for trends, but cant
  replace narrative output to explain what is being
  shown
• Need to be clear about the scope and source of
  the data shown in a graph, so it is used
  appropriately by its audience
• Might have a hyperlink for definitions of the
  terms used

36
Graphic Output

• For every graphic output, need to consider
• How often will the output be generated?
• Does the output cover one moment in time or many
  repeated assessments?
• How many data points are to be displayed?
• What medium will be used to present and
  distribute the output?
• A 32-bit color plot is really boring after it has
  been re-copied in grayscale and faxed three times

37
Graphic Output Chart Types

• Bar charts use horizontal bars, primarily for
  visual comparison rather than tracking
• Column charts use vertical bars to compare
  different items or track data over time
• Pie charts are good for showing a limited number
  of data points at one moment

38
Graphic Output Chart Types

• Line charts show trends over time for one or
  more variables
• Scatter charts are used to compare two parameters
  to each other often a correlation between them,
  or relationship, is sought
• Other types exist, but are used less often
• Donut, area, radar, and control charts

39
Output Design Tools

• Printer spacing charts were used to design
  text-based outputs
• Now CASE tools and most database environments
  (Access, Crystal Reports, Oracle Designer) allow
  easy drag-and-drop layout of outputs

40
Design Considerations

• Output should be easy to read and interpret
• Every output should have a title
• Every output should be date and time stamped
• Section headings should be used to identify
  groups of data
• In forms, fields should be clearly labeled
• Columns in tabular outputs need column headings

41
Design Considerations

• Legends should be used to explain column headings
  and field names
• Only required information should be shown (hide
  irrelevant details)
• Output should be usable in its presented form
• Outputs should be balanced on the page
• Users need to navigate easily and freely, or exit
• Outputs shouldnt have jargon, error messages

42
Design Considerations

• Timing of output is very important a beautiful
  report a week late is worthless
• Distribution of outputs must be complete enough
  to reach all relevant (affected) users
• Outputs must contain all information needed by
  its user - even if its requirements forgot
  something!

43
Output Design

• There are four steps to designing outputs
• 1. Identify system outputs
• 2. Select physical output requirements
• 3. If needed, design preprinted external forms
• 4. Design, validate, and test the outputs (which
  includes obtaining feedback and refining the
  design)

44
1. Identify System Outputs

• Outputs should have been defined in the
  requirements for each design unit in the DFD,
  look for data which leaves the system
• Content for each output should be defined in the
  data dictionary
• Consider the audience for each output, and when
  it will be generated (periodically and/or on an
  event-driven basis)

45
2. Select Physical Output Requirements

• Choose how the output will be presented based on
  its type and purpose, and on the feasibility
  limitations
• Pick the medium (paper, screen, kiosk, etc.)
• Choose the output format (8.5 x 11 paper, 800 x
  600 pixel screen, etc.)

46
2. Select Physical Output Requirements

• How often is this output generated?
• Does its generation need to be scheduled?
• Review the frequency the output will be needed
  for the output volume requirements (amount of
  paper, number of forms)
• Is duplication needed? (Xerox, burn CDs)
• How will the output be distributed? How is that
  distribution controlled?

47
3. Design Preprinted Forms (opt.)

• Preprinted forms may need long lead time
• What information will be preprinted?
• Will the form be mailed?
• What size will the form be? Perforated?
• How much volume of printing is expected?
• What legends and instructions need to be on the
  form? What colors will be needed?

48
4. Design, Validate, and Test the Outputs

• Key tabular report concerns
• Page size, orientation, and headings
• Report legend column row headings
• Alignment and spacing of labels and headings
• Data formatting, including field masks
• Control breaks, make rows of data into sections
• Clearly define the end of report

49
4. Design, Validate, and Test the Outputs

• Key screen (and web) report concerns
• Size (screen resolution) and page size (kB)
• Scrolling can headings be frozen?
• Navigation scroll bars, tabs, or buttons
• Partitioning (zoning of data within a form)
• Information Hiding how do users get more info
• Highlighting how when get users attention?
• Printing always provide an option to do so
