Current major high performance networking technologies

1

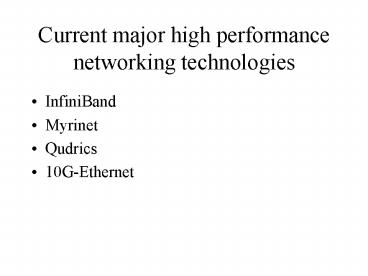

Current major high performance networking
technologies

• InfiniBand
• Myrinet
• Qudrics
• 10G-Ethernet

2
InfiniBand

• Was originally designed as a system area
  network connecting CPUs and I/O devices.
• A larger role replaceing all I/O standards for
  data centers PCI, Fibre Channel, and Ethernet
  everything connects through InfiniBand.
• A less role Low latency, high bandwidth, low
  overhead interconnect for commercial datacenters
  between servers and storage.
• Can form local area or even large area networks.
• Has become the de-facto interconnect for high
  performance clusters (100 systems in top 500
  supercomputer list).

3

• Infiniband architecture
• Specification (Infiniband architecture
  specification release 1.2.1, January 2008/Oct.
  2006) available at Infiniband Trade Association
  (http//www.infinibandta.org)

4

• Infiniband architecture overview

5

• Infiniband architecture overview
• Components
• Links
• Channel adaptors
• Switches
• Routers
• The specification allows Infiniband wide area
  network, but mostly adopted as a system/storage
  area network.
• Topology
• Irregular
• Regular Fat tree
• Link speed
• single data rate (SDR) 2.5Gbps (X), 10Gbps
  (4X), and 30Gbps (12X).
• Double data rate (DDR) 5Gbps (X), 20 Gbps (4X)

6

• Layers somewhat similar to TCP/IP
• Physical layer
• Link layer
• Error detection (CRC checksum)
• flow control (credit based)
• switching, virtual lanes (VL),
• forwarding table computed by subnet manager
• Not adaptive
• Network layer across subnets.
• No use for the cluster environment
• Transport layer
• Reliable/unreliable, connection/datagram
• Verbs interface between adaptors and OS/Users

7

• Link layer Packet format
• Local Route Header (LRH) 8 bytes. Used for local
  routing by switches within a IBA subnet
• Global Route Header (GRH) 40 Bytes. Used for
  routing between subnets
• Base Transport header (BTH) 12 Bytes, for IBA
  transport
• Reliable datagram extended transport header
  (RDETH) 4 bytes, just for reliable datagram
• Datagram extended transport header (DETH) 8
  bytes
• RDMA extended transport header (RETH) 16 bytes
• Atomic, ACK, Atomic ACK,
• Immediate DATA extended transport header 4
  bytes, optimized for small packets.
• Invalidate
• Invariant CRC and variant CRC
• CRC for fields not changed and changed.

8

• Local Route Header
• Switching based on the destination port address
  (LID)
• Multipath switching by allocating multiple LIDs
  to one port

9

• Local Route Header
• Switching based on the destination port address
  (LID).
• Forwarding table entry (LID, outgoing-port)

10

• Local Route Header
• Multipath switching by allocating multiple LIDs
  to one port, see the previous example.
• GRH same format as IPV6 address (16 bytes
  address)

11
Subnet management

• Discover subnet topology and topology changes,
  compute the paths, assign LIDs, distribute the
  routes, configure devices
• Not well-defined in the specification
• Forwarding table must be computed such that all
  devices in the network can be reached.
• References
• A. Bermudez, R. Casado, F.J. Quiles, T. M.
  Pinkston, J. Duato, Evaluation of a Subnet
  Management Mechanism for Infiniband Networks,
  ICPP 2003.
• A. Vishnu, A. R. Mamidala, H. Jin, D. K. Panda,
  Performance Modeling of Subnet Management on Fat
  Tree Infiniband Networks using OpenSM, Workshop
  on System Management Tools on Large Scale
  Parallel Systems, Held in Conjunction with IPDPS
  2005

12

• InfiniBand devices and entities related to subnet
  management
• Devices Channel Adapters (CA), Host Channel
  Adapters, switches, routers
• Subnet manager (SM) discovering, configuring,
  activating and managing the subnet
• A subnet management agent (SMA) in every device
  generates, responses to control packets (subnet
  management packets (SMPs)), and configures local
  components for subnet management
• SM exchange control packets with SMA with subnet
  management interface (SMI).

13
(No Transcript)
14

• Subnet management packets (SMP)
• 256 bytes of data
• Use unreliable datagram service on the management
  virtual lane (VL 15)
• Two routing schemes
• LID routed use lookup table for forwarding
• Use after the subnet is setup. E.g. Check the
  status of an active port
• Direct routed has the information of the output
  port for each intermediate hop.
• Subnet discovery for the subnet is setup

15

• Subnet management packets (SMP)
• Define the operation to be performed by SM
• Get get the information about CA, switch, port
• Set set the attribute of a port (e.g. LID)
• GetResp get response
• Trap inform SM about the state of a local node
• A SMA stop sending Trap message until it receives
  TrapRepress packet.
• Topology information can be obtained by a sweep
  and by peridical Traps.

16

• Subnet Management phases
• Topology discovery sending direct routed SMP to
  every port and processing the responses.
• Path computation computing valid paths between
  each pair of end node
• Path distribution phase configuring the
  forwarding table

17

• Subnet discovery
• SM starts by sending a direct routed Get SMP to
  its local node. Upone receiving response, SM
  sends SMPs with additive depth.

18

• Path computation
• Compute paths between all pair of nodes
• For irregular topology
• Up/Down routing does not work directly
• Need information about the incoming interface and
  the destination and Infiniband only uses
  destination
• Potential solution
• find all possible paths
• remove all possible down link following up links
  in each node
• find one output port for each destination
• Other solutions destination renaming
• Fat tree topology
• What is the best that can be achieved (optimal
  routing) is also not clear.

19

• Path distribution
• Ordering issue the network may be in an
  inconsistent state when partially updated, which
  may result in deadlock during this period.
• Traditional solution, no data packets for a
  period of time
• deadlock free reconfiguration schemes.
• How to do this correctly, effectively, and
  incrementally is still open.

20

• Base transport header

21

• Verbs
• OS/Users access the adaptor through verbs
• Communication mechanism Queue Pair (QP)
• Users can queue up a set of instructions that the
  hardware executes.
• A pair of queues in each QP one for send, one
  for receive.
• Users can post send requests to the send queue
  and receive requests to the receive queue.
• Three types of send operations SEND,
  RDMA-(WRITE, READ, ATOMIC), MEMORY-BINDING
• One receive operation (matching SEND)

22
(No Transcript)
23
(No Transcript)
24

• Queue Pair
• The status of the result of an operation
  (send/receive) is stored in the complete queue.
• Send/receive queues can bind to different
  complete queues.
• Related system level verbs
• Open QP, create complete queue, Open HCA, open
  protection domain, register memory, allocate
  memory window, etc
• User level verbs
• post send/receive request, poll for completion.

25

• To communicate
• Make system calls to setup everything (open QP,
  bind QP to port, bind complete queues, connect
  local QP to remote QP, register memory, etc).
• Post send/receive requests.
• Check completion.

26

• InfiniBand has an almost perfect software/network
  interface (Chien'94 paper)
• The network subsystem realizes all user level
  functionality.
• User level accesses to the network interface. A
  few machine instructions will accomplish the
  transmission task without involving the OS.
• Network supports in-order delivery and and fault
  tolerance.
• Buffer management is pushed out to the user.

27

• SilverStorm 9024
• 24 ports 4X(10Gbps) or 8 ports 12X(30 Gbps)
• switch type cut-through
• switch latency lt 140ns
• switch bandwidth 480 Gbps
• forwarding table size 48K
• VL support 8 1 management

28

• SilverStorm 9240
• 24 expansion slots, each expansion model 12 port
  4X or 4 port 12X (24x12 288, 288 by 288
  switch)
• switch type cut-through
• switch latency lt 140ns to lt 420ns
• switch bandwidth 5.76Tbps
• forwarding table size 48K
• VL support 8 1 management
