Internet Routing (COS 598A) Today: BGP Routing Table Size

1

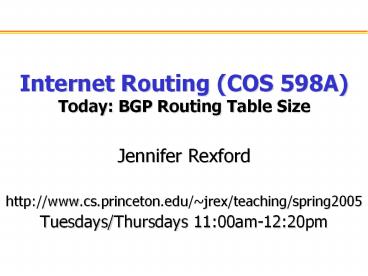

Internet Routing (COS 598A)Today BGP Routing
Table Size

• Jennifer Rexford
• http//www.cs.princeton.edu/jrex/teaching/spring2
  005
• Tuesdays/Thursdays 1100am-1220pm

2
Outline

• IP prefixes
• Review of CIDR and hierarchical allocation
• Resource constraints on IP routers
• Impact of increasing number of prefixes
• Growth in BGP routing table size
• Growth of global prefixes over time
• Characterizing the causes of growth
• Limiting the number of prefixes
• Techniques for limiting the size
• Fundamental challenges of limiting size

3
Classless InterDomain Routing (CIDR)
Use two 32-bit numbers to represent a network.
Network number IP address Mask
IP Address 12.4.0.0 IP Mask 255.254.0.0
Usually written as 12.4.0.0/15
4
Hierarchy in Allocating Address Blocks

• Prefixes are key to Internet scalability
• Address allocation by ARIN/RIPE/APNIC and by ISPs
• Routing protocols and packet forwarding based on
  prefixes
• Today, routing tables contain 150,000-200,000
  prefixes

5
Resource Constraints on a High-End Router
Store routing table and process routing protocol
messages
Processor
Store forwarding table and forward data packets
Switching Fabric
Line card
Line card
Line card
Line card
Line card
Line card
6
Routing Information Base (RIB)

• Routing table for the routing protocol
• E.g., BGP routes learned from each neighbor
• Typically managed in software in router CPU
• Factors affecting RIB size
• Number of destination prefixes
• Number of BGP routes per prefix
• Size of each route (e.g., BGP attributes)
• Impact of a large RIB
• Higher delay to index or scan the table
• Ungraceful reaction to table overflow

7
Ungraceful Overload Behavior in BGP

• BGP is an incremental protocol
• Announcement when new route available
• Withdrawal when route no longer available
• No messages when nothing is changing
• Cannot discard or delete state
• because you wont receive the message again
• When table is full, router must drop session(s)
• Router reaction in practice may be worse
• E.g., drop all BGP sessions and reestablish
• E.g., interface lock-up till router is rebooted
• Reactions place heavy BGP load on neighbors

8
Forwarding Information Base

• Forwarding tables in IP routers
• Maps each IP prefix to next-hop link(s)
• Longest prefix match look-up for data packets
• Hardware on line card in high-end routers
• Impact of a large FIB
• Higher delay to construct/update the table
• Higher delay for packet lookup
• Incomplete table or router crash on overflow

forwarding table (FIB)
4.0.0.0/8 4.83.128.0/17 12.0.0.0/8 12.34.158.0/24
126.255.103.0/24
destination
12.34.158.5
outgoing link
Serial0/0.1
9
Impact of Table Size Message Overhead

• More BGP update messages
• More prefixes means more update messages
• and more bandwidth and CPU consumption
• and longer delays for bringing up a session
• More BGP route flapping
• More likely to have one or more flapping prefixes
• which consumes even more resources
• and makes the routing system less stable

10
Growth in BGP Routing Table Size
http//www.cisco.com/en/US/about/ac123/ac147/ac174
/ac176/ about_cisco_ipj_archive_article09186a00800
c83cc.html http//www.cs.princeton.edu/jrex/teach
ing/spring2005/reading/bu02.pdf
11
Pre-CIDR (1988-1994) Steep Growth Rate
Growth faster than improvements in equipment
capability
12
CIDR Deployment (1994-1996) Much Flatter
Efforts to aggregate (even decreases after IETF
meetings!)
13
CIDR Growth (1996-1998) Roughly Linear
Good use of aggregation, and peer pressure in
CIDR report
14
Boom Period (1998-2001) Steep Growth
Internet boom and increased multi-homing
15
Long-Term View (1989-2005) Post-Boom
16
Cause of Growth 1 Multi-Homing

• Connecting to multiple providers
• All providers must advertise the prefix
• Hole-punching subnet contained in a supernet
• Detecting hole-punching
• Stub AS connects to two or more ASes
• Prefix is contained in one providers supernet

17
Cause of Growth 2 Failure to Aggregate

• Prefixes could be coalesced
• Advertised exactly the same way
• Adjacent prefixes or subnet/supernet relationship
• Detecting failure to aggregate
• Prefixes with same attributes in set of BGP
  tables
• Could be reduced to fewer prefixes by combining

12.1.2.0/23
ISP 1
ISP 2
12.1.2.0/24 12.1.3.0/24
12.0.0.0/8 12.1.1.0/24
Stub
Stub
Stub
12.1.3.0/24
12.1.2.0/24
12.1.1.0/24
18
Cause of Growth 3 Load Balancing

• Larger block sub-divided for more control
• Advertise multiple subnets of a larger prefix
• Treat differently to influence incoming traffic
• Detecting load balancing
• Prefixes originated by the same AS
• Could be collapsed (e.g., contiguous or
  contained)
• but, have different attributes, such as AS path

19
Cause of Growth 4 Address Fragmentation

• Different parts of the address space
• Distinct address blocks allocated to same AS
• Must be advertised separately in BGP
• Detecting address fragmentation
• Prefixes announced the same way by same AS
• Cannot be collapsed into fewer prefixes

ISP 1
18.8.0.0/16 12.1.1.0/24
Stub
20
Significance of the Four Causes

• Overall contribution
• Address fragmentation is the most significant
• The other three causes are all important as well
• Growth over time
• Increasing multi-homing
• Increasing load balancing
• Architectural implications
• Exploit commonality across non-contiguous address
  blocks?
• Multi-homing without hole-punching?
• Load balancing without de-aggregating?

21
Transient Growth in Table Size Routing Leaks
Transient spike due to neighbors BGP mistake
22
Techniques for Limiting Table Size
23
Hierarchical Address Allocation

• Regional Internet Registries
• Allocate large address blocks to ISPs
• Publish guidelines for minimum block sizes
• ARIN in 63.0.0.0/8, no mask lengths more than
  /19
• APNIC in 211.0.0.0/8, no mask lengths more than
  /23
• Internet Service Providers
• Allocate smaller blocks to customers
• Reclaim address blocks when customers leave
• Hierarchical address allocation inside the ISP
• Advertise subnets only when necessary
• Customer-owned addresses and multi-homing

24
Hierarchical Allocation Only One Router Knows

• Three-level hierarchy
• ISP as a whole 12.0.0.0/8
• Edge router in ISP 12.1.0.0/16
• Customer at edge router 12.1.2.0/24, 12.1.5.0/24

Only this router needs to know the small /24
blocks
12.0.0.0/8
12.1.0.0/16
Stub
Stub
12.1.5.0/24
12.1.2.0/24
25
Hierarchical Allocation Only the ISP Knows

• Customer connecting in multiple places
• All routers in the ISP need to know the subnet
• Otherwise they cant reach all egress points
• But the rest of the Internet doesnt need to know

12.0.0.0/8
12.1.0.0/16
Stub
12.1.5.0/24
26
Hierarchical Allocation Must Advertise

• Sometimes have to advertise the subnet
• Customer doesnt fall in ISPs address block
• Customer connects to multiple providers

12.0.0.0/8
Another ISP
12.1.0.0/16
Stub
Stub
12.1.5.0/24
78.34.0.0/16
27
Filtering Small Subnets on BGP Sessions

• Small address blocks
• Larger mask than RIR guidelines
• E.g., filter /20 and longer in 63.0.0.0/8
• Or, all prefixes with mask longer than /24
• Trade-off on aggressive filtering
• Dont filter aggressively
• Risk of exceeding memory limits on the router
• Filter aggressively
• Risk of disconnecting some parts of the Internet
• Risk of thwarting stub ASes trying to
  load-balance
• Who should pay to store the small subnets???

28
Prefix Limits to Protect Against Route Leaks

• Vulnerability to other ASes
• Sending many small subnets
• Exporting address space they shouldnt
• Filtering policies may not be enough
• E.g., all /24s is still 224 prefixes is still a
  lot
• Max-prefix limit on BGP session
• Per-session configurable limit on of prefixes
• Tear down the session if number exceeded
• Not great, but better than exceeding the memory

29
Fundamental Problems Not Easily Automated

• Dependence on side information
• Customer prefix falls in providers address
  space?
• Customer connects to ISP in multiple places?
• Customer connects to multiple providers?
• Auto-combining is hard in distributed system
• Safe to combine 12.1.2.0/24 and 12.1.3.0/24???
• Depends on whether other ASes need the details

not safe
12.1.2.0/24
seems safe
12.1.3.0/24
30
Optimization Reducing Forwarding Table Size

• Local FIB minimization
• Router locally minimizes size of forwarding table
• E.g., purple router has FIB entry for 12.1.2.0/23
• while still keeping both subnets in BGP table
• But, the size of the RIB may still be an issue

12.1.2.0/24
12.1.3.0/24
31
Architectural Idea Reducing BGP Table Size

• Separating BGP propagation from the routers
• Exchange BGP updates via separate servers
• Servers tell routers only the BGP routes they
  need
• yet still propagate full details to neighbors
• Well return to this idea in the coming weeks

12.1.2.0/24
12.1.3.0/24
12.1.2.0/24 12.1.3.0/24
12.1.2.0/23
BGP
BGP
32
Conclusions

• Scalability limitations
• Resource constraints on routers
• impose limits on number of prefixes
• Growth in the number of prefixes
• Historical trends toward increasing table size
• Multi-homing, failure to aggregate, load
  balancing, and address fragmentation
• Approaches to limiting growth
• Hierarchical address allocation
• Careful scoping of BGP route advertisements
• Explicit minimization of FIB and RIB sizes

33
Next Time Large Topologies

• Two papers
• Hierarchical routing for large networks
  Performance evaluation and optimization
• BGP route reflection An alternative to full
  mesh IBGP
• Review only of first paper
• Summary
• Why accept
• Why reject
• Avenues for future work
• Optional reading
• Fun 1928 article On Being the Right Size
