Wireless module

1

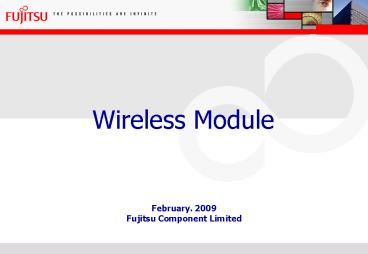

Wireless Module
February. 2009 Fujitsu Component Limited
2
Wireless Module
We have a lot of experience of designing wireless
modules for mobile consumer electronics products.
Bluetooth module
Wireless LAN module
Digital Camera
Smart Phone
Mobile Phone
GPS module
PDA
Personal Computer
3
Wireless Module Trend
Many customers are becoming more interested in
the integration of Bluetooth, GPS, and Wireless
LAN within the same module. We are now focusing
on developing highly-integrated combo modules.
GPS
Bluetooth
Wireless LAN
4
Bluetooth Module Product Information
5
Our effort to Bluetooth Products
We have developed and released various Bluetooth
products from 2000. Our Bluetooth product lines
range from Access point and PCMCIA card to small
module for mobile phone. Therefore, We have a lot
of experience and know-how for Bluetooth products.
CY2000 CY2008
Small BlueQ Module
Class1 PCMCIA Card
SPP Module
BlueQ Module
HCI FM Module
HCI Module (v2.0EDR)
Small HCI Module (v2.0EDR)
HCI/SPP Module
Class2 CF Card
V.90 Access point
6
Bluetooth module line up
7
MBH7BTZ26 EDR/HCI FM Combo Module

• Specification
• Broadcom BCM2048 based
• Supply Voltage 2.7 3.6 V DC
• IO Voltage 1.71 3.6 V DC
• Operating Temperature -20 70 degree C
• Size 6.0 x 6.5 x 1.2 mm
• Package LGA 45pin
• ltBluetoothgt
• Bluetooth Specification Version 2.0 EDR
  Compliant
• Power Class 2 (4 dBm max)
• Host Interface UART(HCI)
• Receiver Sensitivity -87dBm typical
• ltFM Receivergt
• FM band 76MHz 108MHz
• (US, Europe, Japan)
• FM control interface UART(HCI), I2C
• Audio output interface Analog Audio
• RDS, RBDS demodulator and decoder
• FM auto search and tuning modes

8
MBH7BTZ27 EDR/HCI Module

• Specification
• Bluetooth Specification Version 2.0 EDR
  Compliant
• TI BRF6300 based
• Power Class 1.5 (11 dBm max)
• Baseband Interface HCI (UART)
• Receiver Sensitivity -90dBm typical
• Operating Temperature -20 70 degree C
• Size 6.0 x 6.0 x 1.0 mm
• Package LGA 37pin

9
MBH7BTZ28 EDR/HCI FM Combo Module

• Specification
• TI BRF6350 based
• Supply Voltage 2.7 3.6 V DC
• IO Voltage 1.71 3.6 V DC
• Operating Temperature -20 70 degree C
• Size 6.0 x 6.0 x 1.1 mm
• Package LGA 43pin
• ltBluetoothgt
• Bluetooth Specification Version 2.1 EDR
  Compliant
• Power Class 1.5 (11 dBm max)
• Host Interface UART(HCI)
• Receiver Sensitivity -90dBm typical
• ltFM Receivergt
• FM band 76MHz 108MHz
• (US, Europe, Japan)
• FM control interface UART(HCI), I2C
• Audio output interface Analog Audio
• RDS, RBDS demodulator and decoder
• FM auto search and tuning modes

10
MBH7BTZ36 EDR/HCI Module

• Specification
• Bluetooth Specification Version 2.1 EDR
  Compliant
• Broadcom BCM2046 based
• Power Class 1.5 (11 dBm max)
• Baseband Interface HCI (UART)
• Receiver Sensitivity -87.5dBm typical
• Operating Temperature -20 70 degree C
• Size 6.0mm x 6.0mm x 1.2 mm (Max),
• Package LGA 37pin

Block diagram
VDD IO
VDD
VDD PA
HCI Module
UART PCM GPIO
BCM2046
Bluetooth RF
VREGCTL
CLK
11
MBH7BTZ37 EDR/HCI Module w/ Xtal

• Specification
• Bluetooth Specification Version 2.1 EDR
  Compliant
• Broadcom BCM2046 based
• Power Class 2 (4 dBm max)
• Baseband Interface HCI (UART)
• Supply Voltage 1.7 3.6 V DC
• Receiver Sensitivity -86dBm typical
• Operating Temperature -20 70 degree C
• Built-in Crystal (26MHz)
• Size 5.8 mm x 4.7 mm x 0.95 mm
• Package LGA 25pin

Block diagram
VCC
HCI Module
UART PCM GPIO
BCM2046
Bluetooth RF
VREGCTL
Crystal
12
MBH7BTZ38 EDR/HCI Module w/ Xtal

• Specification
• Bluetooth Specification Version 2.0 EDR
  Compliant
• CSR BlueCore4-ROM based
• Power Class 2 (4 dBm max)
• Baseband Interface HCI (UART)
• Supply Voltage 2.2 3.6 V DC
• Receiver Sensitivity -84dBm typical
• Operating Temperature -20 70 degree C
• Built-in Crystal (26MHz)
• Size 6.2 mm x 5.2 mm x 1.0 mm
• Package LGA 27pin

13
WLAN Module Bluetooth WLAN Combo Module
Product Information
14
Our effort to Wireless LAN Products
We have developed and released various Wireless
LAN products from 2001. Our Wireless LAN product
lines range from mini PCI card and SDIO card to
small module for mobile phone. And we also have a
lot of experience with porting Wireless LAN
driver software to embedded operating systems.
CY2001 CY2008
11b Full Module
PCI Card
11b Small Module
11b/g Full Module
11b/g Low power consumption Module
11b/g Small Module
miniPCI Card
CF Card
SDIO Card
15
Wireless LAN module lineup
16
Bluetooth WLAN Combo module lineup
17
MBH7WLZ14 IEEE 802.11b/g Module

• Specification
• Wireless LAN standard IEEE802.11b/g compliant
• WLAN chip Marvell 88W8686
• Host Interface SDIO, G-SPI
• Power Supply Voltage 3.0V, 1.8V
• Operating Temperature -20 85 degree C
• Power Consumption Tx mode 660mW(_at_15dBm)
• Rx mode 340mW(_at_54Mbps)
• Idle mode 300mW
• IEEE Power save mode (Doze) lt1mW
• Optimized built-in BPF for Mobile phone
  coexistence
• Oscillator External (19.2/20/24/26/38.4/40 MHz)
• Security WEP (64/128bit), WPA, WPA2
• Antenna Single port
• Bluetooth coexistence (2/3/4 wire)
• IEEE802.11e QoS
• Package LGA 59pin
• Size 8.8mm x 8.8mm x 1.4mm

18
MBH7WLZ16 IEEE 802.11b/g Module w/ Xtal

• Specification
• Wireless LAN standard IEEE802.11b/g compliant
• WLAN chip Marvell 88W8686
• Host Interface SDIO, G-SPI
• Power Supply Voltage 3.0V, 1.8V
• Operating Temperature -20 70 degree C
• Power Consumption Tx mode 550mW(_at_15dBm)
• Rx mode 340mW(_at_54Mbps)
• Idle mode 300mW
• IEEE Power save mode (Doze) lt1mW
• Built-in Oscillator
• Security WEP (64/128bit), WPA, WPA2
• Antenna Single port
• Bluetooth coexistence (2/3/4 wire)
• IEEE802.11e QoS
• Package LGA 60pin
• Size 8.5mm x 8.5mm x 1.2mm

19
MBH7WLZ18 IEEE 802.11b/g Module

• Specification
• Wireless LAN standard IEEE802.11b/g compliant
• WLAN Chipset TI WL1251MAC WL1251FE WL1251PM
• Host Interface SDIO, W-SPI
• Power Supply Voltage 2.75.5V (Main Supply)
• 1.8/3.3V (I/F Supply)
• Operating Temperature -30 85 degree C
• Power Consumption Tx mode 1050mW max(_at_15dBm)
• Rx mode 770mW max
• Sleep mode lt1.2mW
• Receiver Sensitivity -75dBm_at_54Mbps
• -88dBm_at_11Mbps
• -97dBm_at_1Mbps
• Optimized built-in BPF for Mobile phone
  coexistence
• Antenna Single port
• Security 64/128/256-bit WEP,
• WPA (TKIP), WPA2 (AES-CCMP)
• Package LGA 60pin
• Size 9.0mm x 8.2mm x 1.4mm

20
MBH7BWZ04 WLAN/Bluetooth Combo Module

• Specification
• Supply Voltage 3.0 4.2 V (Main), 1.8 or 3.3 V
  (I/O)
• Operating Temperature -10 70 degree C
• Built in EEPROM, Voltage Regulator, and
  Oscillator
• BluetoothWLAN Co-Existence with single RF I/O
• Size 10mm x 11.2mm x 1.4mm
• Package LGA 90pin

• ltBluetooth Featuresgt
• Bluetooth Specification Version 2.0 EDR
  Compliant
• CSR BlueCore4-ROM based
• Host Interface HCI_UART / HCI_USB / BCSP (UART)
• Audio Interface PCM
• Receiver Sensitivity -85dBm typical (plan)

• ltWireless LAN Featuresgt
• IEEE802.11b/g Compliant
• Marvell 88W8686 based
• Host Interface SDIO / SPI
• Output power 12dBm_at_54Mbps, 16dBm_at_11Mbps (Plan)
• Receiver Sensitivity -73dBm_at_54Mbps,
  -92dBm_at_1Mbps (Plan)

21
MBH7BWZ05 WLAN/Bluetooth/FM Combo Module

• Features
• Texas Instruments WL1271 based
• Size 9.0 x 8.0 x 1.2 mm
• Package LGA 58pin (w/ Center GND pads)
• Supply voltage 2.7V4.3V (Main), 1.8V (I/O)
• Reference Clock 19.2, 26, 38.4, 52 MHz
• Antenna port WLAN/Bluetooth, FM Rx, FM Tx
• Operating temperature -20 70 degree C
• ltWireless LAN Featuresgt
• IEEE 802.11b/g compliant
• IEEE 802.11e/i/k/r PICS compliant
• Host Interface SDIO, SPI
• ltBluetooth Featuresgt
• Bluetooth v2.1EDR compliant
• Power Class 2 (Class 1.5 optional)
• Host Interface UART
• ltFM Featuresgt
• FM band 76MHz 108MHz (US, Europe, Japan)
• Host Interface I2C, UART (through BT host I/F)

22
MBH7BWZ06 Dual-Band WLAN/Bluetooth/FM Combo
Module

• Features
• Texas Instruments WL1273 based
• Size 10.0 x 8.9 x 1.2 mm
• Package LGA 64pin (w/ Center GND pads)
• Supply voltage 2.7V4.3V (Main), 1.8V
  (Bluetooth), 1.8V (I/O)
• Oscillator External (19.2, 26, 38.4, 52 MHz)
• Antenna port 2.4GHz (WLAN/BT), 5GHz (WLAN), FM
  Rx, FM Tx
• Operating temperature -20 70 degree C
• ltWireless LAN Featuresgt
• IEEE 802.11a/b/g compliant (2.4GHz/5GHz
  Dual-Band)
• IEEE 802.11d/e/h/i/k/r/s PICS compliant
• Host Interface SDIO, SPI
• ltBluetooth Featuresgt
• Bluetooth v2.1EDR compliant
• Power Class 2 _at_1.8V (Class 1.5 optional)
• Host Interface UART
• ltFM Featuresgt
• FM band 76MHz 108MHz (US, Europe, Japan)
• Host Interface I2C, UART (through BT host I/F)

23
GPS Module GPS Bluetooth Combo ModuleProduct
Information
24
Our effort to GPS Products
We have developed and released GPS modules from
2002. Currently we are focusing on designing
small GPS module for mobile consumer electronics
products such as mobile phone, PDA, and PND. RF
performance of our GPS module is highly praised
by our customers.
CY2002 CY2008
Low Power Consumption GPS/AGPS Module w/ TCXO
Small Low Power Consumption GPS/A-GPS Module w/
TCXO
Small Low power consumption Full GPS/A-GPS
Module w/ TCXO
Multi-mode full GPS/A-GPS Module
GPS Full Module
25
GPS and GPSBT Combo module lineup
26
MBH7GSZ11A Small size complete GPS Module

• Specification

• GPS Chip TI NL5350
• Built in all components SAW, DC blocking
  capacitor, 16.368MHz high precision TCXO GPS
  LSI
• Support REF_CLK frequency 13.0MHz, 14.4MHz,
  16.2MHz, 16.8MHz, 19.2MHz, 26MHz, 38.4MHz
• Multi mode operation Autonomous, MS-Assisted,
  MS-Based
• Output data format NMEA, Original binary format
• Host I/O Real Time Clock (32.768KHz), 1PPS
  output, Timestamp
• Performance TTFF lt1.5sec, CEP95 lt10m
• _at_-130dBm with synchronous network assistance
  data
• TTFF lt10sec, CEP95 lt50m
• _at_-150dBm with synchronous network assistance
  data
• Sensitivity 160 dBm (Tracking)
• Selectable host I/F 2wire UART / I2C
• Dimensions 6.5 x 6.0 x 1.2 mm
• Battery direct connect VDD I/O for I/O part,
• VBAT1 1.8V 4.8V
• VBAT2 2.7V4.8V
• Power consumption 275mW (typ) _at_acquisition

U2Tx
SAW
I2C_UART
Matching circuit
RF_IN
GPS_INT
TIMESTAMP
REF_CLK
PA_EN
GPS LSI NL5350
2.5V
LNA_EN
CLK_REQ
VBAT1
BYPASS
RTC 32KHz
VBAT2
SLEEP
VDD I/O
CONFIG_MODE
PG_PULSE
RESET
GND
GPS_CLK Monitor
27
MBH7GSZ11B Small size GPS Module w/o TCXO

• Specification

• GPS Chip TI NL5350
• Built in all components High ATT/Low IL SAW
  Filter, and GPS LSI
• Support REF CLK frequency 13MHz, 14.4MHz,
  16.2MHz, 16.8MHz, 19.2MHz, 26MHz and 38.4MHz
• Supported GPS CLK frequency 16.368MHz and
  32.736MHz
• Multi mode operation Autonomous, MS-Assisted,
  MS-Based
• Output data format NMEA, Original binary format
• Host I/O Real Time Clock (32.768KHz), 1PPS
  output, Timestamp
• Performance TTFF lt1.5sec, CEP95 lt10m
• _at_-130dBm with synchronous network assistance
  data
• TTFF lt10sec, CEP95 lt50m
• _at_-150dBm with synchronous network assistance
  data
• Sensitivity 160 dBm (Tracking)
• Selectable host I/F 2wire UART / I2C
• Dimensions 5.85 x 4.5 x 1.0 mm
• Battery direct connect VDD I/O for I/O part,
• VBAT1 1.8V 4.8V
• VBAT2 2.7V4.8V
• Power consumption 270mW (typ) _at_acquisition

U2Tx
SAW
I2C_UART
Matching circuit
RF_IN
GPS LSI NL5350
GPS_INT
TIMESTAMP
REF_CLK
PA_EN
VCC TCXO (2.5V)
LNA_EN
CLK_REQ
GPS_CLK
BYPASS
RTC 32KHz
SLEEP
VBAT1
CONFIG_MODE
VBAT2
PG_PULSE
VDD I/O
RESET
GND
28
MBH7GSZ12A Complete GPS module w/ TCXO

• Key feature

TBD

• GPS Chip Broadcom BCM4750 (Barracuda)
• Simultaneous tracking of up to 24satellites
• Multi mode operation
• Built in all components
• GPS LSI, TCXO, metal shielding case and SAW
  filter
• Selectable host I/F
• High sensitivity Accuracy
• Smaller size 6.0 x 6.5 x 1.25mm
• Multiple power supply
• BB/RF REGIN 1.53.6V
• VDD IO 1.653.6V
• VCC TCXO 2.8V
• Low Power consumption

Host I/F
SAW
RF IN
BCM4750 Barracuda
Host sel 02
nINTR
VCC TCXO
REF CLK (CNTIN)
BB/RF REGIN
SYNC/PPS
BBRFREGIN RFREGOUT
nRESET
GPS LNA EN
nSTANDBY
VDDRF
VDD IO
RTC CLK
LPREGIN VDDIO
GND
Block diagram
29
MBH7GSZ12B Smaller GPS module w/o TCXO

• Key feature

TBD

• GPS Chip Broadcom BCM4750 (Barracuda)
• Simultaneous tracking of up to 24satellites
• Multi mode operation
• Built in all components
• GPS LSI, shielding case and SAW filter
• Selectable host I/F
• High sensitivity Accuracy
• Smaller size 6.0 x 6.0 x 1.2mm
• Multiple power supply
• BB/RF REGIN 1.53.6V
• VDD IO 1.653.6V
• Low Power consumption

Host I/F
SAW
RF IN
BCM4750 Barracuda
Host sel 02
nINTR
TCXO IN
REF CLK (CNTIN)
BB/RF REGIN
SYNC/PPS
BBRFREGIN RFREGOUT
GPS LNA EN
nRESET
nSTANDBY
VDDRF
VDD IO
RTC CLK
LPREGIN VDDIO
GND
Block diagram
30
MBH7BGZ04A Bluetooth/FM GPS Combo

• Specification
• Built-in TCXO
• Size 9.75 x 7.75 x 1.2 mm
• Package LGA 63pin
• ltBluetooth Specificationgt
• TI BRF6350 based
• Power Class 1.5
• Baseband Interface HCI UART (H4)
• Receiver Sensitivity -90dBm typical
• ltFM Specificationgt
• FM control HCI UART / I2C
• FM band 76MHz 108MHz (US, Europe, Japan)
• Audio output Analog (DAC) / I2S
• RDS, RBDS demodulator and decoder
• ltGPSgt
• TI NL5350 based
• Multi mode operation
• High sensitivity and high accuracy
• Direct battery connect

Evaluation board
Unit mm
31
MBH7BGZ05B Bluetooth/FM GPS Combo

• Specification
• Size 9.25 x 7.25 x 1.2 mm
• Package LGA 59pin
• ltBluetooth Specificationgt
• Broadcom BCM2048 Rev.VB0 based
• Power Class 1.5
• Host Interface HCI UART (H4)
• Receiver Sensitivity -87dBm typical
• ltFM Specificationgt
• FM control HCI UART / I2C
• FM band 76MHz 108MHz (US, Europe, Japan)
• Audio output Analog (DAC) / I2S
• RDS, RBDS demodulator and decoder
• FM auto search and tuning modes
• ltGPSgt
• Broadcom BCM4750 (Barracuda) based
• Simultaneous tracking of up to 24 satellites
• Multi mode operation
• High sensitivity and high accuracy

Unit mm
32
(No Transcript)
