Pleural Effusions

1

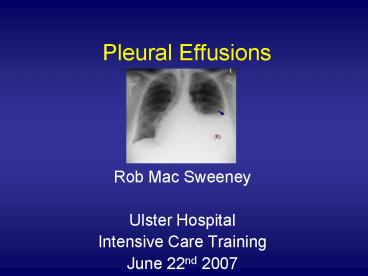

Pleural Effusions

• Rob Mac Sweeney
• Ulster Hospital
• Intensive Care Training
• June 22nd 2007

2
Aims

• Basics
• Diagnosis
• Presence of Effusion
• Type of Effusion
• How to Manage an Effusion
• What the Various Tests Mean
• Issues

3
Basics

• What is it?

4
Basics

• What is it?
• Excess fluid in the
• Pleural Space

5
Basics

• What sort of fluid?

6
Basics

• What sort of fluid?
• Plasma - Effusion

7
Basics

• What sort of fluid?
• Plasma - Effusion
• Pus - Empyema

8
Basics

• What sort of fluid?
• Plasma - Effusion
• Pus - Empyema
• Blood - Haemothorax

9
Basics

• What sort of fluid?
• Plasma - Effusion
• Pus - Empyema
• Blood - Haemothorax
• Lymph - Chylothorax

10
Basics

• What sort of fluid?
• Plasma - Effusion
• Pus - Empyema
• Blood - Haemothorax
• Lymph - Chylothorax

11
Basics

• What sort of fluid?
• Plasma - Effusion
• Pus - Empyema
• Blood - Haemothorax
• Lymph - Chylothorax
• Cholesterol - Pseudochylothorax

12
Basics

• What sort of fluid?
• Plasma - Effusion
• Pus - Empyema
• Blood - Haemothorax
• Lymph - Chylothorax
• Cholesterol - Pseudochylothorax
• Urine - Urinothorax

13
Basics

• What sort of fluid is it usually?

14
Basics

• What sort of fluid is it usually?
• Filtered Plasma

15
Basics

• How do we Classify Effusions?

16
Basics

• How do we Classify Effusions?
• Transudate (lt30g/L)

17
Basics

• How do we Classify Effusions?
• Transudate (lt30g/L)
• Exudate (gt30g/L)

18
Basics

• How is it Generated?

19
Basics

• How is it Generated?
• Transudate Altered Starlings Law

20
Basics

• How is it Generated?
• Transudate Altered Starlings Law
• Exudate Increased Permeability

21
Diagnosis

• How is the presence of
• an effusion diagnosed?

22
Diagnosis

• How is the presence of
• an effusion diagnosed?
• Clinically

23
Diagnosis

• How is the presence of
• an effusion diagnosed?
• Clinically
• Radiologically

24
Clinically

• History

25
Clinically

• Clinical Diagnosis
• History
• PE
• Inspection
• Palpation
• Percussion
• Auscultation

26
Radiology

• Imaging Diagnosis
• CXR
• Ultrasound
• CT
• MRI
• PET
• Pulmonary Angiogram

27
Radiology

• CXR
• Supine Film Haze

28
Radiology

• CXR
• Supine Film Haze
• Erect Film Meniscus

29
Radiology

• CXR
• Supine Film Haze
• Erect Film Meniscus
• Volume Required
• Decubitus 20mls

30
Radiology

• CXR
• Supine Film Haze
• Erect Film Meniscus
• Volume Required
• Decubitus 20mls
• Lateral 50mls

31
Radiology

• CXR
• Supine Film Haze
• Erect Film Meniscus
• Volume Required
• Decubitus 20mls
• Lateral 50mls
• PA 175mls

32
Radiology

• CXR
• Supine Film Haze
• Erect Film Meniscus
• Volume Required
• Decubitus 20mls
• Lateral 50mls
• PA 175mls
• Supine 175mls

33
Radiology

• CXR
• Supine Film Haze
• Erect Film Meniscus
• Volume Required
• Decubitus 20mls
• Lateral 50mls
• PA 175mls
• Supine 175mls
• AP 500mls

34
Radiology

• CXR
• Blackmore CC, Black WC, Dallas RV, Crow
• Pleural fluid volume estimation a chest
  radiograph prediction rule.
• Acad Radiol. 1996 Feb3(2)103-9.

35
Radiology

• CXR
• Blackmore CC, Black WC, Dallas RV, Crow
• Pleural fluid volume estimation a chest
  radiograph prediction rule.
• Acad Radiol. 1996 Feb3(2)103-9.

• Lateral 50mls
• PA 200mls
• 500mls

36
Radiology

• Ultrasound
• Confirm Presence
• Estimate Size
• Identify Septa
• Identify Fluid
• Other Pathology
• Guide Drainage

37
Radiology

• Ultrasound
• Confirm Presence
• Estimate Size
• Identify Septa
• Identify Fluid
• Other Pathology
• Guide Drainage

38
Radiology

• Ultrasound
• Confirm Presence
• Estimate Size
• Identify Septa
• Identify Fluid
• Other Pathology
• Guide Drainage

39
Radiology

• CT
• Confirm Presence
• Estimate Size
• Identify Septa
• Identify Fluid
• Other Pathology
• Guide Drainage

40
Radiology

• CT
• Confirm Presence
• Estimate Size
• Identify Septa
• Identify Fluid
• Other Pathology
• Guide Drainage

41
Radiology

• CT
• Confirm Presence
• Estimate Size
• Identify Septa
• Identify Fluid
• Other Pathology
• Guide Drainage

42
Radiology

• MRI
• As US and CT
• Ix Pleural Disease

43
Radiology

• PET
• Management NSC LC
• Fluorodeoxyglucose
• (FDG)
• Technetium-99m methylene diphosphonate (MDP)

44
Causes
45
Causes
46
Causes
47
Suggested Approach for ICU
48
Suggested Approach for ICU
49
Suggested Approach for ICU
50
Suggested Approach for ICU
51
Suggested Approach for ICU
52
Suggested Approach for ICU
53
My Big Question
54
My Big Question

• Does thoracocentesis improve physiology?

55
Effects of Thoracocentesis

• Improve Oxygenation
• Neff, T. A., and B. D. Buchanan.
• Tension pleural effusion.
• Am. Rev. Respir. Dis. 1975111543548.
• Brown, N. E., N. Zamel, and A. Aberman.
• Changes in pulmonary mechanics and gas exchange
• Following thoracocentesis.
• Chest 197874540542.
• Perpiñá, M., E. Benlloch, V. Marco, F. Abad, and
  D.
• Nauffal.
• Effects of thoracocentesis on pulmonary gas
  exchange.
• Thorax 198338747750.

56
Effects of Thoracocentesis

• No Change in Oxygenation
• Karetzky, M. S., G. A. Kothari, J. A. Fourre,
• and A. U. Khan. 1978.
• Effects of thoracocentesis on arterial oxygen
• tension.
• Respiration 3696103.

57
Effects of Thoracocentesis

• Worsen Oxygenation
• Trapnell, D. H., and J. G. B. Thurston. 1970.
• Unilateral pulmonary oedema after pleural
• aspiration.
• Lancet 66113671369.
• Brandstetter, R. D., and R. P. Cohen. 1979.
• Hypoxemia after thoracocentesis a
• predictable and treatable condition.
• J.A.M.A. 24210601061.

58
Effects of Thoracocentesis

• Does What to Oxygenation?
• Peter Doelken, MD, FCCP Ricardo Abreu, MD,
• FCCP Steven A. Sahn, MD, FCCP and Paul
• H. Mayo, MD, FCCP
• Effect of Thoracentesis on Respiratory
• Mechanics and Gas Exchange in the
• Patient Receiving Mechanical Ventilation
• Chest. 20061301354-1361

59
Effects of Thoracocentesis

• Gas exchange and hemodynamics in experimental
  pleural effusion
• Laboratory Investigations
• Nishida, Osamu MD Arellano, Ramiro MD, FRCPC
  Cheng, Davy C. H. MD, FRCPC DeMajo, Wilfred MD,
  FRCPC Kavanagh, Brian P. MB, FRCPC
• Critical Care MedicineVolume 27(3)March 1999pp
  583-587

60
(No Transcript)
61
Effects of Thoracocentesis

• Talmor M, Hydo L, Gershenwald JG, Barie
• PS.
• Beneficial effects of chest tube drainage
• of pleural effusion in acute respiratory
• failure refractory to positive end
• expiratory pressure ventilation.
• Surgery. 1998 Feb123(2)137-43.

62
Effects of Thoracocentesis
63
Effects of Thoracocentesis
64
Effects of Thoracocentesis
65
Effects of Thoracocentesis
66
Should we Drain Pleural Effusions?
67
The (Unsatisfactory) Answer?
68
Suggested Approach for ICU
69
Suggested Approach for ICU
70
Drain if pH lt 7.2 ?
71
Pleural Infection
72
Cause of Pleural Infection
73
Suggested Approach for ICU
74
Suggested Approach for ICU
75
Suggested Approach for ICU
76
Suggested Approach for ICU
77
Suggested Approach for ICU
78
(No Transcript)
79
Lights Criteria
80
Another Suggested Approach
81
(No Transcript)
82
(No Transcript)
83
(No Transcript)
84
(No Transcript)
85
(No Transcript)
86
(No Transcript)
87
(No Transcript)
88
(No Transcript)
89
But..
90
....Maybe do these tests..

• Thoracocentesis should be performed for
• protein, LDH, pH, Gram stain, AAFB stain,
• cytology, and microbiological culture using
• sterile vials and blood culture bottles to
• increase microbiological yield
• Medford

91
Just When YouThought YouHad Enough..
92
Just When YouThought YouHad Enough.. BTS
Guidelines2003 UnilateralPleural Effusion
93
BTS Guidelines2003 UnilateralPleural Effusion
94
Confused?
95
Order the Lot!
96
Investigations

• Additional Tests for Exudative Effusions
• Total Differential Cell Counts
• Smear, Stain and Culture
• Pleural Fluid Glucose Level
• Pleural Fluid LDH Level
• Pleural Fluid Tests for Cancer
• Pleural Fluid Markers for TB

97
Investigations

• Other Specific Tests for Exudative Effusions
• Pleural Fluid pH
• Pleural Fluid Amylase Level
• Immunological Tests
• ANA / RF
• Serum D-Dimer
• Thoracoscopy / Pleural Biopsy

98
Investigations

• Additional Tests for Exudative Effusions
• Total Differential Cell Counts
• Smear, Stain and Culture
• Pleural Fluid Glucose Level
• Pleural Fluid LDH Level
• Pleural Fluid Tests for Cancer
• Pleural Fluid Markers for TB

99
Total Differential Cell Counts

• gt50 Neutrophils Acute Process
• Lower counts in TB and Malignancy
• Small Lymphocyte preponderance TB or Cancer or
  post CABG
• gt10 Eosinophils haemo/pneumo-thorax or unusual
  cases
• Drugs (dantrolene, bromocriptine,
  nitrofurantoin), asbestos exposure,
  paragonimiasis Churg-Strauss Syndrome

100
Investigations

• Additional Tests for Exudative Effusions
• Total Differential Cell Counts
• Smear, Stain and Culture
• Pleural Fluid Glucose Level
• Pleural Fluid LDH Level
• Pleural Fluid Tests for Cancer
• Pleural Fluid Markers for TB

101
Smears Cultures

• Use Blood Culture Bottles
• Smears may reveal fungi, rarely mycobacteria

102
Investigations

• Additional Tests for Exudative Effusions
• Total Differential Cell Counts
• Smear, Stain and Culture
• Pleural Fluid Glucose Level
• Pleural Fluid LDH Level
• Pleural Fluid Tests for Cancer
• Pleural Fluid Markers for TB

103
Pleural Glucose

• Usually similar to plasma in transudates and most
  exudates
• Low in
• RA
• Tuberculosis
• Empyema
• Malignancies with extensive pleural involvement
• Haemothorax / Lupus / Churg-Strauss /
  Paragonimiasis

104
Investigations

• Additional Tests for Exudative Effusions
• Total Differential Cell Counts
• Smear, Stain and Culture
• Pleural Fluid Glucose Level
• Pleural Fluid LDH Level
• Pleural Fluid Tests for Cancer
• Pleural Fluid Markers for TB

105
Pleural LDH

• Correlates with degree pleural Inflammation
• If increases with repeated sampling suggests
  increasing inflammation
• Therefore more aggressive diagnostic approach
  required

106
Investigations

• Additional Tests for Exudative Effusions
• Total Differential Cell Counts
• Smear, Stain and Culture
• Pleural Fluid Glucose Level
• Pleural Fluid LDH Level
• Pleural Fluid Tests for Cancer
• Pleural Fluid Markers for TB

107
Pleural Fluid Tests for Cancer

• Cytology fast, efficient minimally invasive
• Yields
• Metastatic adenoCa 70
• Lymphoma 25-50
• Sarcoma 25
• Squamous Cell Carcinoma 20
• Mesothelioma 10
• Thoracoscopy Next Investigation

108
Investigations

• Additional Tests for Exudative Effusions
• Total Differential Cell Counts
• Smear, Stain and Culture
• Pleural Fluid Glucose Level
• Pleural Fluid LDH Level
• Pleural Fluid Tests for Cancer
• Pleural Fluid Markers for TB

109
Tests for TB in Pleural Fluid

• Untreated effusion resolves, but (extra)
  pulmonary disease develops in 50
• Adenosine Deaminase
• Interferon gamma
• PCR for Mycobacterial DNA

110
Investigations

• Other Specific Tests for Exudative Effusions
• Pleural Fluid pH
• Pleural Fluid Amylase Level
• Immunological Tests
• ANA / RF
• Serum D-Dimer
• Thoracoscopy / Pleural Biopsy

111
Pleural pH

• Normal 7.62 due to active transport of
  Bicorbonate
• Low pH due to inflammatory / infiltrative
  conditions
• Urinothorax only transudate with low pH
• Parapneumonic effusion pH gt7.2 has poor prognosis
• pHlt7.2 in cancer suggests life expectancy
• less than 30 days

112
Investigations

• Other Specific Tests for Exudative Effusions
• Pleural Fluid pH
• Pleural Fluid Amylase Level
• Immunological Tests
• ANA / RF
• Serum D-Dimer
• Thoracoscopy / Pleural Biopsy

113
Pleural Amylase

• High level (gt200 U /dl) occurs in
• Pancreatitis (acute chronic)
• Oesophageal rupture

114
Investigations

• Other Specific Tests for Exudative Effusions
• Pleural Fluid pH
• Pleural Fluid Amylase Level
• Immunological Tests
• ANA / RF
• Serum D-Dimer
• Thoracoscopy / Pleural Biopsy

115
Immunological Tests

• Add little
• Check serum for immunological markers

116
Investigations

• Other Specific Tests for Exudative Effusions
• Pleural Fluid pH
• Pleural Fluid Amylase Level
• Immunological Tests
• ANA / RF
• Serum D-Dimer
• Thoracoscopy / Pleural Biopsy

117
Investigations

• Other Specific Tests for Exudative Effusions
• Pleural Fluid pH
• Pleural Fluid Amylase Level
• Immunological Tests
• ANA / RF
• Serum D-Dimer
• Thoracoscopy / Pleural Biopsy

118
Pleural Effusion of Unknown Cause

• About 15
• Try Thoracoscopy (high yield for TB)
• Pleural Biopsy (closed/open)

119
Investigations
120
Post Thoracocentesis

• Post drainage will you order a CXR?

121
Post Thoracocentesis

• Post drainage will you order a CXR?

122
Issues I Have Left Out

• Drain or Tap
• Image Guided Drainage
• Tube size type
• Pleurodesis
• Fibrinolysis
• Surgery
• RAPID Assessment
• And others..

123
Summary

• Basics
• Diagnosis
• Presence of Effusion
• Type of Effusion
• How to Manage an Effusion
• What the Various Tests Mean
• Issues

124
Thank You
125
Difficult Questions Will Evoke The Following
Response
