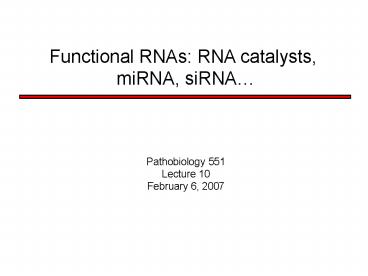

Functional RNAs: RNA catalysts,

1
Functional RNAs RNA catalysts, miRNA,
siRNA Pathobiology 551 Lecture 10 February 6,
2007
2
Non-coding RNAs are very diverse in size and
functions
Costa FF. Gene. Jan 2007.
3
RNAs have many functions

• tRNA (transfer)
• mRNA messenger(riboswitch regulation)
• snRNA (snoRNAsplicing)
• telomerase RNA (telomerase maintenance)
• siRNA (RNA silencing)
• shRNA (RNA silencing)
• pri-miRNA, miRNA (primary) micro RNA
  regulation
• sRNA (bacteria)
• gRNA (RNA editing)
• genomic RNAs (viruses)
• rRNA (ribosomal)
• ribozymes

Functions can be enzymatic, regulatory, or can
encode information
4
Ribozymes Enzymatic RNAs

• Cleave RNA
• Able to regulate mRNA expression
• Can be associated with ribonucleoprotein
• complexes (RNPs)
• Often function in the presence of divalent
  cations
• Function in both prokaryotes and eukaryotes

5
Ribozymes Ribonucleic acid enzymes

• Multiple Classes
• Group I Introns
• Group II Intons
• RNase P
• Hammerhead
• Hairpin
• Hepatitis Delta Virus and Varkud Satellite
• DNAzymes??

6
Hammerhead Ribozyme
-- Smallest known ribozyme (40 nucleotides) --
Associated with plant viroid genome replication
7
Hepatitis Delta Virus Ribozymes
-- Only known animal virus with ribozyme
activity -- Has two isomers and two functions
- Genomic RNA cleavage - Anti-genomic
cleavage -- One of the fastest known -
Cleavage rate 1/sec -- Divalent cation dependent
8
DNAzymes??
-- NOT found in nature (as far as anyone has
found) -- created using in vitro selection --
use for antiviral agents (HIV-1, HCV, HBV)
9
Riboswitches

• RNA genetic control elements found within 5UTRs
• RNA that binds metabolites/ions
• Purpose - regulate gene expression in response
  to
• binding small molecule metabolites
• Transcriptional termination
• Translation repression/initiation
• mRNA stability

• Present in both pro/eukaryotes

10
Riboswitches
Two main criteria used to define the riboswitches
1) Direct (protein-free) binding of metabolite to
RNA 2) Regulation of genes is metabolite-dependen
t
11
Movie Time
12
(No Transcript)
13
Riboswitch Gene Regulation
Riboswitches are an important mechanism of gene
regulation. For example, nearly 2 of the genes
of the model organism Bacillus subtilis appear to
be controlled by riboswitches.
14
Small RNAs (sRNA or sncRNA) in prokaryotes

• Genetically encoded (intergenic regions)
• Rho-independent transcription termination
• 80-100bp in length
• One sRNA can affect multiple target genes
• Many interact with RNA chaperone Hfq
• - Hfq binds to AU rich regions in mRNA
• Regulate by complementary base-pairing
• with mRNA (usu. Imperfect complementary) in
• 5 UTR and sometimes in 3UTR

15
Transcript regulation

• By what mechanisms do sRNAs regulate mRNA?

16
sRNA Outcomes in Prokaryotes

• Translation Inhibition
• mRNA degradation
• Translation stimulation
• mRNA Stabilization

17
Many sRNAs still being discovered (E. coli)
66
-- NIH Database
18
How are sRNAs discovered?
Vogel and Sharma. 2005. Biol. Chem. v386.
19
(No Transcript)
20
(No Transcript)
21
Small RNAs in Eukaryotes

• Micro RNAs (miRNA)
• Similar to sRNAs in prokaryotes
• Small interfering RNA (siRNA)
• Induces mRNA degradation

22
miRNA

• Genomically encoded
• Frequently are complimentary to mRNA
• Usually imperfect complementarity
• Can be encoded in clusters on the genome, or
  individually
• Sequences are relatively conserved between
  species
• Can have multiple unlinked targets
• miRNAs always interact with the 3 UTR
• Can alter mRNA stability, and translational
  initiation

23
miRNA structures

• Originate as a precursor RNA (primary miRNA
  pri-miRNA) of several hundred base pairs
• Pri-miRNA contain Caps and poly A tail
• Some contain introns while others do not
• Can be encoded by introns of other genes
• Transcribed by RNA Pol II
• Contain 80 bp imperfectstem loop

24
miRNA Processing

• Drosha cleaves hairpin liberating a 60 bp
  hairpin (pre-miRNA)
• Pre-miRNA is exported to the cytoplasm
• In the cytoplasm, Dicer cleaves liberating a 22
  nucleotide RNA duplex with 2 bp 3overhangs.

25
Drosha and Dicer

• Members of the RNase III family
• dsRNA-specific
• Cleave dsRNA leaving 2 bp 3 overhangs

26
miRNA processing
27
miRNA function

• Mechanism of action is unknown
• Interacts with the 3UTR of the target mRNA
• Inhibits translation from a mRNA without inducing
  mRNA degradation
• Can form a ribonucleoprotein complex (miRNP)
• Can be complexed with ribosomes and target mRNA
• Also important for silencing retrotransposons and
  endogenous retroviruses
• Important for development and differentiation

28
siRNA...history

• Originally characterized in plants (1990)
• Post transcriptional gene silencing
• Plays a large role in plant immune system
• Fire and Mello successfully silenced genes in C.
  elegans 1998 (won Nobel in 2006)
• Triggered by dsRNA

29
siRNA

• Similar to miRNA. BUT...
• Typically induces mRNA degradation
• Requires exact base pairing for maximum effect
• Dicer processes double stranded RNAs
• RISC (or other complexes) carry out the effector
  function
• RISC cleaves RNA that is complementary to dsRNA
  that activates pathway
• Dicer/RISC video clip

30
GFP silencing in transgenic C. elegans
31
RISC effector complex

• RNA-induced silencing complex
• Contains a member of the argonaute family
• Between 130 kDa and 500 kDa
• Other components are being characterized
• Cleaves RNA complementary to the siRNA, 12bp
  upstream of 3 terminus
• Assembling the RISC complex requires ATP, while
  RNA cleavage does not.

32
siRNA designing the assay

• dsRNAs need to be lt30 bp in length
• Why?
• Well-designed siRNAs can result in gt90 reduction
  in target RNA
• 21nt dsRNAs most effective
• Sequence-specificity important
• Single bp-mismatches reduce silencing capability
• Many will make 3-4 siRNAs test all and go w/
  best
• Deliver by injection or transfection
• Vectors becoming more popular

33
Uses of siRNA

• Gene knockdowns
• Look at function/phenotype of a gene
• Therapeutic techniques
• Anti viral
• Anti cancer
• Anti neurological diseases
• Others

34
Caveats of siRNA

• Not found in apicomplexans
• Exceptions to the rule
• Scattered literature in P. falciparum but not
  reproducible
• T. brucei yes
• T. cruzi and Leishmania -- no

NOTE siRNA and other techniques are knockdowns
and do NOT give 100 knockouts. Nor do they work
on every gene or organism.
35
Pubmed searches of siRNA
of citations
Year
36
(No Transcript)
37
Lutz and Knaus 2002
