Quaternary Environments Dating Methods I

1
Quaternary EnvironmentsDating Methods I
2
(No Transcript)
3
Accuracy Versus Precision

• Precision means that the samples have low amount
  of error associated with the dating
• Accuracy means that the samples are dated to the
  true age of the sample
• We strive for both accuracy and precision in
  dating techniques

4
Accuracy Versus Precision
5
Relative Versus Absolute Dating

• Relative Dating
• Principle of Superposition
• Absolute Dating
• Provides solid chronological dates (within error
  bars) that are related to a calendar year scale

6

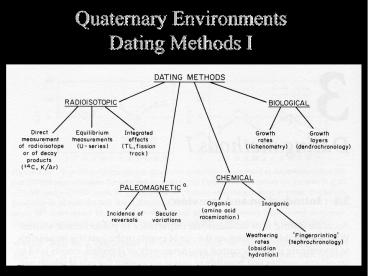

Methods

• Radioisotopic Methods
• Based on rate of atomic disintegration
• Paleomagnetic Methods
• Relies on past reversals of the Earths magnetic
  field
• Organic and Inorganic Chemical Methods
• Based on time-dependent chemical changes in a
  sample
• Biological Methods
• Based on the growth of an organism

7
Using Radioactivity in Dating

• Radiometric dating
• Useful radioactive isotopes for providing ages
• 87Rb/87Sr 47.0 billion years
• 232Th/208Pb 12.1 billion years
• 238U/206Pb 4.5 billion years
• 40K/40Ar 1.3 billion years
• 235U/207Pb 713 million years
• 14C/14N 5,730 years (5,570 Libby years)

8
Sources of Error

• A closed system is required
• To avoid potential problems, only fresh,
  unweathered samples should be used

9
Using Radioactivity in Dating

• Reviewing basic atomic structure
• Nucleus
• Protons positively charged particles with mass
• Neutrons neutral particles with mass
• Electrons negatively charged particles that
  orbit the nucleus

10
Using Radioactivity in Dating

• Reviewing basic atomic structure
• Atomic number
• An elements identifying number
• Equal to the number of protons in the atoms
  nucleus
• Mass number
• Sum of the number of protons and neutrons in an
  atoms nucleus
• Identifies an isotope

11
Using Radioactivity in Dating

• Reviewing basic atomic structure
• Isotope
• Variant of the same parent atom
• Differs in the number of neutrons
• Results in a different mass number than the
  parent atom

12
Using Radioactivity in Dating

• Radioactivity
• Spontaneous changes (decay) in the structure of
  atomic nuclei
• Types of radioactive decay
• Alpha emission
• Emission of 2 protons and 2 neutrons (an alpha
  particle)
• Mass number is reduced by 4 and the atomic number
  is lowered by 2

13
Using Radioactivity in Dating

• Types of radioactive decay
• Beta emission
• An electron (beta particle) is ejected from the
  nucleus
• Mass number remains unchanged and the atomic
  number increases by 1

14
Using Radioactivity in Dating

• Types of radioactive decay
• Electron capture
• An electron is captured by the nucleus
• The electron combines with a proton to form a
  neutron
• Mass number remains unchanged and the atomic
  number decreases by 1

15
Common Types of Radioactive Decay
16
Using Radioactivity in Dating

• Parent an unstable radioactive isotope
• Daughter product the isotopes resulting from
  the decay of a parent
• Half-life the time required for one-half of the
  radioactive nuclei in a sample to decay

17
Using Radioactivity in Dating

• Radiometric dating
• Principle of radioactive dating
• The percentage of radioactive atoms that decay
  during one half-life is always the same (50
  percent)
• However, the actual number of atoms that decay
  continually decreases
• Comparing the ratio of parent to daughter yields
  the age of the sample

18
Radioactive decay curve
19
Radiocarbon Dating

• Dating with 14C
• Half-life of 5730 years
• Used to date very recent events
• 14C is produced in the upper atmosphere
• Useful tool for anthropologists, archeologists,
  and geologists who study very recent Earth history

20
(No Transcript)
21
Sources of Error in 14C Dating

• Problems of Sample Selection and Contamination
• Young carbon effects
• Old carbon effects
• Variation in 14C content in the ocean reservoir
• Fractionation Effects

22
14C Age of Sea Water
23
Radiocarbon Variation Over the Last 2000 years
24
Calibration Curve Showing Departure
25
Calibrated Curve
26
Radiocarbon Plateaus
27
14C Bomb Spike
28
Potassium Argon Dating (40K/40Ar)

• Instrumental in dating sea-floor basalts and
  providing the timing of magnetic reversals
• Used in dating lava flows
• Also for dating metamorphic events

29
Potassium Argon Dating (40K/40Ar)

• 39K and 41K, Stable
• 40K unstable and 0.012 of all potassium
• 40K decays to 40Ca and 40Ar
• Ca is common in rocks and is therefore not useful
  in dating
• Measure the amount of 40Ar in the lab and the
  amount of 40K is also measured from the sample

30
Potassium Argon Dating (40K/40Ar)

• Long half-life makes this useful over long time
  scales but not really usable at less than 100,000
  years
• Optimal time range is around 30 ma and up to 1 ba
  rocks can be dated
• Dating is done on sanidine, plagioclase, biotite,
  hornblende, and olivine in volcanic rocks and
  glauconite, feldspar, and sylvite in sedimentary
  rocks

31
Problems of 40K/40Ar

• Assumptions
• No Ar was left in the rock at formation
• System has remained closed since formation
• Checks
• The ratio of 36Ar to 40Ar is known in the
  atmosphere and can be measured in the rock to
  determine atmospheric contamination
• Problem
• Loss of Ar due to diffusion, recrystallization,
  solution, and chemical reactions

32
40Ar/39Ar Dating

• A problem with 40K/40Ar dating is that K and Ar
  are measured at different places in the rock
• This can be solved by irradiating the samples and
  converting 39K to 39Ar
• With the known ratio of 40K to 39K, the amount of
  40K can be calculated from the same lattice
  structure as the 39Ar

33
Uranium Series Dating

• 238U and 235U have a decay process that cascades
  through a series of elements
• Each decay stage can be used as a dating tool
• Thermal Ionization Mass Spectrometry (TIMS)
  allows very accurate estimates from small samples
• U series are useful in dating corals and
  speleothems
• Mollusks seem to be an open system in relation to
  U and are not generally conducive to U series
  dating

34
(No Transcript)
35
Problems of U Series Dating

• Assumes the initial 230Th/234U, 234U/238U, and
  231Pa/235U ratios
• Likely in ocean sediments but more in flux in the
  atmosphere
• Assumes a closed system

36
Luminescence Dating Principles and Applications

• Light emitted from a mineral crystal (usually
  quartz or feldspars) when exposed to heat or
  light
• The light emitted is related to the amount of
  ionizing radiation that the sample has been
  exposed to from sediment
• The clock is set to zero by heating or optical
  bleaching
• Therefore Loess and fluvial sediments make good
  candidates for luminescence dating

37
Luminescence

• Thermoluminescence (TL Dating)
• When the light is emitted as a result of thermal
  hearting
• First published Wintle and Huntley 1979
• Optical and Infrared Stimulated Luminescence (OSL
  and IRSL Dating)
• Visible or infrared energy emitted in response to
  radiation

38
Problems in TL Dating

• Assumes that the relationship between the
  radiation dose and the resulting luminescence is
  a linear relationship not always the case
• lt5,000 yrs the rate of electron accumulation is
  slow, possibly needing to exceed a threshold
• Some minerals may reach saturation gt300,000 yrs
• Anomalous Fading Minerals do not hold the
  electrons beyond a few weeks
• Variations in environmental dose related to
  moisture content for one example

39
Optical and Infrared Stimulated Luminescence (OSL
and IRSL Dating)

• Zero in the modern sediments
• Sensitive to light bleaching setting the system
  to zero
• Multiple measurements are possible because short
  stimulation to the light source does not deplete
  the potential luminescence

40
(No Transcript)
41
Fission Track Dating

• Uranium will decay through fission, splitting the
  nucleus and shooting the two halves into the
  mineral
• The results are fission tracks from 10-20µm in
  length
• Some glassy minerals will loose their fission
  tracks through heating, setting the clock to zero
• Different minerals have different annealing
  temperatures

42
Fission Track Dating

• The samples are polished and etched with a
  chemical that brings out the tracks
• The tracks are counted, then the sample is
  heated, annealing the tracks. Then the sample is
  irradiated with a slow neutron beam and the
  tracks from the fission of 235U are counted
• The number of induced tracks is proportional to
  the amount of 238U in the sample
• The known fission rate of 238U is used to
  calculate the age of the sample

43
Fission Track Dating

• Can be used in apatite, micas, sphene, and
  zircons
• Can also be used in rocks such as volcanic ash,
  obsidian, basalts, granites, tuffs, and
  carbonatites
• Ranges from 103 to 108 years
• The error associated with this technique is hard
  to determine and is seldom reported
• Repeat measures are the best, but are seldom
  undertaken because of time constraints

44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
47
Dendrochronology

• Temperate trees produce annual rings.
• The trees are recording all of the environmental
  variables that affect tree growth.
• Can be used to date objects with annual
  resolution back 10,000 years in the best
  circumstances.

48
Neutron capture (A) and Beta emission (B)
