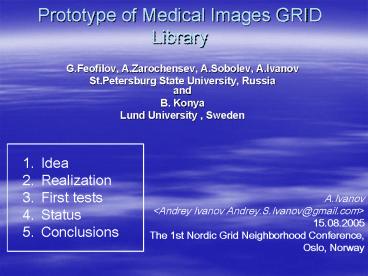

Prototype of Medical Images GRID Library

1
Prototype of Medical Images GRID Library

• G.Feofilov, A.Zarochensev, A.Sobolev, A.Ivanov
• St.Petersburg State University, Russiaand
• B. Konya
• Lund University , Sweden

• Idea
• Realization
• First tests
• Status
• Conclusions

A.Ivanov ltAndrey Ivanov Andrey.S.Ivanov_at_gma
il.comgt 15.08.2005 The 1st Nordic Grid
Neighborhood Conference, Oslo, Norway
2

• Medical Library Prototype
• THE MAIN GOALS
• POLITICAL (popularization of GRID and
  NorduGrid).
• To demonstrate to the ordinary people (medical
  specialists, students etc....) the new working
  information technology invented as by-product of
  High-Energy Physics.
• PRACTICAL to create this medical library
  prototype to be really useful for the didactic
  purposes of teaching medical students.
• TECHNICAL to test the existing NorduGrid and
  GRID technologies for this specific application.

3
PDS
PDS
Medical
Center 2
Unified Dicom Acess Interface
Radiologist
Local HDD
GRID
Metadata Catalog
Digital image Processing Computer Aided Diagnost
ic
Medical Center 1
PDS
Internet
Fast LAN
PDS
Public DICOM Storage
4
Medical Library Prototype

• Distributed storage system for large amount of
  medical images
• Authorized remote access
• Catalogization of metadata associated with
  images
• Searching of images through metadata
• Open source software

5
Medical Grids

• Medical GRIDS short overviewhttp//www.nicpb.ee/
  NordicGrid/uploads/Meetings/2005-05-StPetersburg
  Grigori_Feofilov.ppt
• Examples of Grids for digital mammography
• - e-Diamond (Software IBM's DB2 and
  DiscoveryLink middleware)
• - GPCALMA(AliEn),
• - MammoGrid(AliEn),

6
Commercial Picture Archiving and Communications
Systems (PACS), Examples

• M.D. Anderson Cancer Center's (USA) physicians
  are viewing over 200,000 diagnostic-quality
  images per month (!)
• Xancers Xtria 3 Million Multi-year contract
  with Illinois-based Michael Reese Hospitl

7
Our goals

• To create the Didactic Medical Images Library
  prototype (for medical students, etc)
• To use existing NodruGrid middleware
• To use the DICOM standard of medical images
• To apply existing DICOM viewing software

8
Realization

• We want to use
• SSE as storage system
• RLS as metadata catalog
• Globus authorization system
• Nordugrid client software

9
Nordugrid allows to realize the following scheme
(inserting image and metadata)
Lfn, metadate
10
Searching image by metadata
provision of metadata
pfn
11
First Nordugrid experience with Medical Library
Lund Sweden
St. Petersburg Russia
Metadata Catalog
Public DICOM Storage
Public DICOM Storage
12
(No Transcript)
13
(No Transcript)
14
(No Transcript)
15
Conclusions

• We continue the development of the Distributed
  library archive prototype based on Nordugrid RLS
  and SSE services
• Distributed DICOM storing services are realized
• RLS server for storing of metadata
• Two SSEs
• We are finishing alpha version of the interface
  module
• The results can be used as a base for future GRID
  applications for medical DICOM images archives
  (Computer Aided Diagnostics, batch image
  processing etc..)

16
Thanks
