Objectoriented concepts

1

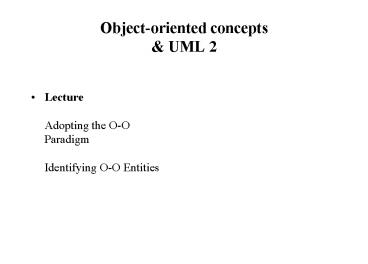

Object-oriented concepts UML 2

• LectureAdopting the O-O ParadigmIdentifying
  O-O Entities

2
The Object-Oriented Approach

• Adopting the Object Paradigm

3
Key Players

• Grady Booch (Booch Method, UML)
• Bjarne Stroustrup (C)
• Coad and Yourdon (OOA, OOD)
• Rumbaugh , Blaha, Premerlani, Eddy and Lorensen
  (OMT, UML)
• Jacobson, Christerson, Jonsson and Overgaard
  (OOSE, UML)
• Wasserman, Pircher and Muller (OOSD)
• NASA (GOOD)
• European Space Agency (HOOD)
• Jackson (JSD, OOJSD)
• Wilfs-Brock (CRC)
• Martin and Odell (Ptech)
• Shlaer and Mellor (OOSA, OODLE)
• Embley (OSA)
• Coleman and Hayes (Fusion)
• Etc. etc. etc. etc .

4
Categories of Analysis and Design

• Structured Analysis and Design (eg. SSADM)
• Data-Oriented Analysis and Design (eg. JSP)
• Object-Oriented Analysis and Design (see later)

5
The Object Model

• A conceptual framework, a specific way of
  thinking
• Three stages in using O-O to model the
  world-OOA (Object-Oriented Analysis)OOD
  (Object-Oriented Design)OOP (Object-Oriented
  Programming)

6
Object-Oriented Analysis

• Examines user requirements
• Produces a model of the problem
• Focus on classes rather than actual object
  instances
• Initial stage prior to design
• Analysis model feeds into design process

7
Object-Oriented Design

• Provides solutions to the problem modelled during
  analysis
• Follows on from the analysis process and feeds
  into the implementation stage
• Uses notations to express the logical and
  physical models of the system
• Concentrates on depicting both static and dynamic
  models

8
Object-Oriented Programming

• Implements the design models as actual computer
  code
• Utilises some or all of the principles employed
  by object-orientation
• There are many O-O languages, not just Ceg.
  Eiffel, Smalltalk, Object Pascal, Simula
• Some languages are Object-Based rather than
  Object-Oriented, eg. Ada

9
Object Model Elements

• Abstraction
• Encapsulation
• Modularity
• Hierarchy
• Typing
• Concurrency
• Persistence

10

• Characteristics of Object Orientation
• Data abstraction
• Encapsulation (information hiding)
• Inheritance
• Message passing
• Polymorphism
• Advantages of Object Orientation
• Reusability
• Extensibility
• Modularity
• Intuitiveness

11
Abstraction

• Denotes the essential characteristics of an
  object
• Crisply defined conceptual boundaries
• Relative to the perspective of the viewer
• Abstract classes and objects may not actually
  exist

12
Encapsulation

• Aka Information hiding
• Abstraction and Encapsulation are complementary
• Compartmentalises the state and behaviour of
  classes and objects that need to be hidden from
  other classes and objects
• Focus on the implementation of non-essential
  characteristics

13
Modularity

• Partitioning into individual components to help
  reduce complexity
• Achieved by the use of objects and classes
• We require high cohesion (objects and classes)
  and loose coupling (relationships and message
  passing)

14
Hierarchy

• The ranking or ordering of abstractions
• Inheritance is hierarchical
• Subclasses inherit from their superclasses
  (generalisation/specialisation relationship)
• Other relationships can be hierarchical, eg.
  aggregation

15
Typing

• Abstract Data Typing (ADT) (eg. char, int,
  float)
• Classes are synonymous to data types
• Both strong and weak typing is possible
• Subclasses related by inheritance from the same
  superclasses are of a similar type. Static
  (early) and dynamic (Late) binding can then
  occur.

16
Concurrency

• Multiple events happening at the same time
• Objects are concurrent, they can live and operate
  at the same time (think about it!)
• Objects co-operate and can be both currently
  active or inactive, but still continue to be
  concurrent

17
Persistence

• A objects life cycle is dynamic. Instances are
  created, exist for a length of time then are
  destroyed
• However, an object does have the capacity to
  persist, ie. remain in existence across space
  and time
• Thus objects can exist longer than their creator
  and they can move within the address space within
  which they are created

18
Digging out Objects, Classes and Attributes

• Look for Nouns, these provide classes, attributes
  and object instances (proper nouns)eg. The cat
  sat on the mat. Cat and Mat are classes A cat
  called Tiddles sat on a mat called
  Martin. Tiddles is an instance of class
  Cat Martin is an instance of class Mat A cat
  with 10 whiskers sat on a mat of length
  2m. Whiskers is an attribute of class Cat and
  has value 10 Length is an attribute of class
  Mat and has value 2m

19
Digging out Relationships and Behaviours

• Look for Verbs, these provide insight into the
  relationships between classes/objects and the
  behaviours of classes/objectseg. The cat sat on
  the mat. Class Cat has an association
  relationship with class Mat by sitting on
  it. The cat, which is made up from a cat body,
  cat head, 4 cat limbs and a cat tail, sat on the
  mat. Class cat has a 11 aggregation
  relationship with classes Cat Body, Cat Head,
  Cat Tail and a 14 aggregation relationship
  with class Cat Limbs

20
Digging out Relationships and Behaviours

• eg. The purring cat sat on the flying mat. To
  purr is a behaviour of the class Cat To fly is
  a behaviour of the class mat The tiger, which
  is a member of the cat family, sat on the rug,
  which is a kind of mat . Class Tiger inherits
  from the Cat class Class Rug inherits from the
  Mat class

21
The UML Method

• Class Diagrams

22
Notation Components

• There are two parts to the Class Diagram- 1. A
  graphical Class Diagram 2. Supporting textual
  Specifications
• Both have Essential concepts and Advanced
  concepts

23
Graphical Class Diagrams

• Represent the following O-O characteristics using
  various diagrammatical icons-

Parameterised ClassesClass UtilitiesInterfacesA
bstract ClassesConstraintsQualified
Associations Derived Associations Association
Classes
ClassesClass relationships RolesRelationship
NavigabilityVisibilityCompositionNotes
Advanced
Essentials
24
The UML Class

• Icon for the Class is-

Appropriate name for the class Name
Class Name Attribute List Operation List
List of class attributes Name Type
List of class methods (behaviours) Name( )
25
Class Example

• The Person Class

26
Class Relationships

• There are four relationships modelled- Associa
  tions Inheritance Aggregation
  (has) Utilisation (uses)
• Each relationship can be adorned with qualifying
  information (Descriptions, Cardinalities, Roles)

27
The Association Relationship

• Has the following icon-

Qualifying Adornment
Role
Role
28
Association Example
Host
Attends Birthday Party
Guest
29
The Inheritance Relationship

• Has the following icon-

This class ...
inherits ...
from this class
30
Inheritance Example
Party Person
DancingStamina Integer
Dance() GiveAPresent()
31
The Aggregation Relationship

• Has the following icon-

This class ...
has a number of ...
this class
32
Aggregation Example
Party Person
DancingStamina Integer
Dance() GiveAPresent()
33
The Utilisation Relationship (via Navigability)

• Introduces the concept of Navigability, ie. one
  class knows about another class directly.
  Utilisation occurs when this knowing about
  involves one class using another.
• Navigability has the icon-

This class ...
knows about ...
this class
34
Utilisation Example
Uses
35
Cardinality Adornments

• These consist of- 1 Exactly
  one N Unlimited number (ie. zero or
  more) 0 N Zero or more 1 N One or more 0
  1 Zero or one n m Specified range (eg.
  2 8) n m, x Specified range or exact
  number (eg. 2 8, 10)

36
Cardinality Example
Class B
Class G
1...N
1
Class A
01
Class C
01
24
Class D
Class F
5
Class E
37
Visibility Adornments

• Used to indicate the interface of each class.
  Applied to both attributes and methods.
• They consist of- Public access - Private
  access Protected access

38
Visibility Example
Uses
39
Composition Adornments

• Indicates the method a class uses to contain
  another class. They are indicated on the
  Aggregation Relationship

Simple aggregation (containment by reference)
Composition, ie. Strongly owns its
parts (containment by value)
40
Composition Example
Host
Party
- Presents List
0 N
- Start Time Time - End Time Time
- ManageMusic() ReceivePresents() - TidyUp()
Organise() ControlMusic() CleanUp()
Party Person
1 N
- DancingStamina Integer
- Dance() GiveAPresent()
41
Use of Notes on Diagrams

• Notes are attached to the various elements of the
  diagram to provide a textual annotation
• Has the following icon-

this element
on ...
Annotation ...
42
Example of Using Notes
Host
Party
- Presents List
0 N
- Start Time Time - End Time Time
- ManageMusic() ReceivePresents() - TidyUp()
Organise() ControlMusic() CleanUp()
Party Person
- DancingStamina Integer
1 N
Hopefully, someone will come
- Dance() GiveAPresent()
43
Textual Specifications

• Textual specifications are written for the
  following diagram elements- Classes Operati
  ons
• Again, both Essential and Advanced concepts are
  covered

44
Class Specifications

• The Class Specification elements we shall be
  concerned with are the following-Responsibiliti
  es A textual description of what the class
  represents and is responsible for in the
  systemAttributes list A list of the
  attributes contained in the classOperations
  list A list of the operations contained in the
  classVisibility How the class, its attributes
  and operations appear to other
  classsesCardinalities How the class scales with
  relation to other classes

45
Class Specification Example

• Class CarResponsibilities Represents all
  vehicles which are considered a
  carAttributes Colour Private Engine
  Size Private Registration PrivateOperations
  Move() Public Stop() Public ShowReg() P
  ublic

46
Operation Specifications

• The Operation Elements we shall be concerned with
  are the following-Qualification What the
  operation doesReturn class A reference to the
  class the operation returnsArguments List
  of formal argumentsVisibility How the
  operations appear to the other classes,
  therefore indicating the interface to the
  class

47
Operation Specification Example

• Operation ShowReg()Qualification Provides an
  inquiring object with the Registration of the
  carReturn Class RegistrationArguments None
  requiredVisibility Public
