TREES Fundamentals of

1

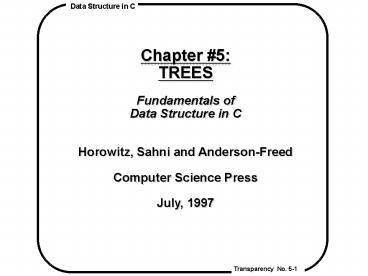

Chapter 5 TREESFundamentals of Data
Structure in C Horowitz, Sahni and
Anderson-Freed Computer Science Press July, 1997
2
Trees
3
Trees

• Introduction
• Def) a tree is finite set of one or
• more nodes such that
• 1) there is a special node (root)
• 2) remaining nodes are partitioned
• into n ? 0 disjoint trees
• T1,T2,,Tn where each of these
• is a tree we call each Ti
• subtree of the root
• - acyclic graph contain no cycle
• - hierarchical structure

4
Trees
Level
1
2
3
4
5
Trees

• terminology
• - degree of a node
• the number of subtrees of node
• - degree of a tree the maximum
• degree of the nodes in the tree
• - leaf(terminal) node
• a node with degree zero
• (K, L, F, G, M, I, J)
• - internal(non-terminal) node
• node with degree one or more
• (A, B, C, D, E, H)

6
Trees

• - parent a node that has subtrees
• - child a root of the subtrees
• - sibling child nodes of the same
• parent
• - ancestor all the nodes along the
• path from the root to the node
• - descendant all the nodes that are
• in its subtrees
• - level level of nodes parent 1
• (level of the root node is 1)
• - depth (or height) of a tree
• the maximum level of any node in
• the tree

7
Trees

• Representation of trees
• list representation
• - the information in the root node
• comes first
• - followed by a list of the subtrees
• of that node
• (eg) (A(B(E(K,L),F),C(G),D(H(M),I,J)))
• representation of a tree in memory
• where n is the degree of the tree

data
link 1
link 2
link n

8
Trees

• Representation of trees
• left-child right-sibling representation
• nodes of a fixed size
• - easier to work
• - two link / pointer fields per node
• left-child right-sibling node structure

9
Trees

• left-child right-sibling representation of a tree

10
Trees

• Representation of trees
• representation as a degree two tree
• simply rotate the left-child
• right-sibling tree clockwise
• by 45 degrees
• two children
• - left child and right child
• - degree 2
• - binary tree

11
Trees

• left-child right-child tree representation of a
  tree

12
Trees

• tree representations

tree
left child-right sibling tree
binary tree
tree
left child-right sibling tree
binary tree
13
Binary Trees
14
Binary Trees

• Def)a binary tree is a finite set of
• nodes such that
• 1) empty or
• 2) consists of root node and two
• disjoint binary trees, called,
• left subtree and right subtree
• two different binary trees

15
Binary Trees

• Properties of binary trees
• difference between a binary tree and
• a tree
• - may have empty node
• - the order of subtree are important
• - a binary tree is not a subset of a
• tree
• - maximum number of nodes in a BT
• 2k-1 where k depth of the tree
• - relationship between the number of
• leaf nodes(n0) and the number of
• nodes with degree 2(n2)
• n0 n2 1

16
Binary Trees

• special types of binary trees
• - skewed binary tree
• - full binary tree (of depth k)
• def) a binary tree of depth k(³0)
• having 2k - 1 nodes
• - complete binary tree
• def) a binary tree with n nodes
• that correspond to the nodes
• numbered from 1 to n in the
• full binary tree of depth k

17
Binary Trees

• full binary tree of depth 4 with
• sequential node numbers

18
Binary Trees

• skewed and complete binary trees

skewed binary tree
complete binary tree
19
Binary Trees

• binary tree representation
• array representation
• - sequential representations
• - determine the locations of the
• parent, left child, and right
• child of any node i in the binary
• tree
• 1) parent(i) is at i/2 if i ¹ 1
• if i 1, no parent
• 2) left_child(i) is at 2i if 2i?n
• 3) right_child(i) is at 2i 1
• if 2i 1 ? n

20
Binary Trees

• array representation of binary trees

skew binary tree
complete binary tree
21
Binary Trees

• Problems of array representation
• - inefficient storage utilization
• S(n) 2k-1 where
• k depth of binary tree
• ideal for complete binary trees
• - hard to insert/delete

22
Binary Trees

• linked representation
• - each node has three fields
• left_child, data, and right_child
• typedef struct node tree_ptr
• typedef struct node
• int data
• tree_ptr left_child, right_child
• node representation for binary trees

23
Binary Trees

• linked representation for the binary
• trees

skewed binary tree
complete binary tree
24
Binary Trees

• leaf nodes link fields contain null
• pointer
• add a fourth field, parent, to know
• the parent of random nodes

leaf node
25
Binary Trees

• tree representation
• - each node(in a tree) has variable
• sized nodes
• - hard to represent it by using
• array
• - use linked list
• need k link fields per node where
• k degree of tree
• two types of link
• non-null links and null links

26
Binary Tree Traversal and Other Operations
27
Binary Tree Traversals

• visit each node in the tree exactly
• once
• - produce a linear order for the
• information in a tree
• - what order?
• inorder LVR (Left Visit Right)
• preorder VLR (Visit Left Right)
• postorder LRV (Left Right Visit)
• - note)
• correspondence between these
• traversals and producing the
• infix, postfix, and prefix forms
• of expressions

28
Binary Tree Traversals

• binary tree with arithmetic
• expression

A / B C D E (infix form)
29
Binary Tree Traversals

• Inorder traversal
• void inorder(tree_ptr ptr)
• if(ptr)
• inorder(ptr-gtleft_child)
• printf(d,ptr-gtdata)
• inorder(ptr-gtright_child)
• inorder is invoked 19 times for the
• complete traversal 19 nodes
• output A/BCDE
• - corresponds to the infix form

30
Binary Tree Traversals

• trace of inorder

31
Binary Tree Traversals

• Preorder traversal
• void preorder(tree_ptr ptr)
• if(ptr)
• printf(d, ptr-gtdata)
• preorder(ptr-gtleft_child)
• preorder(ptr-gtright_child)
• output in the order /ABCDE
• - correspond to the prefix form

32
Binary Tree Traversals

• Postorder traversal
• void postorder(tree_ptr ptr)
• if (ptr)
• postorder(ptr-gtleft_child)
• postorder(ptr-gtright_child)
• printf(d, ptr-gtdata)
• output in the order AB/CDE
• - correspond to the postfix form

33
Binary Tree Traversals

• Iterative inorder traversal
• recursion
• - call itself directly or indirectly
• - simple, compact expression good
• readability
• - dont need to know implementation
• details
• - much storage multiple activations
• exist internally
• - slow execution speed
• - application factorial, fibonacci
• number, tree traversal, binary
• search, tower of Hanoi, quick
• sort, LISP structure

34
Binary Tree Traversals

• void iter_inorder(tree_ptr node)
• int top -1
• tree_ptr stackMAX_STACK_SIZE
• while (1)
• while (node)
• push(top, node)
• node node-gtleft_child
• node pop(top)
• if (!node) break
• printf(d, node-gtdata)
• node node-gtright_child
• iterative inorder traversal

35
Binary Tree Traversals

• every node of the tree is placed on
• and removed from the stack exactly
• once
• - time complexity O(n) where
• n the number of nodes in the tree
• - space complexity stack size
• O(n) where
• n worst case depth of the tree
• (case of skewed binary tree)

36
Binary Tree Traversals

• Level order traversal
• traversal by using queue(FIFO)
• output in the order 12345678915
• for previous example ED/CAB

37
Binary Tree Traversals

• void level_order(tree_ptr ptr)
• int front rear 0
• tree_ptr queueMAX_QUEUE_SIZE
• if (!ptr) return
• addq(front,rear,ptr)
• while (1)
• ptr deleteq(front, rear)
• if (ptr)
• printf(d, ptr-gtdata)
• if (ptr-gtleft_child)
• addq(front,rear,ptr-gtleft_child)
• if (ptr-gtright_child)
• addq(front,rear,ptr-gtright_child)
• else break

38
Additional Binary Tree Operations

• copying binary trees
• - modified version of postorder
• tree_ptr copy(tree_ptr original)
• tree_ptr temp
• if (original)
• temp (tree_ptr)malloc(sizeof(node))
• if (IS_FULL(temp)) exit(1)
• temp-gtleft_child
• copy(original-gtleft_child)
• temp-gtright_child
• copy(original-gtright_child)
• temp-gtdata original-gtdata
• return temp
• return NULL

39
Additional Binary Tree Operations

• testing for equality of binary trees
• - modified version of preorder
• int equal(tree_ptr first,tree_ptr second)
• return ((!first !second)
• (first second
• (first-gtdata second-gtdata)
• equal(first-gtleft_child,
• second-gtleft_child)
• equal(first-gtright_child,
• second-gtright_child))

40
Threaded Binary Trees
41
Threaded Binary Trees

• there are more null links than
• actual pointers in representation
• of any binary tree
• n1 null links out of 2n total links
• how to use the null links?
• - replace the null links by
• pointers, called threads, to other
• nodes in the tree

42
Threaded Binary Trees

• construct the thread
• - assume ptr represents a node
• - rules
• 1) if ptr-gtleft_child is null, then
• replace the null link with a
• pointer to the inorder
• predecessor of ptr
• 2) if ptr-gtright_child is null, then
• replace the null link with a
• pointer to the inorder successor
• of ptr

43
Threaded Binary Trees

• threaded binary tree

44
Threaded Binary Trees

• how to distinguish actual pointers
• and threads?
• - add two additional field to the
• node structure
• left_thread and right_thread
• - if ptr-gtleft_thread TRUE
• ptr-gtleft_child contains thread
• - if ptr-gtleft_thread FALSE
• ptr-gtleft_child contains a pointer
• to the left child
• - same for right_thread

45
Threaded Binary Trees

• typedef struct threaded_tree threaded_ptr
• typedef struct threaded_tree
• short int left_thread
• threaded_ptr left_child
• char data
• threaded_ptr right_child
• short int right_thread
• threaded node structure

left_thread
right_thread
right_child
data
left_child
46
Threaded Binary Trees

• two threads have been left dangling
• - the left child of H
• - the right child of G
• how to use two dangling links?
• - add a head(dummy) node
• an empty threaded tree

left_thread
right_thread
right_child
data
left_child
TRUE
FALSE
47
Threaded Binary Trees
root

• memory representation of a threaded
• tree

f FALSE t TRUE
48
Threaded Binary Trees

• inorder traversal of a threaded binary tree
• find the inorder successor of ptr
• - if ptr-gtright_threadTRUE,
• then ptr-gtright_child
• - otherwise follow a path of
• left-child links from the
• right-child of ptr until we reach
• a node with left_threadTRUE
• - find inorder successor without
• using a stack

49
Threaded Binary Trees

• threaded_ptr insucc(threaded_ptr tree)
• threaded_ptr temp
• temp tree-gtright_child
• if (!tree-gtright_thread)
• while (!temp-gtleft_thread)
• temp temp-gtleft_child
• return temp
• finding the inorder successor of a
• node

50
Threaded Binary Trees

• inorder traversal
• - repeated calls to insucc
• - time O(n) where
• n number of nodes in a threaded
• binary tree
• void tinorder(threaded_ptr tree)
• threaded_ptr temp tree
• for ()
• temp insucc(temp)
• if (temp tree) break
• printf(3c, temp-gtdata)
• inorder traversal of a threaded
• binary tree

51
Threaded Binary Trees

• Inserting a node into a threaded binary tree
• insert child as the right child of
• parent
• 1)change parent-gtright_thread to
• FALSE
• 2)set child-gtleft_thread and
• child-gtright_thread to TRUE
• 3)set child-gtleft_child to point to
• parent
• 4)set child-gtright_child to point to
• parent-gtright_child
• 5)change parent-gtright_child to
• point to child
• 6)(if parent has nonempty right child)
• child becomes the inorder
• predecessor of the node that was
• previously parents inorder
• successor

52
Threaded Binary Trees

• void insert_right(threaded_ptr parent,
  threaded_ptr child)
• threaded_ptr temp
• child-gtright_childparent-gtright_child
• child-gtright_threadparent-gtright_thread
• child-gtleft_childparent
• child-gtleft_threadTRUE
• parent-gtright_childchild
• parent-gtright_threadFALSE
• if(!child-gtright_thread)
• tempinsucc(child)
• temp-gtleft_childchild
• right insertion in a threaded binary
• tree

53
Threaded Binary Trees
before
after
54
Threaded Binary Trees
before
after
55
Heaps
56
Heaps

• def) max(min) tree a tree in which
• the key value in each node is no
• smaller(larger) than the key value
• in its children (if any)
• def) max(min) heap a complete
• binary tree that is also a
• max(min) tree
• - the root of a max(min) tree
• contains the largest(smallest) key
• in the tree

57
Heaps

• Representation of max(min) heaps
• - array representation
• because heap is a complete binary
• tree
• - simple addressing scheme
• for parent, left(right) child

58
Heaps

• Heap structure
• define MAX_ELEMENTS 200
• define HEAP_FULL(n) (n MaX_ELEMENTS - 1)
• define HEAP_EMPTY(n) (!n)
• typedef struct
• int key
• / other field /
• element
• element heapMAX_ELEMENTS
• int n 0

59
Heaps

• sample max heaps

60
Heaps

• sample min heaps

61
priority queues

• Priority queue
• - deletion
• deletes the element with the
• highest(or the lowest) priority
• - insertion
• insert an element with arbitrary
• priority into a priority queue at
• any time
• (ex) job scheduling of OS

62
priority queues

• We an use max(min) heap to implement
• the priority queues
• possible priority queue representations

63
Heaps

• Insertion into a max heap
• - need to go from a node to its parent
• ? linked representation
• add a parent field to each node
• ? array representation
• a heap is a complete binary tree
• simple addressing scheme

64
Heaps
(a) heap before insertion
(b) initial location of new node
(d) inset 21 into heap (a)
(c) insert 5 into heap (a)
65
Heaps

• - select the initial location for
• the node to be inserted
• ? bottommost-rightmost leaf node
• - insert a new key value
• - adjust key value
• from leaf to root
• parent position i/2
• - time complexity O(depth of tree)
• ? O(log2n)

66
Heaps

• void insert_max_heap(element item, int n)
• int i
• if (HEAP_FULL(n))
• fprintf(stderr,The heap is full. \n)
• exit(1)
• i (n)
• while ((i!1 ) (item.key gt heapi/2.key))
• heapi heapi/2
• i / 2
• heapi item
• insertion into a max heap

67
Heaps

• deletion from a max heap
• - always delete an element from the root
• of the heap
• - restructure the tree so that it
• corresponds to a complete binary tree
• - place the last node to the root and
• from the root compare the parent node
• with its children and exchanging
• out-of-order elements until the heap
• is reestablished

68
Heaps
(a) heap structure
(b) 10 inserted at the root
(c) final heap
69
Heaps

• - select the removed node
• bottommost-rightmost leaf node
• - place the nodes element in the
• root node
• - adjust key value from root to leaf
• compare the parent node with its
• children and exchange out-of-order
• elements until the heap is
• reestablished
• - time complexity O(depth of tree)
• ? O(log2n)

70
Heaps

• element delete_max_heap(int n)
• element item, temp
• if (HEAP_EMPTY(n))
• fprintf(stderr,The heap is empty\n)
• exit(1)
• item heap1
• temp heap(n)--
• parent 1 child 2
• while (child lt n)
• / compare left and right childs key
  values /
• if ((child lt n) (heapchild.key lt
• heapchild1.key))
• child
• if (temp.key gt heapchild.key) break
• / move to the next lower level /
• heapparent heapchild
• parent child
• child 2

71
Binary Search Trees
72
Binary Search Tree(BST)

• Binary search tree(BST) is a binary
• tree that is empty or each
• node satisfies the following
• properties
• 1)every element has a key, and no
• two elements have the same key
• 2)the keys in a nonempty left
• subtree must be smaller than the
• key in the root of the subtree
• 3)the keys in a nonempty right
• subtree must be larger than the
• key in the root of the subtree
• 4)the left and right subtrees are
• also BST

73
Binary Search Tree(BST)
(a) not a BST
(b) BST
(c) BST
74
Binary Search Tree(BST)

• searching, insertion, deletion is
• bounded by O(h) where h is the
• height of the BST
• can perform these operations both
• - by key value and
• eg) delete the element whith key x
• - by rank
• eg) delete the fifth smallest
• element
• inorder traversal of BST
• - generate a sorted list

75
Binary Search Tree(BST)

• Searching a BST
• tree_ptr search(tree_ptr root, int key)
• /
• return a pointer to the node that contains
• key. If there is no such node, return NULL
• /
• if (!root) return NULL
• if (key root-gtdata) return root
• if (key lt root-gtdata)
• return search(root-gtleft_child, key)
• return search(root-gtright_child, key)
• recursive search of a BST

76
Binary Search Tree(BST)

• tree_ptr iter_search(tree_ptr tree, int key)
• while (tree)
• if (key tree-gtdata) return tree
• if (key lt tree-gtdata)
• tree tree-gtleft_child
• else
• tree tree-gtright_child
• return NULL
• iterative search of a BST

77
Binary Search Tree(BST)

• time complexity for searching
• - average case O(h) where
• h is the height of BST
• - worst case O(n)
• for skewed binary tree

78
Binary Search Tree(BST)

• Inserting into a BST
• void insert_node(tree_ptr node, int num)
• tree_ptr ptr, temp modified_search(node,
  num)
• if (temp !(node))
• ptr (tree_ptr)malloc(sizeof(node))
• if (IS_FULL(ptr))
• fprintf(stderr,The momory is full\n)
• exit(1)
• ptr-gtdata num
• ptr-gtleft_child ptr-gtright_child NULL
• if (node)
• if (num lt temp-gtdata)
• temp-gtleft_child ptr
• else
• temp-gtright_child ptr
• else nodeptr

79
Binary Search Tree(BST)

• modified_search is slightly modified
• version of function iter_search
• - return NULL, if the tree is empty
• or num is present
• - otherwise, return a pointer to the
• last node of the tree that was
• encountered during the search
• time complexity for inserting
• - O(h) where h is the height of the tree

80
Binary Search Tree(BST)

• inserting into a BST

(a) insert 80
(b) insert 35
81
Binary Search Tree(BST)

• Deleting from a BST
• - deletion of a leaf node
• - deletion of a node with 1 child
• - deletion of a node with 2 children
• time complexity for deleting
• - O(h) where h is the height of the tree

82
Binary Search Tree(BST)

• Deleting a leaf or a node with 1 child

35
40
(a) delete 35 (leaf)
(b) delete 40 (node with single child)
83
Binary Search Tree(BST)

• deletion of a node with two children

(a) tree before deletion of 60
(b) tree after deletion of 60
84
Binary Search Tree(BST)

• Height of a BST
• the height of a BST with n elements
• - average case O(log2n)
• - worst case O(n)
• eg) use insert_node to insert the
• keys 1, 2, 3, ..., n into an
• initially empty BST

85
Binary Search Tree(BST)

• Balanced search trees
• - worst case height O(log2n)
• - searching, insertion, deletion is
• bounded by O(h) where
• h is the height of a binary tree
• - AVL tree, 2-3 tree, red-black tree

86
Selection Trees
87
Selection Trees

• merge k ordered sequence(run) into
• a single ordered sequence
• - run ordered sequence
• consists of some number of records
• in nondecreasing order of a key
• field
• selection tree
• - each node represent the smaller of
• its two children
• - the root node represents the
• smallest node in the tree
• - leaf node represents the first
• record in the corresponding run
• - compared to the playing of a
• tournament in which the winner is
• the record with the smaller key

88
Selection Trees

• selection tree for k 8
• showing the first three keys
• in each of the eight runs

89
Selection Trees
node that is changed

• selection tree after one record has
• been output and the tree
• restructured

90
Selection Trees

• - time to restructure the tree is
• O(log2k)
• where k is the number of runs
• - time to merge all n records is
• O(nlog2k)
• - time to set up the selection tree
• the first time is
• O(k)
• ? total time O(nlog2k)

91
Selection Trees

• tree of losers a tournament tree in
• which each non-leaf node retains a
• pointer to the loser
• - slightly faster merging is possible

overall winner
92
Forests
93
Forest

• Def) A forest is a set of n ³ 0
• disjoint trees
• removing the root of any tree
• - produce a forest
• forest with three trees

94
Forest

• Transforming a forest into a binary tree
• 1)obtain the binary tree
• representation for each of the
• trees in the forest
• 2)link all the binary trees together
• through sibling field of the root
• node

95
Forest

• Def) If T1,,Tn is a forest of trees,
• then the binary tree corresponding to
• this forest, denoted by B(T1,,Tn)
• 1)is empty, if n 0
• 2)has root equal to root (T1)
• has left subtree equal to
• B(T11,T12,,T1m), where T11,T12,,T1m
• are the subtrees of root(T1)
• and has right subtree B(T2, , Tn)

96
Forest

• binary tree representation of forest

97
Forest

• Forest traversals
• preorder traversal
• 1)if F is empty, then return
• 2)visit the root of the first tree of F
• 3)traverse the subtrees of the first
• tree in tree preorder
• 4)traverse the remaining trees of F in
• preorder
• ? equivalent to the preorder traversal
• of the corresponding binary tree

98
Forest

• Forest traversals
• inorder traversal
• 1)if F is empty, then return
• 2)traverse the subtrees of the first
• tree in tree inorder
• 3)visit the root of the first tree of F
• 4)traverse the remaining trees of F in
• inorder
• ? equivalent to the inorder traversal
• of the corresponding binary tree

99
Forest

• Forest traversals
• postorder traversal
• 1)if F is empty, then return
• 2)traverse the subtrees of the first
• tree in tree postorder
• 3)traverse the remaining trees of F in
• postorder
• 4)visit the root of the first tree of F
• ? not equivalent to the inorder
• traversal of the corresponding
• binary tree

100
Set Representation
101
Set Representation

• represent sets using trees
• assumptions
• - the elements of the sets are the
• numbers 0, 1, 2, , n-1
• - the sets being represented are
• pairwise disjoint
• eg) partition 10 elements numbered
• 0 through 9 into three
• disjoint sets
• S10,6,7,8, S21,4,9, and
• S32,3,5
• - link the nodes from the children
• to the parent

102
Set Representation

• possible forest representation of
• sets

S1
S3
S2
103
Set Representation

• disjoint set union
• - if Si and Sj are two disjoint sets,
• then their union
• Si È Sj
• all elements, x, such that x is
• in Si or Sj
• find(i)
• - find the set containing
• the element, i

104
Set Representation

• union and find operations
• the set union operation
• - set the parent field of one of the
• roots to the other root
• - with each set name, it is necessary
• to keep a pointer to the root of the
• tree representing that set
• the set find operation
• - each root has a pointer to the set
• name
• - find which set an element is in
• 1)follow the parent links to the root
• of its tree
• 2)return the pointer to the set name

105
Set Representation

• possible representation of S1 È S2

S1 È S2
S2 È S1
106
Set Representation

• data representation of S1,S2,and S3

107
Set Representation

• array representation of S1,S2,and S3
• int find1(int i)
• for( parenti gt 0 i parenti)
• return i
• void union1(int i, int j)
• parenti j / or parentj i /
• initial attempt at union-find
• functions

108
Set Representation

• Previous array representation
• - easy to implement, but not good in
• performance characteristics
• Ex) Si i, 0 ilt p
• - initially, forest with p nodes
• parenti -1, 0 ilt p
• - sequence of union-find operations
• union(0,1),find(0)
• union(1,2),find(0)
• union(n-2,n-1),find(0)
• - produces degenerate tree
• - time complexity for the above
• sequence O(n) O(n2)

109
Set Representation

• degenerate tree

110
Set Representation

• For avoiding the creation of
• degenerate trees
• - weighting rule for union(i,j)
• Def) weighting rule for union(i,j)
• if the number of nodes in tree i
• is less than the number in tree j
• then make j the parent of i
• otherwise make i the parent of j.
• need to know how many node there are
• in every tree
• - maintain a count field in the root
• of every tree counti for root i
• ? parenti -counti

111
Set Representation

• trees obtained using the weighting
• rule

initial
union(0,1), 0find(0)
union(0,2), 0find(0)

union(0,3), , 0find(0)
union(0,n-1)
112
Set Representation

• void union2(int i, int j)
• / union the sets with roots i and j, i ! j,
• using the weighting rule.
• parenti -counti and
• parentj -countj /
• int temp
• temp parenti parentj
• if (parenti gt parentj)
• parenti j / make j the new root/
• parentj temp
• else
• parentj i / make i the new root/
• parenti temp
• union function

113
Set Representation

• lemma
• let T be a tree with n nodes created
• as a result of union2
• ? no node in T has level greater
• than log2n 1
• ? time complexity for find in an n
• element tree O(log2n)
• ? time complexity for n-1 union and
• m find operations O(n mlog2n)

114
Set Representation

• Example consider behavior of union2
• union(0,1) union(2,3) union(4,5)
• union(6,7) union(0,2) union(4,6)
• union(0,4)

level
command
1
initial
1
union(0,1) union(2,3)
2
union(4,5) union(6,7)
115
Set Representation
level
command
1
union(0,2) union(4,6)
2
3
1
union(0,4)
2
3
4
116
Set Representation

• Further improvement is possible
• if we add a collapsing rule to the
• find operation
• Def)collapsing rule If j is a
• node on the path from i to its
• root then make j a child of the
• root

117
Set Representation

• int find2(int i)
• / find the root of the tree containing element
  i.
• use the collapsing rule to collapse all nodes
• from i to root /
• int root, trail, lead
• for (root i parentroot gt 0 root
  parentroot)
• for (traili trail ! root traillead)
• lead parenttrail
• parenttrail root
• return root

118
Set Representation

• Lemma (Tarjan)
• Let T(m,n) be the maximum time
• required to process an intermixed
• sequence of m?n finds and n-1
• unions. Then
• k1ma(m,n) ? T(m,n) ? k2ma(m,n)
• for some positive constants k1 and k2.

119
Set Representation

• Ackermanns function
• A(p,q)
• 2q if p 0
• 0 if p ? 1 and q 0
• 2 if p ? 1 and q 1
• A(p-1,A(p,q-1)) if p ? 1 and q ? 2
• a(m,n) min(z?1 A(z,4 m/n ) gt log2n

120
CountingBinary Trees
