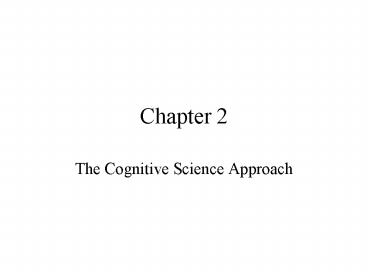

The Cognitive Science Approach

1
Chapter 2

• The Cognitive Science Approach

2
Guiding Principles

• Our metatheory is the information processing
  approach
• Cognition equals the coordinated operation of
  active mental processes within a multi component
  memory system.

3
Seven Themes of Cognition

• Attention
• Automatic versus conscious processing
• Data-driven versus conceptually driven processing
• Representation
• Implicit versus explicit memory
• Metacognition
• Brain

4
Seven Themes of Cognition
5
Time and Accuracy Measures

• Reaction Time
• A measure of the time elapsed between some
  stimulus and the persons response to the
  stimulus (RT).
• Almost always measured in milliseconds.

6
Vocal Reaction Times to Multiplication Problems
7
Time and Accuracy Measures

• Accuracy
• Often we are interested instead in some measure
  of peoples accuracy.
• The earliest use of accuracy as a measure of
  mental processes was the seminal work by
  Ebbinghaus, published in 1885.

8
Serial position curves, showing the decrease in
accuracy at the end of the list when 0, 10, or 30
s of backward counting intervenes between study
and recall.
9
Analogies

• The channel capacity analogy
• Like a telephone wire, humans are
  limited-capacity information processors.
• The computer analogy
• Human information processing may be similar to
  the way computers work.

10
The Standard Theory

• The Atkinson and Shiffrin Model of Human Memory
• Three memory components sensory memory,
  short-term memory, and long-term memory.

11
The Standard Theory of Human Information
Processing

• The Atkinson and Shiffrin Model

12
Process Models

• A hypothesis about the specific mental processes
  that take place when a particular task is
  performed.

13
The Lexical Decision Task

• Yes or no, do the following letter strings form
  valid English words?
• 1) Robin _____
• 2) Manty _____
• 3) Nurse ______
• 4) Trock ______

14
A Process Model of the Lexical Decision Task

• Encode
• Search
• Decide
• Respond

15
A Process Model of the Lexical Decision Task
16
Assumptions of Strict Information Processing

• Sequential stages of processing
• Independent and non-overlapping stages of
  processing

17
Difficulties of Strict Information Processing

• Solid evidence exists for parallel processing,
  e.g. Typing
• Context effects, e.g. Semantic Priming
• Not useful for studying complex cognition (e.g.,
  problem solving tasks) and tasks with slower RTs

18
Context Effects

• Count the number of Fs in the following
  sentence (Warning This is harder than it looks)
• Finished files are the result of years of
  scientific study combined with the experience of
  many years.

19
Top-Down Processing

• AKA Conceptually-driven processing
• When existing context has an influence on earlier
  or simpler forms of mental processes
• In the finished files example, reading is so
  automatic that youve learned to ignore function
  words like of-- an example of top down
  processing.

20
Updating the Standard Theory
21
Neurocognition

• Dissociation A disruption in one component of
  memory but no impairment of another.
• Simple versus double dissociations
• Lack of dissociation an association

22
Neurons
23
Neuron Anatomy

• Soma
• Nucleus
• Dendrite
• Myelin Sheath
• Aborizations
• Terminal Buttons
• Axon
• Axon Hillock

• Receptor cells / sensory neurons
• Effector cells / motor neurons
• Interneuron
• Synapse
• Neurotransmitters

24
Brain Anatomy
TOP
FRONT

• BACK

25
Brain AnatomyLower Brain Structures
26
Brain Anatomy (cont.)

• Three other subcortical (below the neocortext)
  structures are especially important to
  neurocognition
• thalamus the gateway to the cortex almost
  all messages entering the cortex come through
  the thalamus
• corpus callosum the primary bridge across
  which messages pass between the left and right
  halves or hemispheres of the neocortex
• hippocampus an internal brain structure
  strongly implicated in the storing of new
  information into long-term memory

27
Four Lobes of the Neocortex
28
Brain Anatomy

• Corpus Callosum
• Thalamus
• Hypothalamus
• Pituitary
• Hippocampus
• Amygdala
• Medulla

• Cerebral Cortex
• Frontal Lobe
• Parietal Lobe
• Occipital Lobe
• Temporal Lobe

29
Principles of Function

• Contralaterality
• The receptor and control centers for one side of
  the body are in the opposite hemisphere of the
  brain.

30
Brain Anatomy
31
Principles of Function

• Hemispheric Specialization
• Different brain functions tend to rely more
  heavily on one hemisphere or the other.
• Example The left hemisphere controls language
  for most right-handed people.

32
The two hemispheres of the brain are connected by
a band of fibers called the corpus callosum
33
Split-Brain Patients

• Severed corpus callosum to stop epileptic
  seizures
• No obvious problems at first
• Laboratory testing revealed some problems
• Remember

34
Left visual field projects to right hemisphere R
ight visual field projects to left hemisphere
35
(No Transcript)
36
Split Brain Research

• Sperry -- severed corpus callosums of people with
  severe epilepsy.
• How does Sperrys research support the idea that
  the left hemisphere processes language?

37
Split-Brain Research and Lateralization

• Research on split-brain patients
• Principle of lateralization

38
Methods of Investigation

• Lesions Used by Sperry the site and extent of
  the brain lesion are important guides to the kind
  of disruption in behavior that is observed and
  vice versa.
• Direct Stimulation Pioneered by Penfield the
  patient in brain surgery remained conscious
  during surgery and was administered minute
  electrical charges to the exposed brain, thus
  triggering very small regions.

39
Exposed cortex of one of Penfields patients
40
Methods of Investigation (cont.)

• Imaging Technology
• Magnetic Resonance Imaging (MRI) Gives clear
  pictures of the structure of the brain.
• Functional MRI Image shows regions of the brain
  with heightened neural activity, with different
  colors reflecting high or low levels of blood
  flow, oxygen uptake, and the like.

41
Methods of Investigation (cont.)

• Electrocephalograms (EEG) Electrodes are
  attached to the subjects scalp, and the device
  records the patterns of brain waves.
• Event-Related Potentials The momentary changes
  in electrical activity of the brain when a
  particular stimulus is presented to the subject.

42
Event Related Potential (ERP)
43
Parallel Distributed Processing
44
Neural Net Models

• AKA Parallel distributed processing, or
  connectionist models.
• Contain a system of interconnected nodes, with
  knowledge represented by the interconnections
  between units.
• Processing in the model is massively parallel.

45
Brain vs. Computer

• 100 billion neurons (1012)
• Clock speed 1KHz
• of processors ???
• Equivalent MIPS 100 million (1014)

• 100 million transistors (109)
• Clock speed 3 GHz (3x1012)
• of processors 2
• Equivlent MIPS 10,000 (1011)

Brain 1000x faster (for now)
46
Summary of Major Topics Covered in Chapter 2

• Measuring information processing
• The information processing approach
• The modern cognitive approach
• Neurocognition
• Neural Net Models
