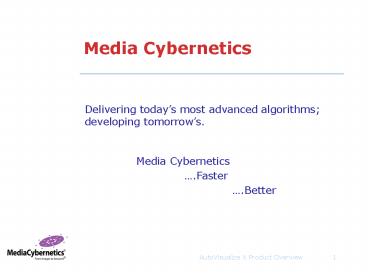

Media Cybernetics

1
Media Cybernetics
Delivering todays most advanced algorithms
developing tomorrows.
Media Cybernetics .Faster .Better
2
AutoVisualize
An important part of your imaging system
AutoVisualize is a visualization, processing, and
analysis application designed for inspecting
n-dimensional data obtained using any modality of
microscopic imaging.
3
AutoVisualize X
Image Visualization Application

• Multiple concurrent 3D viewers
• Powerful visualization tool for Microscopy
• Rapid visual analysis of complex data
• Broad file format support
• Time series and n-dimensional
• data management

4
Data Manager

• Summary of all open data
• Dimensional hierarchy
• Optical settings
• Intensity histogram display
• Image enhancement control

5
Optical Settings

• Make editions to any optical parameter
• Calculators to determine unknown spacing sizes
• Define frequently used instrument settings

6
New Viewer Toolbar
7
Multi-Dimensional Views
Viewing time and rotation

• Open multiple viewers
• Synchronize in both time and rotation
• Multi-dimensional data visualization
• Time series and Rotation movies

8
Viewer Synchronizer

• Easily synchronize multiple 3D displays to
  highlight results of data restoration

9
View Subvolumes
Subvolumes and Cropping
10
Maximum Projection
Supported Projections
11
Iso-Surface
Supported Projections
12
Alpha Blend
Supported Projections
13
Channel Manipulation
Display Control
14
Multiple Oblique Slices
Display Control
15
Selective Oblique Slicing
Display Control
16
Shadow
Display Control
17
Insert Annotation
Display Control

• Annotate your data in movies and static
  renderings
• Labels
• Captions
• Grids
• Logos

18
Why AutoVisualize
Compatible, Innovative, Easy

• Open multiple concurrent viewers
• Access to complex multidimensional data
• Meaningfully presents your data
• Powerful 3D rendering capabilities
• Experienced world-wide user base

19
Why Media Cybernetics
Deconvolution, Visualization, Analysis

• Established technological focus in deconvolution
• Over 25 years of dedicated research
• Media Cybernetics stands behind all of its
  products
• World class education and support
• Committed focus ensures customer access to the
  latest technologies for today and tomorrow
