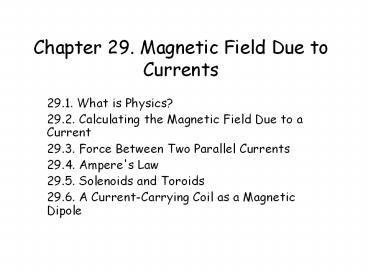

Title: Chapter 29. Magnetic Field Due to Currents


1
Chapter 29. Magnetic Field Due to Currents
  • 29.1. What is Physics?
  • 29.2. Calculating the Magnetic Field Due to a
    Current
  • 29.3. Force Between Two Parallel Currents
  • 29.4. Ampere's Law
  • 29.5. Solenoids and Toroids
  • 29.6. A Current-Carrying Coil as a Magnetic Dipole

2
What is Physics?



A moving charged particle produces a magnetic
field around itself
3
Magnetic Field Due to a Current


The permeability constant, whose value is defined
to be exactly
A length vector     that has length ds and
whose direction is the direction of the current
in ds.


4
Magnetic Field Due to a Current in a Long
Straight Wire


5
Magnetic field lines produced by a current in a
long straight wire




6
Right-hand rule

  • Grasp the element in your right hand with your
    extended thumb pointing in the direction of the
    current. Your fingers will then naturally curl
    around in the direction of the magnetic field
    lines due to that element.

7
Magnetic Field Due to a Current in a Circular Arc
of Wire


8
A Current-Carrying Coil as a Magnetic Dipole


For a loop, ?2p, at the center of the loop
If
9
Sample Problem
The wire in Fig. 29-8a carries a current i and
consists of a circular arc of radius R and
central angle      rad, and two straight
sections whose extensions intersect the center C
of the arc. What magnetic field     does the
current produce at C?


10
Example  Finding the Net Magnetic Field
  • A long, straight wire carries a current of
    I18.0 A. As Figure 21.31a illustrates, a
    circular loop of wire lies immediately to the
    right of the straight wire. The loop has a radius
    of R0.030 m and carries a current of I22.0 A.
    Assuming that the thickness of the wires is
    negligible, find the magnitude and direction of
    the net magnetic field at the center C of the
    loop.

11
Two Current-Carrying Wires Exert Magnetic Forces
on One Another
  • To find the force on a current-carrying wire due
    to a second current-carrying wire, first find the
    field due to the second wire at the site of the
    first wire. Then find the force on the first wire
    due to that field.
  • Parallel currents attract each other, and
    antiparallel currents repel each other.

12
 Ampere's Law



  • The loop on the integral sign means that is to be
    integrated around a closed loop, called an
    Amperian loop. The current ienc is the net
    current encircled by that closed loop.
  • Curl your right hand around the Amperian loop,
    with the fingers pointing in the direction of
    integration. A current through the loop in the
    general direction of your outstretched thumb is
    assigned a plus sign, and a current generally in
    the opposite direction is assigned a minus sign.

13
Example An Infinitely Long, Straight,
Current-Carrying Wire
  • Use Amperes law to obtain the magnetic field
    produced by the current in an infinitely long,
    straight wire.

14
Magnetic Field Inside a Long Straight Wire with
uniformly distributed Current


15
A LOOP OF Current
  • For a single loop, the magnetic field at the
    center is Bµ0I/(2R)
  • For a loop with N turns of wire,

16
Comparison a loop wire and a bar magnet
  • loop wire


  • bar magnet

17
Magnetic Field of a Solenoid










For a long ideal solenoid
where n is the number of turns per unit length of
the solenoid
18
Magnetic Field of a Toroid


19
Example
  • A solenoid is 0.50 m long, has three layers of
    windings of 750 turns each, and carries a current
    of 4.0 A. What is the magnetic field at the
    center of the solenoid?

20
Example
21
Example
22
Example
23
Example
