Secure Remote Authentication Using Biometrics

1

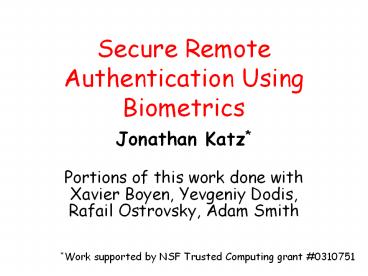

Secure Remote Authentication Using Biometrics
Jonathan Katz

• Portions of this work done with Xavier Boyen,
  Yevgeniy Dodis, Rafail Ostrovsky, Adam Smith

Work supported by NSF Trusted Computing grant
0310751
2
Motivation

• Humans are incapable of securely storing
  high-quality cryptographic secrets, and they have
  unacceptable speed and accuracy. (They are also
  large and expensive to maintain. But they are
  sufficiently pervasive that we must design our
  protocols around their limitations.)
• From Network Security Private Communication in
  a Public World, by Kaufman, Perlman, and
  Speciner

3
Possible solutions?

• (Short) passwords?
• (Hardware) tokens?
• Biometrics
• Storage of high-entropy data for free

4
Problems with biometrics

• At least two important issues
• Biometrics are not uniformly random
• Biometrics are not exactly reproducible
• Outside the scope of this talk
• Are biometrics private?
• Sufficiently-high entropy?
• Revocation?

5
Previous work I

• Davida-Frankel-Matt 98 Monrose-Reiter-(Li)-Wetze
  l 99, 01
• Juels-Wattenberg 99 Frykholm-Juels 01
  Juels-Sudan 02

6
Previous work II

• Dodis-Reyzin-Smith 04
• Their framework and terminology adopted here
• Boyen 04
• Two main results
• One result information-theoretic second in RO
  model

7
Question

• Can we use biometric data (coupled with these
  techniques) for remote user authentication?
• E.g., authentication over an insecure,
  adversarially-controlled network?
• Without requiring users to remember additional
  info, or the use of hardware tokens?

8
Does previous work, work?

• DRS04 No!
• Assume secure channel btw/ user and server
• Security vs. passive eavesdropping only
• Boyen04
• Focus is on general solutions to different
  problems
• In general, techniques only seem to achieve
  unidirectional authentication
• By focusing on the specific problem of interest,
  can we do better?

9
Main results

• Short answer Yes!
• By focusing specifically on remote
  authentication, we can do better
• Two solutions
• Compared to Boyen04
• Solution in standard model
• Solutions tolerating more general errors
• Achieve mutual authentication
• Improved bounds on the entropy loss

10
First solution

• Generic, plug-in solution whenever data from
  server may be tampered
• In particular, applies to remote authentication
• Proven secure in RO model
• Tolerates more general class of errors than
  Boyen04
• Mutual authentication

11
Second solution

• Specific to the case of remote authentication/key
  exchange
• Provably secure in standard model
• Lower entropy loss compared to Boyen04 and
  previous solution
• Can potentially be used for lower-entropy
  biometrics and/or secrets (passwords?)
• Still tolerates more general errors and allows
  mutual authentication (as before)

12
Some background
13
Security model I

• Standard model for (key exchange) mutual
  authentication BR93
• Parties have associated set of instances
• Adversary can passively eavesdrop on protocol
  executions
• Adversary can actively interfere with messages
  sent between parties can also initiate messages
  of its own

14
Security model II

• Notion of partnering
• Informally, two instances are partnered if they
  execute the protocol with no interference from
  the adversary
• More formally (but omitting some details),
  instances are partnered if they have identical
  transcripts

15
Security model III

• (Mutual) authentication
• Instances accept if they are satisfied they are
  speaking to the corresponding partner (determined
  by the protocol)
• Adversary succeeds if there is an accepting
  instance which is not partnered with any other
  instance

16
Security model IV

• Quantify adversarys success in terms of its
  resources
• E.g., as a function of the number of sessions
  initiated by the adversary
• On-line vs. off-line attacks
• This can give a measure of the effective
  key-length of a solution

17
Recap of DRS04

• Use Hamming distance for simplicity
• (m, m, t)-secure sketch (SS, Rec)
• For all w, w with d(w,w) ? tRec(w, SS(w))
  w(I.e., recovery from error)
• If W has min-entropy ?m, the average min-entropy
  of WSS(W) is ?m(I.e., w still hard to guess)


18
Recap of DRS04

• (m, l, t, ?)-fuzzy extractor (Ext, Rec)
• Ext(w) -gt (R, P) s.t. 1. SD((R, P), (Ul,P)) ?
  ?(I.e., R is close to uniform)2. For all w
  s.t. d(w,w) ? t, Rec(w, P) R(I.e., recovery
  from error)

19
Applications

• DRS04 assumes that P is reliably transmitted to
  the user
• E.g., in-person authentication to your laptop
  computer
• No guarantees if P is corrupted

20
Boyen04

• Main focus is reusability of biometric data
  (e.g., with multiple servers)
• Somewhat tangential to our concern here
• Also defines a notion of security for fuzzy
  extractors when P may be corrupted

21
Boyen04

• (Ignoring reusability aspect)
• w chosen (R, P) Ext(?(w)) for some ?
  adversary gets P
• Adversary submits P1, ? P and ?1, gets back
  R1 Rec(?1(w), P1),
• Secure if adv. cant distinguish R from random
  (except w/ small prob.)

22
Error model

• We assume here that d(w, ?i(w)) ? t
• I.e., errors occurring in practice are always at
  most the error-correcting capability of the
  scheme
• Under this assumption, Boyen04 disallows Pi P
  in adversarys queries

23
Construction

• Construction in Boyen04 achieves security
  assuming errors are data-independent
• I.e., constant shifts
• Construction analyzed in RO model

24
Application to remote authentication
Essentially as suggested in Boyen04
(w)
(P, PK)
(R,P) Ext(w) R -gt (SK, PK)
R Rec(P, w) R -gt (SK, PK) ? SignSK(nonce)
Verify
25
Security?

• Intuition
• If adversary forwards P, then user is signing
  using his real secret key
• Using a secure signature scheme
• If adversary forwards P ? P
• User computes some R and a signature w.r.t. (key
  derived from) R
• But even R itself would not help adversary learn
  R!

26
But

• Unidirectional authentication only
• No authentication of server to user
• The definition of Boyen04 (seemingly) cannot be
  used to achieve mutual authentication
• Nothing in the definition guarantees that
  adversary cant send some P and thereby guess R


27
New constructions
28
Construction I

• Modular replacement for any protocol based on
  fuzzy extractors, when P may be corrupted
• Idea ensure that for any P ? P, the user will
  reject
• Adversary forced to forward real P
• Sealed (fuzzy) extractor
• Allow Rec to return reject

29
Error model

• Defined by a sequence of random variables (W0,
  W1, ) over some probability space ? such that
  for all ?, i we have d(W0(?), Wi(?)) ? t
• More general model than Boyen04
• Allows data-dependent errors
• May be too strong

30
Security definition

• User has w0 computes (R,P)lt-Ext(w0) adversary
  given P
• Adversary submits P1, , Pn ? P
• Adversary succeeds if ?i s.t. Rec(wi, Pi) ?
  reject

31
Application to remote authentication
(w)
(P, R)
(R,P) Ext(w)
R Rec(P, w) c1 FR(n1)
Verify c2 FR(n2)
(Or run authenticated Diffie-Hellman)
32
Security?

• If adversary forwards P ? P, user simply rejects
• If adversary forwards P, then user and server are
  simply running auth. protocol of BR93

33
Constructing sealed extractor

• First construct secure sketch
• Definition similar to that of sealed extractor
• Construction is in the RO model
• Then apply standard extractors (as in DRS04)
• This conversion is unconditional

34
Constructing sealed sketch

• Let (SS, Rec) be any secure sketch
• Define (SS, Rec) as follows

SS(w) slt-SS(w) h H(w,s) output (s,h)
Rec(w,(s,h)) wlt-Rec(w,s) if (hH(w,s) and
d(w,w) ? t) output w else reject
35
Intuition?

• h certifies the recovered value w
• But because of the RO model, it does not leak
  (much) information about w
• Also, because of RO model, impossible to generate
  forged h without making (explicitly) a certain
  query to the RO
• Adversary doesnt make this query (except with
  small probability) since min-entropy of recovered
  w is still high enough

36
Performance?

• Entropy loss of w occurs in essentially three
  ways
• From public part s of underlying sketch, and
  application of (standard) extractor
• Bounded in DRS04
• Due to the error model itself
• Inherent if we are using this strong model
• From the sealed extractor construction
• Roughly a loss of (log Volt,n) bits

37
Construction II

• Specific to remote authentication
• Idea bootstrap using auth. protocol that can
  handle non-uniform shared secrets
• Problem of non-uniformity goes away
• All we are left with is the issue of
  error-correction

38
Specifics

• Use a password-only authentication (and key
  exchange) protocol (PAK)!
• These were designed for use with short
  passwords
• But no reason to limit their use to this
  application

39
Brief introduction/review

• Problem
• Two parties share a password from a
  (constant-size) dictionary D
• If D is small (or has low min-entropy), an
  adversary can always use an on-line attack to
  break the protocol
• Can we construct a protocol where this is the
  best an adversary can do?

40
Introduction/review

• Specifically, let Q denote the number of
  on-line attacks
• Arbitrarily-many off-line attacks are allowed
• Then adversarys probability of success should be
  at most Q/D
• Or Q/2min-entropy(D)

41
Introduction/review

• Can view PAK protocols in the following,
  intuitive way
• Each on-line attack by the adversary represents a
  single guess of the actual password
• This is the best an adversary can do!

42
Constructions?

• Bellovin-Merrit
• BPR,BMP definitions, constructions in random
  oracle/ideal cipher models
• GL construction in standard model
• KOY efficient construction in standard model,
  assuming public parameters

43
Application to remote authentication
(w)
(s, w)
s SS(w)
w Rec(s, w)
44
Intuition

• Even if adversary changes s, the value w
  recovered by the user still has high enough
  min-entropy
• By security of PAK protocol, adversary reduced to
  guessing this w

45
Performance?

• Using a secure sketch is enough
• Do not need fuzzy extractor
• PAK protocol doesnt need uniform secrets!
• Save 2log(1/?) bits of entropy
• This approach works even when residual
  min-entropy is small
• Can potentially apply even to mis-typed passwords

46
Summary

• Two approaches for using biometric data for
  remote authentication
• Drop-in solution in RO model
• Solution specific to remote authentication in
  standard model
• Compared to previous work
• Solutions tolerating more general errors
• Achieve mutual authentication
• Improved bounds on the entropy loss
• Solution in standard model
