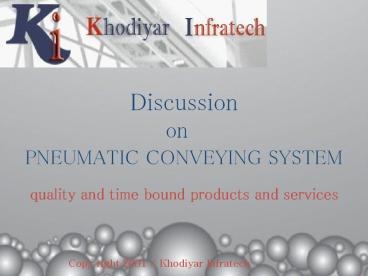

Discussion on PNEUMATIC CONVEYING SYSTEM

• quality and time bound products and services

Copy right 2001 Khodiyar Infratech
2
PNEUMATIC CONVEYING SYSTEM !!!
Copy right 2001 Khodiyar Infratech
3
     Sanitary Pneumatic Conveying
KHODIYAR INFRATECH offers high quality pneumatic
conveying systems and equipment for the food,
pharmaceutical, chemical and packaging industries.
Copy right 2001 Khodiyar Infratech
4
     Sanitary Pneumatic Conveying

• Dust free stainless or mild steel vacuum systems
• Dense phase vacuum systems for fragile and
  pre-mixed product
• Sophisticated controls
• Positive pressure lean phase systems
• Specialized powder handling for non free flowing
  products
• Turnkey systems
• Abrasion resistant systems
• High accuracy multi material weighers.
• The P-Series filtered receivers are specially
  designed for use with powders and friable


• materials in sanitary applications

Copy right 2001 Khodiyar Infratech
5
     Sanitary Pneumatic Conveying
 Elements of a Vacuum Conveying System
Copy right 2001 Khodiyar Infratech
6
     Sanitary Pneumatic Conveying
 Elements of a Vacuum Conveying System
From pick-up spike to piping to receivers and
vacuum pumps, KHODIYAR INFRATECH offers a wide
range of equipment for pneumatic conveying needs,
whether for automated refill of feeding systems
or as standalone conveying applications. The
following list describes the varied elements
available from KHODIYAR INFRATECH for building a
complete conveying system for loss-in-weight
feeder refill (pictured in the diagram above).
Copy right 2001 Khodiyar Infratech
7
     Sanitary Pneumatic Conveying
Material Pick-up
From pick-up spike to piping to receivers and
vacuum pumps, KHODIYAR INFRATECH offers a wide
range of equipment for pneumatic conveying needs,
whether for automated refill of feeding systems
or as standalone conveying applications. The
following list describes the varied elements
available from KHODIYAR INFRATECH for building a
complete conveying system for loss-in-weight
feeder refill (pictured in the diagram above).
Copy right 2001 Khodiyar Infratech
8
     Sanitary Pneumatic Conveying
Conveying Line
Connect one or multiple material picks up
stations to a vacuum receiver. To ensure
blockage-free conveying, diverter valves (4) and
line clearance valves (5) are available in
addition to the piping.
Copy right 2001 Khodiyar Infratech
9
     Sanitary Pneumatic Conveying
Vacuum Receivers
various models of central (7) and self-contained
receivers are available to separate the material
from the conveying air stream, alternating
between suction and discharge modes of operation.
Sequence Vent Valves
Sequence vent valves (8) allow the air stream
to bypass and vent the vacuum receiver during the
discharge cycle.
Copy right 2001 Khodiyar Infratech
10
     Sanitary Pneumatic Conveying
Pump Packages
Vacuum pump packages include the pump --
regenerative blower (9), sliding vane or rotary
lobe blower (10) -- to produce the air stream as
well a bypass valve (11) to allow the pump to run
while no receiver is conveying and a secondary
filter (12) to protect the vacuum pump from
entrance of foreign bodies.
Copy right 2001 Khodiyar Infratech
11
     Sanitary Pneumatic Conveying
Controls
HCU/HSU control and operator interface are
available to control a single central or
self-contained unit. To control the sequence of a
multi-component system PLC controls (13) are
available which are programmed to suit the
clients process. Siemens, Mitsubishi and Allen
Bradley PLC controls are available. For more
detail please click here
