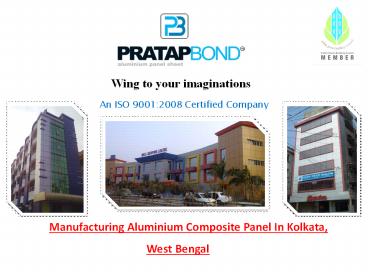

Pratap Bond

1
Wing to your imaginations
An ISO 90012008 Certified Company
Manufacturing Aluminium Composite Panel In
Kolkata,
West Bengal
2
(No Transcript)
3
(No Transcript)
4
Introduction
PRATAP POLYSACKS LTD, An ISO 90012008 Company of
PRATAP GROUP  brings you  Aluminium Composite
Panel manufactured with the latest imported
machine in a international standard
infrastructure at KOLKATA, WEST BENGAL with the
capacity of 10 million sqft p.a. to meet the
demand of quality Aluminium Composite Panel for
both exterior and interior of the building .The
company has the turnover of Rs. 300 crore p.a.
and hired a team of professional who have a long
experience expertise in the field of Aluminium
Composite Panel. PRATAP GROUP is committed to
expand with a bigger and higher quality product
unit that will be of international standard.
5
Composition of Aluminium Composite Panel

• Surface protection film of 3 layer of 70-100
  microns
• PVDF coating 30microns.
• Top aluminium skin of 0.5mm/0.25mm/0.20mm
• Dupont adhesive film of 3 layer of
  70/50/30microns
• Polyethylene core of 3mm/(2.5mm or 3.5mm)
• Dupont adhesive film of 3 layer of
  70/50/30microns
• Bottom Alumnimium skin of 0.50mm/0.25mm/0.20mm
• PE washcoat of 5-10 pm
• Online/Final inspection
• Periodic Product Performance tests
• Continuous visual check
• Hourly peel strength graphical analysis .
• Online peel strength checking by push pull gauge
  periodic
• checking of thickness, length manually

6
Features
7
Benefits

• Pratap Bonds Aluminium Composite Panel gives
  Wings to your imaginations. Prata Bonds
  Aluminium Composite panels have a number of
  benefits over other brands panels.
• Adding true beauty to a structure
• Easily and quick installation
• Economical
• Long lasting durability
• Excellent weather resistance
• Signature of noise and thermal insulating
• Non-toxic in nature
• Environmental friendly
• Chemical resistance
• Least maintenance required
• Damp water resistance.

8
Shade Card
9
Applications Exteriors-
Commercial Buildings Factory buildings Residential buildings Hotels Restaurants Institutes, Schools and universities Hospitals Health centers Shopping centers Multiplexes Banquets Signage Shop fronts Bus Stands Airports Railway stations Sports stadiums and halls Petrol pumps Bridge cladding Banks ATMs Exhibition Design Vehicles Models And many more.
10
Commercial Buildings
11
Hotels Restaurants
12
Hospitals Health Centre
13
Road Highway Developments
14
Railways Developments
15
Showrooms
16
Others
17
Applications Interiors
Interior walls False ceilings Columns Partitions Shop inside design Escalator cladding Modular kitchens Furniture design Flush doors Noise-barrier walls Photo printing Portals And many more.
18
Interior Walls Cabins
19
False Ceilings
20
Flush Doors Partitions
21
Others
22
Pratap Bond ACP Test Reports
23
Benefits over other materials
Properties PRATAPBOND ACP Aluminium Steel Granite/Stone
Weight 4mm 5.5kg/m2 3mm 8.0kg/m2 1.5mm 11.47kg/m2 -
Flatness Excellent Uneven Uneven Good
Heat Insulation Excellent Poor Poor Average
Sound Insulation Highest Medium Low Medium
Echo Response Low Medium High Medium
Paint Consistency Excellent Inconsistence Inconsistence -
Paint Micron Even Uneven Uneven -
Weather Proof Good Good Good Good
Fire Proof Good Good Good Good
Fabrication Easy Difficult Difficult Difficult
Installation Quick Medium Difficult Difficult
Delivery Soon Slow Slow Slow
Total Cost Cheap Medium High High
Maintenance Easy Easy Easy Easy
24
Why Pratap Bonds ACP ?
Pratap Bonds Aluminium Composite Panel
manufactured with maintaining international
quality. We are using high quality PVDF coating
for exterior product PF coating for interior
product which are also having the supreme quality
thickness. Our key component, the coated
aluminium skin is directly procured from the
manufacturer having guaranteed excellent
durability which helps to protect it from the
harming effects of sunlight, rain, dust etc.
Our Advantage

• Quality
• Network
• Supply
• Customized Range
• Service

25
PRATAP BOND ACP a Green Building Product
Due to Global Warming all are looking for Green
Building Products to maintain the ecological
balance. We are please to notified that ACP is a
Green Building Product and it can be used in
Green Building Projects. The Features which
makes the ACP a Green Building Product

• Eco Friendly
• Reusable Recyclable
• Water Resistant
• Fire Resistant
• Non Hazardous
• Extended Life
• User Friendly

26
Some of Our Important Projects

• Noapara Metro Station
• Vibgyor Tower project of NBCC at Rajarhat
• Nazrul Mancha at Southern Avenue, Kolkata
• Indian Railways
• Classic Motor(Tata Motor Franchise) at
  Dhanbad,Jharkhand
• Birla Institute Technology Musium
• I.C.W.A Office at Harish Mukherjee Road, Kolkata.
• Netaji Subhas Airport(Old).
• Hotel Gayetri Palace at Mazaffarpur
• PWD Housing Board Office, Bihar
• Kolkata Police Stations Building
• Adhunik Power Plant at Jamshedpur
• Indian Statistical Institute at B.T Road, Kolkata
• Jash Textile Market at Surat
• BMC Market at Bhubaneswar
• L.I.C Housing At Doltala,West Bengal
• Ambuja Realty Eco-space at Rajarhat
• Calcutta University at Saltlake

27
Our Projects
28
Wings to your imaginations
Thank You
Head Office 15A, Hemanta Basu Sarini, 5th Floor,
Continental Chambers, Kolklata 01 Website -
www.pratapbond.com
www.pratapgroup.com E-Mail -
sales.acp_at_pratapgroup.com
