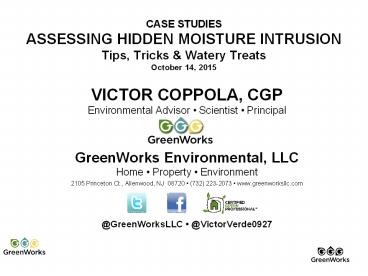

CASE STUDIESASSESSING HIDDEN MOISTURE
INTRUSIONTips, Tricks Watery TreatsOctober
14, 2015
  • VICTOR COPPOLA, CGP
  • Environmental Advisor Scientist Principal
  • GreenWorks Environmental, LLC
  • Home Property Environment
  • 2105 Princeton Ct., Allenwood, NJ 08720 (732)
    223-2073 www.greenworksllc.com
  • _at_GreenWorksLLC _at_VictorVerde0927

2
Why Moisture Management
  • Poorly managed moisture is the primary driving
    force leading to Sick Building Syndrome that
    often shows up as biological contamination,
    building material biodeterioration, structural
    settling and overall IAQ degradation. Having a
    good working knowledge of the Water Cycle is
    the first part of assessing how our Built
    Environments collide with the Natural
    Environment. But getting into the minutia of
    Moisture Migration Pathways is whats ultimately
    needed to truly understand ones home
    environment.
  • Victor Coppola, CGP

www.greenworksllc.com
2
3
The TIPPING POINT
  • Talk about moisture and the health of our homes
    often revolves around a series of Seemingly
    Insignificant Events.
  • That transition line - where we go from
    everythings fine to disaster is called the
    Tipping Point. It can reveal itself at any
    time. You will know when it hits, look for the
    puddle!

www.greenworksllc.com
3
4
CASE STUDY DISCUSSIONNew Custom Home (ca. 2010
with reused / expanded 1920 foundation)
  • Home is all top line construction with spray foam
    insulation, radiant floor heat, etc.
  • The Prospective Buyers 12yo daughter has mold
    sensitivity and childhood asthma
  • Home is immaculate where some water from Sandy
    hit crawl space which was visually immaculate as
    well

10/14/15
www.greenworksllc.com
4
5
CASE STUDY DISCUSSIONNew Custom Home (ca. 2010
with reused / expanded 1920 foundation)
www.greenworksllc.com
5
6
The Yard Drain(How far from home do you inspect?)
www.greenworksllc.com
6
7
Gutter Holding Water(Very Common. Ever see the
Algae Plug clog a gutter?)
www.greenworksllc.com
7
8
Crawl with Concrete Slab(Very clean, note spray
foam on foundation)
www.greenworksllc.com
8
9
TGIs Lam Beam SprayFoam
www.greenworksllc.com
9
10
Old Poured Foundation(What hydrology indicator
do you see?)
www.greenworksllc.com
10
11
Whats in Old Foundation?(Is that charcoal?)
www.greenworksllc.com
11
12
Lots of Stuff!
www.greenworksllc.com
12
13
Whats Spray Foam Lift?(Closed Cell Foam doesnt
stick to Everything!)
www.greenworksllc.com
13
14
Open Duct Drop-Downs
www.greenworksllc.com
14
15
Whats This Leader Fix?(Why landscape guys dont
make good drainage decisions)
www.greenworksllc.com
15
16
Inaccessible Areas
www.greenworksllc.com
16
17
Whats Wrong Here?(Typical SmartVent Type Flood
Vent Installation)
www.greenworksllc.com
17
18
CASE STUDY DISCUSSION 1950s RANCH
(remodeled)(Home Inspector Inspected with
Written Report)
  • Clients looking to start a family and want babys
    room air quality inspected.
  • Home extensively remodeled recently.
  • Home inspection report didnt show much.
  • Simple air test and visual observations reveal
    potential moisture intrusion.
  • How would you handle this inspection?

www.greenworksllc.com
18
19
1950s RANCH (remodeled)What's Wrong here?
www.greenworksllc.com
19
20
See Anything Suspicious?(Can you believe that a
Home Inspector missed this one!)
www.greenworksllc.com
20
21
Floor Vent Issues?(What do you see here?)
www.greenworksllc.com
21
22
Rusty Register Covers(With water comes elevated
humidity migration)
www.greenworksllc.com
22
23
Inside the Duct Collar(what could the rag be
for?)
23
www.greenworksllc.com
24
Inside the Duct Collar(Water intrusion video by
the Client)
www.greenworksllc.com
24
25
Whats Up with Floor Tiles?(Under loose piece of
carpet in hall closet)
25
www.greenworksllc.com
26
Public DataSomewhat Limited Soils(Dwellings
Without Basements)
www.greenworksllc.com
26
27
Public DataSoil Drainage Tendencies (Reveal
Hydrology of Site)
www.greenworksllc.com
27
28
Public Data1930 Historic Aerials(Historic Site
Use - Farmers Loved Wetlands)
www.greenworksllc.com
28
29
The Water Main(Flooded Chamber)
www.greenworksllc.com
29
30
Invasive InvestigationMoisture Barriers
www.greenworksllc.com
30
31
Invasive InvestigationMoisture Creep
www.greenworksllc.com
31
32
Invasive Investigation Subfloor Moisture
Barrier(5/8th Inch Plywood)
www.greenworksllc.com
32
33
1950s RANCH (remodeled) WOOD FLOOR REVIEW
  • This home was inspected by a Home Inspector who
    missed the following
  • Floor Cupping / Warping throughout home where
    severity was not addressed.
  • Floor Duct H2O Intrusion Soil Fines (ducts were
    dirty)
  • Rags stuffed in ducts to stop water intrusion
  • Black floor stain in hallway (Totally Missed)

www.greenworksllc.com
33
34
CASE STUDY DISCUSSIONWET HOME FOR 30 YEARS(CA
1970 Bi-level Construction)
www.greenworksllc.com
34
  • Owner thought wet crawl was way home was supposed
    to be. But we know better
  • State mapping observations confirm wetlands
  • Flat / negative grading around home
  • No Ventilation in crawl space condensate
    dripping
  • Clogged gutters and underground piping
  • Suspect gutter layout and pitch
  • Front yard flat grading / negative pitch

35
Invasive InvestigationSaturated Base Plate
www.greenworksllc.com
35
36
CASE STUDY DISCUSSION30 YEAR WET HOME(Ca. 1970
Bi-level Construction)
www.greenworksllc.com
36
37
Dew Point Effect in Crawl
www.greenworksllc.com
37
38
Crawl Space White Wash
www.greenworksllc.com
38
39
Clogged Discharge Lines
www.greenworksllc.com
39
40
Channel Drain Assessment
40
www.greenworksllc.com
41
Simple Hydrology Tool
www.greenworksllc.com
41
42
Driveway Hydrology Deflector
www.greenworksllc.com
42
43
Still Water in the Garage
www.greenworksllc.com
43
44
CASE STUDY DISCUSSION New Home
Construction(Same Old Developed Neighborhood)
  • Previous home built 1940s on basement
  • Nothing unusual about water intrusion
  • 2 homes scraped and re-built
  • Now getting H²O in basement
  • Pumps running continuously

www.greenworksllc.com
44
45
CASE STUDY DISCUSSION New Home
Construction(Same Old Developed Neighborhood)
www.greenworksllc.com
45
46
Water Discharge at the Curb
www.greenworksllc.com
46
47
Catch Basin in the Street
www.greenworksllc.com
47
48
Home Rear Yard
48
www.greenworksllc.com
49
Public Data Rear Finished Basement Wall(Note
Sheetrock Patch)
49
www.greenworksllc.com
50
Client PhotoFinished Basement Closet(Interior
Central Wall)
www.greenworksllc.com
50
51
Public Data2012 Enviro Aerials(Public Data via
NJDEP GeoWeb w/Enviro Layers)
www.greenworksllc.com
51
52
Public Data1930 Enviro Aerials(Public Data via
NJDEP GeoWeb w/Enviro Layers)
www.greenworksllc.com
52
53
Public Data Historic Topography Mapping(Public
Data via NJDEP GeoWeb w/Enviro Layers)
www.greenworksllc.com
53
54
Public DataSoil Mapping(Dwellings with
Basements / Public Data Via NCRS)
www.greenworksllc.com
54
55
Public Data Depth To Saturated Zone(Dwellings
with Basements / Public Data Via NCRS)
www.greenworksllc.com
55
56
Hand Auger BUCKET(Saturated Soils _at_ 2.5 Feet)
www.greenworksllc.com
56
57
Soil Boring Profile(Hand Auger w/5 Extension
Rod)
www.greenworksllc.com
57
58
This is a Filled Wetland!
www.greenworksllc.com
58
59
Hydrology Inspection Checklist(Some Pointers to
Consider)
  • Review the Property Survey Property Disclosure
    Document for clues as to the sites hydrologic
    properties history
  • Interview buyer ( seller) as to concerns, health
    issues, etc. that could be impacted by elevated
    humidity
  • Perform a limited Natural Resource Inventory of
    the site area
  • Streams, Wetlands, TE Species, Tidelands, Soils,
    etc.)
  • Be Aware of Seasonality (Late summer dry spells
    vs Wet Winters)
  • Research Historic uses of the property
  • Assess exterior Water Management Strategies (WMS)
  • Grading, Gutters, Piping, Wet-Wells, off-site
    concerns
  • Do the same for Off-Site areas (Neighbors)

www.greenworksllc.com
59
60
Hydrology Inspection Checklist(Some Pointers to
Consider)
www.greenworksllc.com
60
  • Assess common interior water problem areas and
    look for clues
  • Bathrooms, Boiler/Utility Areas, Below Grade
    Rooms
  • Stains, Efflorescence, Material Swelling /
    Deflection
  • French Drains, Sump Pumps, Dehumidifiers,
    Ventilators
  • Insects Whats Creeping Crawling
  • Cave Crickets, Centipedes, Springtails, Mites,
    Spiders, Rodents
  • Just visitors or are they residents / see
    Complete Life Cycle?
  • The Nose Knows What does it smell like?
  • Vapor Intrusion / MVOCs /
  • Odors Damp Musty, Sweaty Sock, Sweet Prickly,
    Cat Urine (But I have no Cat), Foul Raunchy Type
    odors all tell a story as to what is causing the
    aroma, often tied to a moisture source.

61
Hydrology Inspection Checklist(Some Pointers to
Consider)
www.greenworksllc.com
61
  • Hidden sources of moisture (Visual)
  • Lumber vs. Engineered (Free H2O/Lignins Wood
    Rot-White)
  • Cheap wood/particle board in undersides of
    furniture / Contents
  • Basement Finishing Sys (Walls, Ceilings, Vinyl
    Floating Floors)
  • Sub-Slab drainage pipe networks
  • Municipal Rqmnts to hold stormwater / Groundwater
    Mounding
  • Dry Wells Recharge Chambers
  • Technical Equipment Assistance
  • Moisture Meters (Surface vs. Penetrating)
  • IR Camera (Phone devices are good inexpensive)
  • Hygrometers, Portable Weather Stations

62
