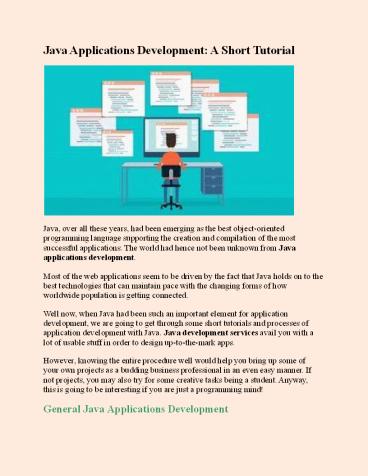

Java Applications Development: A Short Tutorial

1
Java Applications Development A Short Tutorial
Java, over all these years, had been emerging as
the best object-oriented programming language
supporting the creation and compilation of the
most successful applications. The world had
hence not been unknown from Java applications
development. Most of the web applications seem
to be driven by the fact that Java holds on to
the best technologies that can maintain pace
with the changing forms of how worldwide
population is getting connected. Well now, when
Java had been such an important element for
application development, we are going to get
through some short tutorials and processes of
application development with Java. Java
development services avail you with a lot of
usable stuff in order to design up-to-the-mark
apps. However, knowing the entire procedure well
would help you bring up some of your own
projects as a budding business professional in an
even easy manner. If not projects, you may also
try for some creative tasks being a student.
Anyway, this is going to be interesting if you
are just a programming mind! General Java
Applications Development
2
The following is a short tutorial which would
guide you across the most appropriate steps for
developing a Java SE application with NetBeans.
We would begin this tutorial assuming that you
have already some familiarity with Java and its
basics. Along the way that comes up, you may
also be able to get through and learn some more
IDE features. These features would have an
important role to play in the simplification of
the app development process. Now, here we would
be creating an application that can convert
several different words into a single word, this
is known as an acrostic. Seems to be interesting
right? This 30 minutes tutorial will let you
learn it well. You will Need Following resources
would be required for successfully completing the
project
Software/Resource Version
Java Development Kit (JDK) 6, 7 or 8
NetBeans IDE 7.4 or 8.0

• Project Setup
• This Project will focus on how to create
  application in Java using NetBeans. The
  application we are going to create would contain
  two projects.
• A Java Class Library which will include creating
  a Utility Class.
• A Java Application Project this will consist of
  the main class that will implement the method
  from the utility class in Library.
• Once youve created the projects, you will have
  to add the same to the classpath of the
  application project. Coding of the application
  will then follow. In the Library project, you
  will introduce a utility class with the acrostic
  method.

3

• The acrostic will consider a given array of words
  as its parameter it would then generate a
  meaningful word based on those words. The main
  class would be in the MyApp Project and would
  further call the acrostic method, and passes the
  words which would be entered when the
  application is run.
• You may understand better through this video
• NOTE Two projects are really not needed for an
  application too simple. The tutorial, however,
  demonstrates two so that the features used in the
  entire process are clearly understood to be
  further used in a complex application than this.
• ALSO READ UNDERSTANDING ADVANCED PHP TECHNIQUES
  RARELY USED TRICKS
• Create a Java Class Library Project
• Follow the below-mentioned steps for this
• Choose File gt Select New Project OR Press
  CtrlShiftN. Select Java under Categories and
  Java Class Library under Projects. Click Next.
• Type MyLib under Project Name. Now change the
  Project Location within
• any directory on your computer. Suppose this
  directory to be
• NetBeansProjects. This is how we would refer it
  further in the tutorial.
• NOTE The above-mentioned path would appear in
  the Project Folder Field as
• /NetBeansProjects/MyLib.
• Select Use Dedicate Folder for Storing Libraries
  checkbox now specify the location of Libraries
  folder. (This is optional)
• Click Finish. The MyLib Project will now open in
  the Projects and Files window together.
• Create a Java Application Project

4

• Check Use Dedicated Folder for Storing Libraries
  checkbox (This is optional).
• Enter the main class as Main.
• Make sure to check the Create Main Class
  checkbox.
• Click Finish. The MyApp Project will display in
  the Project window. Java
• will open in the Source Editor.
• Configuring the Compilation Class Path
• MyLib needs to be added to the classpath of MyApp
  since it would be dependent on a class in MyLib.
  This is also important with a view to ensure that
  classes in MyApp Project can easily refer the
  classes in MyLib and no compilation errors are
  caused.
• This will also let you complete codes in MyApp
  that are based on MyLib. The classpath would be
  visually represented as the Libraries node in the
  IDE.
• Adding Utility Classes from Library to the
  Project Classpath
• Right click on the Libraries node in the Projects
  window and choose Add Project in MyApp.
• Browse NetBeansProjects gt Select MyLib project
  folder. JAR Files that can
• be added to the project are displayed on the
  Project JAR Files pane. There would be a JAR
  file for MyLib even if you have not built it yet.
  When you build and run the MyApp Project, this
  JAR file will be built.
• Click on Add Project JAR Files.
• Expand Libraries node. The JAR file of MyLib
  Project is added to the Classpath of MyApp
  Project.
• Create and Edit Java Source Code
• Now, a Java package needs to be created and the
  method that would be used to construct the
  acrostic. After that, you need to look forward to
  implementing the acrostic method in Main class.
• Creating Java Package and Class File
• Consider the following steps for this

5

• Right-click MyLib project gt choose Newgt Java
  Class. Type the name for the new class as
  LibClass. In the Packaged field type me.mylib gt
  click Finish. In the Source Editor LibClass.Java
  will open.
• Place the cursor on the line in LibClass.java
  after class declaration (public
• class LibClass()).
• Now, type in the following code

public static String acrostic(String args)
StringBuffer b new StringBuffer() for (int
i 0 i lt args.length i) if
(argsi.length() gt i) b.append(argsi.charAt(
i)) else b.append('?') return
b.toString()

• If the code that you paste is not properly
  formatted, press AltShiftF and reformat the
  file.
• Save the file.
• Editing a Java File
• You will now have to add some code to Main.java.
  While doing so you would get to know and use the
  features of Source Editors code template and
  code completion. Get on to the following steps
• In the Source Editor, select the java tab. If
  its not open already, expand MyApp gt Source
  Packages gt acrostic in the Projects window now
  double- click Main.java.
• Delete the comment in the main method which
  mentions // TODO code application logic here.
• Type the following code in place of the comment

String result Li
6

• Immediately after Li leave the cursor, you will
  further make use of code completion turning Li
  into LibClass.
• To open the code completion box, press Ctrl
  Space.
• On the screen would be a short list of possible
  ways for completing the word. However, LibClass
  which you actually need might not be in that
  list. For a longer list of possible matches
  press Ctrl Space once again.
• The list which appears now would contain
  LibClass. Select LibClass and press Enter. The
  rest of the class name would be filled by IDE and
  an import statement would be automatically
  created.
• Note IDE would also open up a box above the code
  completion box displaying Javadoc information
  for the specific package or class. However, for
  this package since there is no Javadoc
  information, a message stating Cannot find
  Javadoc will be displayed.
• After LibClass, type a period (.) in the main
  method. The code completion box will open again.
• Select acrostic(Stringargs) method and Press
  Enter. The acrostic method
• would be filled in by IDE and the args parameter
  would be highlighted.
• To accept args as the parameter, Press Enter. Now
  type a semicolon (). The final line should look
  like the following

String result LibClass.acrostic(args)

• To start a new line, press Enter. Now type sout
  and then press Tab. When expanded the sout
  abbreviation is out.printIn( ) Now, place the
  cursor between the quotation marks and type
  Result and result inside and after the
  quotation marks respectively. The final line
  should appear like the following

System.out.println("Result " result)

• Press Ctrl S, and save the file.
• Note sout is one of the many code templates
  available in the Source Editor. In order to find
  and edit the list of code templates do as
  follows Choose Tools gt Options gt Editor gt Code
  Template.
• Compiling and Running the Application

7

• To be able to run the project you will now need
  to set the main class and execution arguments.
• Note By default, the Compile on Save feature is
  enabled and with that, the projects have been
  created. Therefore, to run the application in IDE
  you will not need to compile your code first.
• Setting the Main Class and Execution Arguments
• The output of the program is dependent on the
  arguments you give while running it. You will
  have to provide five words as argument out of
  which an acrostic Hello would be generated.
  The acrostic would be assembled considering the
  first letter of the first word, the second
  letter of the second, third letter for the next
  word and accordingly further.
• To add arguments to IDE when the application is
  run
• Right-click on the MyApp project node, select
  Properties gt in the dialogs left pane, select
  Run node.
• Remember to set the main class to Main.
• In the Arguments field, type something, say,
  However, we all feel zealous
• and press OK.
• Running the Application
• Once you have created the application and
  provided the runtime arguments, you can now test
  run the application in IDE. To run the
  application in IDE, follow the given steps
• Right-click on the MyApp project node gt choose
  Clean and Build.
• Choose Run gt Run Project (F6).
• In the Output window, the output of the program
  should look like

Result Hello
i.e. the acrostic phrase that was passed as an
argument to the program. Testing and Debugging
the Application
8

• Now, you will need to create and run a test for
  the project using JUnit run the application in
  IDEs debugger, and check for errors if any. In
  the JUnit test, by passing a phrase to the
  acrostic method, you will test the LibClass with
  an assertion to indicate what the probable
  result should be.
• Creating JUnits Tests
• In the Projects window, Right-click the
  LibClass.java node. Now, choose Tools gt
  Update/Create Tests (Ctrl Shift U).
• Click OK in the Create Tests dialog box to run
  the command with default options and settings.
• Note If you have created the JUnit tests in the
  IDE for the first time, the Select JUnit Version
  Dialog box would prompt before you. Select JUnit
  4.x, Press Enter and continue with the Create
  Tests dialog box. The org.me.mylib package and
  LibClassTest.java file would be created by the
  IDE in a separate test folder. By expanding the
  org.me.mylib subnode and Test Packages node, you
  can find this file.
• Delete the body of the public void testAcrostic()
  method in LibClassTest.java.
• Type the following text in place of the lines
  deleted

System.err.println("Running testAcrostic...") St
ring result LibClass.acrostic(new
String "fnord", "polly", "tropism")
assertEquals("Correct value", "foo", result)

• Press Ctrl S and Save the file.
• ALSO READ BIG DATA SECURITY SECURITY ISSUES AND
  CHALLENGES IN THE QUEUE
• Running JUnit Tests
• Select MyLib project node, choose Run gt Test
  Project (MyLib) or press Alt
• F6. In the Output window, MyLib (test) tab will
  open. The JUnit test cases will be now compiled
  and run the test results will show all tests
  passed.
• Rather than testing the entire project, you may
  also choose to run a single
• test file. In the Source Editor, select the java
  tab, choose Run gt Test File.

9

• The JUnit API documentation would be available
  from the IDE. Further, Choose Help gt Javadoc
  References gt JUnit API.
• Note If you are accessing Javadoc in the IDE for
  the first time then first you need to Choose
  Help gt Javadoc References gt More Javadoc. Now,
  Click Cancel in the Javadoc References dialog
  box. Further, Choose Help gt Javadoc References gt
  JUnit API.
• Debugging the Application
• Here, you will make use of the debugger set
  through the application and watch the changing
  values of the variables as the acrostic is
  assembled.
• For running the application in debugger follow
  the steps below
• In the file, java go to acrostic method. Anywhere
  inside b.append(argsi.charAt(i)) place the
  insertion pointer. Now, to set a breakpoint,
  Press Ctrl F8.
• Select MyApp project node gt choose Debug gt Debug
  Project (Ctrl F5).
• The Debugger Window is opened by the IDE and the
  project is run in the debugger until the
  breakpoint.
• In the bottom of IDE select the Local Variables
  Window and expand the
• args node. The array of string carries the phrase
  that had been entered as a command argument.
• Choose Debug gt Step Into OR Press F7. This will
  let you step through the
• program and watch the changing value of the b
  variable as the acrostic is formed. As the
  program reaches the end the debugger window
  closes.
• Building, Running And Distributing the
  Application
• Once you are satisfied with the working of the
  application you may start preparing to deploy
  the application outside the IDE. Now you will
  have to consider building the JAR file for the
  application and running the same from the command
  line.
• Building the Application
• The Clean and Build command is the main build
  command in the IDE. The compiled classes and
  other build artifacts are deleted by the command
  and then the entire project is rebuilt from
  scratch.

10

• Note There is also a build command which will
  not delete the old build artifacts. However,
  this command is known to be disabled by default.
• To build the application, follow the given steps
• Choose Run gt Press Shift F11 or Choose Clean
  and Build Project.
• In the Output window, the Output from Ant build
  script appears. If the Output window doesnt
  appear you may also open it manually. To do this,
  choose Window
• gt Output gt Output. When you clean and build the
  project, following things would
• occur
• Output folders from the previous build actions
  are deleted (cleaned). (These are mostly dist
  and build folders).
• Hereafter, the dist and build folders are added
  to your project, the folder will
• now be referred as PROJECT_HOME Folder. These
  folders can be viewed in the Files Window.
• All the sources are then compiled to .class
  files, which and placed in the
• PROJECT_HOME/build folder.
• Inside the folder, PROJECT_HOME/dist, a JAR File
  is created which contains your project.
• In case you have specified any libraries for the
  project apart from the JDK,
• in the dist folder a lib folder is created and
  the libraries are further copied to dist/lib.
• The manifest file in the JAR is updated with the
  entries designating the main
• class and libraries on the projects classpath.

Main-Class acrostic.Main Class-Path
lib/MyLib.jar

• Running the Application outside IDE
• Follow the steps in order to run the application
  outside IDE
• Open command prompt or terminal window on your
  system.
• Change directories to MyApp/dist directory in
  command prompt.

11
3. At the command line, type the following
java -jar MyApp.jar However we all feel zealous
The application will then execute and return the
output.
Result Hello

• Distributing the Application
• When you have finally verified the workability of
  the application outside the IDE, you may now
  look on for distributing the application.
• Follow the given steps for the purpose
• Create a zip file containing the application JAR
  file on your system, it should also be
  accompanied by the lib folder and jar.
• Send the file to the people who would be using
  the application. Tell them to
• unpack the zip file, also make sure that the lib
  folder and the MyApp.jar file are in the same
  folder.
• Instruct them to follow the required steps for
  running the application.
• And its done. This tutorial would hopefully help
  you to clear the several concepts of Java
  applications development.
