Before the connection between magnetism and
electricity was discovered, electrostatic
generators were invented. They operated on
electrostatic principles, by using moving
electrically charged belts, plates, and disks
that carried charge to a high potential
electrode. The charge was generated using either
of two mechanisms electrostatic induction or the
triboelectric effect. Such generators generated
very high voltage and low current. Because of
their inefficiency and the difficulty of
insulating machines that produced very high
voltages, electrostatic generators had low power
ratings, and were never used for generation of
commercially significant quantities of electric
power. Their only practical applications were to
power early X-ray tubes, and later in some atomic
particle accelerators.

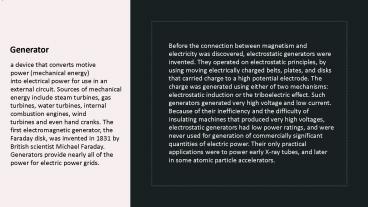

Generator
a device that converts motive power (mechanical
energy) into electrical power for use in an
external circuit. Sources of mechanical energy
include steam turbines, gas turbines, water
turbines, internal combustion engines, wind
turbines and even hand cranks. The first
electromagnetic generator, the Faraday disk, was
invented in 1831 by British scientist Michael
Faraday. Generators provide nearly all of the
power for electric power grids.
2
.

• Electromagnetic generators fall into one of two
  broad categories, dynamos and alternators.
• Dynamos generate pulsing direct current through
  the use of a commutator.
• Alternators generate alternating current.
• Mechanically a generator consists of a rotating
  part and a stationary part
• Rotor
• Stator
• Field winding or field (permanent) magnets
• Armature

The reverse conversion of electrical energy into
mechanical energy is done by an electric motor,
and motors and generators have many similarities.
Many motors can be mechanically driven to
generate electricity and frequently make
acceptable manual generators.
3
Export value of starter motors and generators in
the United Kingdom (UK) between 2010 and 2018 (in
thousand British pounds)
Region United Kingdom Survey Time
Period 2010-2018 Supplementary Notes Values
from 2014 onwards were published and based on the
methodology provided by the HM Revenue
Customs. As of January.
This statistic shows the trade value from EU and
non-EU exports of starter motors and dual purpose
starter-generators in the United Kingdom between
2010 and January 2018. The EU was clearly an
important trade partner for the United Kingdom
over this period. EU exports of starter motors
and generators reached a value of 39 million
British pounds in 2017.
