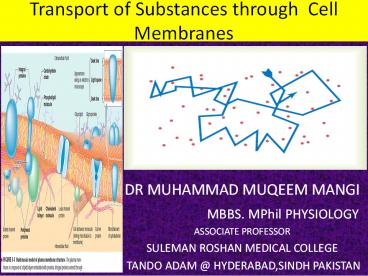

transport of substances through cell membrane

1
Transport of Substances through Cell Membranes
DR MUHAMMAD MUQEEM MANGI
MBBS. MPhil PHYSIOLOGY ASSOCIATE
PROFESSOR SULEMAN ROSHAN MEDICAL COLLEGE TANDO
ADAM _at_ HYDERABAD,SINDH PAKISTAN
2
Transport of Substances through Cell Membranes

• _at_ the end of slides student have basic concept
  of
• Importance of cell membrane
• Types of Transport mechanisms
• Active transport in detail
• Primary active transport
• Secondary active transport
• Co-transport and Counter transport

3
Transport of Substances through Cell Membranes

• The cell perform many functions
• support, transport, communication, recognition
  and acts as selective barriers.
• All these functions are achieved through
  movement across cell membranes.
• There are several mechanisms of transport across
  cellular membranes. Pathways include passive and
  active transport.

4
Transport of Substances through Cell Membranes

• The Functions of Cell Membrane
• Protective Function
• Selective permeability
• Absorptive function
• Excretory function
• Exchange of gases
• Maintenance of shape and size of the cell

5
Transport of Substances through Cell Membranes

• Differences between composition of intracellular
  and extracellular fluids are caused by transport
  mechanisms of cell membrane.

6
Transport across cell membrane
Transport mechanisms
Passive transport (diffusion)
Active transport
Transport of large particles by a)
Endocytosis b) Exoocytosis
Simple diffusion
Facilitated diffusion
Primary
Secondary
Sodium co-transport mechanism
Sodium counter Transport mechanism
7
Transport across cell membrane

• Includes passive and active transport.
• Passive transport includes simple and facilitated
  diffusion.
• Active transport includes primary and secondary
  active transport.
• Vesicular transport includes Endocytosis and
  Exocytosis.

8
Transport across cell membrane
Membrane transport proteins
2 major classes of transport proteins
Carrier Proteins
Channel Proteins
9
Transport across cell membrane
10
Transport across cell membrane

• Diffusion
• Means random movement of molecules either thru
  intermolecular spaces in the cell membrane or in
  combination with a carrier protein.
• Energy that causes diffusion is energy of normal
  kinetic motion of matter.

High to Low Concentration
11
Transport across cell membrane
12
Transport across cell membrane

• Simple diffusion
• Molecules move thru a membrane without binding
  with carrier proteins.
• Does not require energy b/c molecules move across
  the plasma membrane down a concentration gradient
  or electrochemical gradient.

13

Transport across cell membrane

• Simple diffusion
• Can occur thru cell membrane by two pathways
  thru the interstices of lipid bilayer and thru
  watery channels in some of the transport
  proteins.
• Transports small non polar molecules (e.g O2 and
  N2) and small uncharged, polar molecules
  (e.g.H2O,CO2,glycerol).

14
Transport across cell membrane

• Simple diffusion thru protein channels
• Protein channels are selectively permeable to
  certain substances.
• The channels can be opened or closed by gates.

15
Transport across cell membrane

• Gating of protein channels
• Provides a means for controlling the permeability
  of the channels.
• Gates are actual gate like extensions of the
  transport protein molecule.

16
Transport across cell membrane

• Opening and closing of gates
• Are controlled in two principal ways
• Voltage gating in this, the molecular
  conformation of the gate responds to the
  electrical potential across the cell membrane.
• Ligand gating some protein channel gates are
  opened by binding of another molecule with the
  protein this causes a conformational change in
  the protein molecule that opens or closes the
  gate.

17
Transport across cell membrane
18
Transport across cell membrane

• Facilitated diffusion
• Is diffusion of a substance mediated by a
  carrier.
• FD occurs thru ion channels or carrier proteins.
• Is down the electrochemical gradient.

19
Transport across cell membrane

• Facilitated diffusion
• Does not require energy.
• Differs from simple diffusion in that the rate of
  diffusion approaches a maximum, called Vmax as
  the conc. of substance increases.

20
Transport across cell membrane
21
Transport across cell membrane

• Characteristics of Facilitated diffusion
• Specificity
• Vmax

22
Transport across cell membrane
23
Transport across cell membrane

• Examples of substances transported by facilitated
  diffusion
• Glucose
• Amino acids.
• Mannose
• Galactose
• Xylose
• Arbinose

Examples of substances transported by facilitated
diffusion
24

Transport across cell membrane

• Osmosis
• Is the flow of water across a semi permeable
  membrane from a solution with low solute
  concentration to a solution with high solute
  concentration.
• Osmotic pressure is determined by number of
  particles per volume of fluid.

25
Transport across cell membrane

• Osmosis is the diffusion of water through a
  selectively permeable membrane like the cell
  membrane
• Water diffuses across a membrane from an area of
  high concentration to an area of low
  concentration.

Semi-permeable membrane is permeable to water,
but not to sugar
26
Transport across cell membrane
27
Transport across cell membrane

• Osmole, osmolality and osmolarity
• To express the concentration of solution in terms
  of number of particles unit osmole is used.
• Osmolar concentration expressed as osmoles per
  kilogram of solution is osmolality.
• Osmolar concentration expressed as osmoles per
  liter of solution is osmolarity.

28
Transport across cell membrane
29
Transport across cell membrane

• Active transport
• Occurs in combination of a carrier protein.
• Occurs against the concentration gradient.
• Requires energy.
• Is of two types,
• primary active transport
• secondary active transport.

30

Transport across cell membrane

• Primary Active transport
• In primary active transport, energy is derived
  from breakdown of ATP.
• Example is sodium potassium pump.

31
Transport across cell membrane
32
Transport across cell membrane
33
Transport across cell membrane

• Examples of primary active transport
• Sodium ions
• Potassium ions
• Hydrogen ions
• Calcium ions
• Chloride ions

34
Transport across cell membrane

• Importance of Na-K pump
• It controls the cell volume by controlling the
  concentration of solutes inside the cell and thus
  minimizing osmotic effects.
• It establishes NaK concentration gradients
  across the plasma membrane of all cells, these
  gradients are critically important in the ability
  of nerve and muscle cells to generate electrical
  signals.

35
Transport across cell membrane

• Importance of sodium potassium pump
• The energy used to run the Na K pump also
  indirectly serves as the energy source
• for secondary active transport.

36
Transport across cell membrane

• Secondary active transport
• In secondary active transport energy is derived
  by ionic concentration gradient created by
  primary active transport.

37
Transport across cell membrane

• Secondary active transport
• Has two types
• Sodium Co-transport mechanism
• Sodium Counter transport mechanism

38
Transport across cell membrane

• Sodium Co-transport
• In this mechanism, a substance is transported
  along with sodium in the same direction, and is
  therefore called, sodium co transport mechanism.

39
Symport
Transport across cell membrane
40
Transport across cell membrane

• Examples of Co-transport
• sodium glucose co-transport.
• sodium amino acids co-transport
• sodium potassium-two chloride co-transport

41
Transport across cell membrane

• Sodium counter transport
• In this mechanism, sodium and the other substance
  move in opposite direction.
• Example sodium-calcium counter transport
• Sodium-hydrogen counter transport

42
Antiport
Transport across cell membrane

• Two Substrate Bind to the opposite sides of the
  transport.
• One substrate( Na) is travelling downhill will
  energize transport of another substrate ( Ca)
• Transporter changes orientation with respect to
  inner and outer membrane surface
• After being transported across the membrane, both
  substrate are released and the protein is ready
  for an other cycle

43
Transport across cell membrane
44

Transport across cell membrane

• Endocytosis
• Is the entry of large particles into the cell.
• Occurs in two forms
• Pinocytosis (cell drinking)
• Receptor mediated endocytosis
• Phagocytosis (cell eating)

45

Transport across cell membrane

• Pinocytosis
• Occurs in all cells of the body.
• is the only means by which very large
  macromolecules such as protein molecules can
  enter the cell.

46
Transport across cell membrane

• Pinocytosis
• Occurs in all cells of the body.
• is the only means by which very large
  macromolecules such as protein molecules can
  enter the cell.

47
Receptor mediated Endocytosis
Transport across cell membrane
48
Transport across cell membrane
49

Transport across cell membrane

• Phagocytosis Involves large particles rather than
  molecules.
• Occurs only in certain cells such as macrophages
  and some of the white blood cells.

50

Transport across cell membrane

• Phagocytosis
• In phagocytosis of bacteria, bacteria attach to
  antibodies and then to the receptor. This
  intermediation of antibodies is called
  opsonization.
• Phagocytic vesicle is larger than the pinocytic
  vesicle.

51
Transport across cell membrane

• Exocytosis
• Is release of substances originating within the
  cell to the exterior.
• Is the primary mechanism for accomplishing
  secretion.

52
Transport across cell membrane

• Exocytosis
• the cell to add specific components to the
  membrane, such as selected carriers, channels or
  receptors.

53
THANKS
Transport across cell membrane

• THE END
