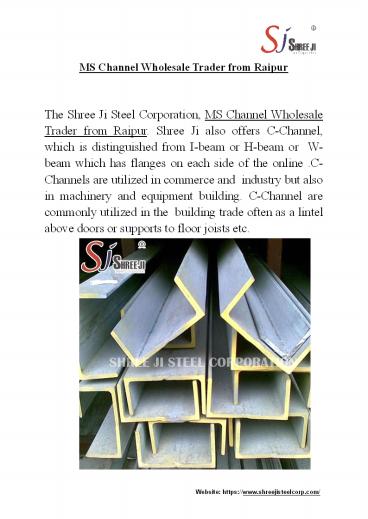

MS Channel Wholesale Trader from Raipur The
Shree Ji Steel Corporation, MS Channel Wholesale
Trader from Raipur. Shree Ji also offers
C-Channel, which is distinguished from I-beam or
H-beam or W-beam which has flanges on each side
of the online .C-Channels are utilized in
commerce and industry but also in machinery and
equipment building. C-Channel are commonly
utilized in the building trade often as a lintel
above doors or supports to floor joists etc.
Website https//www.shreejisteelcorp.com/
2
Product Name C Channel
Brand SJ SHREE JI
Type " C "
Material Grade IS 2062
Material Mild Steel
Place Of Origin Kolkata/Durgapur
Minimum Order Quantity 16 Metric Ton
Application Construction Work
Usage Structural support in construction
C Channel Sizes and Weight C Channel Sizes and Weight C Channel Sizes and Weight
Size (in mm) Weight (in Kg/m) Weight (in Kg/feet)
C Channel 75 x 40 6.800 2.073
C Channel 100 x 50 9.200 2.804
C Channel75 x 40 (light) 5.000 1.524
C Channel100 x 50 (light) 8.000 2.438
C Channel 75 x 40 (superlight) 4.000 1.219
C Channel 100 x 50 (super light) 6.000 1.828
C Channel 125 x 65 12.800 3.901
C Channel 150 x 75 16.400 4.500
C Channel 150 x 76 17.700 5.394
C Channel175 x 75 19.200 5.852
C Channel 200 x 75 22.200 6.766
C Channel 200 x 76 24.300 7.406
C Channel 225 x 80 24.000 7.315
C Channel 225 x 90 26.000 7.925
C Channel 250 x 82 34.200 10.424
Website https//www.shreejisteelcorp.com/
3
C Channel 300 x 90 35.900 10.942
C Channel 400 x 100 49.500 15.087
Rolling Tolerances of C Channel Rolling Tolerances of C Channel Rolling Tolerances of C Channel Rolling Tolerances of C Channel
Depth Tolerance Width of flange Tolerance
Up to 200 mm 2.5 mm Up to 100 mm 2 mm
gt 200 to 400 mm 3.0 mm
Tolerance on weight per meter shall be 2.5 or alternatively 4, -1 of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2 of the length. Tolerance on weight per meter shall be 2.5 or alternatively 4, -1 of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2 of the length. Tolerance on weight per meter shall be 2.5 or alternatively 4, -1 of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2 of the length. Tolerance on weight per meter shall be 2.5 or alternatively 4, -1 of the standard weight per meter. The permissible limits for camber and sweep shall be 0.2 of the length.
C Channel Chemical Composition (in max values) C Channel Chemical Composition (in max values) C Channel Chemical Composition (in max values) C Channel Chemical Composition (in max values) C Channel Chemical Composition (in max values) C Channel Chemical Composition (in max values) C Channel Chemical Composition (in max values)
Carbon Manganese Max Sulphur Max Phosporous Max Silicon Max Carbon Equivalent
0.23 1.50 0.045 0.045 0.40 0.42
Tolerance 0.02 0.05 0.005 0.005 0.03 0.03
C Channel Mechanical Composition (in max values) C Channel Mechanical Composition (in max values) C Channel Mechanical Composition (in max values) C Channel Mechanical Composition (in max values) C Channel Mechanical Composition (in max values) C Channel Mechanical Composition (in max values)
Tensile Strength Min, Mpa Yield Stress, Min, MPa Yield Stress, Min, MPa Yield Stress, Min, MPa Elongation at gauge length 5.65 v?o Bend Test
mm lt20 mm 20-40 mm gt40 mm min min
410 250 240 230 23 3t (t is 3 times thickness)
