SAIL TMT Bar

1

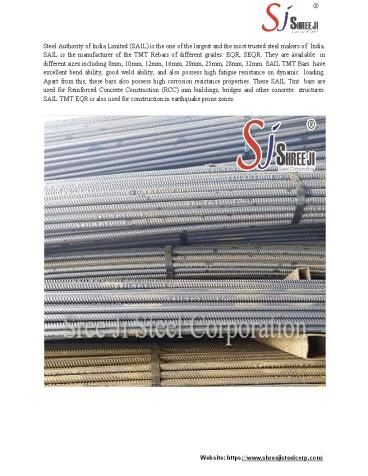

Steel Authority of India Limited (SAIL) is the
one of the largest and the most trusted steel
makers of India. SAIL is the manufacturer of the
TMT Rebars of different grades EQR, SEQR. They
are available in different sizes including 8mm,
10mm, 12mm, 16mm, 20mm, 25mm, 28mm, 32mm. SAIL
TMT Bars have excellent bend ability, good weld
ability, and also possess high fatigue resistance
on dynamic loading. Apart from this, these bars
also possess high corrosion resistance
properties. These SAIL Tmt bars are used for
Reinforced Concrete Construction (RCC) inm
buildings, bridges and other concrete
structures. SAIL TMT EQR is also used for
construction in earthquake prone zones.
Website https//www.shreejisteelcorp.com/
2
Brand SAIL (Steel Authority of India)
Single Piece Length 12 meter
Material Grade IS 1786/2008
Minimum Order Quantity 16 Tons
Material Mild Steel
Application Construction
Features Improve safety and durability of structures
SAIL TMT Bar Sizes and Weights SAIL TMT Bar Sizes and Weights SAIL TMT Bar Sizes and Weights
Size (in mm) Weight ( in Kg/m) Weight ( in Kg/feet)
SAIL TMT Bar 8mm 0.395 0.120
SAIL TMT Bar 10mm 0.617 0.188
SAIL TMT Bar 12mm 0.890 0.271
SAIL TMT Bar 16mm 1.580 0.482
SAIL TMT Bar 20mm 2.470 0.753
SAIL TMT Bar 25mm 3.850 1.173
SAIL TMT Bar 28mm 4.830 1.472
SAIL TMT Bar 32mm 6.310 1.923
SAIL TMT Bar 36mm 7.990 2.435
SAIL TMT Bar 40mm 9.850 3.002
SAIL TMT Bar 45mm 12.50 3.810
Website https//www.shreejisteelcorp.com/
3
Mechanical Properties of SAIL TMT Bars Mechanical Properties of SAIL TMT Bars Mechanical Properties of SAIL TMT Bars Mechanical Properties of SAIL TMT Bars Mechanical Properties of SAIL TMT Bars Mechanical Properties of SAIL TMT Bars Mechanical Properties of SAIL TMT Bars
Sizes Yield Strength (mpa) (min) Yield Strength (mpa) (max) Ultimate Tensile Strength (mpa) UTS/YS (min) Elongation () Uniform Elongation (min )
FE 500 500 - 545 1.08 12 -
FE 550 550 - 585 1.06 10 -
FE 600 600 - 660 1.06 10 -
EQR (FE 500 D) 500 - 565 1.10 16 5
FE 550 D 550 - 600 1.08 14.5 5
FE 500 HCR 500 - 565 1.10 16 5
FE 550 HCR 550 - 600 1.08 14.5 5
FE 600 HCR 600 - 600 1.06 10 -
FE 415 S EQR 415 540 1.25 times YS 1.25 18 8
FE 415 S HCR EQR 415 540 1.25 times YS 1.25 18 8
FE 500 S EQR 500 625 1.25 times YS 1.25 16 8
FE 500 S HCR EQR 500 625 1.25 times YS 1.25 16 8
Website https//www.shreejisteelcorp.com/
4
Chemical Properties of SAIL TMT Bars Chemical Properties of SAIL TMT Bars
Components Chemical Composition Of SAIL TMT Bars. The raw material (Billets) which are used for making Bars must have the following chemical composition which we make sure is present in the bars we provide.
Carbon (max ) 0.25 - 0.30
Sulphur (max ) 0.40
Phosphorus (max ) 0.40
Sulphur Phosphorus (max ) 0.75
Alloying/ Micro Alloying 0.3 Max
