200-301 VOL2 Question

1

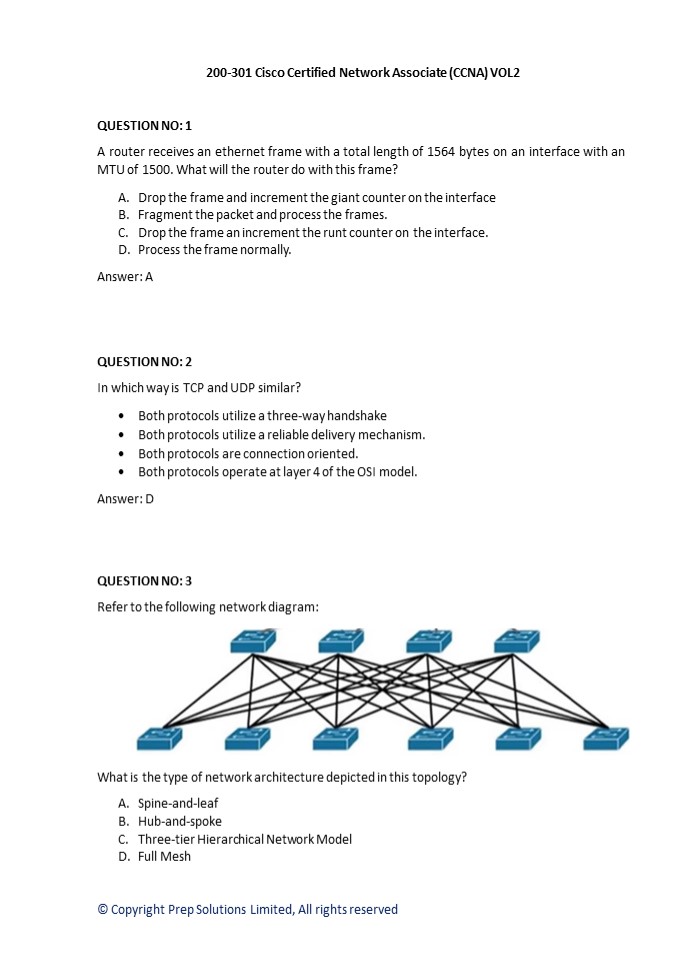

• 200-301 Cisco Certified Network Associate (CCNA)
  VOL2
• QUESTION NO 1
• A router receives an ethernet frame with a total
  length of 1564 bytes on an interface with an MTU
  of 1500. What will the router do with this frame?
• Drop the frame and increment the giant counter on
  the interface
• Fragment the packet and process the frames.
• Drop the frame an increment the runt counter on
  the interface.
• Process the frame normally.
• Answer A

• QUESTION NO 2
• In which way is TCP and UDP similar?
• Both protocols utilize a three-way handshake
• Both protocols utilize a reliable delivery
  mechanism.
• Both protocols are connection oriented.
• Both protocols operate at layer 4 of the OSI
  model.
• Answer D

QUESTION NO 3 Refer to the following network
diagram

• What is the type of network architecture depicted
  in this topology?
• Spine-and-leaf
• Hub-and-spoke
• Three-tier Hierarchical Network Model
• Full Mesh

2
Answer A

• QUESTION NO 4
• All of the following options are considered
  benefits of utilizing Virtual Machines except
  for
• Lower Maintenance costs
• Faster deployment options
• Lower capital costs
• Increased server performance
• Answer D

• QUESTION NO 5
• While troubleshooting an issue on router R1 you
  enter a number of show commands. What command
  will show all of the commands that were
  previously issued using this same EXEC session?
• Show command history
• Show history
• Show history include command
• Show logging
• Answer B

• QUESTION NO 6
• A network administrator is implementing a IPV6
  addressing scheme using the FC00/7 prefix. What
  is the purpose of using this specific prefix for
  network hosts?
• To be used to route globally using IPV6
• To route privately over a single organization.
• To route locally over a single subnet
• To route multicast IPv6 addresses.
• Answer B

QUESTION NO 7 Which of the following are true
regrading collisions on an ethernet network?
(Choose two)
3

• Collisions can occur on both half-duplex and
  full-duplex networks.
• Collisions can be expected in half-duplex
  networks.
• When collisions occur, the sending stations wait
  for a fixed time before retransmitting
• Collisions occur when end stations send data at
  exactly the same time in an ethernet network.
• Answer B, D

• QUESTION NO 8
• Company A acquired Company B recently and the two
  networks must be merged into one single network.
  Both companies utilized the RFC 1918 IP address
  range of 10.1.0.0/24. What options exist for
  these two networks to be able to communicate?
  (Choose two).
• Utilize EIGRP routing between the two.
• Make one of the networks an OPSF stub network.
• Re-IP one of the networks to a different RFC 1918
  address space that is not already in use.
• Perform NAT.
• Answer C, D

• QUESTION NO 9
• Which of the following best illustrates jitter in
  terms of its impact on VOIP networks? (Choose
  two)
• Jitter is the measure of the variation in the
  delay of packets, where the lower the value the
  better for VOIP networks.
• Jitter is the measure of the variation in the
  delay of packets, where the higher the value the
  better for VOIP networks.
• Jitter can always be eliminated through the
  proper use of Quality of Service (QoS).
• Jitter is often caused by network links that
  experience heavy congestion
• Answer A, D.

• QUESTION NO 10
• What is another term for many-to-one Network
  Address Translation? (Choose two)
• Static NAT
• Port Address Translation

4

• Dynamic NAT
• NAT Overload
• Answer B, D

• QUESTION NO 11
• A network administrator has configured a public
  web server with an internal IP address of
• to be translated to 100.10.4.8 for all incoming
  web requests. Which type of Network Address
  Translation (NAT) has been configured?
• Static NAT
• NAT Overloading
• PAT
• Dynamic NAT
• Answer A

• QUESTION NO 12
• Which of the following are valid DHCP options
  that DHCP servers can be configured to use with
  DHCP clients when offering a lease? (Choose
  three)
• DHCP Option 1 subnet mask
• DHCP Option 2 DHCP half-life period
• DHCP Option 3 Default router
• DHCP Option 4 Client host name
• DHCP Option 6 DNS servers
• Answer A, C, E

• QUESTION NO 13
• Switch SW1 receives an incoming frame with a
  Frame Check Sequence (FCS) that differs from the
  one included from the sending station. What will
  SW1 do with this frame?
• Increment the frame error count by one and
  forward the frame on to the destination.
• Increment the frame error count by one and drop
  the frame.
• Send a collision notification back to the sending
  station.
• Drop the frame without incrementing any error
  counters.
• Answer B

5

• QUESTION NO 14
• A server receives an unexpected TCP packet. What
  will the server typically respond with back to
  the sending station when this occurs?
• SYN
• SYN/ACK
• PSH
• URG
• RST
• Answer E

• QUESTION NO 15
• An ISP router has been configured to isolate the
  routing table to allow multiple customers to
  create VPNs. All of the customers are using
  private RFC 1918 address space, and many of the
  customer IP networks overlap with each other.
  What technology allows for the separation of
  these routes so that the customer networks are
  not able to directly communicate with each
  other?
• VRF
• OSPF STUB areas
• Filter lists
• Access Control Lists (ACLs)
• Answer A

• QUESTION NO 16
• The MAC table aging timer has to be configured to
  automatically control the amount of time an
  entry remains in the MAC table. You have decided
  to configure the aging time in interface
  configuration mode. Which of the following
  commands will set an aging timer for the entries?
• mac-address-table aging-timer 932409
• mac-address-table aging-time 9332
• configure terminal mac-table-aging-time 48
• configure terminal mac-table-aging-timer 96
• Answer B

6

• QUESTION NO 17
• You need to choose a transceiver to connect to
  data centers servers to a network switch. The
  transceiver for the network should have 850nm
  wavelength for 100 meter cabling.
• Which SFP transceiver should be used in this
  scenario?
• Singlemode SFP
• Dualmode SFP
• Multimode SFP
• Single mode fiber
• Answer C

• QUESTION NO 18
• Using virtual machines and hypervisors, which of
  the following hardware components can be
  virtualized? (Choose three)
• Disk storage
• CPU
• Memory
• Operating System
• Answer A, B, C

• QUESTION NO 19
• A frame arrives on switch SW1 destined to an MAC
  address that already exists in the mac address
  table. What will SW1 do with this frame?
• SW1 will drop the frame
• SW 1 will send the frame directly to the end host
  associated with the mac address table.
• SW1 will forward the frame to all ports
• SW1 will forward the frame to all ports except
  for the one that the frame arrived on.
• Answer B
