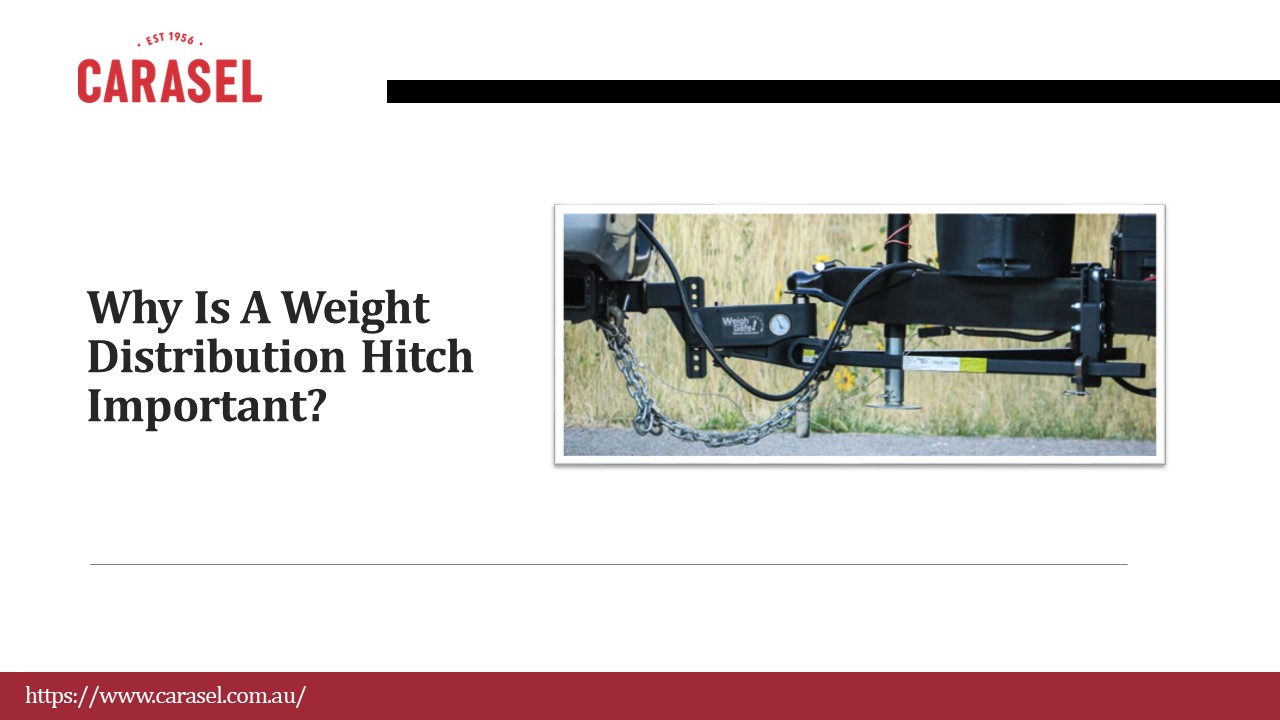

WHY IS A WEIGHT DISTRIBUTION HITCH IMPORTANT?

1
Why Is A Weight Distribution Hitch Important?
2
Towing without weight distribution is a risk that
you are putting yourself and other road users
into. Towing heavy trailers and caravans without
the proper weight distribution hitch for a
vehicle can place excessive weight on the rear
end of your vehicle.
3
Ever been in a situation where you have a fully
loaded caravan and you realise it is overloaded?
Its very easy to reach your maximum load without
even trying. Place food, gas bottles, load the
fridge, clothes, sleeping items, bikes and hey
you are at capacity. You realise you havent
packed the BBQ and kids toys, camp chairs? What
will you do? The first thing to look at is Have
you over packed? Too much food and clothing adds
up, maybe you need to reconsider what you need to
take. If you take the lot and distribute it
better between the car and caravan? Will this
lessen the weight on the towing load? It can be a
nightmare, but one that you need to avoid at all
costs. You also need to make sure your tow
vehicle can cope with the weight when fully
loaded. The last thing you need is issues when
towing. Once you have the weight sorted you need
to ensure you have a weight distribution hitch to
ease the pressure on the tow vehicle and assist
you when on the road.
4
How does a weight distribution hitch work?
The weight distribution hitch connects to the
towbar receiver. Carasel can assist you in
getting the correct one to fit your vehicle. Two
adjustable load rated drawbars are horizontally
suspended beneath the drawbar frame of the
trailer or caravan. This is then tensioned up on
the drawbars. They are adjustable to ease the
weight of the down ball load and distribute more
evenly across the vehicle and the caravan axles.
5
Why is the weight distribution hitch important?
Without the weight distribution hitch, you are
placing the safety of yourself and other road
users on the road. Towing heavy trailers without
this can place excessive load weight on the rear
end of your vehicle. It overloads the suspension
and causes severe sagging at the rear of the
vehicle. This leads to unnecessary and severely
unsafe swaying and can lead to fatal results.
Its a scenario no one wants to live through.
Towing accessories for vehicles are there for a
reason and this is one accessory you cannot do
without.
6
How do you calculate the weight distribution to
make sure you have the correct one?
Firstly to ease the stress you can visit us at
Carasel, we can get the information we need and
set you up with the best weight distribution
hitch for you. You will have peace of mind that
your choice is right from the first time you use
it.
7
Weight distribution hitches come in three
different sizes and its vital to make sure you
get the right one.

• There are weight ratings 270kg, 360kg 545kg and
  you need to know 3 things in order to have the
  correct size when towing.
• Know the inside size of the of the square opening
  on the receiver.
• The rating of the hitch needs to match or exceed
  the gross trailer weight, otherwise known as the
  GTW.

8
Weight distribution set up.

• While it sounds quite detailed, installing your
  weight distribution parts are very easy to fit
  and can be done by yourself.
• Firstly, set up the coupling head by lining up
  your vehicle with the trailer/caravan on a flat
  surface using the jockey wheel to level the
  trailer.
• Measure the height of the height of the front and
  back wheel arches of the vehicle.
• Adjust the coupling head to the required angle
  using the leveling blocks that are supplied.
• Attach the spring bars fitted with the chains.
• Once the lift brackets are fitted onto the
  trailer arms, the lift chains can be attached.
• Now you are done, and it is as easy as raising
  the lift bracket and securing the lock in pins.

9
Tips and Reminders for a Safe Trip

• Always think when packing for a trip
• Have I packed just the essential items needed?
• Do I need cases of drinks, or will a few suffice?
• Am I packing heaps of food "just in case" or can
  I go to a shop close by?
• Do I need to bring all the saucepans and frypans
  or do I just need one pot and fry pan?
• Should I take all the kids bikes and scooters or
  can they just take one of these to ride?
• Try your best not to pack heaps of clothes, yes,
  you need to pack for all weathers, but can you
  just pack limited clothes or can you wash while
  you are away?

10
Think of the game Tetris, limited space means
limited items, utilise spaces, pack a pot into
the frypan, put socks for a few days inside
runners, there are ways to cut pack on storage
and utilise spaces. When calculating the tow
weight, you need to include the weight of
potential passengers, maximum amount of fuel,
luggage and little extras like water tanks and
gas bottles. Everything adds up but weight needs
to be the most important factor when you are
towing.
11
