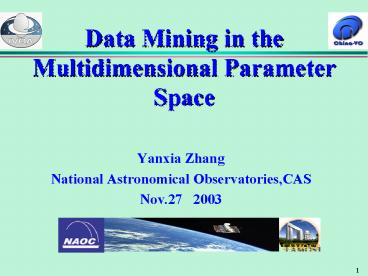

Data Mining in the Multidimensional Parameter Space

1
Data Mining in the Multidimensional Parameter
Space

• Yanxia Zhang
• National Astronomical Observatories,CAS
• Nov.27 2003

2
Outline

• Why and What
• DM Technology
• Future Directions

3
Why
Necessity Is the Mother of Invention
Data avalanche
VO
DMKDD
4
What

• DM (KDD)
• Extraction of interesting ( non-trivial,
  implicit, previously unknown and potentially
  useful) information from data in large databases
• Alternative names
• Data mining a misnomer?
• Knowledge discovery in databases (KDD SIGKDD),
  knowledge extraction, data archeology, data
  dredging, information harvesting, business
  intelligence, etc.

5
Taxonomy of DM
In large scientific databases, DM in two flavors

• Event-based mining
• Relationship-based mining

6
Event-Based Mining for Science

• Event-based mining is based upon events or trends
  in data.
• Known events / known algorithms - use existing
  physical models (descriptive models) to locate
  known phenomena of interest either spatially or
  temporally within a large database.
• Known events / unknown algorithms - use pattern
  recognition and clustering properties of data to
  discover new observational (in our case,
  astrophysical) relationships among known
  phenomena.
• Unknown events / known algorithms - use expected
  physical relationships (predictive models) among
  observational parameters of astrophysical
  phenomena to predict the presence of previously
  unseen events within a large complex database.
• Unknown events / unknown algorithms - use
  thresholds or trends to identify transient or
  otherwise unique ("one-of-a-kind") events and
  therefore to discover new phenomena.

7
Relationship-Based Mining for Science

• Relationship-based mining is based on
  associations.
• Spatial associations -- identify events
  (astronomical objects) at the same location in
  the sky.
• Temporal associations -- identify events
  occurring during the same or related periods of
  time.
• Coincidence associations -- use clustering
  techniques to identify events that are co-located
  within a multi-dimensional parameter space.

8
Science Requirements for DM

• Cross-Identification - refers to the classical
  problem of associating the source list in one
  database to the source list in another.
• Cross-Correlation - refers to the search for
  correlations, tendencies, and trends between
  physical parameters in multi-dimensional data,
  usually across databases.
• Nearest-Neighbor Identification - refers to the
  general application of clustering algorithms in
  multi-dimensional parameter space, usually within
  a database.
• Systematic Data Exploration - refers to the
  application of the broad range of event-based and
  relationship-based queries to a database in the
  hope of making a serendipitous discovery of new
  objects or a new class of objects.

9
Outline

• Why and What
• DM Technology
• Future Directions

10
DM Confluence of Multiple Disciplines
Database system, Data warehouse, OLAP
statistics
DM
MLAI
Visualization
Information science
Other disciplines
11
DM A KDD Process
Knowledge

• Data mining the core of knowledge discovery
  process.

Pattern Evaluation
Data Mining
Task-relevant Data
Selection
Data Warehouse
Data Cleaning
Data Integration
Databases
12
DM Functionality

• Concept description Characterization and
  Comparison
• Generalize, summarize, and possibly contrast data
  characteristics, e.g., stars vs. galaxies.
• Association
• From association, correlation, to causality.
• finding rules like stars à point sources.
• Classification and Prediction
• Classify data based on the values in a
  classifying attribute, e.g., classify objects
  based on spectra, or classify galaxies and stars
  based on images.
• Predict some unknown or missing attribute values
  based on other information.

13
DM Functionality (Cont.)

• Clustering
• Group data to form new classes, e.g., cluster
  spectra data to find distribution patterns.
• Time-series analysis
• Trend and deviation analysis Find and
  characterize evolution trend, sequential
  patterns, similar sequences, and deviation data,
  e.g., variable stars.
• Similarity-based pattern-directed analysis Find
  and characterize user-specified patterns in
  large databases.
• Cyclicity/periodicity analysis Find
  segment-wise or total cycles or periodic
  behaviours in time-related data.
• Other pattern-directed or statistical analysis

14
DM On What Kind of Data?

• Relational databases
• Data warehouses
• Transactional databases
• Advanced DB systems and information repositories
• Object-oriented and object-relational databases
• Spatial databases
• Time-series data and temporal data
• Text databases and multimedia databases
• Heterogeneous and legacy databases
• WWW

15
Challenges in DM

• Mining methodology issues
• Mining different kinds of knowledge in databases.
• Interactive mining of knowledge at multiple
  levels of abstraction.
• Incorporation of background knowledge
• DM query languages and ad-hoc DM.
• Expression and visualization of DM results.
• Handling noise and incomplete data
• Pattern evaluation the interestingness problem.
• Performance issues
• Efficiency and scalability of DM algorithms.
• Parallel, distributed and incremental mining
  methods.

16
Challenges in DM (Cont.)

• Issues related to the variety of data types
• Handling relational and complex types of data
• Mining information from heterogeneous databases
  and global information systems.
• Issues related to applications and social
  impacts
• Application of discovered knowledge.
• Domain-specific data mining tools
• Intelligent query answering
• Process control and decision making.
• Integration of the discovered knowledge with
  existing knowledge A knowledge fusion problem.
• Protection of data security and integrity.

17
Mining Association Rules

• Assocation rule mining
• Finding associations or correlations among a set
  of items or objects in transaction databases,
  relational databases, and data warehouses.
• Applications
• Basket data analysis, cross-marketing, catalog
  design, loss-leader analysis, clustering, etc.
• Examples.
• Rule form LHS RHS support, confidence.
• buys(x, diapers) buys(x, beers) 0.5, 60
• major(x, CS) takes(x, DB) grade(x, A) 1,
  75

18
Methods for Mining Associations

• The Apriori principle Any subset of a frequent
  itemset must be frequent.
• ( Agrawal Srikant94, Mannila, Klementen, et
  al94)
• Partition Technique(Savasere, Omiecinski,
  Navathe95)
• Sampling techique (Toivonen96)
• Multi-level or generalized association (Agrawal
  Srikant95, Han Fu95)
• Quantitative association rule mining (Srikant
  Agrawal96, Lent et al.97, Miller97).
• Constraint-based or query-based association (Ng,
  et al98, Tsur et al98)
• From association to correlation (Brin et al97)

19
Classification

• Data categorization based on a set of training
  objects.
• Applications stars,galaxies,AGN classification
  etc.
• Example classify AGN and provide the symptoms
  which describe each class or subclass.
• The classification task Based on the features
  present in the class_labeled training data,
  develop a description or model for each class.
  It is used for
• classification of future test data,
• better understanding of each class, and
• prediction of certain properties and behaviors.

20
Three Schemes in Classification

• Knowledge to be mined
• Summarization (characterization), comparison,
  association, classification, clustering, trend,
  deviation and pattern analysis, etc.
• Mining knowledge at different abstraction levels

• primitive level, high level, multiple-level,
  etc.
• Databases to be mined
• Relational, transactional, object-oriented,
  object-relational, active, spatial, time-series,
  text, multi-media, heterogeneous, legacy, etc.
• Techniques adopted
• Database-oriented, data warehouse (OLAP), machine
  learning, statistics, visualization, neural
  network, etc.

21
Major Classification Methods

• Decision tree-based classification
• Training set vs test set or cross-validation
• Overfitting problem and tree pruning
• Boosting techniques.
• Bayesian classification
• Naïve Bayesian classification
• Bayesian belief networks
• Boosting techniques (e.g., AdaBoosting).
• Neural network approach
• Multi-layer networks and back-propagation.
• Genetic algorithms
• Genetic operators and fitness function selection.

22
Predictive Modeling in Databases

• Predictive modeling Predict data values or
  construct generalized linear models based on
  the database data.
• One can only predict value ranges or category
  distributions.
• Method outline
• Minimal generalization
• Attribute relevance analysis
• Generalized linear model construction
• Prediction.
• Determine the major factors which influence the
  prediction.
• Data relevance analysis uncertainty measurement,
  entropy analysis, expert judgement, etc.
• Multi-level prediction drill-down and roll-up
  analysis.

23
Data Clustering Analysis

• Clustering
• Partitioning a set of data (or objects) into a
  set of classes, called clusters, such that
  members of each class sharing some interesting
  common properties.
• High quality clusters
• the intra-class similarity is high.
• the inter-class similarity is low.
• Measuring data clustering quality
• Distance functions

24
Three Categories of Clustering Techniques

• Partitioning-based
• Basically enumerate various partitions and then
  score them by some criterion.
• K-means, K-medoids, etc.
• Hierarchy-based
• Create a hierarchical decomposition of the set of
  data (or objects) using some criterion.
• Model-based
• A model is hypothesized for each of the clusters
• Find the best fit of that model to each other.
• E.g., Bayesian classification (AutoClass), Cobweb.

25
Database Clustering Methods

• CLARANS (Ng Han94)
• An extension to k-medoid algorithm based on
  randomized search.
• BIRCH (Zhang et al96)
• CF tree (a balanced tree structure).
• DBSCAN (EKXS96)
• connects regions of sufficiently high desity into
  clusters.
• STING (WYM97)
• A hierarchical cell structure that store
  statistical information.
• CLIQUE (Agrawal et al98)
• Cluster high dimensional data.

26
Time-Series DM

• Trend and deviation analysis
• Find trend (data evolution regularity) and
  deviations.
• Regression analysis, visualization techniques.
• Subsequence analysis similarity search
• Subsequence matching normalization matching
• Template specification shape and macro
  specification.
• Sequential pattern analysis
• Sequential association rules
• Periodicity analysis
• full periods vs. partial periods, cyclic
  association rules.

27
Similarity Search in DM

• Faloutsos et al. (1994)
• Extract features from each window
• Fourier Transform R-tree structure.
• Agrawal et al. (1995)
• Amplitude scaling, offset translation
• Distance is determined from the sequence
  envelopes
• Agrawal et al. (1995)
• SDL pattern language to encode queries about
  shapes
• Jagadish et al. (1997)
• domain-independent framework
• find all objects that are similar to some
  objects in class A and are not similar to any
  object in class B

28
Periodic Pattern Search in Time-Related Data Sets

• Full cycle analysis
• Fourier transformation, other statistical
  analysis methods
• Fragment-wise cyclic behavior analysis
• Example. Jack reads NY Times at every 900am.
• Given (natural) periods vs. arbitray periods.
• A data cube and OLAP-based technique (Han, Gong
  and Yin98)
• Cyclic association rules
• Associations which form cycles.
• Cyclic Association Rules (B. Özden, S. Ramawamy,
  A. Silberschatz, 1998)

29
Conclusions

• Data warehouse An industry trend
• DW stores a huge amount of subject-oriented,
  cleansed, integrated, consolidated, time-related
  data.
• OLAP provides an interactive data analysis
  environment
• OLAM Integration of mining with OLAP
• Take advantages of data warehouse infrastructure.
• From batch mining to interactive,
  multi-dimensional mining
• Many interesting research and implementation
  issues
• Database mining and warehouse mining are both
  important directions to pursue.

30
Outline

• Why and What
• DM Technology
• Future Directions

31
Future Work on DM Research

• Integration with data warehouse, OLAP, and
  relational technology
• Scalability efficient algorithms,
  parallel/distributed and incremental mining
• Ad-hoc mining query language and its optimization
• Multiple, integrated DM functions and methods
• Mining on new kinds of data time-series data,
  text, multimedia, spatial and Web
• Visual DM and knowledge visualization
• Application exploration
• Interactive, exploratory DM environment

32
Integration with Data Warehouse and OLAP
Technology

• Data warehouse A strong industry trend
• huge amount of subject-oriented, cleansed,
  integrated, consolidated, time-related data are
  stored in data warehouses
• OLAP provides an interactive data analysis
  environment
• Integrate mining with OLAP leads to multiple
  dimensional DM
• On-Line Analytical Mining (OLAM -).

33
Efficiency and Scalability in DM

• Efficient algorithms in every DM function
• Class description Summarization and comparison
• Classification and prediction
• Clustering
• Time-series and trend analysis
• Real-time, fast response in exploratory DM
• Progressive, multiple precision data analysis
• Parallel and distributed DM algorithms
• Incremental DM methods

34
Why Parallel and Distributed DM?

• Massive amounts of data sets
• From mega-bytes to giga- and tera-bytes.
• Costly data mining algorithms
• Association, classification, clustering,
  prediction.
• Data in applications are geographically
  distributed.
• Parallel and networked computers are widely
  available.

35
DM Query Optimization

• Ad-hoc DM query language DM SQL.
• DM query optimization
• How to carve a DM view?
• How to push user-specified rule constraints?
• How to integrate interestingness measures in
  mining?
• Interactivity of DM New challenge.

36
Multiple, Integrated DM Functions and Methods

• Multiple mining functions
• Concept description characterization and
  discrimination
• Classification and prediction
• Clustering
• Association and correlation analysis
• Multiple mining methods
• Statistical approaches
• Machine learning approaches
• Neural network approach
• Other approaches mathematical models, etc.

37
Mining Complex Types of Data

• Text data mining
• Library database, e-mails, book stores, Web
  pages.
• Spatial data mining
• geographic information systems, engineering
  databases, medical image database.
• Multimedia data mining
• image and video/audio databases.
• Web mining
• unstructured and semi-structured data
• Web access pattern analysis easily doable.

38
Visual DM

• The power of visual comprehension
• A picture a thousand words
• Pattern recognition and exploratory mining
• Visual mining techniques
• Data visualization
• Integration with other mining methods
• Visual representation of knowledge
• Charts, graphs, trees, curves, cubes
• Multi-dimensional representation color, shape,
  texture, gray-level, etc.

39
Exploration of DM Applications

• Need more success stories
• Insurance and market analysis, NBA strategy
  analysis.
• Most current DM systems are lack of a thick
  semantic layer
• like the early relational database systems
  without application software.
• Customized data mining systems
• Market analysis DM systems
• Insurance and customer analysis systems

40
Towards an Integrated, Exploratory DM Environment

• Exploratory DM
• Interactive, user-centered, exploratory mining
  process
• High performance and fast response
• Integrated multiple DM functions and methods
• Try different approaches to see which one is
  better
• Try different functions to see which patterns are
  more interesting
• Automated mining and interactive mining not too
  far apart!

41
Towards VO-based DM
Success of DM
Success of VO
Hope the day comes earlier
42

• Thank you !!!
