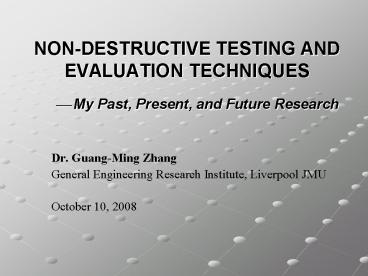

NON-DESTRUCTIVE TESTING AND EVALUATION
TECHNIQUES ? My Past, Present, and Future
Research
  • Dr. Guang-Ming Zhang
  • General Engineering Research Institute, Liverpool
    JMU
  • October 10, 2008

2
Outline of Research Experience
  • April 2003 - present
  • Research Fellow in General
    Engineering Research Institute, Liverpool John
    Moores University, Liverpool, UK
  • March 2001 March 2003
  • Researcher in Signals and Systems
    Group, Uppsala University, Uppsala, Sweden
  • Sep. 1999 March 2001
  • Postdoc in Institute of Acoustics,
    Nanjing University, Nanjing, P.R.China.
    (Promoted as an Associate Professor in Nov. 2000)
  • Sep. 1996 June 1999
  • Ph.D in Laser and Infrared Research
    Institute, Xian Jiaotong University, Xian,
    P.R.China, Full time
  • Sep. 1993 June 1996
  • MSc in Laser and Infrared Research
    Institute, Xian Jiaotong University, Xian,
    P.R.China, Full time

3
Development of JTUIS Ultrasonic Imaging Testing
System
MSc Research supported by industry. Xian
Jiaotong University
  • My main contributions include initiating
    the system plan and structure, development of NDT
    techniques, designing a PC based data acquisition
    and control circuit board and software
    programming.
  • This product has been patented and
    commercialized. It has been sold in more than
    eighteen companies including big state-owned
    companies in China and multi-national companies
    for example ABB, and companies in Indian.

4
Development of JTUIS Ultrasonic Imaging Testing
System
5
Applications
Low Voltage Switch
High Voltage Vacuum Switch
High Voltage Switch Sintered Contact
Ultrasonic inspection
6
Theory and Application Study on Time-Frequency
Analysis Technology for Ultrasonic NDT
PhD Research. Xian Jiaotong University
  • Integrating neural networks techniques for
    recognition and classification of ultrasonic
    signals and defects.
  • Continuous wavelet transform and parameter
    optimization in ultrasonic non-destructive
    evaluation.
  • Adaptive time-frequency decomposition
  • Flaw identification and noise suppressing using
    Wavelet Ridge.
  • 2D wavelet packet transform for image
    enhancement.
  • Ultrasonic non-destructive evaluation of weld
    defects.

7
Infrared Thermography
Xian Jiaotong University
  • Developed an infrared image collecting and
    processing system. It was designed for AGEMA
    series thermovision. This product has been
    commercialized and was awarded a science and
    technology progress prize by National Education
    Ministry of P.R.China. It has been used in
    universities and petrochemical companies
  • Investigated pulse-heating infrared thermography.
    High power ultrasound was used as the heating
    source.
  • Carried out composite material non-destructive
    testing using the infrared thermal imaging
    technique.

8
Acoustical Sensors and Actuators Based on MEMS
Techniques
Nanjing University
  • Supported by the Natural Science Foundation of
    China (equivalent to EPSRC).
  • Developed a surface acoustic wave rotation motor
    (size at millimetrelevel).
  • A prototype MEMS (Micro Electro-Mechanical
    System) motor has been designed and made using
    photolithography, and its basic characteristics
    have been studied by both experiments and
    computer simulation.
  • Fabrication and characterisation of ferroelectric
    thin film using magnetron sputtering.

9
Acoustical Sensors and Actuators Based on MEMS
Techniques
Schematic diagram of the miniaturized SAW rotary
motor
Time evolution of the angular velocity both in
theoretical simulation and in experiment
The stator is made by a 128 rotated y-cut
x-propagation LiNbO3 substrate, on which two
pairs of IDTs (Inter-digital transducer) are
arranged in parallel in the direction of
propagation. The rotor is composed of an
aluminium disk with several steel balls around
the circumference. The size of the stator is
17110.4 mm3, and the size of the rotor is
?90.7 mm3. With the operating frequency of 30
MHz and the driving voltage of 120 Vpp, the
motor can rotate at a speed of 270 rpm.

10
Ultrasonic Image Compression
  • Part of the European 5th Framework
    Programme project of Signal processing and
    improved qualification for non-destructive
    testing of aging reactors . Uppsala University
  • Investigated transform and subband coding for
    ultrasonic Image compression.

0.125 bpp
Original signal
JPEG
Wavelet transform (JPEG200)
A MATLAB toolbox
Karhunen-Loève transform
These RF signals were extracted from original and
decompressed ultrasonic B-scan images
11
Ultrasonic Image Compression
  • Carried out research on simultaneous denoising
    and compression of ultrasonic images using vector
    quantization of image subbands.

The general VQ-based coding scheme
The proposed coding scheme
0.47bpp
12
Inspection of Copper Canisters for Spent Nuclear
Fuel
Supported by SKB (the Swedish Nuclear Fuel and
Waste Management Co). Uppsala University
  • Studied nonlinear acoustical imaging techniques.
    Phased array Allin ultrasonic imaging system, and
    RITEC advanced ultrasonic measurement system
    RAM-5000 were used to carried out experiments. A
    precision network analyzer from Agilent was used
    to analyze transducer characteristics.
  • Performed modelling and computer simulation of
    nonlinear acoustical fields in immersed solids.
  • Designed a software called DREAM for acoustic
    field simulation using discrete representation
    array modelling

13
Nonlinear acoustical imaging for NDE
A C-scan image of the electron beam welding test
piece obtained from the fundamental wave
The second harmonic image
14
Calibration
An ultrasonic pulse measured by a hydrophone at
31mm away from the transducer in water, and its
spectrum. It can be seen that nonlinearity in
water can be neglected in our experiment.
An ultrasonic pulse reflected from a side-drilled
hole and its spectrum. Nolinearity is clearly
observed.
15
Modelling and computer simulation of nonlinear
acoustical fields in immersed solids
Acoustical field from the 2.3-MHz spherically
annular transducer operating in copper block
immersed in water with a 30-mm water path length,
with an initial source intensity 21W/cm2. Left
without accounting for the nonlinearity in water
Right with accounting for the nonlinearity in
water. Normalized second harmonic at the welded
interface 30.8854dB, 19.6513dB.
16
Acoustic field simulation using discrete
representation array modelling
http//www.signal.uu.se/Toolbox/dream/ (Free
Download)
17
Quality and reliability testing of BGA and
Flip-Chip solder bonds subjected to
mixed-environments testing using AMI
EPSRC ROPA project. Liverpool JMU
  • Carried out a comparison study of X-ray
    inspection and acoustic micro imaging for the
    evaluation of modern microelectronic packages.
  • AMI is an effective approach for detecting
    gap-type defects such as voids, delaminations and
    cracks due to the strong reflection of ultrasound
    in solid-air interfaces. These defects are
    difficult to be found by X-ray inspection owing
    to low contrast. The contrast of X-ray images
    relies on the thickness of internal
    structures/defects, and differences in the atomic
    mass and density. Thus, X-ray inspection is fit
    for volumetric defects for example broken wires.
    However, this kind of defect is very hard or
    impossible to be detected by AMI.
  • Was assessed as tending to outstanding

18
Quality and reliability testing of BGA and
Flip-Chip solder bonds subjected to
mixed-environments testing using AMI
EPSRC ROPA project. Liverpool JMU
AMI
X-ray inspection
X-ray inspection
19
Signal model in AMI
(a)
(b)
AMI echoes at typical boundaries in Flip-Chip
package mounted on ceramic substrate (a), and an
example A-scan obtained using a 230MHz transducer
(b).
Ultrasonic signals reflected by defects possess
information about defect size and orientation.
20
Imaging modes of ultrasonic imaging
(a)
A-scan

C-scan
B-scan
21


Multiple slices of flip-chip solder joints by
AMI. From left to right top slice (silicon-bump
interface), middle slice (bump area), and bottom
slice (bump-PCB). Lower part corresponding
electronic gate

22
Imaging technology for x-ray inspection
  • Conventional 2D transmission x-ray
  • Oblique angled viewing
  • 3D digital tomography
  • 3D laminography

Principle of digital lexicography
23
Advanced Acoustic Micro-Imaging for the
Evaluation of Microelectronic Packages
Liverpool JMU
  • Background
  • Modern PCBs and semiconductor devices are
    difficult to inspect
  • This will get harder as devices become smaller
    and more complex
  • 3D packages as shown in the above picture are
    emerging, bringing new problems that need
    solutions
  • The key acoustic challenges are axial resolution
    for delamination and cracks at closely-spaced
    interfaces and penetration through multiple
    interfaces.

24
Limitations of Conventional AMI Techniques
Left by a 230 MHz transducer Right by a 50 MHZ
transducer.
(Dimension of the flip-chip package is
8.19mm?8.30mm?0.86mm)
25
Advanced AMI Techniques
  • Basic Principle
  • Firstly, performing a-priori selection of a
    possibly over-complete signal dictionary (a
    collection of parameterised waveforms) in which
    the ultrasonic pulses are assumed to be sparsely
    representable.
  • Secondly, separating the incident pulses by
    exploiting their sparse representability.
  • Thirdly, selecting an appropriate echo and
    producing a C-scan output.

26
Time-Frequency Domain AMI Techniques
Acoustic time-frequency domain imaging. (a)
Time-frequency representations of Fig.2a by CWT
(b) Wavelet transform modulus maxima (c)
Significant local maxima obtained by wavelet
thresholding.
27
Sparse Signal Representation Based AMI Approaches
What is sparse signal representation?
The sparse signal representation problem is
formulated as
Given a signal
,
and the overcomplete dictionary
seek the sparsest coefficient vector
.
under the linear model
This corresponds to solving the following
variational problem
Minimize
subject to
It is an NP-hard problem. So many approximation
solutions were proposed.
28
Sparse Signal Representation Based AMI Approaches
  • What are the advantages of sparse signal
    representation?
  • Recently sparse overcomplete representation is of
    great interest in many applications such as image
    compression, denoising of signals, and blind
    source separation because of its advantages.
  • One is that there is greater flexibility in
    capturing structure in the data. Instead of a
    small set of general basis vectors, there is a
    larger set of more specialized basis vectors such
    that relatively few are required to represent any
    particular signal. These can form more compact
    representations, because each basis vector can
    describe a significant amount of structure in the
    data.
  • The second is super-resolution. We can obtain
    a resolution of sparse objects that is much
    higher than that possible with traditional
    methods.
  • An additional advantage is that overcomplete
    representations increase stability of the
    representation in response to small perturbations
    of the signal.
  • In addition, the redundant representations
    have the desired shift invariance property.

29
Sparse Signal Representation Based AMI Approaches
  • Sparse signal representation methods
  • Basis Pursuit (BP), Matching Pursuit (MP),
    and Best Orthogonal Basis (BOB) (Wavelet Packet
    decomposition).
  • 2) Over-complete dictionaries
  • Wavelet packets dictionaries, Cosine packet
    dictionaries, and Gabor dictionaries.
  • 3) SSRAMI
  • BP base AMI, MP based AMI, and BOB based AMI.

30
Sparse Signal Representation Based AMI Approaches
The echo separation result of an A-scan shown in
phase plane and a succession of time-frequency
windows. The darkness of the time-frequency image
increases with the energy value, and each
time-frequency atom selected by the BP method is
represented by a Heisenberg box.
31
Sparse Signal Representation Based AMI Approaches
The AMI results with simulated A-scans by
different AMI techniques.
Parameters Parameters Parameters Parameters Aerror () Aerror () Aerror ()
A1/A2 v2-v1 u2-u1 s2-s1 SSRAMI TDAMI FDAMI
1.00 -0.08 48 0 4.42 0.00 47.41
1.00 0.10 48 0 4.39 0.00 55.04
1.00 0.15 36 0 1.83 0.42 11.63
1/0.8 0.2 32 0 0.83 0.44 4.58
1/0.8 -0.3 28 5 1.92 13.38 0.00
1/1.5 -0.3 28 10 1.16 42.85 0.00
1/1.5 -0.3 20 15 3.32 60.60 0.00
32
Learning Overcomplete Representation Based AMI
Approaches
  • The success of SSRAMI greatly depends on the
    overcomplete dictionary. There are several ways
    to determine the overcomplete dictionary
  • To choose a non-adapted overcomplete dictionary
    from the existing dictionaries, such as Gabor
    dictionary, and wavelet packet dictionaries.
  • To learn an adapted overcomplete dictionary.
  • Dictionary learning methods Principal
    Component Analysis (PCA), Independent Component
    Analysis (ICA), overcomplete ICA, and
    FOCUSS-based dictionary learning, and recently
    developed K-SVD.
  • 3. To combine dictionaries to make bigger, more
    expressive dictionaries.

33
Learned Overcomplete Dictionaries
Learned basis vectors. Left 50MHz transducer
Right 230MHz transducer.
34
Learning Overcomplete Representations
Learning overcomplete representation techniques
Basis Pursuit (BP), Matching Pursuit (MP),
Overcomplete ICA, FOCUSS, and Sparse Bayesian
Learning (SBL).
Sparse representations of ultrasonic signals (a)
A simulated A-scan the sparse representations of
(a) by the overcomplete ICA (b), FOCUSS (c) and
SBL (d) algorithms (e) the original echo the
first echo in (a) (f) the recovered echo from
(b) (g) the recovered echo from (c) (h) the
recovered echo from (d).
35
Sparse Deconvolution
  • Investigated sparse deconvolution of ultrasonic
    NDE Traces accounting for pulse variances by
    learning overcomplete representations.

Deconvolution of (a) a synthetic non-stationary
trace segment (SNR8.6dB). (b) The true
reflectivity (b). The reflectivity recovered by
(c) the proposed method and (d) the IWM-BD method.
Upper true and estimated local pulses for the
first and middle echoes by the proposed method.
Solid lines devote the true pulses and dashed
lines devote the estimated pulses. Lower by the
IWM-BD method.
36
Ultrasonic Flaw Detection via Overcomplete and
Sparse Representations
1. Signal detection for signals with additive
white Gaussian noise
The proposed algorithm
WTSP
37
Ultrasonic Flaw Detection via Overcomplete and
Sparse Representations
2. Signal detection for signals with correlated
noise
Correlated noise and an original ultrasonic flaw
signal
The proposed algorithm
WTSP
38
Ultrasonic Flaw Detection via Overcomplete and
Sparse Representations
3. Estimate the pulse arrival time for defect
location, thickness measurement, and sound
velocity determination.
SNRin(dB) SNRin(dB) SNRin(dB) SNRin(dB) SNRin(dB) SNRin(dB) SNRin(dB) SNRin(dB) SNRin(dB) SNRin(dB) SNRin(dB)
15.62 6.97 1.54 0.22 -0.74 -1.61 -2.58 -3.23 -4.14 -4.72 -5.79
Error of time delay (in sample number) The proposed 0 0 0 0 0 0 1 0 1 1 2
Error of time delay (in sample number) WTSP 0 0 0 0 1 1 1 1 1 1 2
The error of measure delay time between two
pulses against the SNR. Results are presented in
sample number.
39
Ongoing EPSRC Project
Super-Resolution Acoustic Time-Frequency Domain
Imaging Techniques
  • 1.Simulation of Acoustic Microimaging
  • To elucidate the defect detection mechanism and
    predict ultrasonic pulses.
  • To investigate the basic ultrasound limitation
    penetration vs. resolution in modern 3D packages.
  • To optimize the parameters of transducer
    focusing.
  • To study the ultrasound nonlinearity.
  • 2.Super-resolution Acoustic Microimaging
    Approaches
  • To achieve a sub-wavelength axial resolution.
  • To study sparse representation based AMI
    approaches.
  • To develop fast time-frequency domain AMI
    approaches.
  • To develop deconvolution-based AMI
  • To study 3D AMI

40
Other Related Work
  • Worked on development of INTRANET network
    software under the IBM AS-400 computer operating
    system in Primax Manufacturing LTD, Guangdong,
    P.R.China in June-September, 1996.
  • Involved in research of photoacoustic imaging and
    laser ultrasonics techniques at Nanjing
    University.
  • Worked on the TELEPATH an EU funded
    e-learning project involved in partners from UK,
    Portugal and China at EDC.
  • Provided consulting help to local (Merseyside)
    companies under the EU ERDF funding at EDC.
  • Co-supervised postgraduate students and Ph.D
    students.

41
GRANTS AND PROPOSALS
  • Super-resolution acoustic time-frequency domain
    imaging techniques for the evaluation of modern
    microelectronic packages. EPSRC responsive mode,
    Granted (200,000), 2008 July (Researcher Co-I).
  • Micro-electrical-mechanical ultrasound phased
    array system. Supported by Postdoctoral Science
    Foundation of China, 2000 (PI).
  • Ferroelectric thin film manufacturing and study
    on structure and performance. Supported by State
    Key Lab. Science Foundation of Nanjing
    University, 2000 (PI).
  • Nanoscale tomographic imaging of buried
    structures. ERC Starting Independent Researcher
    Grant, not granted, April 2007 (PI) (Very good
    comments were received).
  • Characterisation of future packages using
    advanced imaging techniques. EPSRC responsive
    mode, missed by one positions, March 2007 (Co-I).
  • Advanced imaging approaches for diagnosis of
    electronic assemblies. EPSRC Advanced Research
    Fellowship, I was invited for interview and the
    proposal was ranked 11 in the final stage but
    unfortunately only 9 have been granted, Sep. 2006
    (PI).

42
Summary
  • 1) I have developed significant expertise in
    a broad research area by working in different
    universities in different countries
  • Ultrasonic non-destructive evaluation, ultrasonic
    engineering, signal and image processing, pattern
    recognition, information theory, instrumentation
    development and electronic design.
  • Xian Jiaotong University - Nanjing University -
    Uppsala University LJMU
  • China Sweden UK
  • 2) As main researcher I have been involved in
    multiple research projects supported by Natural
    Science Foundation of China, European Framework
    Programme, Sweden, EPSRC, and industries.

43
Summary
  • 3) Have gained experience in project management
    As principal investigator managed two projects.
    Co-managed 3 projects. Co-supervised several
    postgraduate students and PhD students.
  • 4) Strong research and product development
    abilities
  • Published 40 refereed journal papers (25 as first
    author), and 7 conference papers (6 as first
    author).
  • 1 patent.
  • 2 products commercialised.
  • A number of awards have been awarded by Chinese
    government and other organisations.
  • Two invited presentations. (Invited by the vice
    Chancellor of Xian Science and Technology
    University, and by the head of Institute of
    Acoustics, Nanjing University, in 2005.)

44
Thank You for Your Attention
Write a Comment
User Comments (0)
About PowerShow.com
