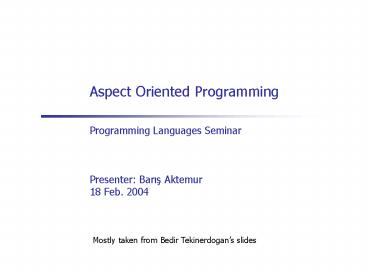

Aspect Oriented Programming Programming Languages Seminar Presenter: Baris Aktemur 18 Feb' 2004

1
Aspect Oriented ProgrammingProgramming
Languages SeminarPresenter Baris Aktemur18
Feb. 2004

Mostly taken from Bedir Tekinerdogans slides
2
Outline

• Introduction
• Problems
• Terminology
• Aspect-Oriented Programming Languages/Frameworks
• Compositional Filters
• AspectJ
• Hyper/J
• DemeterJ
• Conclusions

3
Introduction

• Evolution of Programming Languages
• Assembly/Machine Languages
• Formula Translation
• Procedural Programming
• Structured Programming
• Functional Programming
• Logic Programming
• Programming with abstract data types
• Evolution of Software Design
• Monolithic ---gt Modular

4
Design Principles ? Modularity

• Abstraction
• Focus only on relevant properties
• Decomposition
• Divide software into separately named and
  addressable modules
• Encapsulation
• Group related things together.
• Information Hiding
• Hide implementation details from the outside
• Separation of Concerns
• Ensure that each module only deals with one
  concern
• Low Coupling
• aim for low coupling among the modules
• High Cohesion
• aim for high cohesion within one module

5
Separation of Concerns

• Cohesion
• Maximize cohesion within a component
• i.e. Cohesive component performs only one
  concern/task
• required changes can be easily localized and will
  not propagate
• Coupling
• Highly coupled components have many
  dependencies/interactions
• Minimize coupling between components
• reduces complexity of interactions
• reduces ripple effect

6
Advantages of separation of concerns

• Understandability
• Maintainability
• Extensibility
• Reusability
• Adaptability

Separation of Concerns directly supports quality
factors. Lack of Separation of Concerns
negatively impacts quality factors.
7
Example - Figure Editor

• A figure consists of several figure elements. A
  figure element is either a point or a line.
  Figures are drawn on Display. A point includes X
  and Y coordinates. A line is defined as two
  points.

8
Example - Figure Editor - Design

• Components are
• Cohesive
• Loosely Coupled
• Have well-defined interfaces (abstraction,
  encapsulation)

Nice Modular Design!
9
Crosscutting Concern - Example
Notify ScreenManager if a figure element moves
Display

Figure
FigureElement
Point
Line
2
getX() getY()
getP1 setP1
setX(int) setY(int)
setP1(Point) setP2(Point)
10
Example Display Tracking
Crosscutting Concern
class DisplayTracker static void
updatePoint(Point p) this.display(p) ....
static void updateLine(Line l)
this.display(l) ....
DisplayTracker
class Point void setX(int x)
DisplayTracker.updatePoint(this) this.x
x
class Line void setP1(Point p1
DisplayTracker.updateLine(this) this.p1
p1
11
Example - Tracing - Design
Trace the execution of all operations...
Tracer
traceEntry traceExit
Tracing
12
Example - Tracing
Scattered Concern
Tangling Code
class Tracer static void traceEntry(String
str) System.out.println(str) static
void traceExit(String str)
System.out.println(str)
Tracer
class Point void setX(int x) _x x

class Line void setP1(Point p1 _p1
p1
13
Example Tracing and Display Tracking
Tracer
trace
14
Crosscutting, Scattering and Tangling

• Crosscutting
• concern that inherently relates to multiple
  components.
• results in scattered concern and tangled code
• non-functional requirements likely to crosscut
• Scattering
• Single concern affects multiple modules
• Tangling
• multiple concerns are interleaved in a single
  module

15
Example of crosscutting concerns

• Synchronization
• Real-time constraints
• Error-checking
• Object interaction constraints
• Memory management
• Persistency
• Security
• Caching
• Logging
• Monitoring
• Testing
• Domain specific optimization
• ...

16
Aspect-Oriented Software Development

• Provides better separation of concerns by
  explicitly considering crosscutting concerns (as
  well)
• Does this by providing explicit abstractions for
  representing crosscutting concerns, i.e. aspects
• and composing these into programs, i.e. aspect
  weaving or aspect composing.
• As such AOSD improves modularity
• and supports quality factors such as
• maintainability
• adaptability
• reusability
• understandability
• ...

17
Basic AOP technologies

• Composition Filters
• University of Twente, The Netherlands
• AspectJ
• XEROX PARC, US
• DemeterJ/DJ
• Northeastern University, US
• Multi-dimensional separation of Concerns/HyperJ
• IBM TJ Watson Research Center, US

18
History of AOP languages
Scripts (Francez 81)
OO languages
MOP(1985)
Reflection(Smith 81)
Sinainterface predicates(1988)
AI (semanticnetworks 79)
Law of Demeter(1988)
CLOS-MOP
Adaptiveprogramming(1992)
Crosscuttingaspects (1996)
Composition Filters(1992)
AspectJ(1997)
Composition Filterswith superimposition(2001)
AspectJ(2000)
http//trese.cs.utwente.nl
19
Composition Filters
Ref http//trese.cs.utwente.nl
20
Example - Mail System
21
Interface of EMail
Class Email interfaceputOriginator(anOriginator)
getOriginator returns anOriginatorputReceiver(a
Receiver)getReceiver returns aReceiverputConte
nt(aContent)getContent returns
aContentsendreplyapproveisApproved
returns BooleanputRoute(aRoute)getRoute
returns aRoutedeliverisDelivered returns
Boolean
22
Multiple Views

• Not all operations of mail should be generally
  applicable. We can distinguish between the
  following views
• User view
• originator, receiver
• System view
• postman, mail system

23
USViewMail extends EMail

• putOriginator
• putReceiver
• putContent
• getContent
• send
• reply

Mail
USViewMail
system view

• approve
• putRoute
• deliver

• getOriginator
• getReceiver
• isApproved
• getRoute
• isDelivered

user view
24
Implementation of USViewMail
EMail
To reuse the operations of EMail, USViewMail may
inherit from it.
USViewMail
putOriginator(anOriginator) if self.userView
then super.putOriginator(anOriginator)
else self.error
userView return client.category user
25
Implementation of USViewMail
USViewMail
Here is the second option! To reuse the
operations of EMail, USViewMail may aggregate an
instance of EMail and redirect the calls to this
object.
ImpEMail
putOriginator(anOriginator) if self.userView
then imp.putOriginator(anOriginator)
else self.error
userView return client.category user
26
Identify of the client object
Wait a minute! How does the server detect the
identity of the client object?
The server object must test the id of the client
object. This is not always easy!
In languages like C and Java, this information
is generally not accessible by the programmer.
The client can pass the id but then the call will
have an extra argument in some languages this is
considered as a different call.
This is what one might calllack of expression
power problem!
userView return client.category user
27
Implementation of USViewMail
Lets assume that userViewcan be computed. I want
to evaluate the inheritance-based implementation.
All these 9 operations must be re-defined! 2
operations for the views, in total 11
new operations must be defined!
The remaining 5operations are inherited!
6 x user views
3 x system views
28
Implementation USViewMail
In the aggregation-basedimplementation to add 2
views, 16 operations must be defined!
These are 6 user and 3 system views 2
viewimplementations and 5 forwarding 16
operations.
6 x user views
3 x system views
5 x forwarding
29
Evolution Scenario
USViewMail is not the only possible extension to
EMail. As an example, I will introduce the
following classes as extensions ORViewMail,
WarningMail, LockingMail, DynamicMail
Monitoring. Lets try to reuse the classes as
much as possible
30
Evaluation

• Many operations must be redefined to implement a
  new scenario.
• Duplication
• Because of Not-Separated Concerns (Crosscutting
  and tangling)

31
Filters are modular extensions

• In case more than one concern
• is needed, multiplefilters can be used.

Instead of providingdedicated solutionsby
modifyingclass descriptions, Composition
Filtersoffers modular extensions toclass
abstractionsexpressed in languages likeJava,
C and Smalltalk.

• Each filter transforms incomingand/or outgoing
  messagesto/from object.

a filter
A modularextension
32
Implementation of USViewMail using CFs
Filter multipleViews
Filter invoke
userView systemview
Assume that USViewMail aggregatesEmail for
reuse. In addition, 2 filters called
multipleViews and invoke,and two new operations
userView and systemVieware defined.
33
USViewMail using CFs (conted)
This is thespecificationof the first filter!
multipleViews Error
userView gt putOriginator, putReceiver,
putContent, getContent, send, reply,
systemView gt approve, putRoute, deliver,
True gt getOriginator, getReceiver, isApproved,
getRoute, isDelivered

34
USViewMail using CFs (conted)
match
False
multipleViews Error
userView gt putOriginator, putReceiver,
putContent, getContent, send, reply,
userView
systemView gt approve, putRoute, deliver,
systemView
True gt getOriginator, getReceiver, isApproved,
getRoute, isDelivered
True

35
USViewMail using CFs (conted)
no match
ERROR
True
no match
multipleViews Error
False
userView gt putOriginator, putReceiver,
putContent, getContent, send, reply,
userView
systemView gt approve, putRoute, deliver,
systemView
True gt getOriginator, getReceiver, isApproved,
getRoute, isDelivered

36
Evaluation of USViewMail
Filter multipleViews
Filter invoke
userView systemview
In CF basedimplementation to add 2 views, 2
filters and 2 operationshas to be defined!
2 x filters
2 x operations
37
USViewMail filter interface
filterinterface USViewMail begin internals
mail Mail conditions userView
systemView inputfilters mv Error
userView gt putOriginator, putReceiver,
putContents, getContents, send,
systemView gt approve, deliver, putRoute,
true gt getOriginator,
getReceiver, isApproved,
getRoute, isDelivered
invoke Dispatch true gt inner., mail.
end interface
38
Filter Types and Semantics
39
AspectJ

• A general purpose AO programming language
• just as Java is a general-purpose OO language
• unlike examples in ECOOP97 paper
• domain specific languages for each aspect
• an integrated extension to Java
• accepts all java programs as input
• outputs .class files compatible with any JVM
• integrated with tools

40
Example Without AOP
class Line private Point _p1, _p2 Point
getP1() return _p1 Point getP2() return
_p2 void setP1(Point p1)
Tracer.traceEntry(entry setP1) _p1 p1
Tracer.traceExit(exit setP1) void
setP2(Point p2) Tracer.traceEntry(entry
setP2) _p2 p2 Tracer.traceExit(exit
setP2) class Point private int _x 0,
_y 0 int getX() return _x int getY()
return _y void setX(int x)
Tracer.traceEntry(entry setX) _x x
Tracer.traceExit(exit setX) void setY(int
y) Tracer.traceEntry(exit setY)
_y y Tracer.traceExit(exit setY)
class Tracer static void traceEntry(String
str) System.out.println(str) static
void traceExit(String str)
System.out.println(str)
Tangling Code
Scattered Concern
41
Example With AOP
class Line private Point _p1, _p2 Point
getP1() return _p1 Point getP2() return
_p2 void setP1(Point p1) _p1 p1
void setP2(Point p2) _p2 p2
class Point private int _x 0, _y
0 int getX() return _x int getY()
return _y void setX(int x) _x
x void setY(int y) _y y
aspect Tracing pointcut traced() call(
Line. call( Point.) before()
traced() println(Entering
thisjopinpoint) void println(String str)
ltwrite to appropriate streamgt
Aspect is defined in a separate
module Crosscutting is localized No scattering
No tangling Improved modularity
42
Aspect Language Elements

• join point (JP) model
• certain principled points in program execution
  such as method calls, field accesses, and object
  construction
• means of identifying JPs
• picking out join points of interest (predicate)
• pointcuts set of join points
• means of specifying behavior at JPs
• what happens
• advice declarations

43
Modularizing Crosscutting

• Joinpoints any well-defined point of execution
  in a program such as method calls, field
  accesses, and object construction
• Pointcut predicate on joinpoints selecting a
  collection of joinpoints.

Tracer
pointcut traced() call( Line.)
call( Point.)
44
Joinpoints

• method call join points
• when a method is called
• method reception join points
• when an object receives a message
• method execution join points
• when the body of code for an actual method
  executes
• field get joint point
• when a field is accessed
• field set joint point
• when a field is set
• exception handler execution join point
• when an exception handler executes
• object creation join point
• when an instance of a class is created

45
Some primitive pointcuts

• call(Signature)
• picks out method or constructor call based on
  Signature
• execution(Signature)
• picks out a method or constructor execution join
  point based on Signature
• get(Signature)
• picks out a field get join point based on
  Signature
• set(Signature)
• picks out a field set join point based on
  Signature
• handles(TypePattern)
• picks out an exception handler of any of the
  Throwable types of TypePattern
• instanceOf(ClassName)
• picks out join points of currently executing
  objects of class ClassName
• within(ClassName)
• picks out join points that are in code contained
  in ClassName
• withinCode(Signature)
• picks out join points within the member defined
  by methor or constructor (Signature)

46
Advice

• Piece of code that attaches to a pointcut and
  thus injects behavior at all joinpoints selected
  by that pointcut.
• example
• before (args) pointcut Body
• where before represents a before advice type (see
  next slide).
• Can take parameters with pointcuts

47
Advice Types

• Advice code executes
• before, code is injected before the joinpoint
• before (args) pointcut Body
• after, code is injected after the joinpoint
• after (args) pointcut Body
• around, code is injected around (in place of)
  code from joinpoint
• ReturnType around (args) pointcut Body

48
Aspect

• A modular unit of cross-cutting behavior.
• Like a class, can have methods, fields,
  initializers.
• can be abstract, inherit from classes and
  abstract aspects and implement interfaces.
• encapsulates pointcuts and advices
• can introduce new methods / fields to a class

AspectX
AspectX
classX
x
classY
AspectY
AspectY
49
Example - AspectJ
class Line private Point _p1, _p2 Point
getP1() return _p1 Point getP2() return
_p2 void setP1(Point p1) _p1 p1
void setP2(Point p2) _p2 p2
class Point private int _x 0, _y
0 int getX() return _x int getY()
return _y void setX(int x) _x
x void setY(int y) _y y
aspect Tracing pointcut traced() call(
Line. call( Point.) before()
traced() println(Entering
thisjopinpoint) after() traced()
println(Exit thisjopinpoint) void
println(String str) ltwrite to appropriate
streamgt
aspect
50
Code Weaving

• Before compile-time (pre-processor)
• During compile-time
• After compile-time
• At load time
• At run-time

51
Example - AspectJ
aspect MoveTracking private static boolean
_flag false public static boolean
testAndClear() boolean result _flag
_flag false return result pointcut
moves() receptions(void Line.setP1(Point))
receptions(void Line.setP2(Point))
static after() moves() _flag true
52
HyperJ
53
HyperJ - multi dimensional
54
Multi Dimensional Separation of Concerns

• Not that simple!
• Composition Strategies
• merge by name
• Automatic matching based on name and type
• Matching units are merged ( combined so all have
  a presence in the combined result
• override by name
• Automatic matching based on name and type
• Classes are merged, but for members that have the
  same, the last overrides the others
• non-corresponding merge
• No automatic matching
• Units in different slices are not to correspond
• Names are accidentally the same

55
HyperJ / MDSOC definition
56
DemeterJ / DJ

• Law Of Demeter
• Each unit should only have limited knowledge
  about other units only about units closely
  related to the current unit.
• Each unit should only talk to its friends.
• Dont talk to strangers.
• Goal Reduce behavioral dependencies between
  classes.
• Loose coupling

57
Applying LoD

• A method must be able to traverse links to obtain
  its neighbors and must be able to call operations
  on them.
• But it should not traverse a second link from the
  neighbor to a third class.
• Methods should communicate only with preferred
  suppliers
• immediate parts on this
• objects passed as arguments to method
• objects which are directly created in method
• objects in global variables
• No other calls allowed
• ---gt Scattering

58
Solution is Adaptive Programming

• Encapsulate operation into one place thereby
  avoiding scattering
• Specify traversal over (graph) structure in a
  succinct way thereby reducing tangling.
• Navigation strategy

59
Use of Visitors

• import edu.neu.ccs.demeter.dj.
• // define strategy
• String strategyfrom BusRoute through BusStop to
  Person
• class BusRoute
• // define class graph
• static Classgraph cg new ClassGraph()
• int printCountWaitingPersons() //
  traversal/visitor weaving
• //define visitor
• Visitor v new Visitor()
• public void before(Person host) r
• public void start() r 0
• cg.traverse(this, strategy, v)
• ...

60
Advantages of DJ

• Use of reflection
• No need for source code (no code weaving)
• Can work on class files
• Purely Java (no new structure)

61
Conclusion
62
Key issues (6 Cs) - Mehmet Aksit

• Crosscutting
• Canonicality
• for the stability of the implementation of the
  concerns
• Composability
• for providing quality factors such as
  adaptability, reusability, extensibility
• Computability
• for creating executable software systems
• Closure Property
• for maintaining the quality of design and
  implementation models
• Certifiability
• for evaluating and controlling the quality of
  design and imp. models

63
Key Issues (4 Ss) - Harold Ossher

• Simultaneous
• Coexistence of different decompositions
• Self-contained
• Each module should declare what it depends on
• Symmetric
• There should be no difference in form between
  modules (composability and closure)
• Spontaneous
• possibility to identify and encapsulate new
  concerns during the software life cycle.

64
Future

• There are open-issues
• UML representation of aspects
• Identifying aspects early in the software
  development
• Aspectual refactoring
• Semantic correctness of aspects and compositions
• Serious research going on AOP

65
References

• B. Tekinerdogan, CS586 Course Slides, Bilkent
  University, Ankara, Turkey
• Communications of the ACM, Aspect Oriented
  Programming, Volume 44, Number 10, Oct. 2001
• http//trese.cs.utwente.nl/composition_filters
• http//trese.cs.utwente.nl/taosad/
• M. Aksit, L. Bergmans B. Tekinerdogan.
  Aspect-Composition using Composition Filters, in
  Software Architectures and Component Technology
  The State of the Art in Research and Practice, M.
  Aksit (Ed.), Kluwer Academic Publishers, pp. 357
  - 382, 2001.
• G.Kiczales, J. Lamping, A.Mendhekar, C. Lopes, J.
  Loingtier, J. Irwin. Aspect-Oriented Programming,
  European Conference on Object-Oriented
  Programming (ECOOP), Springer-Verlag, LNCS 1241,
  June 1997.
• Gregor Kiczales, Erik Hilsdale, Jim Hugunin, Mik
  Kersten, Jeffrey Palm, and William G. Griswold.
  An Overview of AspectJ. In J. Lindskov Knudsen
  (ed.), ECOOP 2001 Object-Oriented Programming
  15th European Conference, Budapest Hungary, pages
  327-353. Volume 2072 of Lecture Notes in Computer
  Science, Springer-Verlag, Berlin, June, 1997.
• P. Tarr, H. Ossher, W. Harrison and S.M. Sutton,
  Jr. "N Degrees of Separation Multi-Dimensional
  Separation of Concerns." Proceedings of the
  International Conference on Software Engineering
  (ICSE'99), May, 1999
• Karl Lieberherr and Doug Orleans and Johan
  Ovlinger, Aspect-Oriented Programming with
  Adaptive Methods . Northeastern University Tech
  Report, NU-CCS-2001-02
• D. Stein, S. Hanenberg, R. Unland. A UML-based
  Aspect-Oriented Design Notation for AspectJ, in
  G. Kiczales (ed.), Proc. of First ACM
  International Conference on Aspect-Oriented
  Software Development, Enschede, The Netherlands,
  April, 2001.

66
Thank you!

• Questions ?
