Hybrid Network Control Plane Interoperation Between Internet2 and ESnet

1

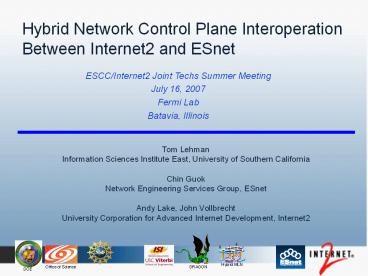

Hybrid Network Control Plane Interoperation
Between Internet2 and ESnet
ESCC/Internet2 Joint Techs Summer Meeting July
16, 2007 Fermi Lab Batavia, Illinois
Tom Lehman Information Sciences Institute East,
University of Southern California Chin
Guok Network Engineering Services Group,
ESnet Andy Lake, John Vollbrecht University
Corporation for Advanced Internet Development,
Internet2
2
Hybrid NetworksHeterogeneous By Nature

• Hybrid networks are extremely heterogeneous at
  several levels
• DataPlane can be constructed from
• router based Multiprotocol Label Switching (MPLS)
  tunnels
• Ethernet VLAN based Circuits
• Synchronous Optical Network / Synchronous Digital
  Hierarchy (SONET/SDH) circuits
• Wavelength Division Multiplexing (WDM)
  connections
• Combinations of the above

3
Hybrid NetworksHeterogeneous By Nature

• Control Planes can be based on
• Multiprotocol Label Switching (MPLS)
• Generalized Multiprotocol Label Switching (GMPLS)
• Web Services
• Management Systems
• Combinations of the above
• Client (user) services or attachment points could
  be
• Ethernet
• SONET
• IP Router
• InfiniBand

4
Hybrid NetworksWeb Service Control Plane
Interfaces

• Web Services provides a mechanism to deal with
  heterogeneous control planes
• inspired by the standards bodies work on control
  plane protocols, but not just recreating that
  work at the web service level
• Better described as using control plane
  techniques to develop a service plane

5
Hybrid NetworksWeb Service Control Plane
Interfaces

• Four Primary Web Services Areas
• Topology Exchange, Resource Scheduling,
  Signaling, User Request

6
Hybrid NetworksControl Plane Architecture

• The benefits offered by Web Services include
• standardized mechanisms for user authentication
  and policy management
• flexible features for interfacing with a diverse
  set of I-NNI mechanisms
• Allows focus on several issues that current
  control plane work has not addressed in a robust
  manner
• scalability, stability, security, flexible
  application of policy, AAA, scheduling
• Will still allow for peering domains with
  compatible non web service E-NNI (i.e. GMPLS
  based) to utilize that as desired
• a domain might peer with one domain at GMPLS
  level, and another at the Web Service level

7
Web Service based E-NNIThree Main Components

• Routing
• Topology Exchange
• Domain Abstraction
• Varying levels of dynamic information
• Resource Scheduling
• Multi-Domain path computation techniques
• Resource identification, reservation,
  confirmation
• Signaling
• path setup, service instantiation

8
Web Service Based Multi-Domain Provisioning
Collaborative Effort

• Architecture and Web Services Design effort is a
  collaborative effort between
• Internet2
• ESnet
• DANTE (GEANT, Autobahn)
• Also collaborating with University of Amsterdam
  on Token based RSVP signaling and topology
  exchange

9
Internet2 and ESnetImplementation Goals and
Methods

• Goal
• Dynamically provision layer 2 circuits between
  Internet2 network and ESnet/SDN
• Methods
• Use existing control plane software where
  appropriate
• Provide multidomain AAA architecture for message
  exchanges
• Exchange topology information
• Coordinate the scheduling of resources
• Signal circuit setup between domains

10
Control Plane Software

• OSCARS (Web Service)
• Started by ESnet, merged with Internet2s BRUW
  project in 2006
• Web service architecture, interfaces to lower
  level network specific provisioning systems
• Vendor based MPLS L2VPN (Martini Draft)
• Internet2 DCS/HOPI
• DRAGON (NSF funded project in development by
  USC/ISI EAST and MAX)
• Uses GMPLS protocols to build layer 2 circuits

11
OSCARS Architecture
Customer Site
External Peer
End-Host Application
Resource Manager
Web-Services Interface (Signed SOAP Messages)
User
Link Reservations
Bandwidth Scheduler
Web-User Interface
Topology
I-NNI
Authentication Authorization
Path Setup (MPLS)
Path Setup (GMPLS)
Policy
OSCARS Resource Manager
12
OSCARS

• Web Services
• Source host, destination host, bandwidth, start
  time, end time
• Book-ahead scheduling
• Multidomain AAA architecture using X.509
  certificates
• Uses traceroute for path calculation
• Each domain configures MPLS tunnels on Juniper
  routers at requested time

13
DRAGON

• Virtual Label Switched Router(VLSR)
• PC based control plane software
• Manages and provisions various network equipment
  such as ethernet switches, SDH/SONET
• Signaling with RSVP packets
• Network Aware Resource Broker (NARB)
• Stores topology in OSPF-TE database
• Performs inter/intradomain path calculation
• Exchanges interdomain topology

14
OSCARS-DRAGON Integration
15
AAA and Security

• OSCARS AAA
• SSL Encryption
• Authentication
• X.509 Certificates
• User to Domain
• Domain to Domain
• Web Service Security by OASIS
• SAML assertions about end-user (future)
• Authorization
• OSCARS attribute based system

16
Topology Exchange

• XML topology schema
• Developed by DICE
• Domain, Node, Port, Link hierarchy
• Namespace extension to the NMWG/PerfSonar
  Topology Schema
• Interdomain exchanges between OSCARS servers via
  web services
• Topology storage flexible
• NARB, XMDR, static file
• Path Computation by NARB or other component that
  uses topology data

17
Resource Scheduling

• OSCARS web service message
• Source port, destination port, bandwidth, start
  time, end time
• Optional parameters such as VLAN tag
• Generates information important to later
  signaling
• Global-ID, secure token
• Stored in OSCARS reservation database

18
Signaling

• XML signaling
• OSCARS receives XML signaling message
• Contacts VLSR to initiate path setup
• Could also talk to Juniper router or other device
• RSVP signaling
• User signals VLSR directly
• Token-based signaling developed by University of
  Amsterdams Phosphorous project
• Token, Global Reservation ID

19
Timelines and Future Work

• Timeline
• Hope to have test release by end of Summer 2007
• Official release in Fall 2007
• Future Work
• Continue collaboration with international
  partners
• Explore use of federated identity software such
  as Shibboleth

20
Questions/Comments?

• Tom Lehman (tlehman_at_east.isi.edu)
• Chin Guok (chin_at_es.net)
• Andy Lake (alake_at_internet2.edu)
• John Vollbrecht (jrv_at_internet2.edu)
