2.6.3. Structuring SDs

1

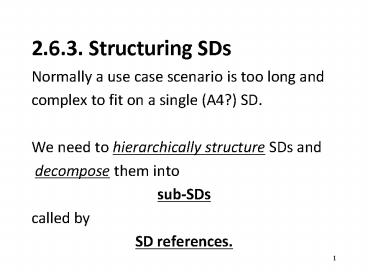

2.6.3. Structuring SDs

• Normally a use case scenario is too long and
• complex to fit on a single (A4?) SD.
• We need to hierarchically structure SDs and
• decompose them into
• sub-SDs
• called by
• SD references.

2

• A reference is a pointer to another SD.
• References may not be circular or recursive.

3

• Let us give a typical example. A simple data
• exchange between two systems can be
• divided into 3 phases
• set-up communication/initialize
• exchange data
• close-down communication
• We can specify the use case successful data
• exchange as follows.

4
SD Successful_ Data_Exchange
B
A
ref
Initialize
ref
Exchange
ref
Shutdown
5

• The symbol
• denotes a sub-SD called name. Thus every
• SD has a symbolic name also. The keyword
• ref stand for reference.
• Then for the above example, we might have

ref
ltnamegt
6
SD Shutdown

SD Initialize
B
A
A
B
ready_to_send
finished
shutdown
ready_to_receive
Notice these are handshakes between A and
B. We will specify the SD Exchange later.
7

• Note that a sub-SD does not synchronize
• timelines.
• i.e. either of A or B is free to leave sub-SD
• Exchange without the other leaving
• simultaneously.
• Heres another example to clarify the point.

8

SD Sub-1
SD Unsynchronised_Ref
B
A
A
B
ref
hello
Sub-1
goodbye
what?
9

• Possible executions are either
• hello
• what
• goodbye (A leaves Sub-1 late)
• or
• hello
• goodbye (A leaves Sub-1 early)
• what?

10
SD normal_log_in
User
System
Precondition Power is on, operating system
is active, log-in menu is visible.
username
password?
my_password
Postcondition Power is on, operating system
is active, user is logged in under own profile,
users desktop is visible, log-in menu is not
visible.
11

• We introduce SD interaction operators
• alt alternative choice of sections
• par parallel execution of several sections
• loop iterative execution of a section
• opt optional section that could be omitted
• (exc exception section to handle errors.)

12
Interaction Operator alt

• An operator (possibly with a Boolean guard)
• used to define two or more alternatives, at
• most one of which will be taken.
• Below, users u1 and u2 compete for Printer p.
• Either u2 wins (top) or u1 wins (bottom)

13
SD Alternatives
u1 User
u2 User
p Printer
print_1
print_2
alt
accept_2
accept_1
14

• The only possible executions or traces for SD
• Alternatives are either
• print_1
• print_2
• accept_2
• or
• print_1
• print_2
• accept_1

15
Interaction Operator par

• An operator used to define two or more
• sections, all of which will be executed
• simultaneously
• Compare par with alt!
• Below, u1 and u2 both request a
• print job in parallel and both are accepted.

16
SD Parallel
u1User
u2User
pPrinter
par
print_1
accept_1
print_2
accept_2
17

• This time there are 6 possible executions . These
• represent all possible interleavings of the two
• subsections of par.
• 1. print_1 1. print_1 1. print_2 1.print_1
• 2. print_2 2. accept_1 2. accept_2 2.print_2
• 3. accept_1 3. print_2 3. print_1 3.accept_2
• 4. accept_2 4. accept_2 4. accept_1 4.accept_1
• 1. print_2 1. print_2
• 2. print_1 2. print_1
• 3. accept_1 3. accept_2
• 4. accept_2 4. accept_1

18
Interaction Operator loop

• An operator (possibly with a Boolean guard, no
• guard true) used to define a section that
• may be iterated finitely or infinitely many
• times.
• Guard evaluated on each iteration. As well as
• Boolean guards we can bound the number of
• iterations.

19

• Keywords
• loop ltm, ngt, loop at least m times and at most n
  times, for fixed integer constants m, n.
• loop ltm, infgt, loop finitely often, but at least
  m times. ( not infinitely often).
• loop ltinf, infgt loop at least infinitely
• many times.
• (4) loop ltngt loop ltn, ngt .
• (5) loop loop lt1, infgt .
• (6) while ltBoolean expressiongt

20

• Important note The parameters m, n are
• fixed constants, they are not variables which
• can be changed.
• In the following example, the user polls a
• printer until the printer becomes ready.
• When it becomes ready the printer prints
• the file.

21
uUser
pPrinter
Loop lt0, infgt
alt
ready?
busy
ready?
ready?
yes
print(file)
printing
22
Interaction Operator Opt

• An expression, possibly with a Boolean guard,
• ltBoolean expressiongt
• (no guard is the same as true)
• used to define an optional section which may or
  may
• not be executed (non -deterministic).
• In the next example, A sends to B and may or may
  not
• get confirmation in time tlt maxdelay before the
  next
• send.

23
aA
bB
send
opt
received
ok
t lt maxdelay
send
24
Other Interaction Operators

• neg traces which are defined to be impossible
• region a critical region, i.e. traces cannot be
  interleaved by other events.
• assert all traces that involve the assertion
  being false are impossible (??)

25
3. Introduction to Live Sequence Charts LSC

• The Play-Engine is an MS Windows-based
• tool for Live Sequence Charts
• managing a requirements project of LSCs,
• graphically editing correct LSCs, (play-in),
• simulating a set of LSCs (play-out),
• analysing LSCs (model checking).

26
Menu bar
Tool bar
Project Explorer Tree
Work area
An LSC
Application GUI
27
Traditional system development
Java, C, etc
Code
Basic structure
System model
structure
Use cases
behaviour
Requirements
LSCs (or MSCs or sequence diagrams)
object model diagrams statecharts
28
Play-in/out in the Development Lifecycle
Java, C, etc
Code
Basic structure
Use cases
System model
structure
played behaviour
behaviour
play-in
play-out
Requirements
LSCs (or MSCs or sequence diagrams)
object model diagrams statecharts
