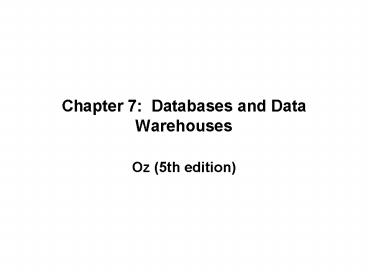

Chapter 7: Databases and Data Warehouses

1
Chapter 7 Databases and Data Warehouses

• Oz (5th edition)

2
Ideas From the First Part of Chapter 7

• Problems with the traditional file approach (pre
  database)
• Data redundancy
• Data integrity
• Data security
• Program data dependence
• Programmers are required to access data
• Advantages of the database approach
• Reductions in data redundancy
• Application-data independence
• Better control better security
• Flexibility

3
More Ideas

• Object-oriented database model
• Successor to the relational model
• Integration of data and programs
• Handles wider variety of field types
• Entity-relationship (ER) diagrams
• Graphical method of displaying relationships
  between tables
• An ER diagram is an example of a schema
  (conceptual model of the database)
• Tool for IS professionals

4
CREATING A DATABASE ENVIRONMENT
An Entity-Relationship Diagram
5
Physical versus Logical Views

• In managing information, physical deals with the
  structure of information as it resides on various
  storage media.
• Logical deals with how knowledge workers view
  their information needs, and includes such terms
  as
• CHARACTER - our smallest unit of information.
• FIELD - group of related characters.
• RECORD - group of related fields.
• FILE - group of related records.
• DATABASE - group of logically associated files.
• DATA WAREHOUSE - information from many databases.

6
Other Logical Structures in a Database

• DATA DICTIONARY - contains the logical structure
  of information in a database.
• Definitions of all fields, records, and tables
• Relationships between tables
• Who is responsible for maintaining data in the
  database
• Descriptions of who is authorized to access
  different parts of the database
• Data dictionary contains meta data (data about
  the data)

7
Sample Data Dictionary Report
8
Components of a DBMS

• Data definition subsystem (language DDL)
• Defines the structure of the database tables
  (design view in Access)
• Creates and maintains the data dictionary
• Defines the relationships between tables
• Add, delete, or modify field properties

9
More Components of a DBMS

• Data manipulation subsystem (language DML)
• Add, delete, and modify data in the database
• Contains the query languages (QBE or SQL) for the
  database. SQL is both a DML and DDL
• Contains report generation capability
• Data administration subsystem
• Manage the overall database environment by
  providing facilities for
• Backup and recovery
• Security management

10
Data Warehouse

• Definition- a database with tools that stores
  current and historical data that is designed to
  support business analysis activities and
  decision-making tasks of managers typically a
  relational database model is used
• Benefits
• improved access
• improved information
• isolation from operational systems
• tools permit advanced data analysis
• Users
• Data marts

11
Building a Data Warehouse (ETL)

• Extraction phase create files on the computer
  that will store the data warehouse and move
  transaction data to this machine data may come
  from many sources or parts of the organization
• Transformation phase cleanse and standardize
  the data. Why is this necessary?
• Load phase transfer the data from the
  transformation phase into the data warehouse
• The ETL process becomes automated to make regular
  transfers of transaction data into the data
  warehouse

12
Comparison of Data in a Data Warehouse and
Operational Data

• Operational Data
• Data is on many systems
• Current operational data
• Inconsistent data definitions
• Functionally organized data
• Data are constantly changing
• Support OLTP

• Warehouse Data
• Integrated in one enterprise-wide system
• Recent and historical data
• Consistent data definitions
• Data are organized around business entities
• Data are stabilized
• Support OLAP

13
Data-Mining and Data-Mining Tools

• Data-mining is the process of selecting,
  exploring, and modeling large amounts of data to
  discover previously unknown relationships that
  support decision making.
• Traditional data mining tools answer questions
  about variables that we think are related
• Query languages (QBE or SQL)
• Report generators
• Multidimensional analysis tools (OLAP or pivot
  tables)
• Standard statistical procedures (regression,
  ANOVA)
• Knowledge discovery tools are data-mining tools
  for finding relationships that are not
  discernable to the human eye (see next slide)

14
Data-Mining as Knowledge DiscoverySelected
Examples
15
Multidimensionality

• Multidimensional data analysis (or OLAP) enables
  users to view data using various dimensions,
  measures and time frames (i. e., OLAP)
• dimensions products, business units, country,
  industry (e.g., categories)
• measures money, unit sales, head count,
  variances
• time daily, weekly, monthly, quarterly, yearly)
• This type of analysis also provides the ability
  to view data in different ways (tables, charts,
  3-D, geographically)
• OLAP tools provide for this
• Pivot tables in Excel or Access

16
Examples of OLAP Tools

• Go to www.fedscope.opm.gov
• Under data cubes on entry page click on
  employment
• Demonstrate drill down and adding charts
• Data for this example comes from the Central
  Personnel Data File (CPDF) of the federal
  government
• The OLAP tool used to build this site is from a
  company named Cognos (PowerPlay)
• OLAP tools based on Excel
• http//wLCubed.com
• http//www.cubularity.com

17
Multidimensionality
18
Database Architecture The Physical and Logical
Layout of the Hardware, Data, and Applications

• Centralized databases with remote access
• Distributed Databases
• With replication a full copy of the entire
  database is stored at all sites
• With fragmentation the database is partitioned
• Parts of database are stored where they are most
  often accessed

19
Web Databases

• The ease of use of Web browsers enables firms to
  link their databases to the Web
• Ease of use enables users to
• Access and retrieve information from a database
• Enter information into the database
• The user requires no special training in a DBMS
  to perform the above activities prior to the
  browser and the Web this would not have been
  feasible
• What does this mean?

20
Federal Trade Commissions Fair Information
Practice Principles (1973)

• Notice/awareness disclosure of practices before
  collecting data
• Choice/consent opt in/opt out for consumers
• Access/participation consumers can review and
  contest data for accuracy and completeness
• Security data collectors must take steps to
  secure data for accuracy and unauthorized use
• Enforcement there must be a mechanism in place
  to enforce FIP principles
• Laws enforce these principles for data collected
  by federal agencies not so in the private sector


21
Spreadsheets Versus DBMS

• Linkage between elements
• spreadsheet - between cells in same table
• DBMS - between elements in different tables
• Orientation
• spreadsheet is toward calculations
• DBMS is tilted toward organization and linkage of
  data elements in different tables
• Capabilities
• DBMS has extensive querying and reporting power
• spreadsheet is limited
• Memory requirements
• entire spreadsheet table must be in memory
• not true for the database table
