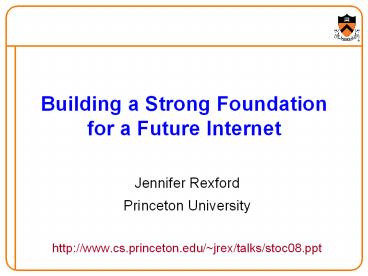

Building a Strong Foundation for a Future Internet

• Jennifer Rexford
• Princeton University
• http//www.cs.princeton.edu/jrex/talks/stoc08.ppt

2
The Internet A Remarkable Story

• Tremendous success
• A research experiment that trulyescaped from the
  lab
• The brilliance of under-specifying
• Best-effort packet-delivery service
• Key functionality at programmable end hosts
• Enabled massive growth and innovation
• Ease of adding hosts and links, and new
  technologies
• Ease of adding new services (Web, P2P, VoIP, )

3
Rethinking the Network Architecture

• But, the Internet is showing signs of age
• Security, mobility, availability, manageability,

• Challenges rooted in early design decisions
• Weak notions of identity, tying address to
  location,
• Not a simple matter of redesigning a single
  protocol
• Revisiting the definition and placement of
  function
• What are the types of nodes in the system?
• What are their powers and limitations?
• What information do they exchange?

The computational model of the (future)
Internet.
4
Clean-Slate Network Architecture

• Clean-slate architecture
• Without constraints of todays artifacts
• To have a stronger intellectual foundation
• And move beyond the incremental fixes
• Still, some constraints inevitably remain
• Ignore todays artifacts, but not necessarily all
  reality
• Such as
• Resource limitations (CPU, memory, bandwidth)
• Time delays between nodes
• Independent economic entities
• Malicious parties
• The need to evolve over time

5
A Big Research Challenge
Evolvable Protocols (under-specified,
programmable)
?
Global Properties (stability, scalability,
reliability, security, managability, )
Autonomy (autonomous parties, with different
economic objectives)
Can we have all three? Under what conditions?
6
A Real Need for a Theory of Networks

• Formal definitions of network architecture
• Can the theory community do for network
  architecture what it did for, e.g., cryptography
  and machine learning?
• Programmability
• What are good programming models that strike the
  right balance been flexibility and restraint?
• Incentives
• How much should we rely on economic incentives
  to ensure key system properties?
• System properties
• What are the fundamental trade-offs and bounds?

7
Example Wide-Area Internet Routing

• Seemingly a simple matter
• Computing paths on graphs
• Many, many design goals
• Global connectivity
• Flexible local policies
• Fast recovery from changes
• Good end-to-end paths
• Low protocol overhead
• Security, scalability,
• ltyour wish list heregt
• Perhaps we cannot satisfy all of these goals
• No matter how hard we try

8
Four Example Problems in Routing

• Policy-based interdomain routing
• Programmable routing policies in each network
• While ensuring global stability, efficiency,
• 1 Can economic incentives ensure global
  stability?
• 2 How should a distributed network realize its
  policy?
• End-to-end traffic management
• Adapting the flow of traffic over each path
• While ensuring good aggregate performance
• 3 What should hosts, routers, and operators do?
• 4 How to support diverse application
  requirements?

Getting a distributed set of nodes to do the
right thing.
9
Policy-Based Interdomain Routing

???

10
What is an Internet?

• A network of networks
• Networks run by different institutions
• Autonomous System (AS)
• Collection of routers run by a single institution
• With a clearly defined routing policy
• ASes have different goals
• Different views of which paths are good
• Interdomain routing is what reconciles those
  views
• To compute end-to-end paths through the Internet

Wonderful problem setting for game theory and
mechanism design
11
Autonomous Systems (ASes)
Path 6, 5, 4, 3, 2, 1
4
3
5
2
6
7
1
Web server
Client
Around 30,000 ASes today
12
Border Gateway Protocol (BGP)

• ASes exchange reachability information
• Destination block of IP addresses
• AS path sequence of ASes along the path
• Policies programmed by network operators
• Path selection which path to use?
• Path export which neighbors to tell?

I can reach d via AS 1
I can reach d
1
2
3
data traffic
data traffic
d
13
Stable Paths Problem (SPP) Model

• Model of routing policy
• Each AS has a ranking of the permissible paths
• Model of path selection
• Pick the highest-ranked path consistent with
  neighbors
• Flexibility is not free
• Global system may not converge to a stable
  assignment
• Depending on the way the ASes rank their paths

http//portal.acm.org/citation.cfm?id508332
14
Ways to Achieve Global Stability

• Detect conflicting rankings of paths?
• Computationally intractable (NP-hard)
• Requires global coordination
• Restrict the policy programming languages?
• In what way? How to require this globally?
• What if the world should change, and the protocol
  cant?
• Rely on economic incentives?
• Policies typically driven by business
  relationships
• E.g., customer-provider and peer-peer
  relationships
• Sufficient conditions to guarantee unique, stable
  solution

15
Bilateral Business Relationships

• Provider-Customer
• Customer pays provider for access to the Internet
• Peer-Peer
• Peers carry traffic between their respective
  customers

1
Valid paths 1 2 d and 7 d Invalid path 5 8
d
Valid paths 6 4 3 d and 8 5 d Invalid paths
6 5 d and 1 4 3 d
3
4
2
d
5
6
Provider-Customer
7
8
Peer-Peer
16
Act Locally, Prove Globally

• Global topology
• Provider-customer relationship graph is acyclic
• Peer-peer relationships between any pairs of ASes
• Route export
• Do not export routes learned from a peer or
  provider
• to another peer or provider
• Route selection
• Prefer routes through customers
• over routes through peers and providers
• Guaranteed to converge to unique, stable solution

http//www.cs.princeton.edu/jrex/papers/sigmetric
s00.long.pdf
17
Rough Sketch of the Proof

• Two phases
• Walking up the customer-provider hierarchy
• Walking down the provider-customer hierarchy

1
3
4
2
d
5
6
Provider-Customer
7
8
Peer-Peer
18
Trade-offs Between Assumptions

• Three kinds of assumptions
• Route export, route selection, and global
  topology
• Relax one assumption, need to tighten the other
  two
• Are these assumptions reasonable?
• Could business practices change over time?
• What if nodes are dishonest about their choices?
• See Levin-Schapira-Zohar paper in the next
  session!
• What if the protocol changes?
• What if the protocol allows multiple paths?

19
An Incomplete Understanding

• Desirable global properties
• Convergence to a unique route assignment
• Fast convergence after topology changes
• Honesty in route announcements and packet
  forwarding
• And how they relate to
• Topology, policies, path verification, revenue
  models,
• And most known results are sufficient
  conditions
• Lacking complete characterization of the
  trade-off space
• With basic questions about economic incentives
• When are they enough? What else do we need?
• Where do the economic issues really belong?

20
Ensuring an AS Realizes its Policy

• How should the nodes inside an AS behave?
• To correctly realize the ASs routing policy
• To satisfy the expectations of neighboring ASes
• To minimize protocol overhead within the AS
• Different problem than interdomain routing
• Not about reconciling (possibly conflicting)
  policies
• But instead about correctly realizing a single
  policy

21
The Route Assignment Problem

r1
r2
r3
rn

R
rn
n
1
Route Assignment (based on policy)
2
data traffic
3
e3rn


en
e1
e2
from R
from R
22
Propagating Information Within the AS
n

r1
r2
r3
rn

R
1
A
2
Route Assignment (based on policy)
B
3

e3rn

en
e1
e2
from R
from R
What information do A and B need to propagate?
23
An Incomplete Understanding

• How to define and model an AS
• To design and analyze interdomain routing
• without regard to the intra-AS details
• How to propagate routing information within an AS
• So the routers can realize the policy correctly
• without introducing excessive overhead
• What are the overhead-flexibility trade-offs?
• How much information must the routers exchange
• and how does it depend on the programming model
• How should an AS express (program) its policy?

24
End-to-End Traffic Management
25
Traffic Management Today

• How much traffic should traverse each path?

Operator Traffic Engineering
Routers Routing Protocols
End hosts Congestion Control
26
Models and Algorithms for Each Part

• End hosts congestion control
• Maximizing aggregate utility over all users
• Additive increase, multiplicative decrease
• Routers routing protocols
• Minimizing path cost as sum of link weights
• Bellman-Ford and Dijkstras algorithms
• Operators traffic engineering
• Minimizing load on the network links
• Local-search algorithms for tuning link weights

But, is the whole more than the sum of its parts?
27
Shortcoming of Todays Architecture

• Ignores protocol interactions
• Congestion control assumes routing is fixed
• Traffic engineering assumes traffic is inelastic
• Inefficiency of traffic engineering
• Tuning link weights in shortest-path routing
• Cannot achieve optimal flow, and is NP-hard
• and is typically performed on long timescale
• Only limited use of multiple paths
• Missed opportunity for better performance

What would a clean-slate redesign look like?
28
Distributed Traffic Management Problem

• Should have a clearly-stated problem
• Variables source rates and path-splitting ratios
• Constraints link load staying below capacity
• Objectives performance and robustness

max. ?iUi(xi) - ?lf(ul)
aggregate utility (as a function of the source
rate xi, over all users i)
aggregate congestion cost (as a function of
utilization, ul, over all links l)
http//www.cs.princeton.edu/jrex/papers/conext07.
pdf
29
Distributed Traffic Management Problem

• Solutions with well-understood properties
• Optimality, convergence, low overhead,
• Distributed load-balancing algorithms
• Feedback about network conditions
• Adaptation of the sending rate on each path

s
s
s
Routers Set up multiple paths Measure link
load Update link prices s
Edge nodes Update path rates z Rate limit
incoming traffic
30
An Incomplete Understanding

• Promising initial results
• Using optimization theory, game theory, control
  theory
• Simple tuning of the system
• Algorithms that are robust across a range of
  settings?
• Self-tuning load-balancing algorithms?
• Trade-offs in the number of paths
• How many paths are really necessary?
• How should these paths be computed?
• Implicit vs. explicit feedback from the links
• Can edge nodes adapt based on path-level metrics?
• Robustness to adversaries trying to bias
  measurements?

31
Supporting Multiple Classes of Traffic
file
vs.
32
Different Strokes for Different Folks

• Applications have different requirements
• High throughput bulk file transfers
• Low delay/jitter VoIP and gaming
• Could design protocols for each traffic class
• Using application-specific objective functions
• But, how should these applications co-exist?
• Multiple customized traffic-management protocols
• On a shared underlying network
• To maximize the aggregate utility of the users

33
Virtualization to the Rescue

• Multiple customized architectures in parallel
• Multiple virtual nodes on a single physical node
• Isolation of resources, like CPU and bandwidth
• Programmability for customizing each virtual
  network

34
An Incomplete Understanding

• How important are customized architectures?
• Quantifying the inefficiencies of one size fits
  all
• Understanding gains and overheads of
  customization
• How to balance isolation and efficiency?
• Allowing multiple architectures to run in
  parallel
• Without requiring static resource partitioning
• How to support other application requirements?
• Security/privacy, scalability trade-offs,
• With appropriate support in the underlying
  substrate
• What kind of programming model on the nodes?
• To enable creation of new networked services
• Without compromising efficiency, security,

35
Virtualization for Economic Refactoring
Todays Internet
Virtualized Internet
Competing ISPs with different goals must
coordinate
Single service provider controls end-to-end path

• Infrastructure providers Own routers, links,
  data centers
• Service providers Offer end-to-end services to
  users

Economics play out vertically on a coarser
timescale.
http//www.cs.princeton.edu/jrex/papers/cabo-shor
t.pdf
36
Conclusions

• These are just a few examples
• In the context of wide-area Internet routing
• Meant to illustrate a larger question
• Programmability, incentives, and global
  properties
• And importance of theoretical disciplines
• In putting network architecture on a sound
  foundation
• Great opportunities for interdisciplinary
  research
• Grappling with problem formulations and solutions
• And for significant practical impact
• Adding clarity to our understanding of todays
  Internet
• And leading to a future Internet worthy of
  societys trust

37
Acknowledgments

• My research group and collaborators
• Including the problems mentioned in this talk
• See pointers to references at end of slides
• Colleagues in the theoretical CS community
• Especially at ATT Research and Princeton
• Forcing greater precision in problem formulation
• Particularly Joan Feigenbaum
• For great discussions on network architecture
• and advice and feedback about this talk

http//www.cs.princeton.edu/jrex/talks/stoc08.ppt
38
Thank you!
39
References Policy-Based Routing

• T. Griffin, B. Shepherd, and G. Wilfong, The
  stable paths problem and interdomain routing
• http//portal.acm.org/citation.cfm?id508332
• L. Gao and J. Rexford, Stable Internet routing
  without global coordination
• http//www.cs.princeton.edu/jrex/papers/sigmetric
  s00.long.pdf
• T. Griffin and J. Sobrinho, Metarouting
• http//www.sigcomm.org/sigcomm2005/paper-GriSob.pd
  f
• H. Levin, M. Schapira, and A. Zohar, Interdomain
  routing and games
• In the next session here at STOC08!

40
References Dynamic Traffic Management

• A. Elwalid, C. Jin, S. Low, and I. Widjaja,
  MATE MPLS Adaptive Traffic Engineering
• http//ieeexplore.ieee.org/iel5/7321/19795/0091662
  5.pdf
• S. Kandula, D. Katabi, B. Davie, and A. Charny,
  Walking the tightrope Responsive yet stable
  traffic engineering
• http//nms.lcs.mit.edu/papers/index.php?detail128

• S. Fischer, N. Kammenhuber, and A. Feldmann,
  Dynamic traffic engineering based on Wardrop
  routing policies
• http//adetti.iscte.pt/events/CONEXT06/Conext06_Pr
  oceedings/papers/f58.pdf
• J. He, M. Suchara, M. Bresler, J. Rexford, and M.
  Chiang, Rethinking Internet traffic management
  From optimization theory to a practical protocol
• http//www.cs.princeton.edu/jrex/papers/conext07.
  pdf

41
References Network Virtualization

• J. Turner and D. Taylor, Diversifying the
  Internet
• http//www.arl.wustl.edu/jst/pubs/globecom05divNe
  t.pdf
• T. Anderson, L. Peterson, S. Shenker, and J.
  Turner, Overcoming the Internet impasse through
  virtualization
• http//geni.net/GDD/GDD-05-01.pdf
• N. Feamster, L. Gao, and J. Rexford, How to
  lease the Internet in your spare time
• http//www.cs.princeton.edu/jrex/papers/cabo-shor
  t.pdf

42
Backup Slides on Monitoring in an Adversarial
Setting
43
Importance of Monitoring in Routing

• Path-quality monitoring
• Identify performance problems along a path
• E.g., to drive load-balancing decisions
• E.g., to decide what service provider to hire
• E.g., to identify violations of service-level
  agreements
• Presence of adversaries
• Drop, delay, add, or tamper with any packets
• Bias measurements by preferentially treating
  probes
• Out of malice or greed

?
Bob
Alice
44
Many Variations on the Problem

• Threat model
• Drop/delay packets only?
• Also tamper or add?
• Goal of the measurement
• Loss/delay estimates vs. alarm on a threshold?
• One-way path measurements vs. round-trip?
• Verification that packets follow advertised path?
• Identification of the links/nodes responsible for
  problem?
• Practical constraints
• (Not) allowing modification of packets
• (A)symmetric forward and reverse paths
• (No) clock synchronization between Alice and Bob
• Large number of Alice-Bob pairs

45
An Incomplete Understanding

• Promising initial results
• Fundamental bounds
• Secure sampling
• Secure sketches
• Challenges remain
• Complete characterization of the design space
• Larger architectural questions
• Role of security in routing
• Why should we care if packets follow the (BGP)
  advertised path?
• Is routings only job is to provide (multiple)
  end-to-end paths?
• Role of monitoring in routing
• Can path-quality monitoring drive load-balancing
  decisions?
