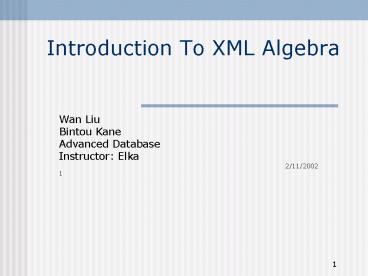

Introduction To XML Algebra

1
Introduction To XML Algebra

• Wan Liu
• Bintou Kane
• Advanced Database
• Instructor Elka
• 2/11/2002
• 1

2
Outline

• Reasons for XML algebra
• Niagara algebra
• ATT Algebra

3
Data Model and Design

• We need a clear framework to design a database
• A data model is like creating different data
  structures for appropriate programming usage. It
  is a type system, it is abstract.
• Relational database is implemented by tables, XML
  format is a new one method for information
  integration.

4
Why XML Algebra?

• It is common to translate a query language into
  the algebra.
• First, the algebra is used to give a semantics
  for the query language.
• Second, the algebra is used to support query
  optimization.

5
XML Algebra History

• Lore Algebra (August 1999)
• -- Stanford University
• IBM Algebra (September 1999)
• --Oracle IBM Microsoft Corp
• YAT Algebra (May 2000)
• ATT Algebra (June 2000)
• --ATT Bell Labs
• Niagara Algebra (2001)
• -- University of Wisconsin -Madison

6
NIAGARA

• Title Following the paths of XML Data An
  algebraic framework for XML query evaluation
• By Leonidas Galanis, Efstratios Viglas, David
  J. DeWitt, Jeffrey. F. Naughton, and David Maier.


7
OutLine

• Concepts of Niagara Algebra
• Operations
• Optimization

8
Goals of Niagara Algebra

• Be independent of schema information
• Query on both structure and content
• Generate simple,flexible, yet powerful algebraic
  expressions
• Allow re-use of traditional optimization
  techniques

9
Example XML Source Documents
Invoice.xml ltInvoice_Documentgt ltinvoice No
1gt ltaccount_numbergt2 lt/account_numbergt
ltcarriergtATTlt/carriergt lttotalgt0.25lt/totalgt
lt/invoicegt ltinvoicegt ltaccount_numbergt1
lt/account_numbergt ltcarriergtSprintlt/carriergt
lttotalgt1.20lt/totalgt lt/invoicegt
ltinvoicegt ltaccount_numbergt1 lt/account_numbergt
ltcarriergtATTlt/carriergt lttotalgt0.75lt/totalgt
lt/invoicegt lt/Invoice_Documentgt

• Customer.xml
• ltCustomer_Documentgt
• ltcustomergt
• ltaccountgt1 lt/accountgt
• ltnamegtTom lt/namegt
• lt/customer gt
• ltcustomergt
• ltaccountgt2 lt/accountgt
• ltnamegtGeorge lt/namegt
• lt/customer gt
• lt/Customer _Documentgt

10
XML Data Model and Tree Graph

• Example

Invoice_Document
ltInvoice_Documentgt ltinvoicegt
ltnumbergt2lt/numbergt ltcarriergtSprintlt/carriergt
lttotalgt0.25lt/totalgt lt/invoicegt
ltinvoicegt ltnumbergt1lt/numbergt ltcarriergtSprintlt/car
riergt lttotalgt1.20lt/totalgt lt/invoicegt lt/Invoice
_Documentgt

Invoice
Invoice
number
carrier
number
total
total
carrier
2
ATT
0.25
1
1.20
Sprint
Ordered Tree Graph, Semi structured Data
11
XML Data Model GVDNM01

• Collection of bags of vertices.
• Vertices in a bag have no order.
• Example

Root invoice.xml invoice
invoice.account_number
lt account_number gt element-content lt/
account_number gt
ltinvoicegt Invoice-element-content lt/invoicegt
Rootinvoice.xml, invoice, invoice.
account_number
12
Data Model

• Bag elements are reachable by path expressions.
• The path expression consists of two parts
• An entry point
• A relative forward part
• Example account_numberinvoice

13
Operators

• Source S , Follow ?, Select ?, Join , Rename
  ?, Expose ?, Vertex ?, Group ?, Union ?,
  Intersection ?, Difference - , Cartesian Product
  ?.

14
Source Operator S

• Input a list of documents
• Output a collection of singleton bags
• Examples
• S () All Known XML documents
• S (invoice.xml) All XML documents whose
  filename matches
• invoice.xml
• S (,schema.dtd) All known XML documents that
  conform to schema.dtd

15
Follow operator ?

• Input a path expression in entry point notation

• Functionality extracts vertices reachable by
  path expression
• Output a new bag that consist of the extracted
  vertex all the contents of the original bag (in
  care of unnesting follow)

16
Follow operator (Example)
Root invoice.xml , invoice, invoice.carrier
Root invoice.xml invoice
invoice.carrier
ltcarriergt carrier -element-content lt/carrier gt
ltinvoicegt Invoice-element-content lt/invoicegt
Unnesting Follow
?(carrierinvoice)
Root invoice.xml invoice
ltinvoicegt Invoice-element-content lt/invoicegt
Root invoice.xml , invoice
17
Select operator ?

• Input a set of bags
• Functionality filters the bags of a collection
  using a predicate
• Output a set of bags that conform to the
  predicate
• Predicate Logical operator (?,?,?), or simple
  qualifications (?,?,?,?,?,?)

18
Select operator (Example)
Root invoice.xml , invoice,
Root invoice.xml invoice
ltinvoicegt Invoice-element-content lt/invoicegt
? invoice.carrier Sprint
Root invoice.xml invoice
Root invoice.xml invoice
ltinvoicegt Invoice-element-content lt/invoicegt
ltinvoicegt Invoice-element-content lt/invoicegt
Root invoice.xml , invoice, Root invoice.xml
, invoice,
19
Join operator

• Input two collections of bags
• Functionality Joins the two collections based on
  a predicate
• Output the concatenation of pairs of pages that
  satisfy the predicate

20
Join operator (Example)
Root invoice.xml , invoice, Root customer.xml ,
customer
Root invoice.xml invoice
Root customer.xml customer
ltinvoicegt Invoice-element-content lt/invoicegt
ltcustomergt customer-element-content lt/customergt
account_number invoice numbercustomer
Root invoice.xml invoice
Root customer.xml customer
ltinvoicegt Invoice-element-content lt/invoicegt
ltcustomergt customer-element-content lt/customergt
Root invoice.xml , invoice
Root customer.xml , customer
21
Expose operator ?

• Input a list of path expressions of vertices to
  be exposed
• Output a set of bags that contains vertices in
  the parameter list with the same order

22
Expose operator (Example)
Root invoice.xml , invoice.bill_period,
invoice.carrier
Root invoice.xml invoice.
bill_period invoice.carrier
ltcarriergt bill_period -element-content lt/carrier gt
ltinvoicegt carrier-element-content lt/invoicegt
?(bill_period,carrier)
Root invoice.xml invoice
invoice.carrier invoice.bill_period
ltcarriergt bill_period -element-content lt/carrier gt
ltinvoicegt Invoice-element-content lt/invoicegt
ltinvoicegt carrier-element-content lt/invoicegt
Root invoice.xml , invoice, invoice.carrier,
invoice.bill_period
23
Vertex operator ?

• Creates the actual XML vertex that will encompass
  everything created by an expose operator
• Example

? (Customer_invoice)?(?(account)invoice.account_
number, ?(inv_total)invoice.total)
24
Other operators

• Group ? is used for arbitrary grouping of
  elements based on their values
• Aggregate functions can be used with the group
  operator (i.e. average)
• Rename ? Changes the entry point annotation of
  the elements of a bag.
• Example ?(invoice.bill_period,date)

25
Example XML Source Documents
Invoice.xml ltInvoice_Documentgt
ltinvoicegt ltaccount_numbergt2 lt/account_numbergt
ltcarriergtATTlt/carriergt lttotalgt0.25lt/totalgt
lt/invoicegt ltinvoicegt ltaccount_numbergt1
lt/account_numbergt ltcarriergtSprintlt/carriergt
lttotalgt1.20lt/totalgt lt/invoicegt
ltinvoicegt ltaccount_numbergt1 lt/account_numbergt
lttotalgt0.75lt/totalgt lt/invoicegt ltauditorgt
maria lt/auditorgt lt/Invoice_Documentgt
Customer.xml ltCustomer_Documentgt
ltcustomergt ltaccountgt1 lt/accountgt ltnamegtTom
lt/namegt lt/customer gt ltcustomergt ltaccountgt
2 lt/accountgt ltnamegtGeorge lt/namegt
lt/customer gt lt/Customer _Documentgt
26
Xquery Example

• List account number, customer name, and invoice
  total for all invoices that has carrier
  Sprint.

• FOR i in (invoices.xml)//invoice,
• c in (customers.xml)//customer
• WHERE i/carrier Sprint and
• i/account_number c/account
• RETURN
• ltSprint_invoicesgt
• i/account_number,
• c/name,
• i/total
• lt/Sprint_invoicesgt

27
Example Xquery output

• ltSprint_Invoicegt
• ltaccount_numbergt1 lt/account_numbergt
• ltnamegtTom lt/namegt
• lttotalgt1.20lt/totalgt
• lt/Sprint_Invoice gt

28
Algebra Tree Execution
Account_number name total
Expose (.account_number , .name, .total )
invoice(2) customer(1)
Join (.invoice.account_number.customer.account)
invoice (2)
Select (carrier Sprint )
customer (2)
customer(1)
Invoice (1)
invoice (2)
invoice (3)
Follow (.invoice)
Follow (.customer)
Source (Invoices.xml)
Source (cutomers.xml)
29
Optimization with Niagara

• Optimizer based on the Niagara algebra
• Use the operation more efficiently
• Produce simpler expression by combining
  operations

30
Language Convention

• A and B are path expressions
• Alt B --? Path Expression A is prefix of B
• AnB ---? Common prefix of path A and B
• AnB ---? Greatest common of path A and B
• - ---? Null path Expression

31
Use of Rule 8.5

• Make profit of rule 8.5
• Allows optimization based on path selectivity
• When applying un-nesting follow operation Fµ

32

• Fµ(A) Fµ(B)Fµ (B)Fµ (A)
• True When
• Exist C / C ltA C lt B
• C AnB
• Or AnB -
• Interchangeability of Follow operation

33
Application of 8.5 With Invoice

• Fµ(acc_Numinvoice)Fµ(carrierinvoice)
• ?
• Fµ(carrierinvoice)Fµ(acc_Numinvoice)
• Both Share the common prefix invoice
• Case AnB invoice

34
Benefit of Rule Application

• Note if
• acc_Num required for each invoice Element
• carrier is not required for invoice Element
• Then using
• Fµ(acc_Numinvoice)Fµ(acc_Numcustomer)
• make more sense than Why?

35

• Reduction of Input Size on the first
• Sub-operation
• Fµ(carrierinvoice)
• Should we or can we apply the 8.5 below?
• Fµ(acc_Numinvoice)Fµ(acc_NumCustomer)
• Why?

36

• acc_Numinvoice and
• acc_NumCustomer are totally different path
• Case is AnB - Then yes

37
Rule 8.7 , 8.9 , 8.11 Interesting Helps identify

• When and where to use selection ?
• to decrease size of input operation to subsequent
  operation
• Example Algebra tree slide 28
• Selected before join.

38
Addition would be

• Give computation for finding when rule can be
  applied automatically in a case and then apply
  it.

39

• ATT Algebra

40
(No Transcript)
41
ATT Algebra Introduction

• The algebra is derived from the nested relational
  algebra.
• ATT algebra makes heavy use of list
  comprehensions, a standard notation in the
  function programming community.
• ATT algebra uses the functional programming
  language Haskell as a notation from presenting
  the algebra.

42
ATT data model

• The data model merges attribute and element
  nodes, and eliminates comments.
• Declare Basic Type Node.
• Text String -gtnode
• elem Tag -gt Node -gtnode
• ref Node -gtNode

elem bib elem book elem _at_year
text 1999 , elem title text Data on
the web

• ltbibgt
• ltbook year1999gt
• lttitlegt Data on the Weblt/titlegt
• ltyeargt 1999lt/yeargt
• lt/bookgt
• lt/bibgt

43
Basic Type Declarations

• To find the type of a node,
• isText Node -gt Bool
• isElem Node -gt Bool
• isRef Node -gt Bool
• For a text node, string Node -gt String
• For an element node,
• 1)tag Node -gt Tag
• 2)children Node -gt Node
• For a reference node,
• dereference Node -gt Node

44
Nested relational algebra

• In the nested relational approach, data is
  composed of tuples and lists.
• Tuple values and tuple types are written in round
  brackets.
• (1999,"Data on theWeb","Abiteboul")
  (Int,String,String)
• Decompose values
• year (Int,String,String)
• year (x,y,l) x

45
Nested relational algebra

• Comprehensions List comprehensions can be used
  to express fundamental query operations,
  navigation, cartesian product, nesting, joins.
• Example value x
• x lt- children book0, is "author" x
• gt "Abiteboul"
• Normal expression exp qual1,...,qualn
• bool-exp
• pat lt- list-exp

46
Nested relational algebra

• Using comprehensions to write queries.
• Navigate
• follow Tag -gt Node -gt Node
• follow t x y y lt- children x, is t y
• Cartesian product
• (value y, value z)
• x lt- follow "book" bib0,
• y lt- follow "title" x,
• z lt- follow "author" x
• gt ("Data on the Web", "Abiteboul")

47
Nested relational algebra

• Joins.

• elem "reviews"
• elem "book"
• elem "title" text"Data on the Web" ,
• elem "review" text "This is great!"

(value y, int (value z), value w) x lt- follow
"book" bib0, y lt- follow "title" x, z lt- follow
"_at_year" x, u lt- follow "book" reviews0, v lt-
follow "title" u, w lt- follow _at_year" u, y v
gt ("Data on the Web", 1999, "This is
great!")
elem bib elem book elem _at_year text
1999 , elem title text Data on the
web
48
Nested relational algebra

• Regular expression matching

( (x,y,u) x lt- item "_at_year", y lt- item
"title", u lt- rep (item "author") )
Reg (Node,Node,Node )
Match Reg a -gt Node-gt a
Result
match reg0 book0 gt (elem "_at_year" text
"1999", elem "title" text "Data on the
Web", elem "author" text "Abiteboul",
elem "author" text "Buneman", elem "author"
text "Suciu" )
49
Nested relational algebra

• Sorting.
• sortBy (a -gt a -gt Bool) -gt a -gt a
• sortBy (lt) 3,1,2,1 gt 1,1,2,3
• Grouping
• groupBy (a -gt a -gt Bool) -gt a -gt a
• groupBy () 3,1,2,1 2,1,1,3

50
Cross Comparisons of Algebra

• Niagara and ATT standalone XML algebras
• Niagara proposed after W3C had selected proposed
  standard
• and has operators which operate on sets of
  bags
• AtT algebra chosen as proposed standard by W3C
• -- expressions resemble high level query
  language
• -- latest version of document referred to as
• Semantics of XML Query Language XQuery

51
Future Work

• Need more different evaluation strategies which
  would allow for flexible query plans
• Develop physical operators that take advantage of
• physical storage structures and generate
  mapping from
• query tree to a physical query plan
