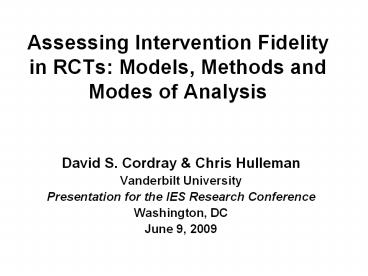

Assessing Intervention Fidelity in RCTs: Models, Methods and Modes of Analysis

1
Assessing Intervention Fidelity in RCTs Models,
Methods and Modes of Analysis

• David S. Cordray Chris Hulleman
• Vanderbilt University
• Presentation for the IES Research Conference
• Washington, DC
• June 9, 2009

2
Overview

• Fidelity and Achieved Relative Strength
• Definitions, distinctions and illustrations
• Conceptual foundation for assessing fidelity in
  RCTs
• Achieved relative strength, a special case in
  RCTs
• Modes of analysis
• Approaches and challenges
• Chris Hulleman -- Assessing implementation
  fidelity and achieved relative strength indices
  The single core component case
• Questions and discussion

3
Distinguishing Implementation Assessment from the
Assessment of Implementation Fidelity

• Two ends on a continuum of intervention
  implementation/fidelity
• A purely descriptive model
• Answering the question What transpired as the
  intervention was put in place (implemented).
• Based on a priori intervention model, with
  explicit expectations about implementation of
  program components
• Fidelity is the extent to which the realized
  intervention (tTx) is faithful to the pre-stated
  intervention model (TTx )
• Infidelity TTx tTx
• Most implementation fidelity assessments involve
  descriptive and model-based approaches.

4
Dimensions Intervention Fidelity

• Aside from agreement at the extremes, little
  consensus on what is meant by the term
  intervention fidelity.
• Most frequent definitions
• True Fidelity Adherence or compliance
• Program components are delivered/used/received,
  as prescribed
• With a stated criteria for success or full
  adherence
• The specification of these criteria is relatively
  rare
• Intervention Exposure
• Amount of program content, processes, activities
  delivered/received by all participants (aka,
  receipt, responsiveness)
• This notion is most prevalent
• Intervention Differentiation
• The unique features of the intervention are
  distinguishable from other programs, including
  the control condition
• A unique application within RCTs

5
Linking Intervention Fidelity Assessment to
Contemporary Models of Causality

• Rubins Causal Model
• True causal effect of X is (YiTx YiC)
• RCT methodology is the best approximation to this
  true effect
• In RCTs, the difference between conditions, on
  average, is the causal effect
• Fidelity assessment within RCTs entails examining
  the difference between causal components in the
  intervention and control conditions.
• Differencing causal conditions can be
  characterized as achieved relative strength of
  the contrast.
• Achieved Relative Strength (ARS) tTx tC
• ARS is a default index of fidelity

6
Expected Relative Strength (0.40-0.15) 0.25
7
Why is this Important?

• Statistical Conclusion validity
• Unreliability of Treatment Implementation
  Variations across participants in the delivery
  receipt of the causal variable (e.g., treatment).
  Increases error and reduces the size of the
  effect decreases chances of detecting
  covariation.
• Resulting in a reduction in statistical power or
  the need for a larger study.

8
The Effects Structural Infidelity on Power
.60
.80
1.0
Fidelity
9
Influence of Infidelity on Study-size
1.0
.80
.60
Fidelity
10
If That Isnt Enough.

• Construct Validity
• Which is the cause? (TTx - TC) or (tTx tC)
• Poor implementation essential elements of the
  treatment are incompletely implemented.
• Contamination The essential elements of the
  treatment group are found in the control
  condition (to varying degrees).
• Pre-existing similarities between T and C on
  intervention components.
• External validity generalization is about (tTx
  - tC)
• This difference needs to be known for proper
  generalization and future specification of the
  intervention components

11
So what is the cause? The achieved relative
difference in conditions across components
12
TTX TTx
.45 .40 .35 .30 .25 .20 .15 .10 .05 .00
Intervention Exposure
Positive Infidelity
100 90 85 80 75 70 65 60 55 50
True Fidelity
Intervention Differentiation
Achieved Relative Strength .15
TC
Tx Contamination Augmentation of C Intervention
Exposure
Treatment Strength
Outcome
Review Concepts and Definitions
13
Some Sources and Types of Infidelity

• If delivery or receipt could be dichotomized (yes
  or no)
• Simple fidelity involves compliers
• Simple infidelity involves No shows and
  cross-overs.
• Structural flaws in implementing the
  intervention
• Missing or incomplete resources, processes
• External constraints (e.g. snow days)
• Incomplete delivery of core intervention
  components
• Implementer failures or incomplete delivery

14
A Tutoring Program Variation in Exposure
4-5 tutoring sessions per week, 25 minutes each,
11weeks Expectations 44-55 sessions
Random Assignment of Students
Time ?
Cycle 1 47.7 16-56
Cycle 2 33.1 12-42
Cycle 3 31.6 16-44
Average Sessions Delivered Range
15
Variation in Exposure Tutor Effects
The other fidelity question How faithful to the
tutoring model is each tutor?
16
In Practice.

• Identify core components in the intervention
  group
• e.g., via a Model of Change
• Establish bench marks (if possible) for TTX and
  TC
• Measure core components to derive tTx and tC
• e.g., via a Logic model based on Model of
  Change
• Measurement (deriving indicators)
• Converted to Achieved Relative Strength and
  implementation fidelity scales
• Incorporated into the analysis of effects

17
What do we measure?

• What are the options?
• (1) Essential or core components (activities,
  processes)
• (2) Necessary, but not unique, activities,
  processes and structures (supporting the
  essential components of T) and
• (3) Ordinary features of the setting (shared
  with the control group)
• Focus on 1 and 2.

18
Fidelity Assessment Starts With a Model or
Framework for the Intervention
From Gamse et al. 2008
19
Core Reading Components for Local Reading First
Programs
Design and Implementation of Research-Based
Reading Programs
Use of research-based reading programs,
instructional materials, and assessment, as
articulated in the LEA/school application
1)Teacher use of instructional strategies and
content based on five essential components of
reading instruction 2) Use of assessments to
diagnose student needs and measure progress 3)
Classroom organization and supplemental services
and materials that support five essential
components
Teacher professional development in the use of
materials and instructional approaches
After Gamse et al. 2008
20
From Major Components to Indicators
Indicators
Major Components
Sub-components
Facets
Scheduled block?
Block
Instructional Time
Actual Time
Reported time
Instructional Material
Reading Instruction
Instructional Activities/Strategies
Support for Struggling Readers
Assessment
Professional Development
21
Reading First Implementation Specifying
Components and Operationalization
Components Sub-components Facets Indicators (I/F)
Reading Instruction Instructional Time 2 2 (1)
Reading Instruction Instructional Materials 4 12 (3)
Reading Instruction Instructional Activities /Strategies 8 28 (3.5)
Support for Struggling Readers (SR) Intervention Services 3 12 (4)
Support for Struggling Readers (SR) Supports for Struggling Readers 2 16 (8)
Support for Struggling Readers (SR) Supports for ELL/SPED 2 5 (2.5)
Assessment Selection/Interpretation 5 12 (2.4)
Assessment Types of Assessment 3 9 (3)
Assessment Use by Teachers 1 7 (7)
Professional development Improved Reading Instruction 11 67 (6.1)
4 10 41 170 (4)
Adapted from Moss et al. 2008
22
Reading First Implementation Some Results
Components Sub-components Performance Levels Performance Levels ARSI (U3)
Components Sub-components RF Non-RF ARSI (U3)
Reading Instruction Instructional Time (minutes) 101 78 0.33 (63)
Reading Instruction Support 79 58 0.50 (69)
Struggling Readers More Tx, Time, Supplemental Service 83 74 0.20 (58)
Professional Development Hours of PD 41.5 17.6 0.42 (66)
Professional Development Five reading dimensions 86 62 0.55 (71)
Assessment Grouping, progress, needs 84 71 0.32 (63)
0.39 (65)
Adapted from Moss et al. 2008
23
So What Do I Do With All This Data?

• Start with
• Scale construction, aggregation over facets,
  sub-components, components
• Use as
• Descriptive analyses
• Explanatory (AKA exploratory) analyses
• There are a lot of options
• In this section we describe a hierarchy of
  analyses, higher to lower levels of causal
  inference
• Caveat Except for descriptive analyses, most
  approaches are relative new and not fully tested.

24
Hierarchy of Approaches to Analysis

• ITT (Intent-to-treat) estimates (e.g., ES) plus
• an index of true fidelity
• ES.50 Fidelity 96
• an index of Achieved Relative Strength (ARS).
• Hullemans initial analysis ES0.45, ARS0.92.
• LATE (Local Average Treatment Effect)
• If treatment receipt/delivery can be meaningfully
  dichotomized and there is experimentally induced
  receipt or non-receipt of treatment
• adjust ITT estimate by T and C treatment receipt
  rates.
• Simple model can be extended to an Instrumental
  Variable Analysis (see Blooms 2005 book).
• ITT retains causal status LATE can approximate
  causal statements.

25
More on Fidelity to Outcome Linkages

• TOT (Treatment-on-Treated)
• Simple ITT estimate adjusted for compliance rate
  in Tx, no randomization.
• Two-level linear production function, modeling
  the effects of implementation factors in Tx and
  modeling factors affecting C in separate Level 2
  equations.
• Regression-based model, exchanging implementation
  fidelity scales for treatment exposure variable.


26
Descriptive Analyses

• Fidelity is often examined in the intervention
  group, only.
• Dose-response relationship
• Partition intervention sites into high and
  low implementation fidelity
• My review of some ATOD prevention studies, the
• ESHIGH 0.13 to 0.18
• ESLOW 0.00 to 0.03

27
Some Challenges

• Interventions are rarely clear
• Measurement involves novel constructs
• How should components be weighted? If at all.
• Fidelity assessment occurs at multiple levels
• Fidelity indicators are used in 2nd and 3rd
  levels of HLM models, few degrees of freedom
• There is uncertainty about the psychometric
  properties of fidelity indicators and
• Functional form of fidelity and outcome measures
  is not always known.
• But, despite these challenges, Chris Hulleman has
  a dandy example

28
Assessing Implementation Fidelity in the Lab and
in Classrooms The Case of a Motivation
Intervention
29
The Theory of Change
INTEREST
PERCEIVED UTILITY VALUE
MANIPULATED RELEVANCE
PERFORMANCE
Model Adapted from Eccles et al. (1983)
Hulleman et al. (2009)
30
Methods(Hulleman Cordray, 2009)
Laboratory Classroom
Sample N 107 undergraduates N 182 ninth-graders 13 classes 8 teachers 3 high schools
Task Mental Multiplication Technique Biology, Physical Science, Physics
Treatment manipulation Write about how the mental math technique is relevant to your life. Pick a topic from science class and write about how it relates to your life.
Control manipulation Write a description of a picture from the learning notebook. Pick a topic from science class and write a summary of what you have learned.
Number of manipulations 1 2 8
Length of Study 1 hour 1 semester
Dependent Variable Perceived Utility Value Perceived Utility Value
31
Motivational Outcome
?
g 0.05 (p .67)
32
Fidelity Measurement and Achieved Relative
Strength

• Simple intervention one core component
• Intervention fidelity
• Exposure quality of participant responsiveness
• Rated on scale from 0 (none) to 3 (high)
• 2 independent raters, 88 agreement

33
Exposure
  Laboratory Laboratory Laboratory Laboratory Classroom Classroom Classroom Classroom
  C C Tx Tx C C Tx Tx
Quality of Responsiveness N N N N
0 47 100 7 11 86 96 38 41
1 0 0 15 24 4 4 40 43
2 0 0 29 46 0 0 14 15
3 0 0 12 19 0 0 0 0
Total 47 100 63 100 90 100 92 100
Mean 0.00 0.00 1.73 1.73 0.04 0.04 0.74 0.74
SD 0.00 0.00 0.90 0.90 0.21 0.21 0.71 0.71
34
Indexing Fidelity

• Absolute
• Compare observed fidelity (tTx) to absolute or
  maximum level of fidelity (TTx)
• Average
• Mean levels of observed fidelity (tTx)
• Binary
• Yes/No treatment receipt based on fidelity scores
• Requires selection of cut-off value

35
Fidelity Indices
Conceptual Laboratory Classroom
Absolute Tx
C
Average Tx 1.73 0.74
C 0.00 0.04
Binary Tx
C
36
Indexing Fidelity as Achieved Relative Strength

• Intervention Strength Treatment Control
• Achieved Relative Strength (ARS) Index
• Standardized difference in fidelity index across
  Tx and C
• Based on Hedges g (Hedges, 2007)
• Corrected for clustering in the classroom (ICCs
  from .01 to .08)
• See Hulleman Cordray (2009)

37
Average ARS Index
Group Difference
Sample Size Adjustment
Clustering Adjustment

• Where,
• mean for group 1 (tTx )
• mean for group 2 (tC)
• ST pooled within groups standard deviation
• nTx treatment sample size
• nC control sample size
• n average cluster size
• p Intra-class correlation (ICC)
• N total sample size

38
Absolute and Binary ARS Indices
Group Difference
Sample Size Adjustment
Clustering Adjustment

• Where,
• pTx proportion for the treatment group (tTx )
• pC proportion for the control group (tC)
• nTx treatment sample size
• nC control sample size
• n average cluster size
• p Intra-class correlation (ICC)
• N total sample size

39
Average ARS Index
Treatment Strength
100 66 33 0
3 2 1 0
TTx
Infidelity
t tx
(0.74)-(0.04) 0.70
tC
Infidelity
TC
40
Achieved Relative Strength Indices
Observed Fidelity Observed Fidelity Lab vs. Class Contrasts
Lab Class Lab - Class
Absolute Tx 0.58 0.25
C 0.00 0.01
g 1.72 0.80 0.92
Average Tx 1.73 0.74
C 0.00 0.04
g 2.52 1.32 1.20
Binary Tx 0.65 0.15
C 0.00 0.00
g 1.88 0.80 1.08
41
Linking Achieved Relative Strength to Outcomes
42
Sources of Infidelity in the Classroom

• Student behaviors were nested within teacher
  behaviors
• Teacher dosage
• Frequency of student exposure
• Student and teacher behaviors were used to
  predict treatment fidelity (i.e., quality of
  responsiveness/exposure).

43
Sources of Infidelity Multi-level Analyses

• Part I Baseline Analyses
• Identified the amount of residual variability in
  fidelity due to students and teachers.
• Du to missing data, we estimated a 2-level model
  (153 students, 6 teachers)
• Student Yij b0j b1j(TREATMENT)ij rij,
• Teacher b0j ?00 u0j,
• b1j ?10 u10j

44
Sources of Infidelity Multi-level Analyses

• Part II Explanatory Analyses
• Predicted residual variability in fidelity
  (quality of responsiveness) with frequency of
  responsiveness and teacher dosage
• Student Yij b0j b1(TREATMENT)ij
• b2(RESPONSE FREQUENCY)ij rij
• Teacher b0j ?00 u0j
• b1j ?10 b10(TEACHER DOSAGE)j u10j
• b2j ?20 b20(TEACHER DOSAGE)j u20j

45
Sources of Infidelity Multi-level Analyses
Baseline Model Baseline Model Explanatory Model Explanatory Model
Variance Component Residual Variance of Total Variance Reduction
Level 1 (Student) 0.15437 52 0.15346 lt 1
Level 2 (Teacher) 0.13971 48 0.04924 65
Total 0.29408 0.20270
p lt .001.
46
Case Summary

• The motivational intervention was more effective
  in the lab (g 0.45) than field (g 0.05).
• Using 3 indices of fidelity and, in turn,
  achieved relative treatment strength, revealed
  that
• Classroom fidelity lt Lab fidelity
• Achieved relative strength was about 1 SD less in
  the classroom than the laboratory
• Differences in achieved relative strength
  differences motivational outcome, especially in
  the lab.
• Sources of fidelity teacher (not student) factors

47
Key Points and Issues

• Identifying and measuring, at a minimum, should
  include model-based core and necessary components
• Collaborations among researchers and
  practitioners (e.g., developers and implementers)
  is essential for specifying
• Intervention models
• Core and essential components
• Benchmarks for TTx (e.g., an educationally
  meaningful dose what level of X is needed to
  instigate change)
• Tolerable adaptation

48
Key Points and Issues

• Fidelity assessment serves two roles
• Average causal difference between conditions and
• Using fidelity measures to assess the effects of
  variation in implementation on outcomes.
• Post-experimental (re)specification of the
  intervention

49
Thank You Questions and Discussion
